500 BPH chicken scalding and plucking machine for small slaughtering house

Product Application

Operation technical datas of Chicken scalding and feather plucking machine

1. chicken/duck/turky can Directly put into machine for scalding after blood

2. you can put 10-20 chickens one time

3. chicken Scalding time about 20 seconds.

4. Chicken plucking time about 28 seconds.

4. for chicken scalding, the water temperature control between 62°C-68°C.

5. heating method is electric heating, gas heating and steam heating, depend on your requirements.

Main Features

Introduction of Chicken scalding and feather plucking machine

1. this chicken plucker machine can also used for duck, goose, turky and quails

2. heating system can be electric and gas. clients choose the way which is most cheap for them

3. chicken slaughtering and scalding machine are made of food grade stainless steel, if you want to reduce your cost,

4. this chicken plucker machine only have function of scalding, usually it will be matched with same capacity chicken plucking machine

5. this machine have the advantage of labor saved, cheap cost and small land occupation

6. this product line normal working speed is 300-500 pieces chicken per hour. it is very suitable for small scale chicken slaughtering process.

Machine Parts

Name: Rubber fingers of plucker

Brand: HAOZE

Original:China

Made of domestic natural rubber series and imported tobacco sheet series composite materials, it has high wear resistance, excellent elasticity and is not easy to break. It is suitable for customers with the highest product requirements.

Machine Parts

Name: Disc of  plucking machine
Brand: HAOZE
Original: China

the surface of birds without damage, high hair removal rate, low rate of broken head.

Machine Parts

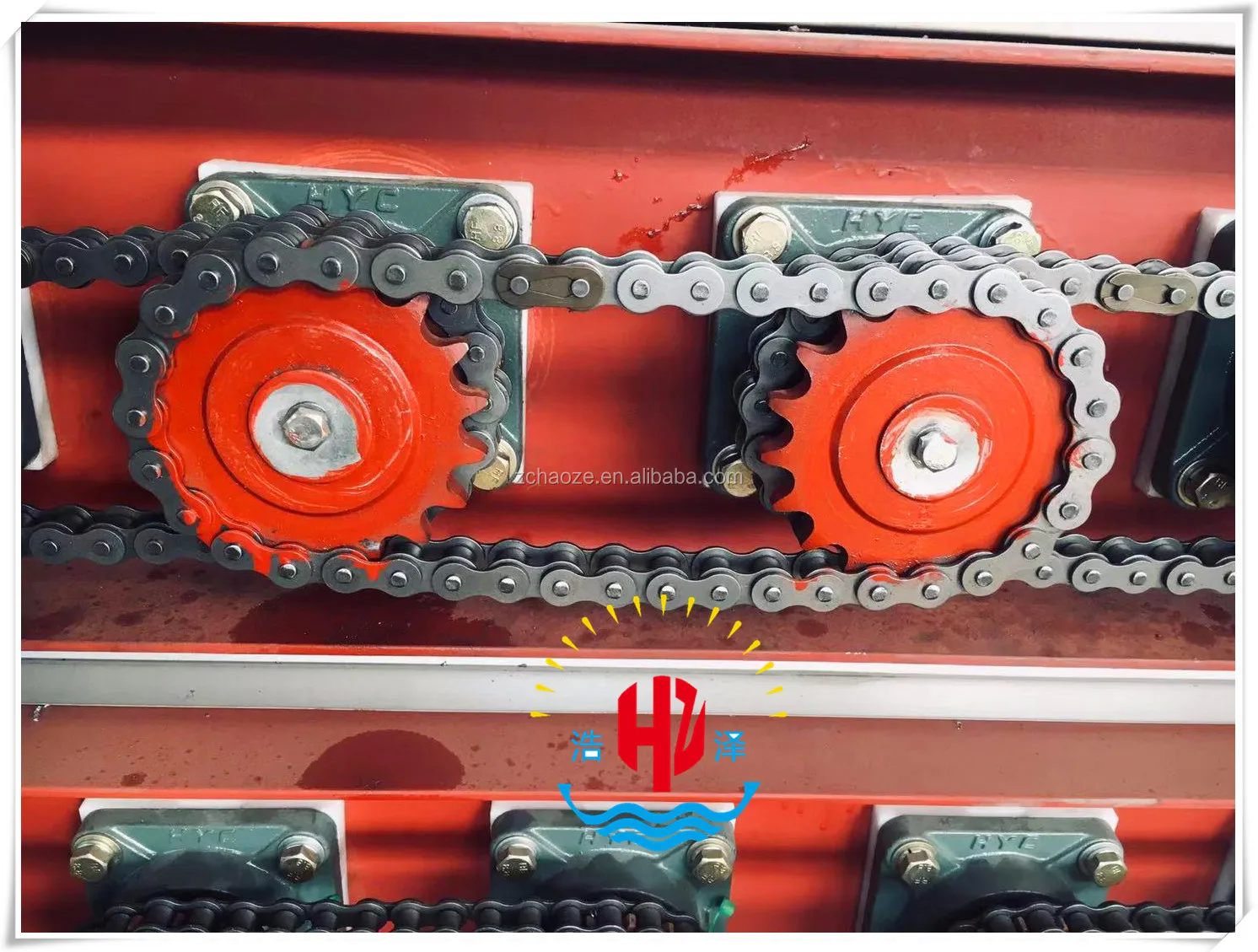

Name: Plucker chain
Brand: HAOZE
Original: China
Using mechanical transmission, relying on the relative friction between the bird and the rubber rod, the bird feathers are removed.

Machine Parts

Name: Motor of  plucking machine
Brand: HAOZE
Original: China

The power transmission mechanism is mainly composed of a box body, a motor, a belt, a pulley, a bearing chamber, a punching disc, etc., and the main function is to drive the depilation disc to make a rotary motion.

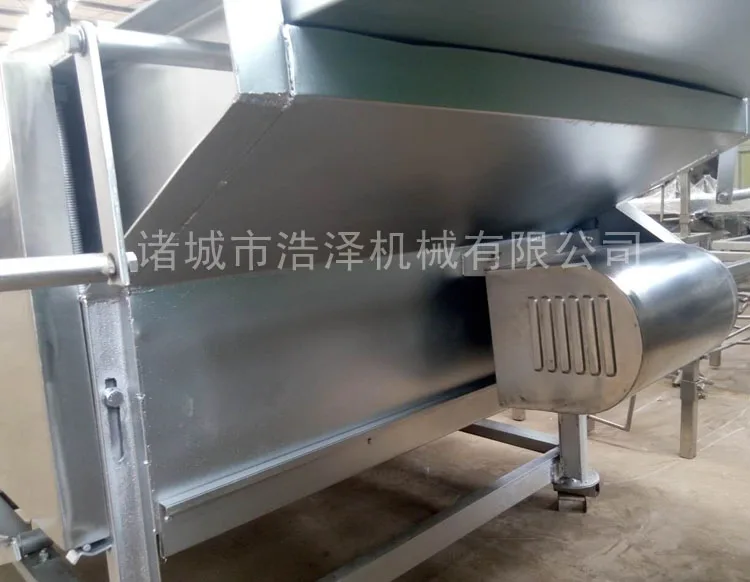

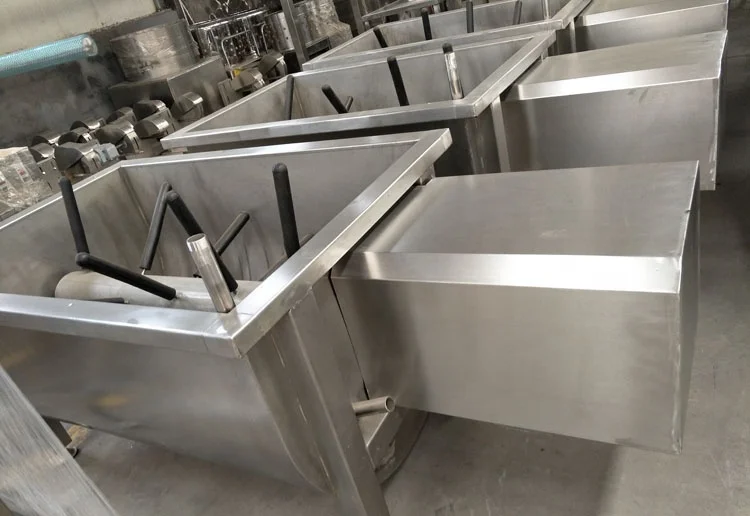

Scalding machine : before plucking the feather, to scald the chicken body ,make the plucking easily . with capacity below 500 BPH

Scalding machine : before plucking the feather, to scald the chicken body ,make the plucking easily. used in the slaughtering line of capacity from 2000-12000 BPH

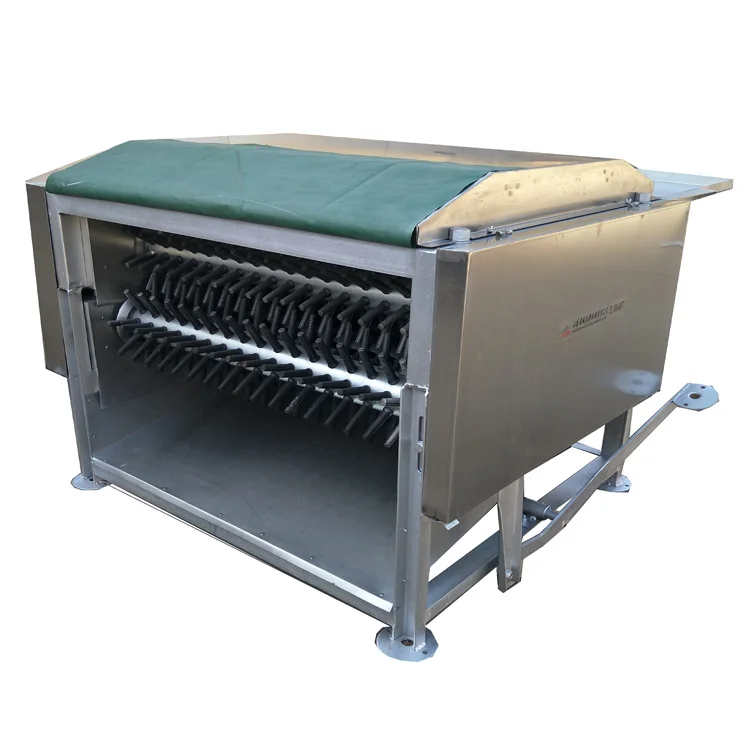

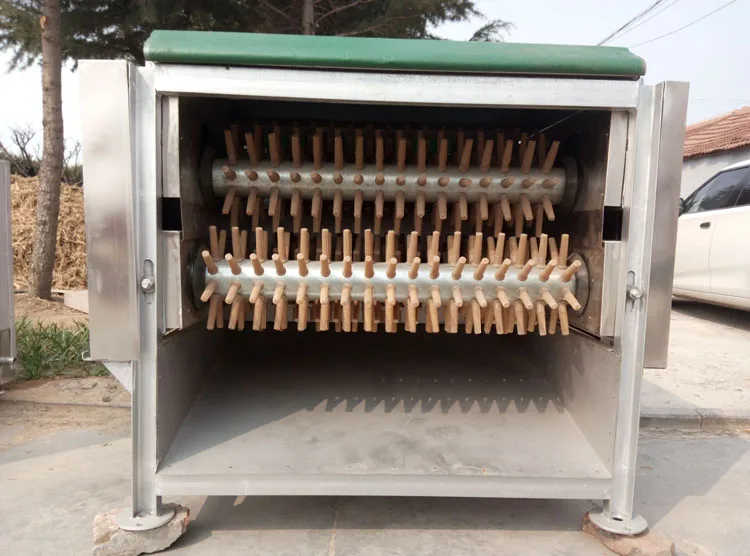

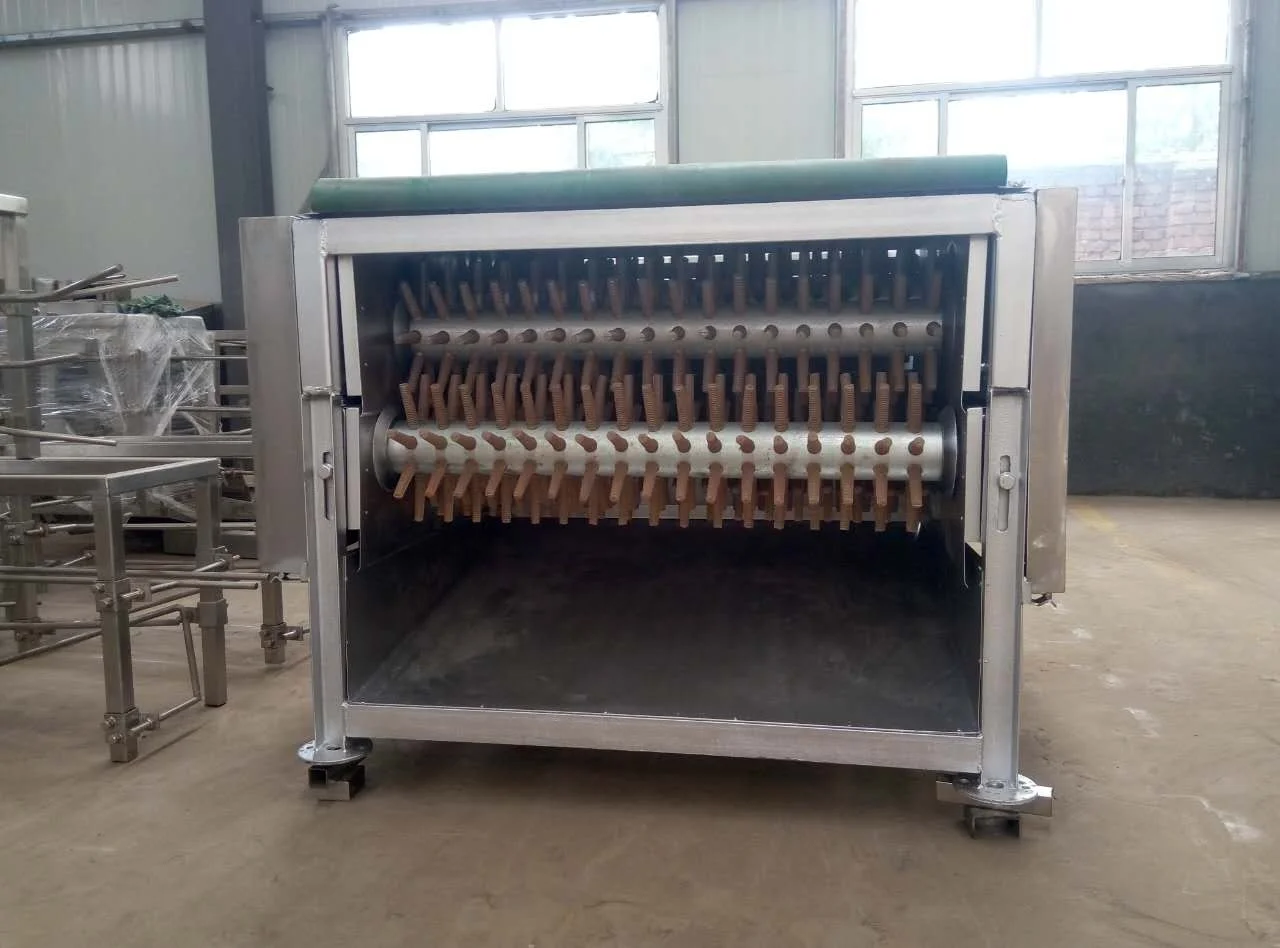

Horizental plucking machine: to pluck  500 -2000 chickens per hour

Horizental plucking machine: to pluck more than 2000 chickens per hour
