SCM plastic film 8 color rotogravure printing machine paper gravure printing machine
-
Supplier: Jinhua City Shengchang Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Karen Zheng -
Price: $40000.00 /set -
Min. Order: 1 set
| Weight: | 36t; | Type: | Rotogravure Printing Machine; |
| Condition: | New; | Automatic Grade: | Automatic; |
| Payment Terms: | L/C,T/T; | Port: | Ningbo port,China; |
| Warranty: | 12 Months; | Condition: | New; |
| Brand Name: | SCM; | Print Material: | Paper,Plastic,aluminum foil and so on; |
| Dimensions(L*W*H): | 16800mm*3300mm*3400mm; | Voltage: | 380V 50Hz; |
| Certification: | ISO9001:2008, CE; | Gross Power: | 128kw; |
| Color & Page: | Multicolor; | Place of Origin: | Zhejiang China; |
| Type: | Rotogravure Printing Machine; | Supply Ability: | 6 Set/Sets per Month; |
| Usage: | Bill Printer,Card Printer,Cloths Printer,Label Printer,Paper Printer,Tube Printer; | After-sales Service Provided: | Engineers available to service machinery overseas; |

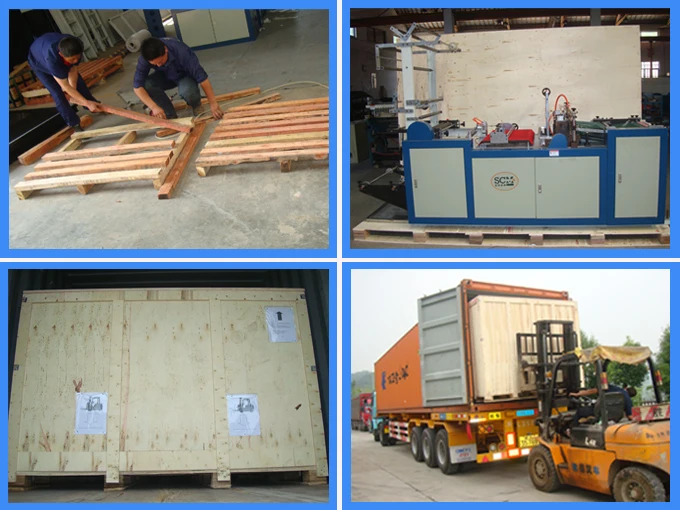

| Packaging Detail: | Packing: Stretch film or wooden case; |
SCM plastic film rotogravure printing machine,paper gravure printing machine
Shengchang Machinery
-------Innovation
-------Customization
-------Professional service
Our honor: we have obtained over 25 National patent certificates so far.

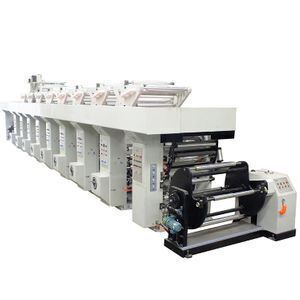

SCM-GYA High speed computerized rotogravure printing machine

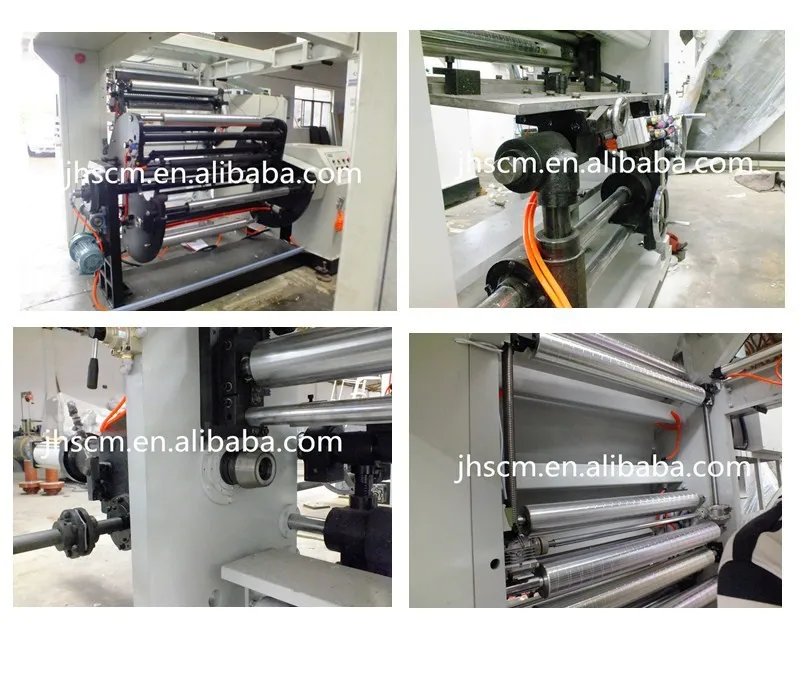

The details of machine:
(Optional device)

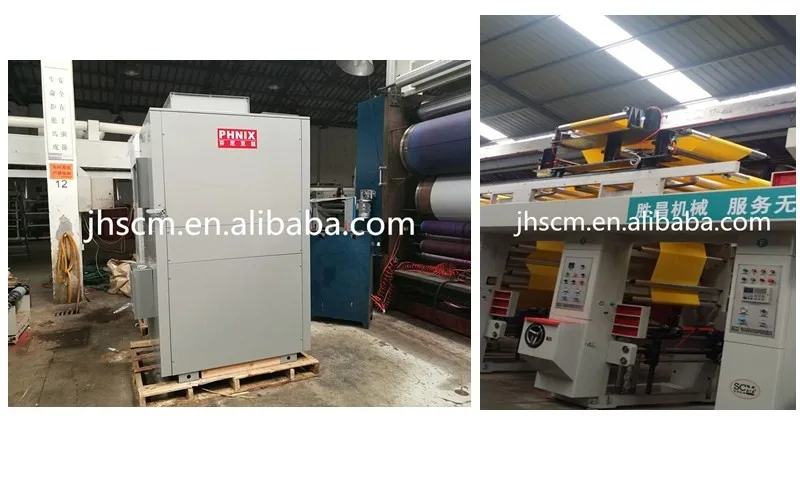

Air-source drying device(gas drying) double sides printing swing frame(removable)
Sample products:
Machine Introduction:
This printing machine is suitable for printing roll material,such as cellophane,BOPP,PET,PVC,PE,aluminum foil,wall paper,paper(30-300g)and so on. The machine can work continuously for printing multi-colors.
Technical Parameters
| Type | SCM-GYA650/1650 8colors(plastic) | SCM-GYA650/1650 8colors(paper) |
| Printing length | 360-1200mm(printing roll diameter120-360mm) | 360-3000mm(printing roll diameter120-950mm) |
| Printing width | 600mm-1600mm | 600mm-1600mm |
| Max.printing speed | 200m/min | 200m/min |
| Diameter of unwinding/rewinding | 600mm 800mm 1000mm | 600mm 800mm 1000mm |
| horizontal and vertical printing accuracy | ±0.1mm(horizontal manual,vertical auto) | ±0.1mm(horizontal manual,vertical auto) |
| Drying-oven lenth | 1450mm | 2000mm |
| Mode of heating | electric/diesel/air-source | electric/diesel/air-source |
| Main motor | 18.5kw | 22kw |
| Total power | 128kw | 168kw |
| Weight | 36000kg | 48000kg |
| Dimension(L*W*H) | (16800*3300*3400)mm(Excluding double-side printing frame) | (18800*3300*3400)mm(Excluding double-side printing frame) |
1.We start machine from mechanical chart by our R&D Deparment;
2.and discuss it to make it the best by our technology Department;
3.then our workshop would manufacture machinery according to chart strictly to insure the each step of machine is in high quality.
Jinhua Shengchang Machinery Co.,Ltd is an innovative and professional manufacturer of machinery,having more than 15 years manufacturing experience.
We obtained over 25 National patents.
Technological innovation is the strong driving force for Shengchang’s rapid growth. we lay emphasis on keeping R&D team,we customize machinery to provide the individual service.Our enterprise passed ISO9001:2008 quality system.
-
