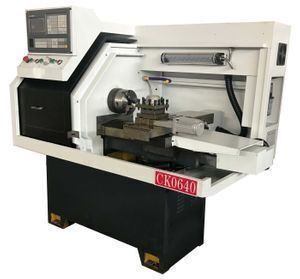

CK0640 Small cnc lathe with spindel bore 48mm
- 6180.00 set
| Automatic Grade: | Automatic; | Selling Units: | Single item; |
| Brand Name: | Morgen; | Power(W): | 3KW; |
| CNC or Not: | CNC; | Max. Swing Diameter: | 360mm; |
| Weight (KG): | 1000; | Certification: | ISO; |
| After-sales Service Provided: | Online support; | Dimension(L*W*H): | 2200x1200x1600 mm; |
| Max. Length of Workpiece (mm): | 300; | Max. Swing Diameter (mm): | 360; |
| Voltage: | 380V; | Package Type: | wooden box; |
| Model Number: | 0640; | Max. Spindle Speed (r.p.m): | 2600; |
| Condition: | New; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ; |
| Control system: | GSK CN; | Key Selling Points: | Flexible Manufacturing; |
| Single package size: | 220X120X160 cm; | Package Preview: | https://sc01.alicdn.com/kf/HTB1V_wBbcfrK1Rjy0Fmq6xhEXXaI.jpg_640x640.jpg; |
| Single gross weight: | 1,300 KG; | Weight: | 1300 kg; |
| Power (kW): | 3; | Warranty: | 1 Year; |
| Place of Origin: | Zhejiang China; | Year: | 2019; |
| Type: | Vertical; |
China small cnc lathe machine
CNC LATHE (MC-0640) (Economical)
Specification
| Max.swing dyameter overbed | Φ360 mm |
| Max.swing over carryage | Φ160 mm |
| Max.turning length | 300 mm |
| Width of bedways | 260 mm |
| Spindle nose | C6 |
| Spindle bore | Φ48 mm |
| Taper hole of spindle | MT6 |
| Spindle speed | 30--2600 r/min |
| Fastest speed of training piate X/Z | 6/8 m/min Servo |
| Repeat positioning precision | Z:0.013 X: 0.012 mm |
| Main motor power | 3kw kw |
| Machine dimension(LxBxH) | 2200x1200x1600 mm 2450x1200x1600 mm |

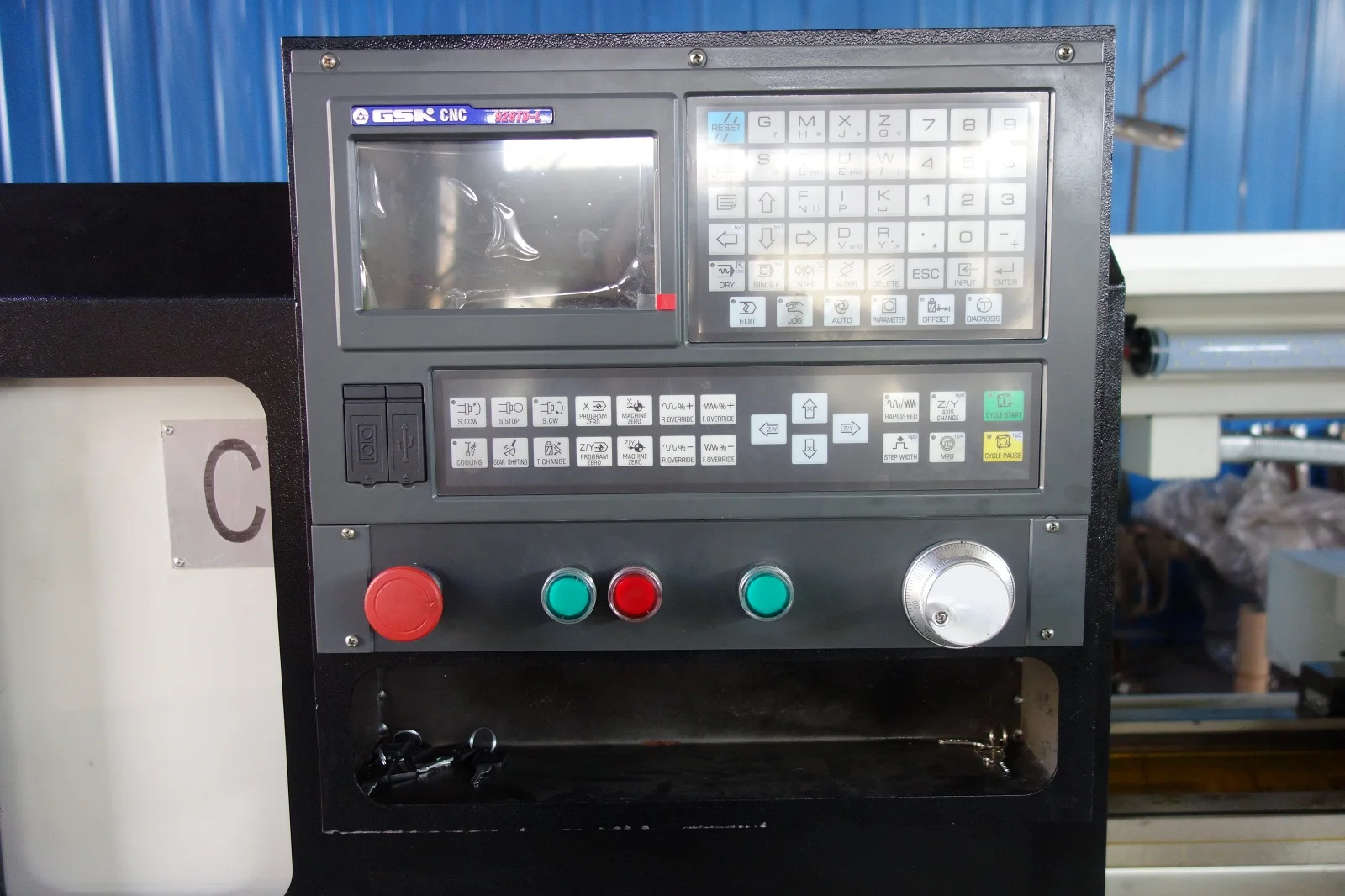

| Type of CNC controller | GSK |
| Compensation form | Auto compensation of cuttingtools and the reverse gap |
Q: How long is your delivery time?
A: Generally it is 15-25 days after receiving your payment. Of course, it also depends on your quantity.
Do you have stock for all items?
A: In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
What's your main products?
A: Our products are covered almost all garden machineries and construction machineries, we can meet your any demands.
Q: Do you provide samples ? is it free or extra ?
A: Yes, after 50% payment of the mould cost. After the confirm of the sample pay the other 50%.
Q: What is your terms of payment ?
A: T/T, L/C, Paypal, Western Union
If you have another question, pls feel free to contact us as below:
