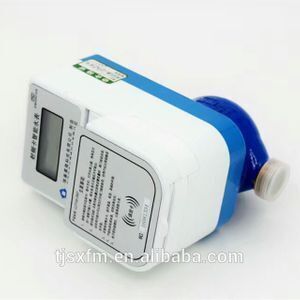

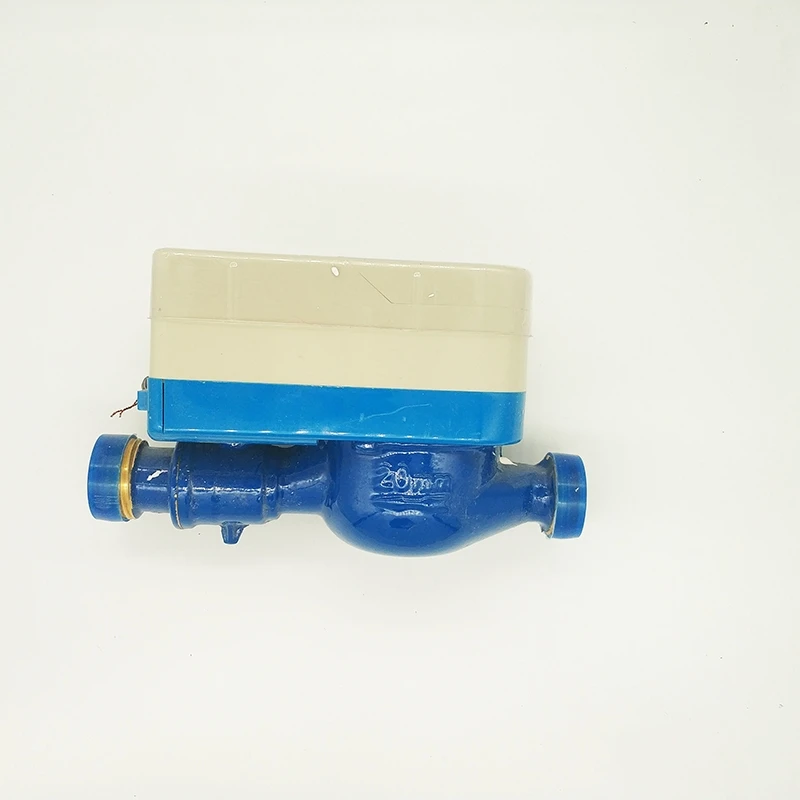

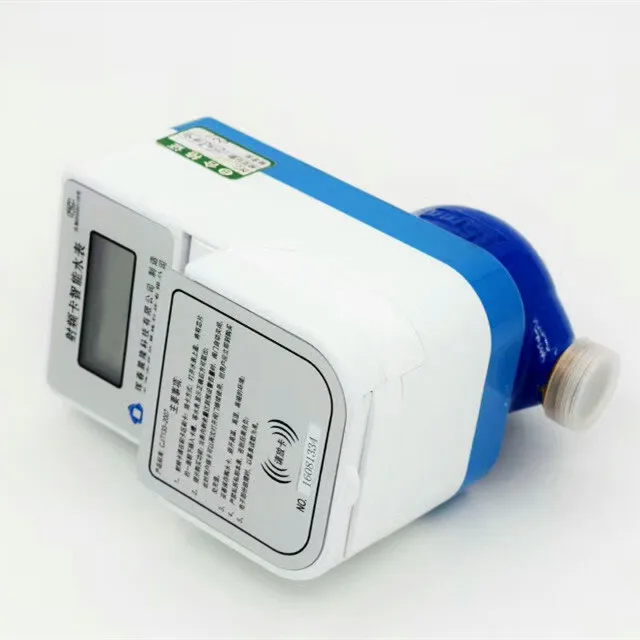

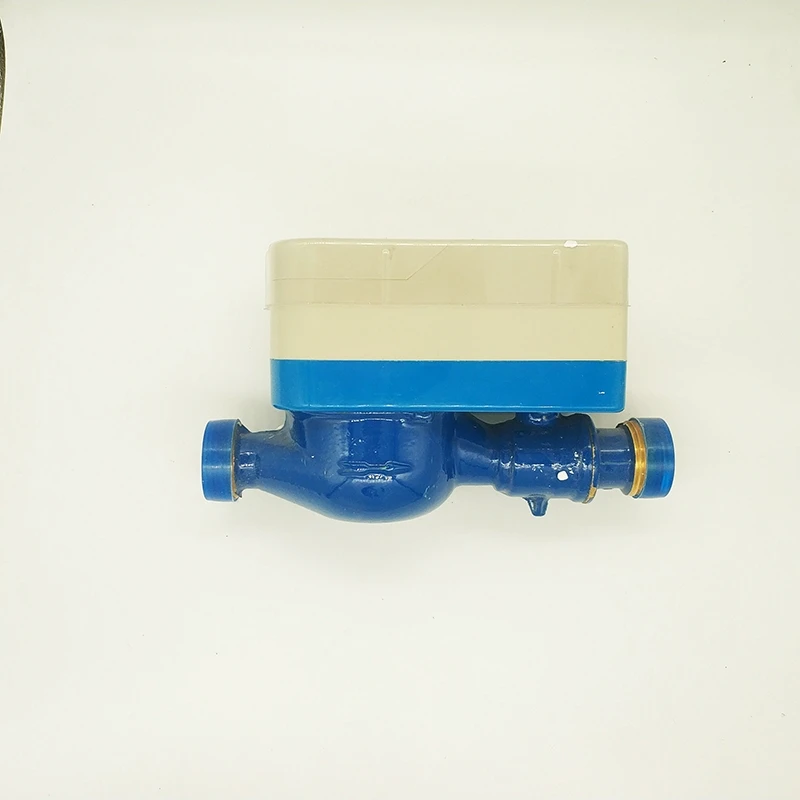

Smart Ic Card Digital Prepaid Water Meter With Software

Supplier: Tianjin Shouxun Valve Sales Co., Ltd.
Region: Tianjin, China
Contact: Ms. jennifer yan
Price: $6.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Application:	building industry machinery Building hospital hotel school;	colour:	blue;
Packaging Detail:	The wooden case or The cartons and container;	Place of Origin:	Zhejiang China;
Port:	tian jin;	Model Number:	LXSIC-15E~50E;
material:	IRON;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certificate:	ISO9001;	Name:	Dadio Frequency Card Water Meter;
Brand Name:	OEM;	Type:	Smart;

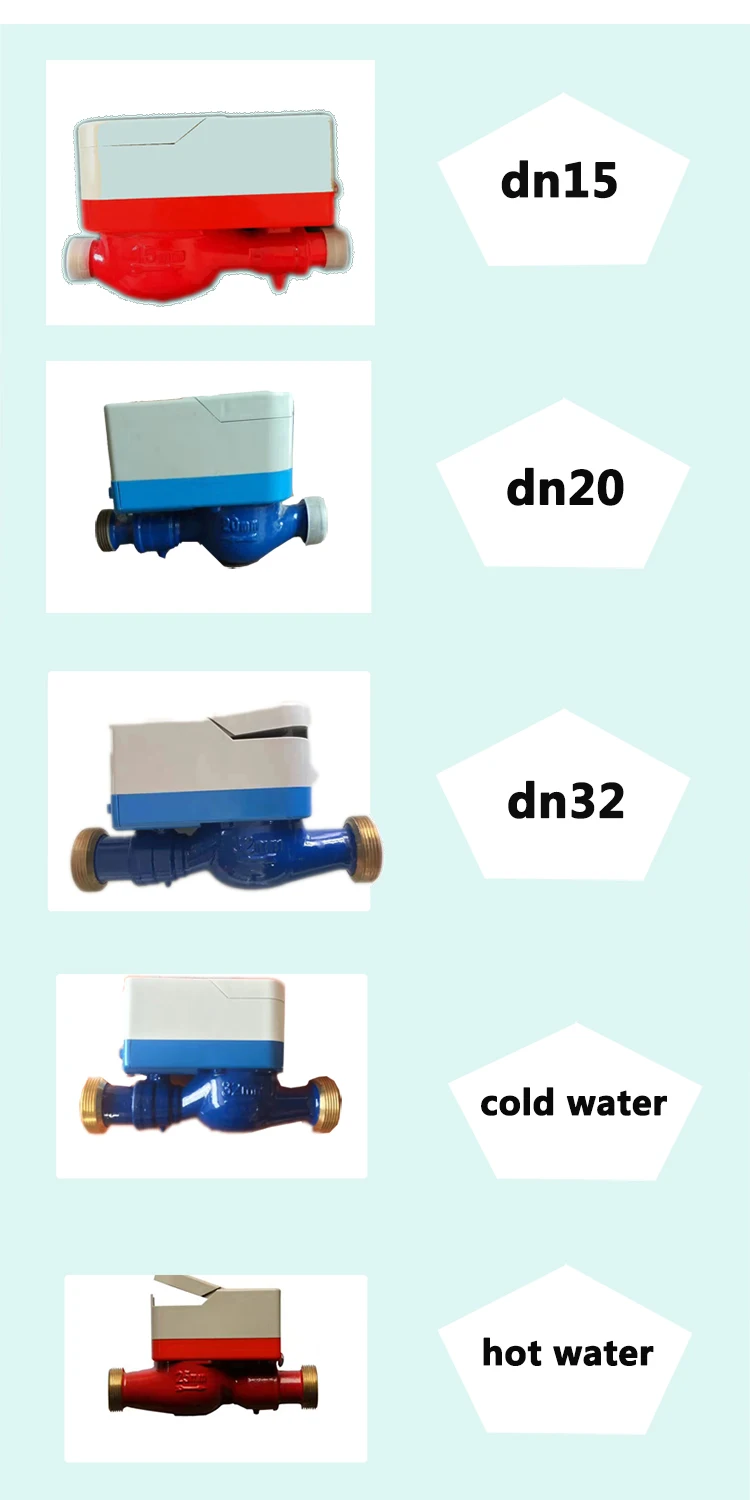

Size:	DN15-25;	Supply Ability:	5000 Piece/Pieces per Week products;
Standard:	ClassB;	pressure:	PN10 1Bar;

lxslc Dadio Frequency Card Water Meter

Product Description:

1.Nominal pressure:1.0Mpa

2.Working temperature:-0℃

3.Pipe thread conform to ISO 7(GB/T7306.2)

4.Woking Medium:Water

5.Accuracy class is B,sdandard CJ/T 133-2001 ic card cold water meter

6.Maximum permissible error

In the lower zone from qmin inclusive up to but excluding Qt is ±5%,

In the high zone from Qt inclusive up to and including QT is ±2%.

7.Supply voltage 3.6 lithium cell , service life <5Years

8. Flow parameter

Smart Ic Card Prepaid Water Meter

Use instruction:

1.The use this water meter meed go to the administratiom sectiom office open an account ,register ,and buy the corresponding amount of water user card, the first time ,the user card must be use

im the specified water meter,otherwise may result in unnnecessary loss.

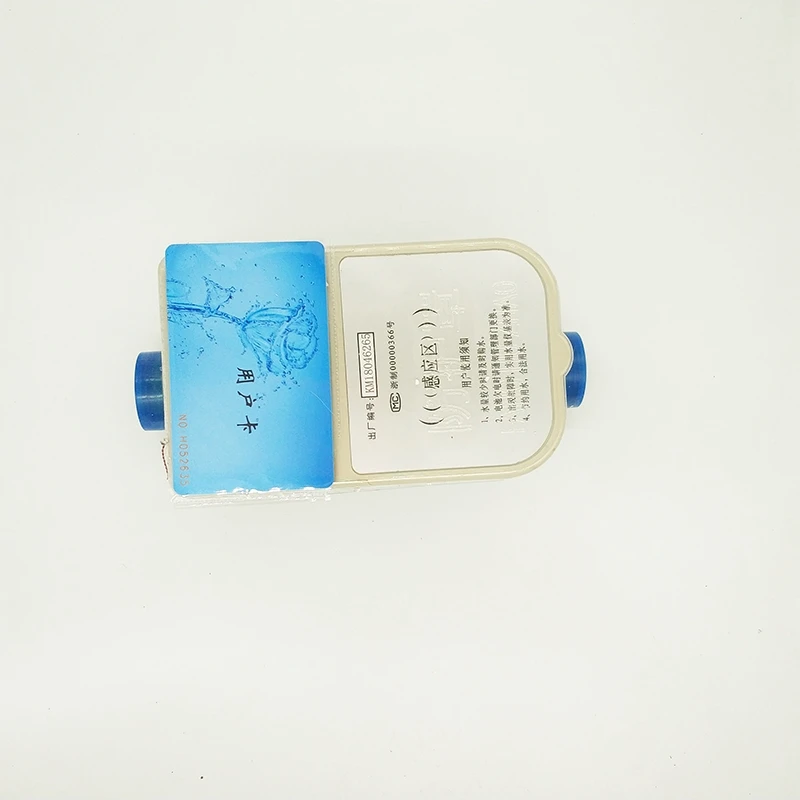

2.Take the radio frequency card mear the card reading area of water meter plastic body ,if hearing "D-" sound, it shows that the card reading is success ,meanwhile,the liquid-crystal display:err xxx" means maybe have problem,please adjust the card place ,try again,if there still have problem,please contact with the manage department.

3.When water meter sremain water less than the alarm level(Our company setting is 2.0m3),The valve will stop as alarm,Meanwhile display the marl please add money to the card ,After the user find the valve is stop ,he can open the valve through the xard,The water meter thought this method alarm user meek to add money:when the remain water reduce to zero ,The valve will stop automatically, User only can open the valve after add money to the card.

4.when the radio frequency card water meter has the brealdown as above instruction 2, the valve will stop ,only after clearing the breakdown,the valve can popen again.

5.if the user lost the card,need to go the management department terminal remale a card, on this water meter system,if the user find the lost card, the original card can use

nomial diameter	unit	max flowq	Nominal flowq	transitional flowq	min flowq
15	L/H	3000	1500	120	30
20	L/H	5000	2500	200	50
25	L/H	7000	3500	280	70

*Water temperature:-0℃

*water pressure:≤1MP

*In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

*In the upper zone from qt inclusive up to and including Qs is ±2%

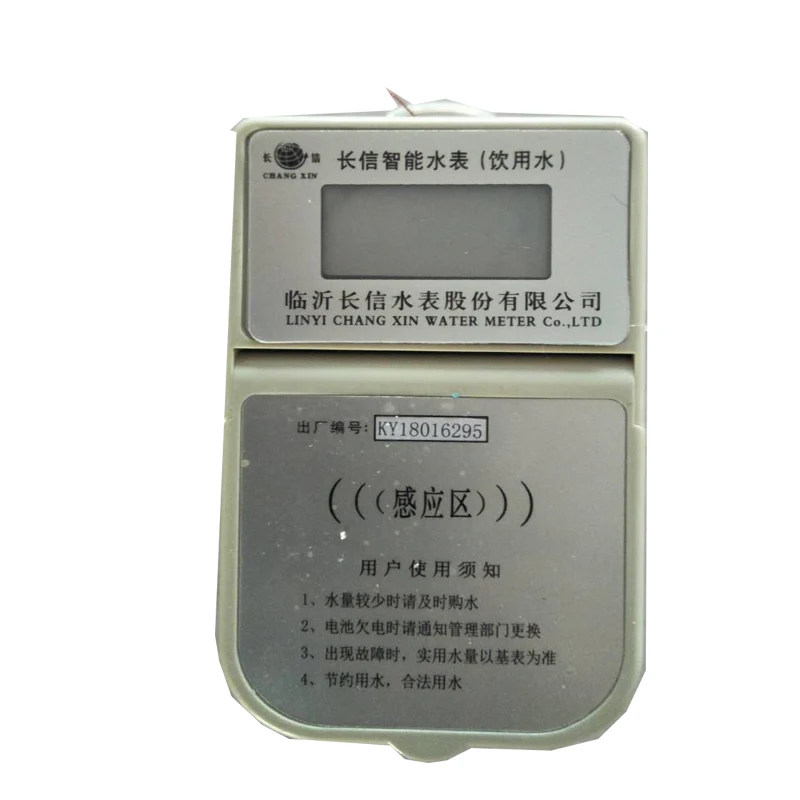

liquod crystal display explanation :

display sequence	display content	show pattern	auxiliary sign
1	surplus water	xxxxxxx.xm3	surplus sign+fault message

explanation 1:surplus ban show negative number

explanation 2:fault message contest

Battery voltage-lack voltage-lack sign

Flow sensor fault flow sign

Valve current state

Valve fault, show "valve open"

sign,valve closes show "valve close " signplease state when surplus less than alarm parmeter valvue,show "please charge"

Radio frequency card water meter Extermal Dimension and installation requirement:

1.Radio frequency card water meter Extermal Dimension

mominal diameter	unit	L	B	H	d
15	MM	195	85	115	G3/4
20	MM	195	85	115	G1
25	MM	225	119	100	G1-1/4

2.installation requirement:

(1)Please clear hemo thread, sandstone etc in the spurtrack ,to avoid blocking of the water meter

(2) All installation positions of the IC card oater meter parts should avoid insolation,flooding ,flooding,freeze/chemical and electromagnetic pollution.And it is easy to disassembly,assembly,record reading and swipe card.

(3) IC card requires horizontal installation,the arrowhead of the water meter is needed be identical with the flow direction.

To ensure the accuracy of the flow meter, requires 6-12times nominal diameter straight length baefore the water meter and 4-6 times nominal diameter straeght length after the water meter.

Water meter

FAQ

Q. what is your payment term?

A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q: what is your main market?

A:Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, North America, South America,

Q: How about your capacity?

A: SUNVAL equipped20 hot forging machine, 200 CNCS, 30 multi-rotary CNCs,120fitting automatic machining,12gate multi-rotary CNCs, and now we have 5 lean production lines in total.

Q: Can I get samples from your factory?

A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems.
