GPRS wireless valve control remote water meter

Supplier: Lianyungang Tengyue Electronic Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr. Alan Chan
Price: $28.50 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Certification:	ISO9001/ISO14001/OHSAS18001;	General use:	Residential/Commercial/Industial Water Metering;
Protection class:	IP68 for meter body, IP67 for dial counter;	Packaging Detail:	Cartons & wooden cases, strong seaworthy packaging for IoT wireless water metering solution lora water meter with stepped tariffs;
User manual:	Available;	Brand Name:	XINTENGYUE;
OEM/ODM:	Offered;	Factory location:	Lianyungang;
Maintenance:	Lifetime;	Supply Ability:	30000 Set/Sets per Month;
Model Number:	TYS - DN15;	Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;
Place of Origin:	China;	Samples:	Available;
Port:	Guangzhou/Qingdao/Shanghai;	Warranty:	2 years;

Product details

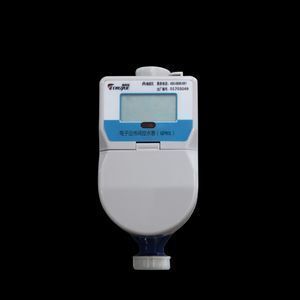

GPRS wireless water meter

The GPRS wireless water meter belong to high-tech products in the smart water meter, using of advanced wireless transmission technology, it transforms metered information of conventional mechanical water meter into electrical signal have it stored by micro-electronics control circuit. It is able to automatically read the metering data via wireless remote network and is also able to transfer the data to the back-office system (data center) after reading the meters.

1. Easy building no wiring, installation and commissioning;
2. Low implementation cost: No wiring cost, use of license-free frequency band, stable signal, convenient copying and collection;
3. The distance of reading is far: 2G signal coverage area can achieve meter reading;
4. Battery life: low power design, real-time standby, battery life ≥ 6 years
5.remote control type: built-in valve, remote data,
6. Technical indicators:

Power	(3.3-4.6)V
Battery Life	Upload data every 3-5 days
Working Frequency	receive(869-894)MHz,transmit(824-849)MHz;
Band	GSM850(Auto Search)
Sensitivity	GSM850 -109dBm
Sleep Current	1.2mA DRX=5
Transmission Distance	2G network coverage area
Operating Temperature	-35℃-80℃

Parameter

Model No.	Nominal diameter DN(mm)	Turndown ratio	Overload flow Q4	Permanent flow Q3	Transitional flow Q2	Min flow Q1
			m³/h
DN15	15	R80	3.125	2.5	0.05	0.031
DN20	20	R80	5.0	4.0	0.08	0.05
DN25	25	R80	7.875	6.3	0.126	0.079
Max flow indication		999999.9 m³
Accuracy class		Class B
Pressure loss		≤0.063MPa
Working pressure		1.0MPa
Temperature class		T30 / T50
Installation environment		Indoor, Class B
Working temperature		(0.1~30) ℃
Electromagnetic environment		E1
Working Current		<10uA
Storage ambient temperature		(5~50) ℃

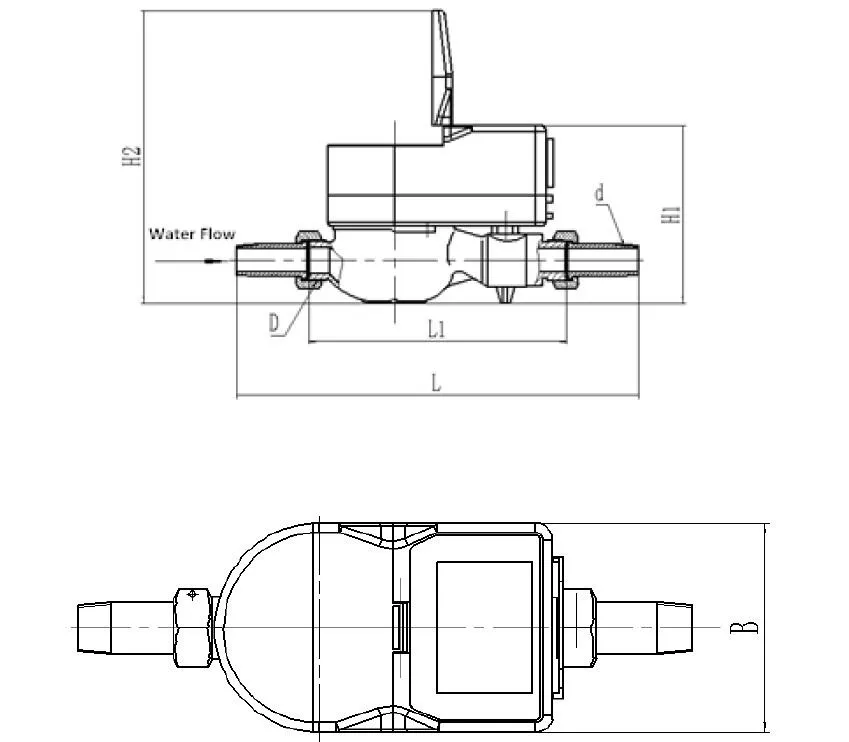

Nominal Dia.	Length L	Length L1	Width B	Height H1	Height H2	Connection thread
mm						d	D
15	258	165	90	120	200	R1/2	G3/4
20	299	195	90	120	200	R3/4	G1
25	345	225	90	120	200	R1	G1 1/4

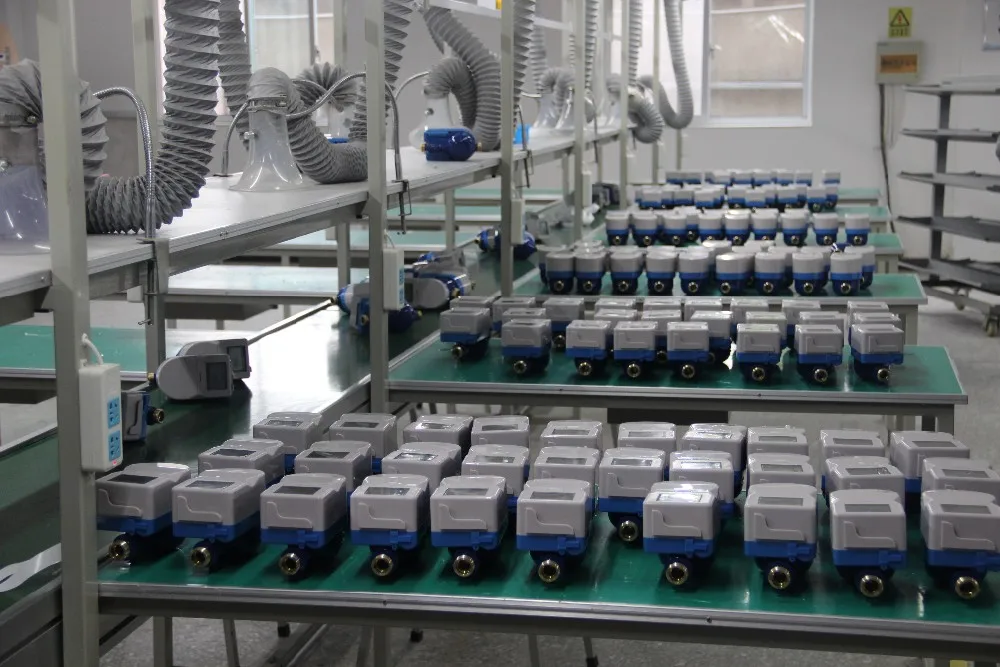

Production process

Production Process

Workers are welding circuit boards

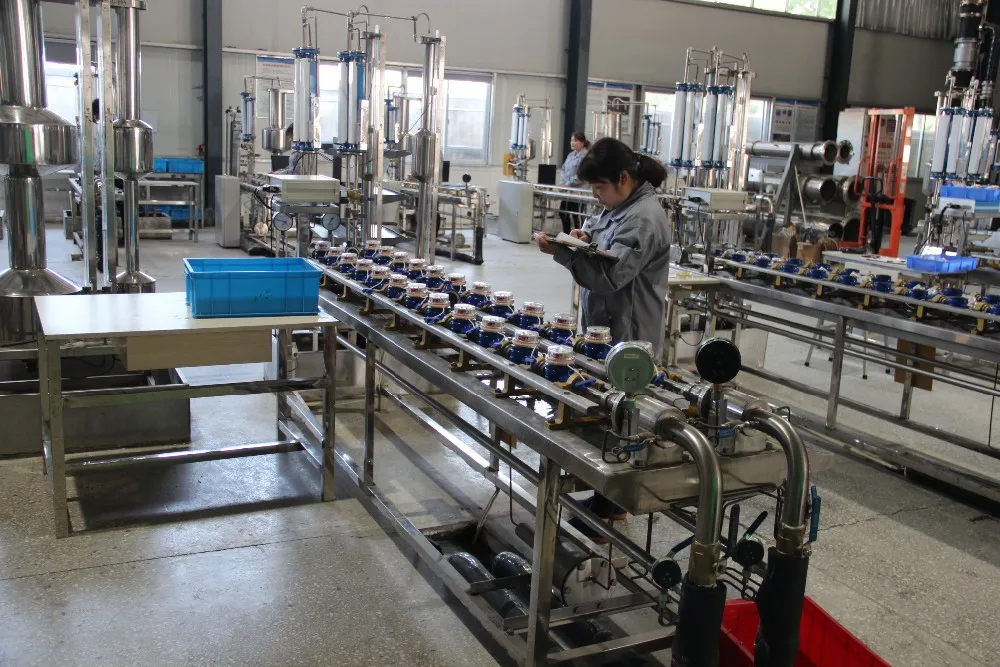

Workers are recording whether each meter flow meets the specification

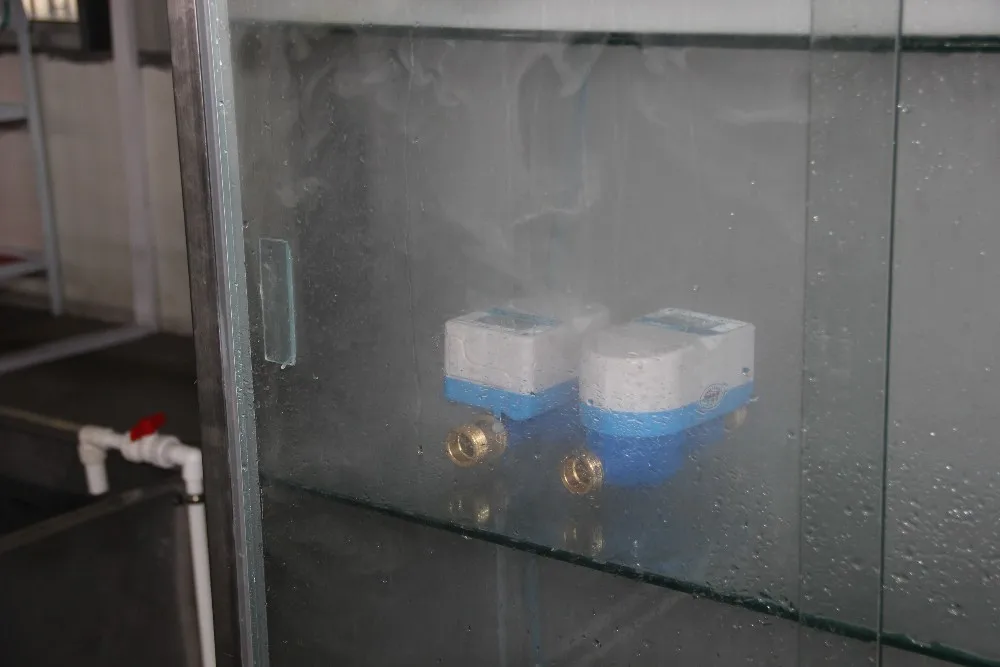

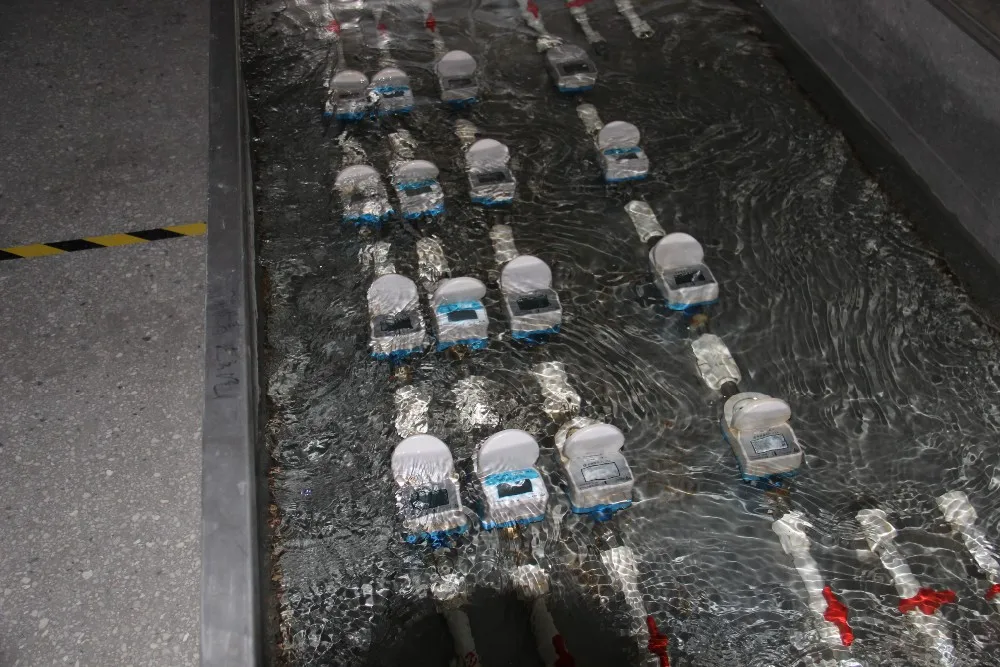

Performance Testing

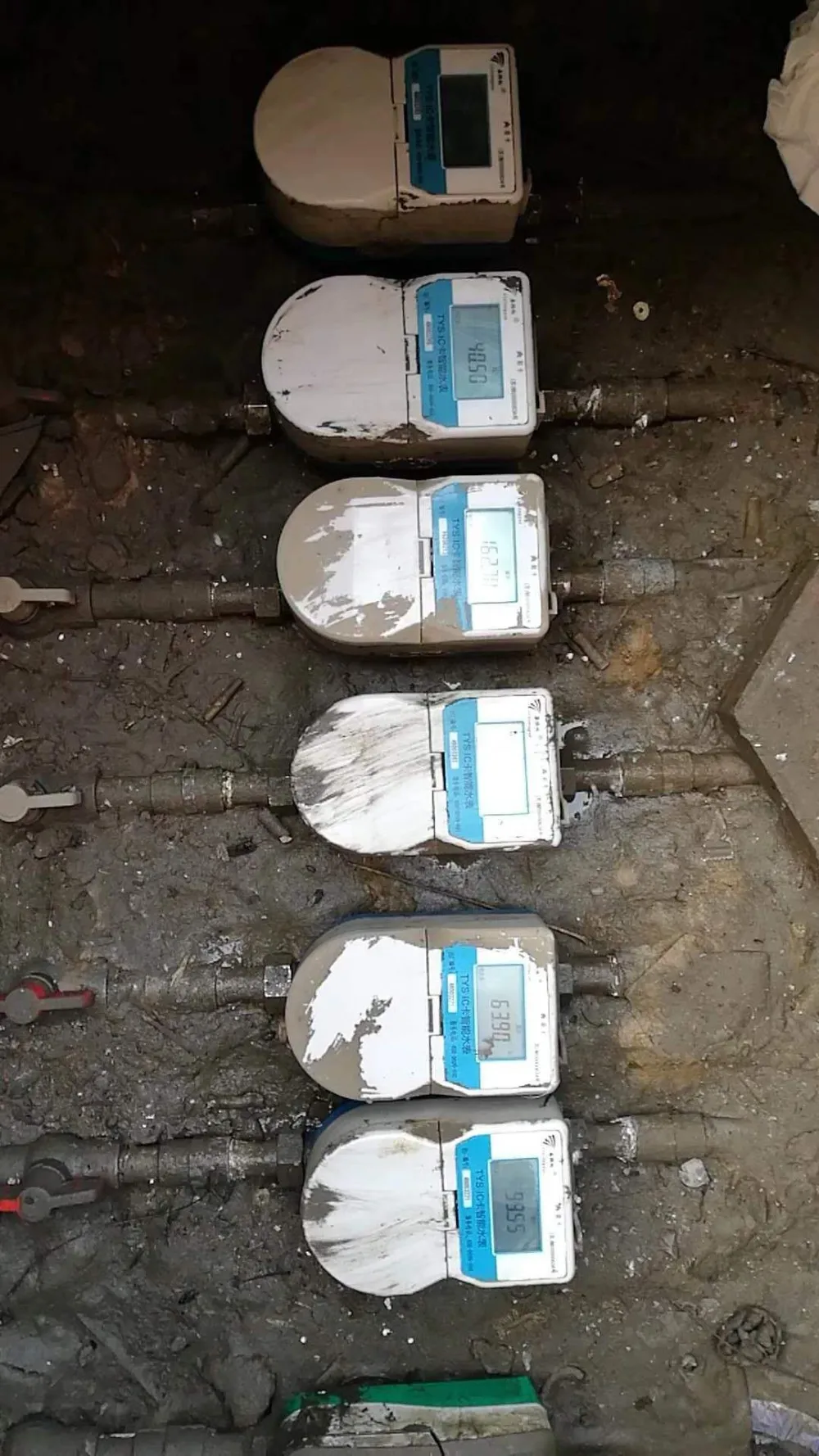

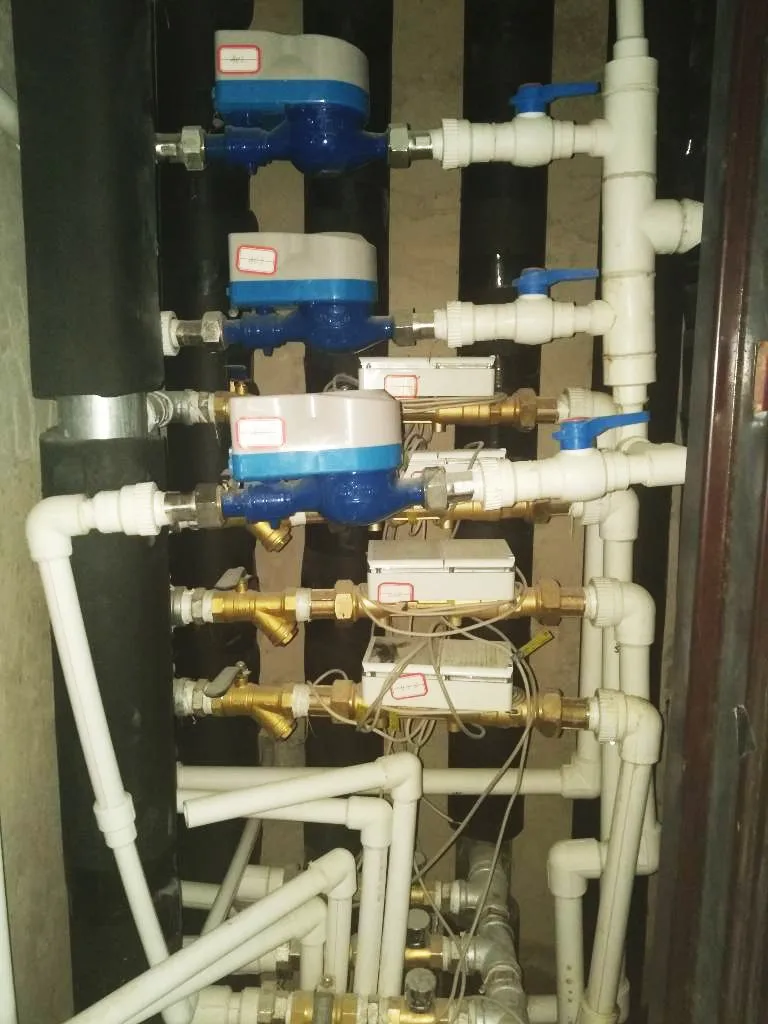

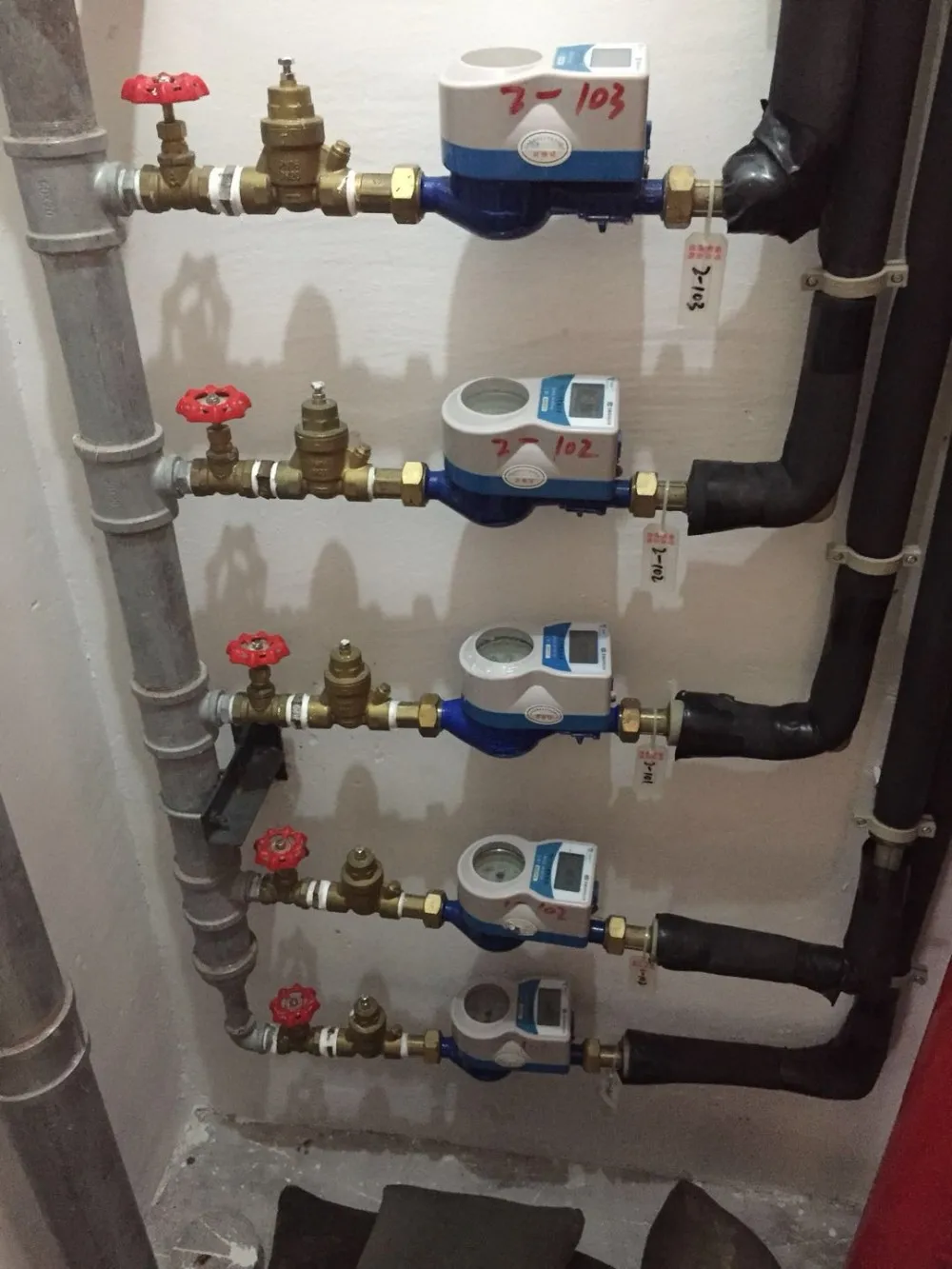

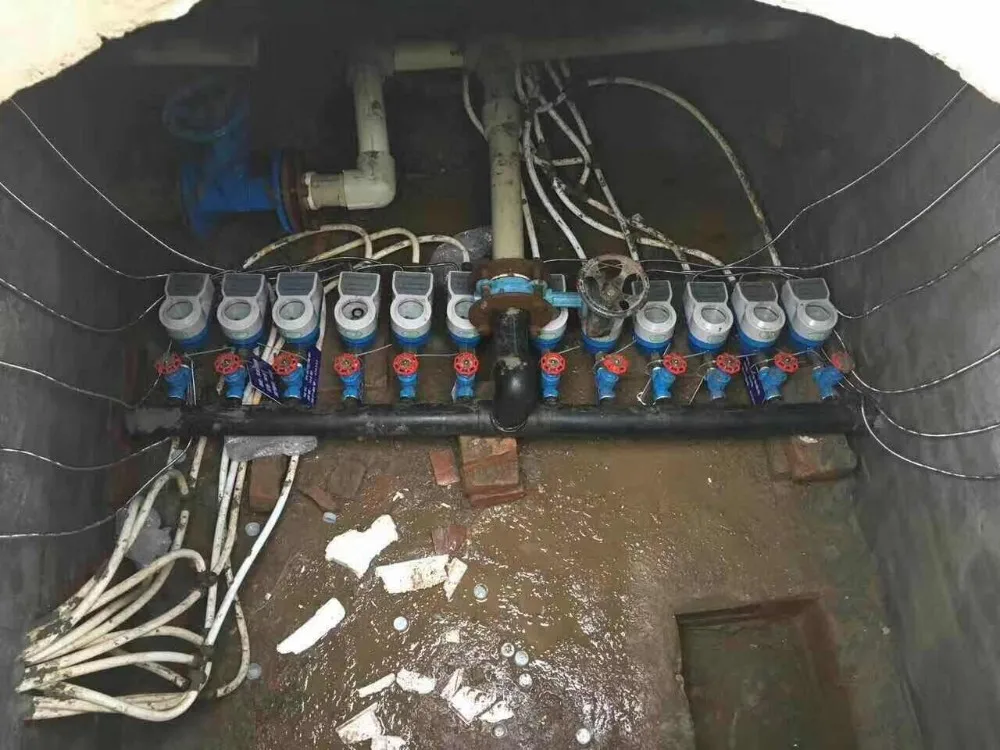

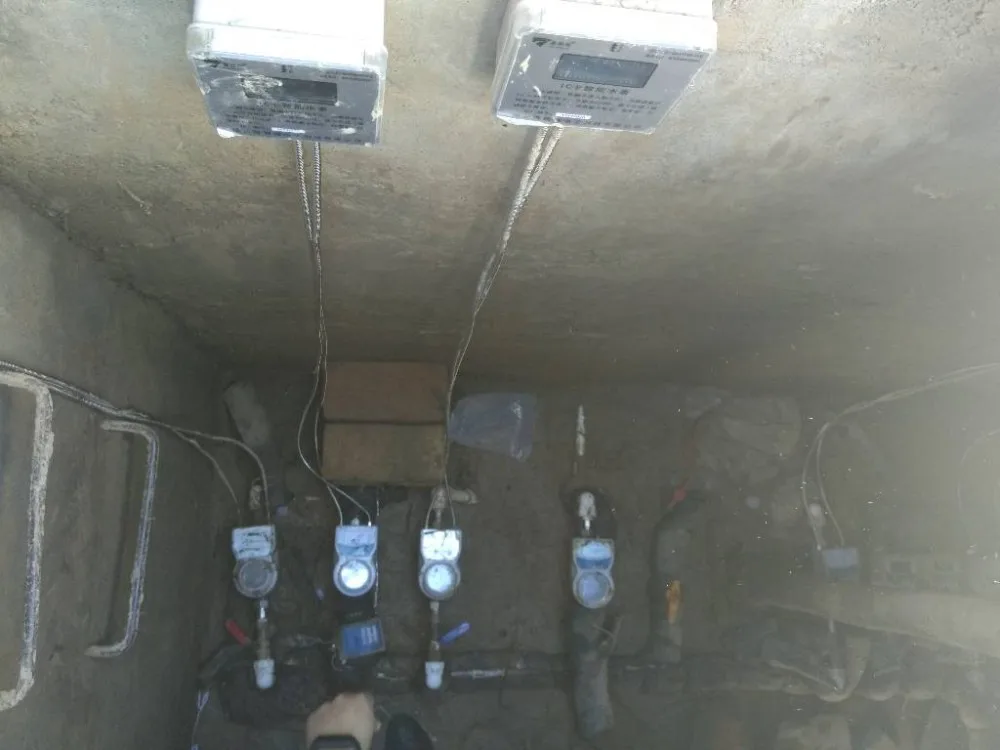

Installation case

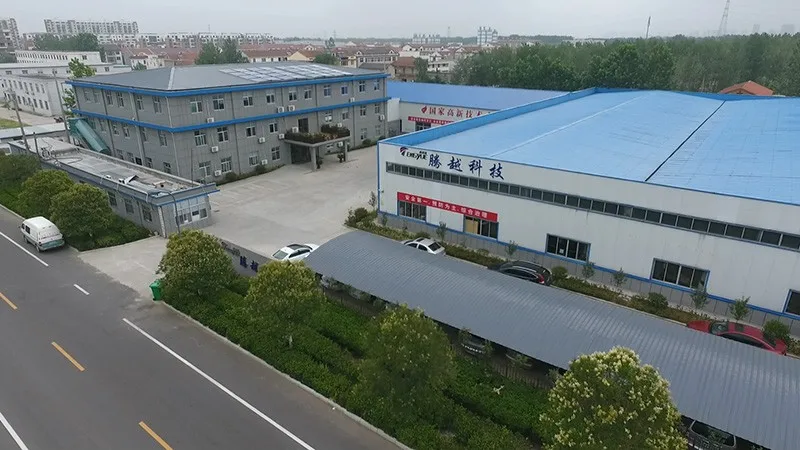

Lianyungang Tengyue Electronic Technology Co., Ltd.

Lianyungang Tengyue Electronic Technology Co., Ltd. was established in 2007. It is a high-tech production enterprise integrating R&D, manufacturing, marketing, project planning and service and provide the necessary data accumulation for wisdom energy saving.
With an area of over 20,000 square meters and has a professional R&D team.It has the domestically leading testing equipments and the technical strength. With annual output of 400,000 units of diverse meters and it now has 120 employees, there are 12 professional R & D staffs .We have more than 12 existing production lines.Our company is committed to intelligent monitoring and analysis technology .It applied to urban management, civil, commercial and industrial and etc.
Tengyue Technology is a leader in metering and energy management solutions. By continuous innovation, we transform complex technology into affordable, reliable solutions for accurate flow and energy measurement. Tengyue Technology offers water metering and heat metering as well as wisdom AMR/AMI solutions.

Certificate

Exhibition

Contact US

Contact US

ADD: NO.15, XINLONG ROAD, HAIZHOU ECONOMIC DEVELOPMENT ZONE,
LIANYUNGANG CITY,JIANGSU PROVINCE,CHINA
Tel: +86 518 86075167 Fax: +86 518 86077277 Zip:222023
WeChat&WhatApp:+86 15295566814
Web: http://www.lygtengyue.com

Packing

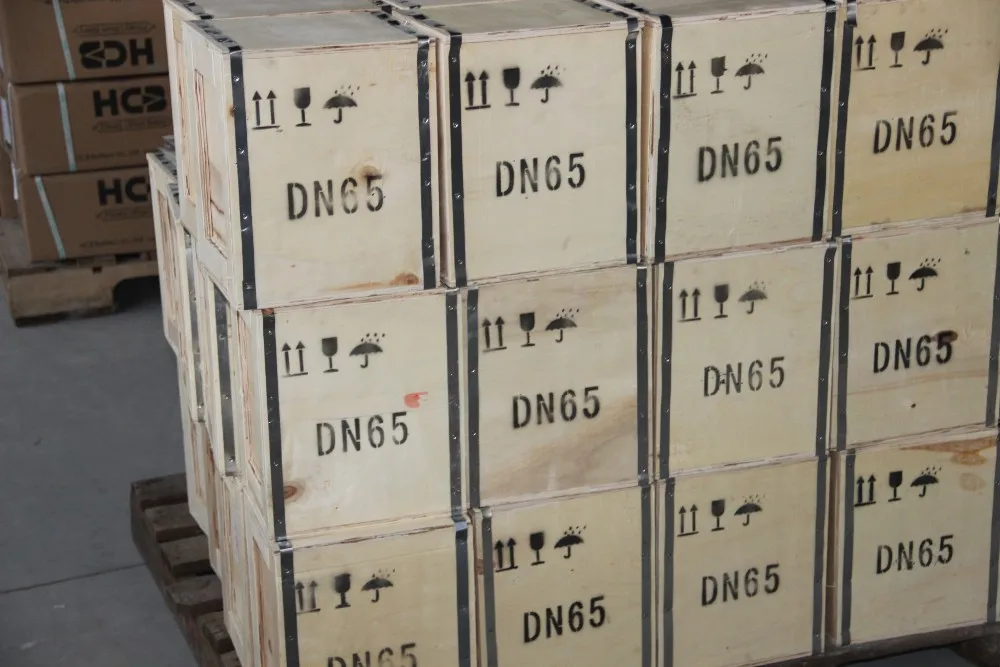

We have three product packaging methods: foam inner box plus carton outer box, carton plus carton outer box and wooden box (multilayer board)

FAQ

Q: Why choose you?

A: We have professional team of workers, after sale service, technical engineer and inspection, and we have our own R&D team and production plant.

Q: Could you print our company logo on the nameplate and package?

A: Yes, we can.We can even provide this service for your samples.

Q: Where is your factory located? How can I visit there?

A: You can search for Lianyungang Tengyue Electronic Technology Co., Ltd on Google Maps.We are in the northern coastal city of China - Lianyungang City, Jiangsu Province. All our clients, from home or abroad, you are most welcome to visit us!

Q: Do you have a mature English software system? Can they be customized?

A: Yes, we have a complete English software system and it will be available for free. If you need to customize the software in other languages, of course it is no problem.

Q: What should I do if I don't understand how to operate your product?
A: We will provide online installation instructions, and if necessary, we will have professional engineers to go to the site to guide the installation.

Q: How should we pay?
A: You can place an order in Alibaba, L/C or T/T.
