4PCS 3.2V 200Ah Solar Storage LiFePO4 Lithium ion Battery Cell for 12V 24V 36V 48V 96V 144V DIY Solar Energy Storage Vehicle

Supplier: Shenzhen Herculesi Technology Co., Ltd.
Region: Guizhou, China
Contact: Mr David Lee
Price: $156.00 / >=4 pieces
Min. Order: 4 pieces

Click here to contact

Product details

Battery Mode:	LFP 3.2V 200Ah;	Standard charge current:	67A;
Continuous discharge current:	3C;	Brand Name:	Herculesi;
End voltage:	2.5V;	Packaging Detail:	2PCS /Carton (with polyfoam inside , waterproof our side ) G.W:12KGS Carton Size:35X22X10 cm;
Nominal Capacity:	200Ah;	Port:	Shenzhen ,HongKong , Guangzhou;
Supply Ability:	10000 Piece/Pieces per Month 3.2v 200ah lifepo4 battery;	Sealed Type:	Sealed;
Usage:	Electric mobility, Solar/Energy storage, Industry/home consumptiom;	Model Number:	LFP200AHA;
Maintenance Type:	Free;	Size:	69180280mm;
Nominal Voltage (V):	3.2V - 3.3V;	cell capacity:	3.2V 40Ah / 60Ah / 100Ah / 180Ah / 200Ah / 300Ah / 400Ah;
Max charge current:	1C 200A;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal, Web money;
Weight:	5.8kgs;	Weight:	23.2KG;
ISO:	YES;	Delivery Detail:	Shipped in 7 days after payment;
Place of Origin:	Guangdong China;	Voltage:	3.2V;
CE and ROHS:	YES;

Rechargeable 3.2V LiFePO4 Battery 200Ah Cell LiFePO4 Lithium Akku Bateria 3.2V 200Ah 100Ah for DIY Solar Energy Storage Vehicle

Happy Notices :
Samples
We will cover shipping cost and your customs fees , you don't need to pay any fees again !!!

Happy Notice :
CE and ROHS have passed .
Quality is reliable .

Product Description

what's specifications for 3.2v 200Ah lifepo4 battery cell ?

LFP 3.2V 200Ah LiFePO4 3C Lithium Battery Prismatic Cell Connect to 12V 24V 48V 72V For Electric Vehicle Solar Storage Battery

Nominal voltage: 3.2V
Nominal Capacity : 200Ah
Battery type : LiFePo4 - LFP battery
Standard Charge current: 0.3C ( 67A)
Rapid charge current : 1C ( 200Ah )
Internal resistance: ≤40mΩ
Maximum charging voltage: 3.65 + -0.05V
Discharge cut-off voltage : 2.5V
Continuous discharge current: 3C ( 600A )
Maximum Pulse discharge current: 5C ( 1000A )
Cell Weight: 5.85 kg average
Life cycles : More than 5000 times

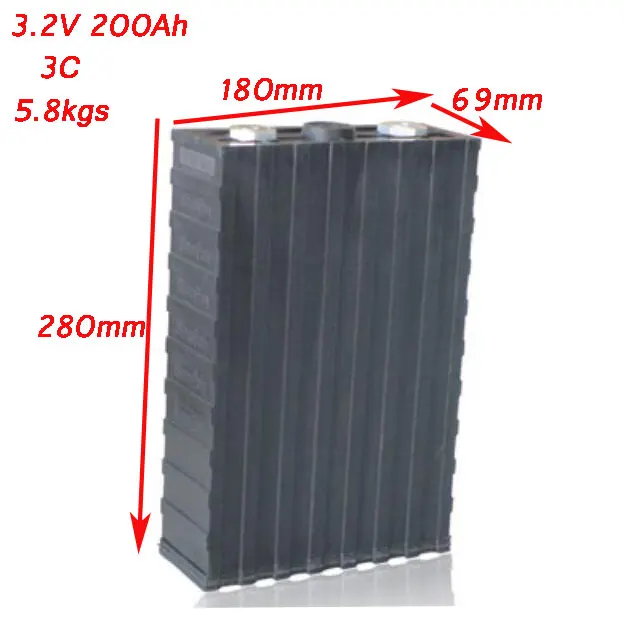

Dimensions (mm):69(thickness) x180(width) x280(Length)mm
Charging method :CC/CV
Package include : cells + busbar bolts

what's detail pictures for 3.2v 200Ah lifepo4 battery ?

Rechargeable 3.2V LiFePO4 Battery 200Ah Cell LiFePO4 Lithium Akku Bateria 3.2V 200Ah 100Ah for DIY Solar Energy Storage Vehicle

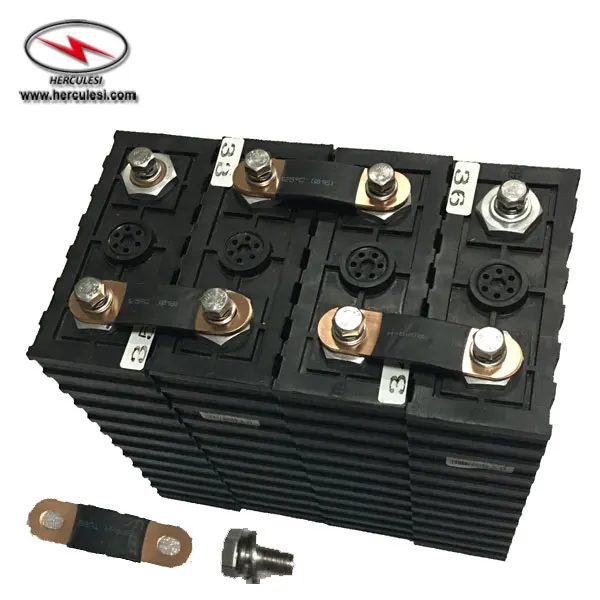

4PCS 3.2V 200Ah lifepo4 battery combine to 12V 200Ah lithium ion battery

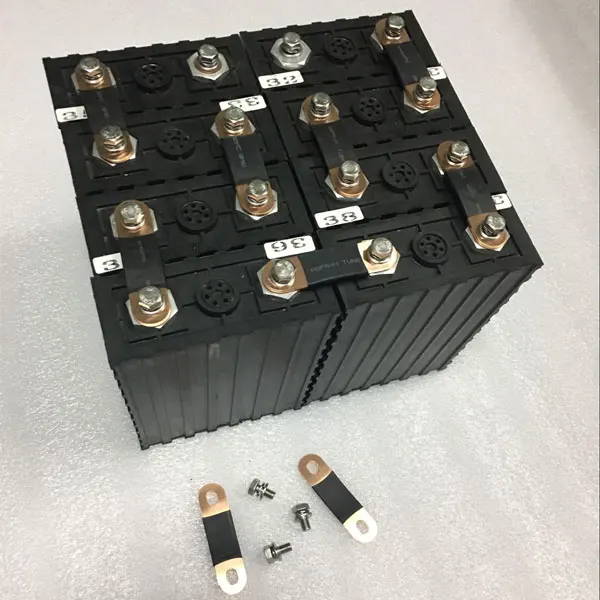

4pcs 3.2v 200Ah Large capacity lifepo4 battery cell 200A 100ah for EV solar energy power supply system fast charge cells kit

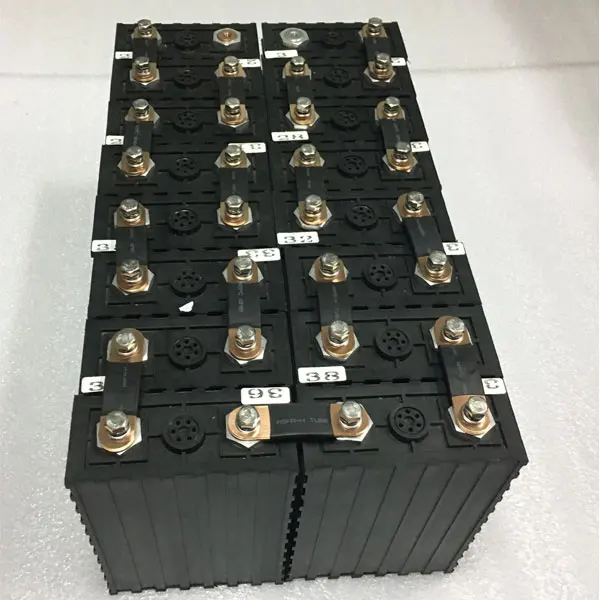

8pcs lithium battery cell 3.2v 200ah combine to li-ion 24V 200Ah deep cycle solar battery pack

15pcs or 16pcs lifepo4 battery 3.2v 200ah cell combine to lifepo4 lithium battery 48V 200Ah

About BMS ,if you need BMS , please let's know .

Please let's know BMS nominal voltage .

BMS continuous discharge current .

BMS discharge port is same with charge terminal or they are separated.

12.8V 4S 100A / 150A BMS

24V 8S 100A / 150A BMS

48V 16S 100A/150A BMS

Below BMS is 48V 16S 100A BMS ,

Size : 14*11*3.5cm

Same charge port and discharge port

If you need whole battery pack such as 12V 200Ah battery , 24V 200Ah battery , 48V 200Ah battery ..are ok .

see below picture (Iron waterproof case 48V 200Ah , Anderson port ,same one port )

If you need Power show , please see below our LED show

Packaging & Shipping

High capacity 3.2v lifepo4 battery 200ah cell lifepo4 200ah lithium 100A f lifepo4 battery pack diy solar energy storage vehicle

Shipping : for 4/8pcs samples , we will send to you by airplane

for more quantity , we would like to send to you by sea freight .

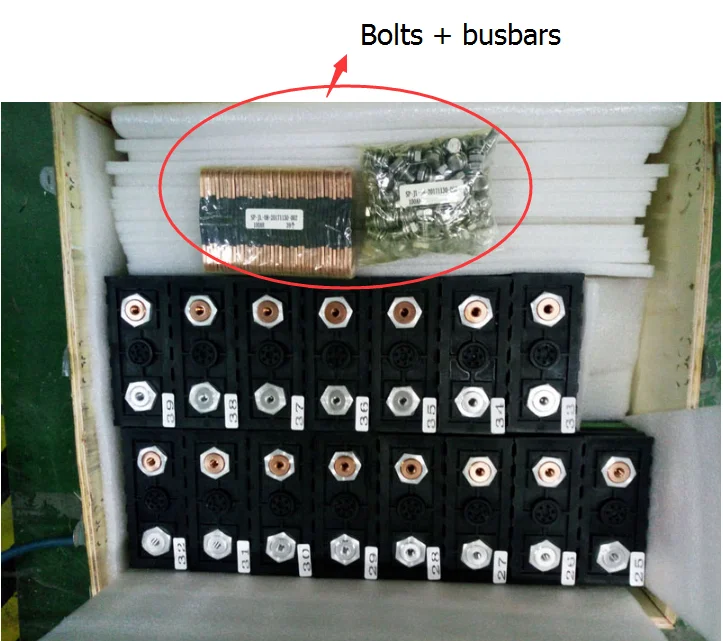

Package include : cells + bolts + busbars

Our Services

LiFePO4 3.2V 200Ah high capacity rechargeable lifepo4 battery GBS-LFP200Ah

CE and ROHS for these cells .

ISO for our factory .

If you place the order from us , we would like to show them to you .

Quality is our culture
Our value message is " with us your money in safe, your business in safe"

Battery can be customized as your requirement include capacity , power , size , shape, voltage . OEM are welcome .

Test ONE BY ONE BEFORE SHIPPING .

FAQ

LiFePO4 3.2v 200Ah Battery Celle lifepo4 battery GBS-LFP200Ah

1. Where these 3.2V 200Ah LiFePO4 battery cells would be used ?

Anna : 3.2V 200Ah LiFePO4 battery cells use for Solar , EV , UPS ,Electric Cars ,,,

2.What's delivery time ?

Anna : Usually we will send to you within 7 days .

3. Can i get BMS ?

Anna : Yes , of course .

Please let's know your details about BMS .

4. Free shipping for Samples ?

Anna : Yes , no customs duty .

5.what's your MOQ ?

Molly: 4PCS

6.Do you have other cells ?

Anna : Yes , we have 3.2V 3300mAh , 3.2V 20Ah cells , 3.2V 40Ah , 3.2V 60Ah , 3.2V 100Ah , 3.2V 180Ah , 3.2V 200Ah ,3.2V 300Ah , 3.2V 400Ah cells in stock .

Pls don't hesitate to send us inquiry if you are interested!
