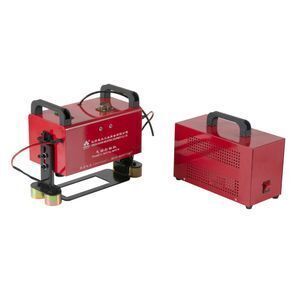

Metal Portable Dot Peen Marking Machine For Sale

Supplier: Jiansu Kuntai Industrial Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jenny Lau
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	KUNTAI;	Rated Power:	600W;
Place of Origin:	Jiangsu China;	Package Preview:	https://sc01.alicdn.com/kf/HTB1xyUkeCWD3KVjSZSgq6ACxVXay.jpg_640x640.jpg;
Condition:	New;	Single gross weight:	21 KG;
Single package size:	38X46X36 cm;	Applicable Industries:	Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Printing Shops,Construction works ,Energy & Mining;
Engraving Speed:	30MM-40MM/S;	Brand Name:	KUNTAI;
After-sales Service Provided:	Video technical support,Online support;	Warranty:	1 Year;
Package Type:	Packaging & Delivery Packaging Detail: Standard wooden case Delivery Detail: 2 -6 days upon the quantity request;	Selling Units:	Single item;

metal portable dot peen marking machine for sale

Chassis / VIN dot peen marking machine

Quick Details

Condition: New
Place of origin: Jiangsu,China(mainland)
Brand name: Kuntai

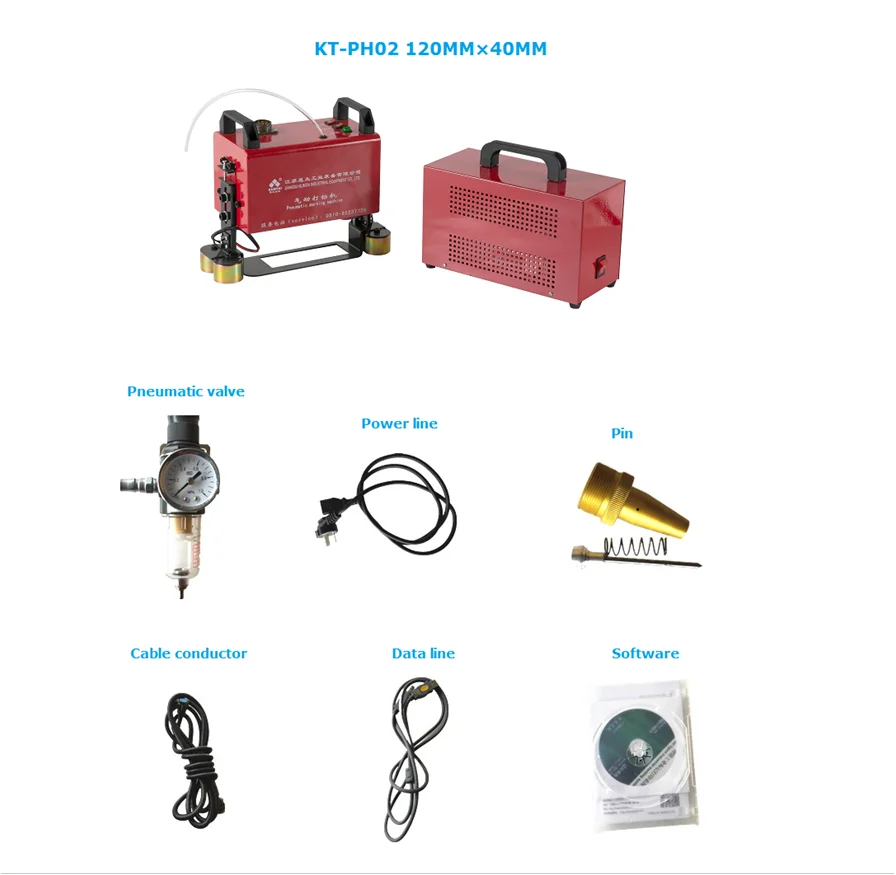

Model number: KT-PH02
Marking speed: 30mm-40mm/s
Marking depth: 0.1mm-2mm(depends on materials)
Standard marking area: 120mm*40mm

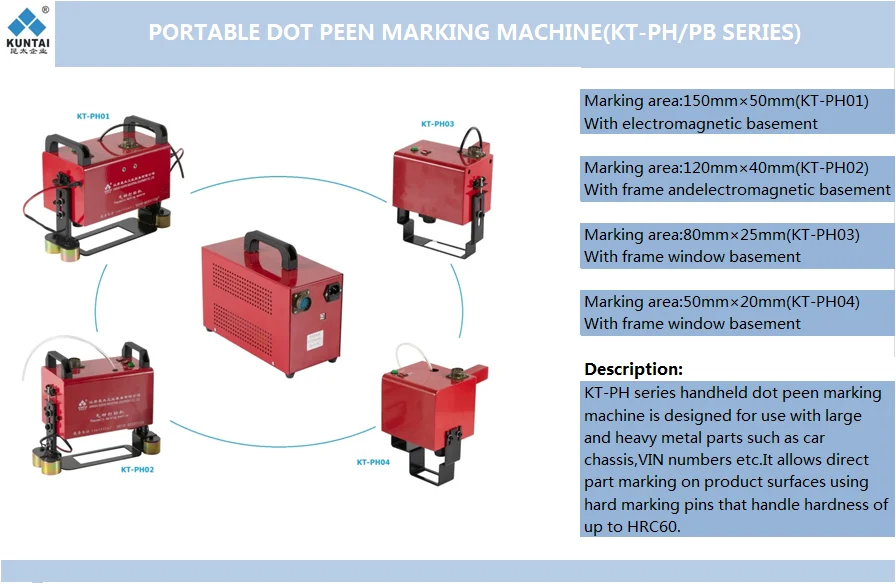

Optional marking area: 80mm*20mm/50mm*20mm/150mm*50mm
Air power request: 0.3Mpa-0.6Mpa
Milling cutter diameter: 3mm(2mm/4mm )
Whole machine power: 600w
Dimensions(marking head): 300mm×250mm×130mm
Dimensions(controller): 280mm×170mm×130mm
Net weight(marking head):: 5.8kg
Net weight(controller):: 3.3kg
Marking material: All kinds of material up to a hardness of HRC60
Software compatible: Windows 7/XP 32bit

(KT-PH series need connect to PC,KT-PB series do not need PC)
Power supply: AC220V±10%50HZ/AC110V±10%50HZ
Certification: ISO CE
Warranty: 1 Year
After-sales service provided: 24-hour service

Our Services

1.Online service.If any technical questions or problems,our engineers will help you give you solution on email or some online way.

2. Minimal one year for free warranty (include whole machine and spare parts)

3.Spare parts supplying on time or help fix the old parts.

4.Faster delivery,most of our products have stock and guarantee delivery within short time.

5.Free design and guide for customer

6.Free software update

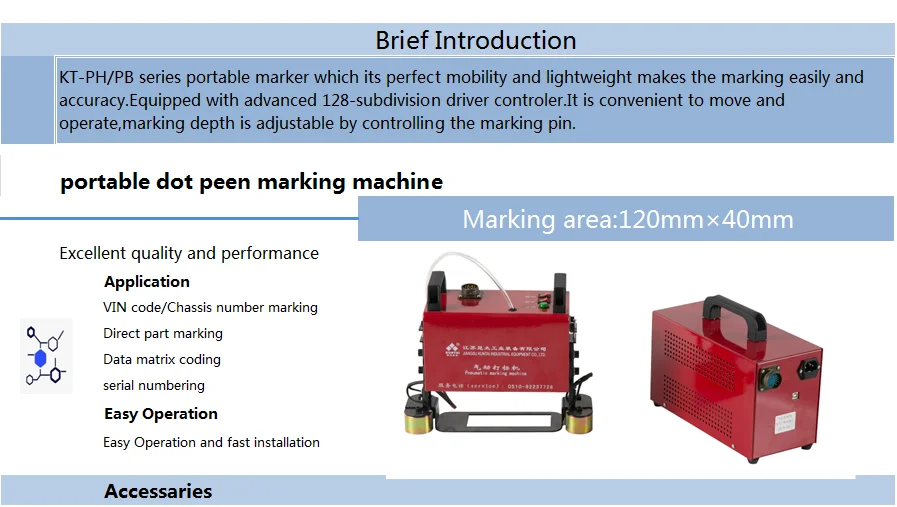

portable dot peen marking machine
Marking area:120mm×40mm

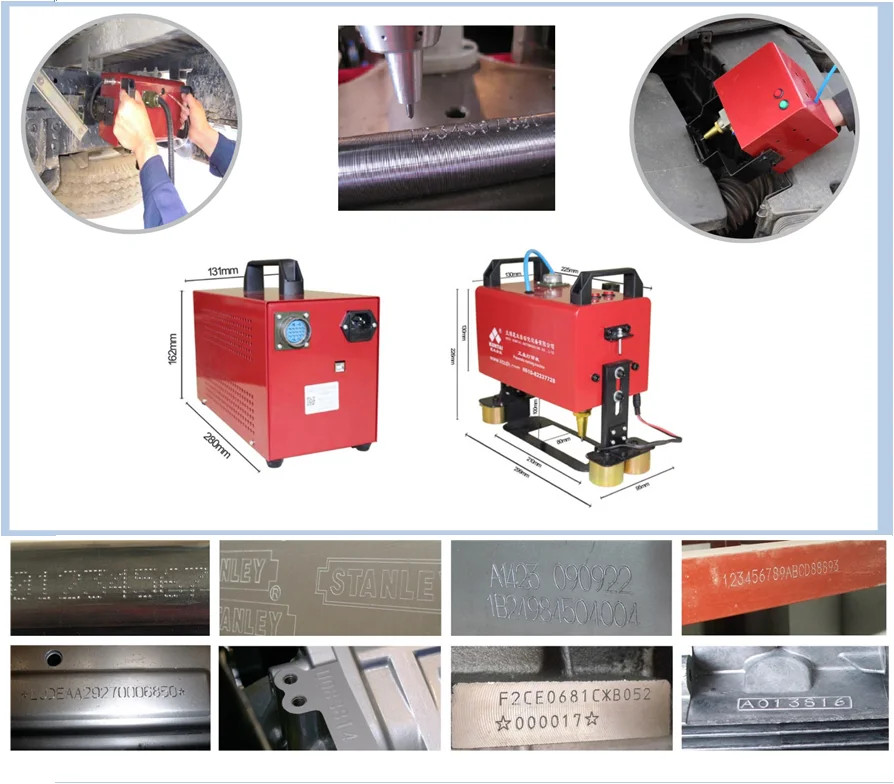

Application
It is applicable for the fields of automobile,motorcycle,mechanism,petroleum,aeronautical and space,electric apparatus,steel,metal,non-metal and hard plastic materials.
Vin code/chassis number marking
Direct Part Marking(DPM)
Date Matrix Coding
Programmable Marking
Component Identification
Component Traceability
Serial Numbering
Lot Numbering

Description:
KT-PB series hand held metal marking machine comes completely integrated with software,keyboard and screen,no need pc.It offers direct part marking on a variety of product surfaces.The hardened marking pins have the ability to handle hardness of up to HRC60.

Details:
1. The product needs to work with PC and gas source,which are not provided by us,buyer needs to prepare the computer and gas source.
2.Usually this machine marks metal material.And the size must be in 120mm×40mm,and this item doesn't suit to mark small name plate.So please consider whether it's suitable or not for you before purchasing.Or you can tell us the material you want to use this item to mark,we will check it for you.

PROFESSIONAL MANUFACTURER

High quality is our obligation,Great service is our mission

HOT SALE PRODUCTS

Who We Are & What We Do

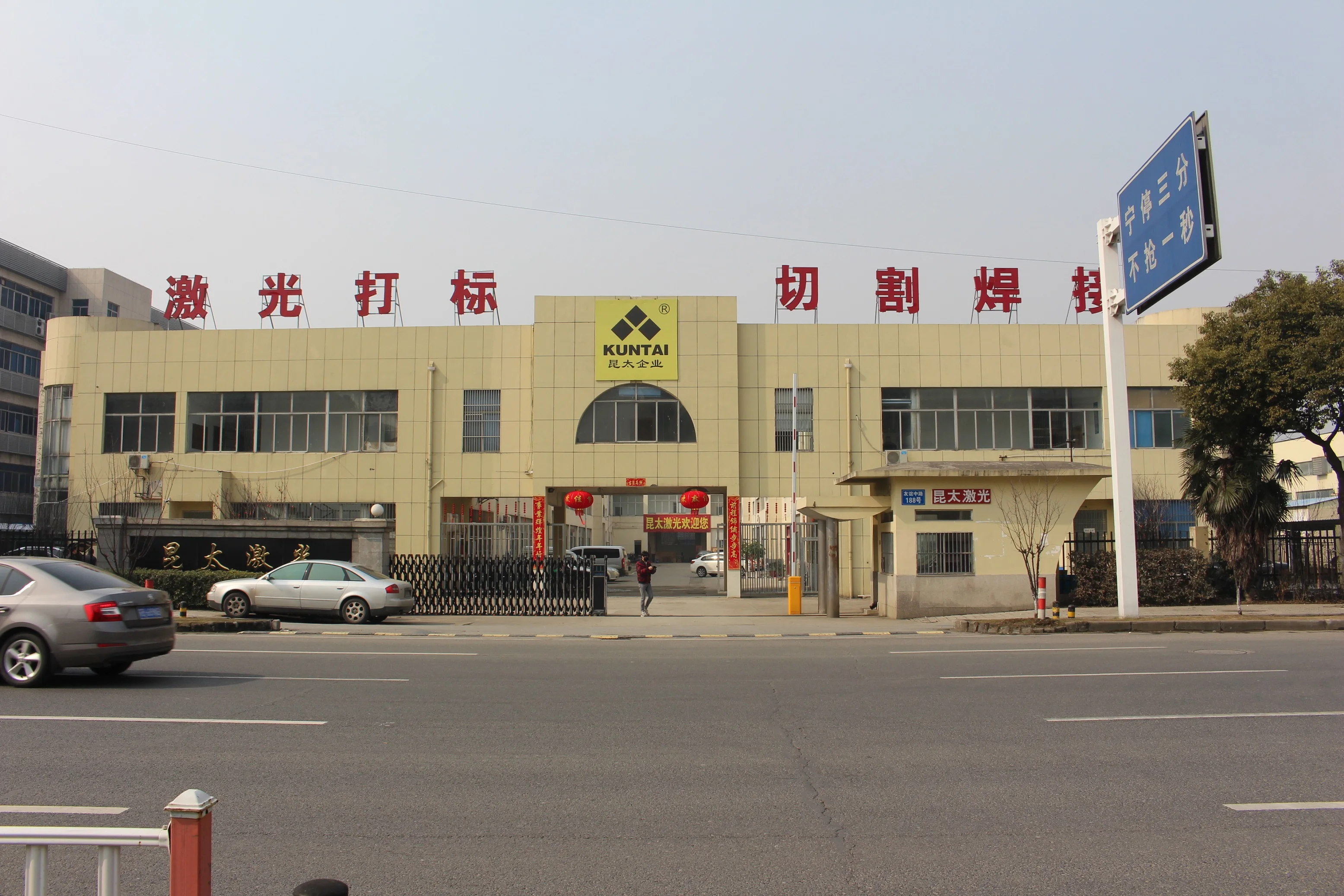

Jiangsu Kuntai Industrial Equipment Co.,ltd.is a leader in Marking Technology. Launched in 2003, we continue to expand our powerful network of quality marking machines. We consider it our mission to be a sought-after marking machine manufacturer for even the most discerning industrial customer.We at KT Marking, go beyond your typical marking machine provider. We cover a variety of marking applications and industries, whether it is Aerospace, Automotive, Electronic, Military & Defense, Metal Processing, Energy, or Medical. Our marking machines add real value for our customers. This gives us a natural appeal to industries seeking superior quality marking.We understand that the needs and requirements of the marking industry have changed over the years and continue to change. With greater expectations to meet, our aim is to significantly enhance user experience through a perfect amalgamation of user-friendly marking designs, advanced manufacturing techniques, and efficient servicing solutions.
