BLS high pressure homogenizer for milk and ice cream

Product details
Power(W):1.1-75KW;Condition:New;
Weight:custom customized;Cover:shell cover with pressure manhole;
Processing:Homogenizer;Supply Ability:500 Set/Sets per Month milk homogenizing machine;
Packaging Detail:plywood case packing of high pressure homogenizer for milk and ice cream;Volume:100-5000L;
After-sales Service Provided:Online support;Application:dairy homogenizer machine;
Voltage:110-480V, 50/60Hz;Warranty:1 Year;
Place of Origin:Zhejiang China;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Pressure:under pressure;Dimension(L*W*H):custom customized;
Brand Name:BLS;Port:SHANGHAI/NINGBO;
Name:high pressure homogenizer for milk and ice cream;Certification:ISO9001;
Processing Types:Milk;Material:Stainless Steel 304/316;
Agitator:high shear homogenizer;Model Number:BLS;
Speed:2800rpm;

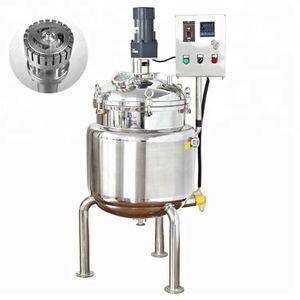

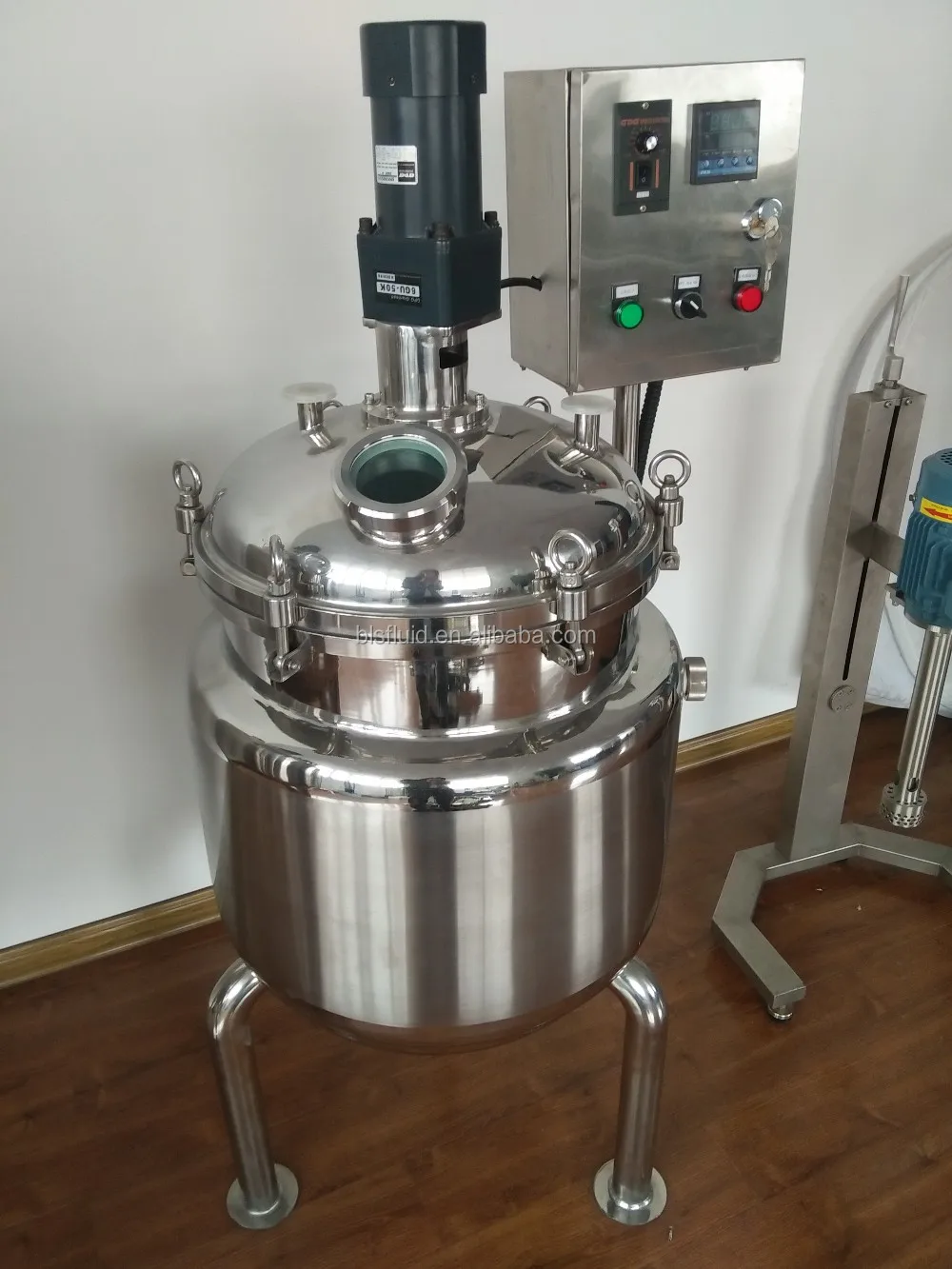

BLS high pressure homogenizer for milk and ice cream



Product name high pressure homogenizer for milk and ice cream

Description

Designed according to ISO9001 standard, widely used for mixing and blending liquid media in the food-processing, cosmetics and pharmaceutical industries etc.

Heating method

By electricity (oils or water), by steam, by gas

Material:

SS304/SS316



jacket: miller board, hollow jacket or coil pipe jacket



insulation layer: PU foam







Wide applicable range of stainless steel mixing tank for milk and ice cream:

Used as blending tank, mixing tank, preparation tank, fermentation tank, disinfection tank and ageing tank etc.

Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

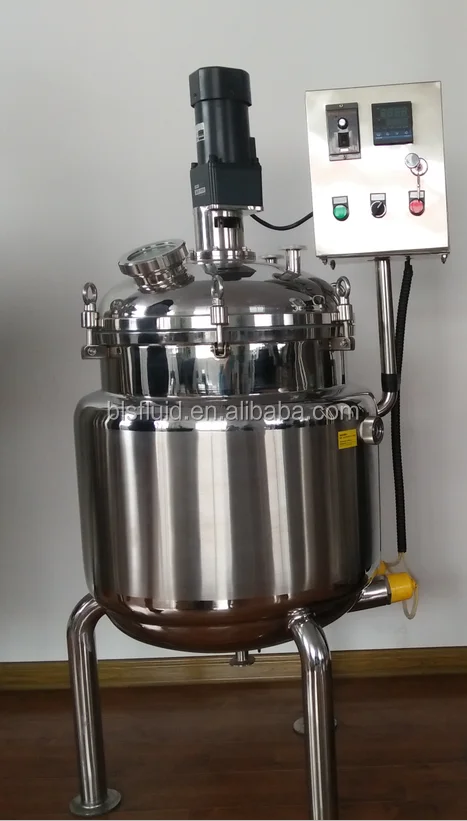

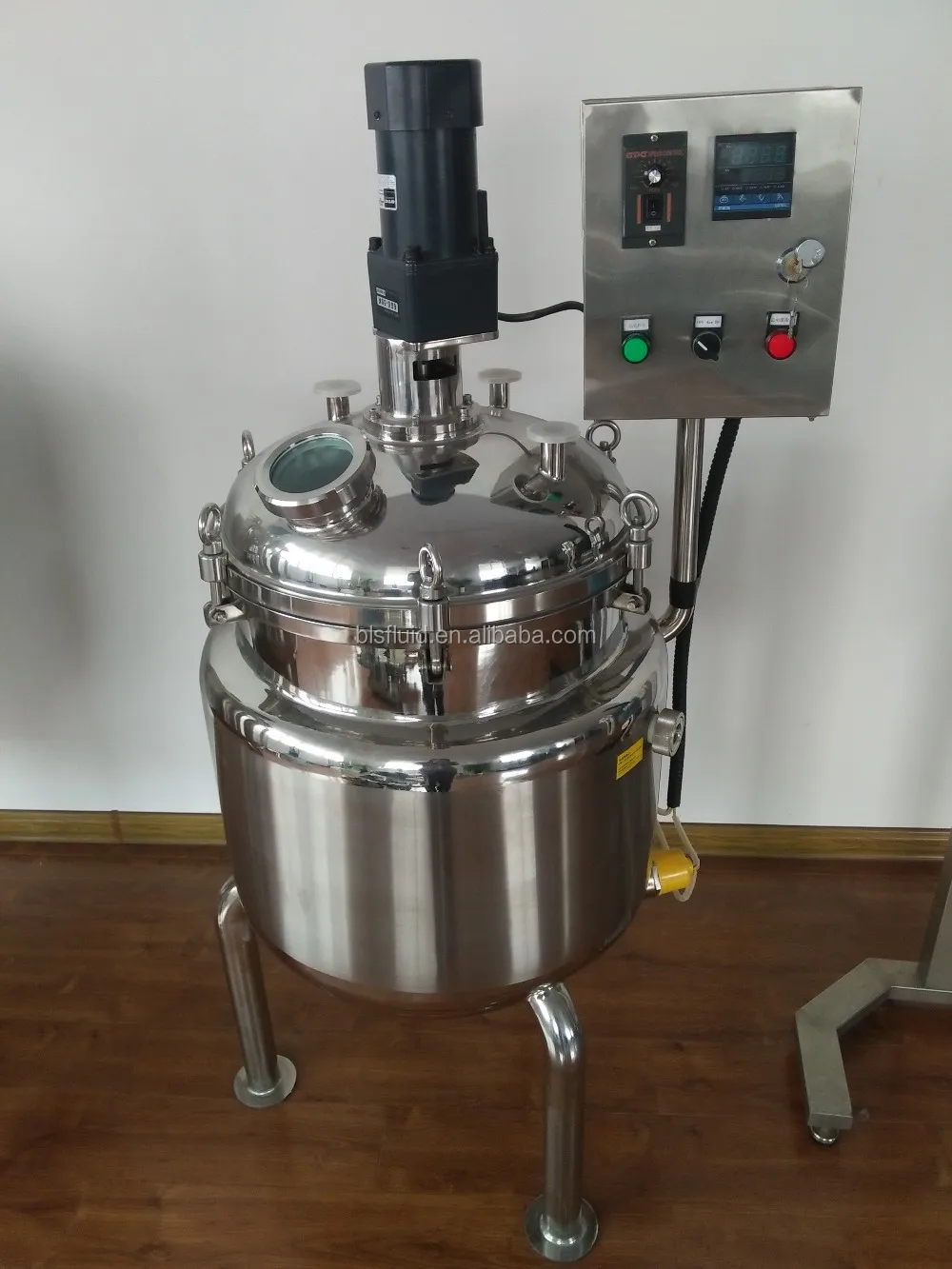

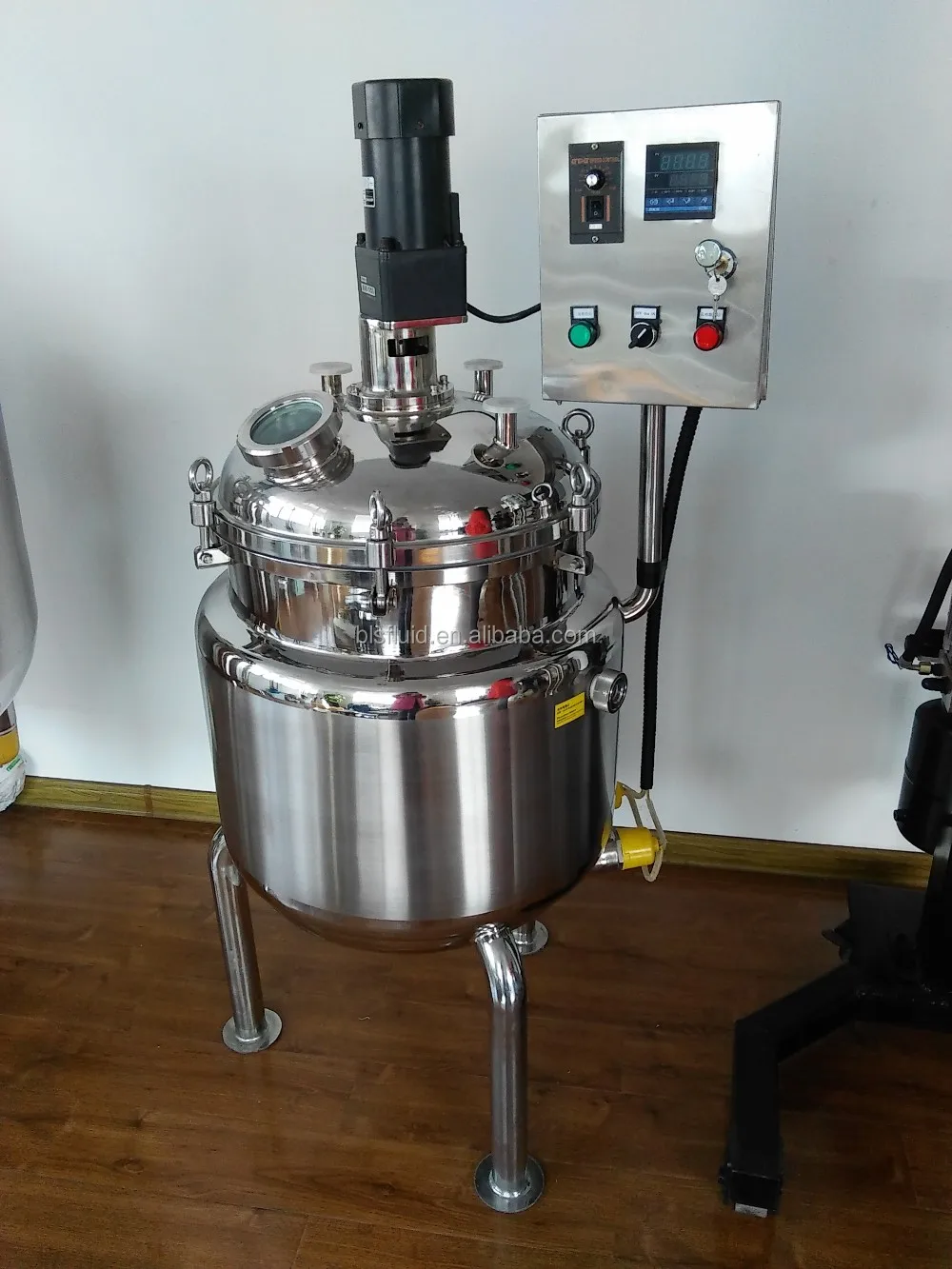

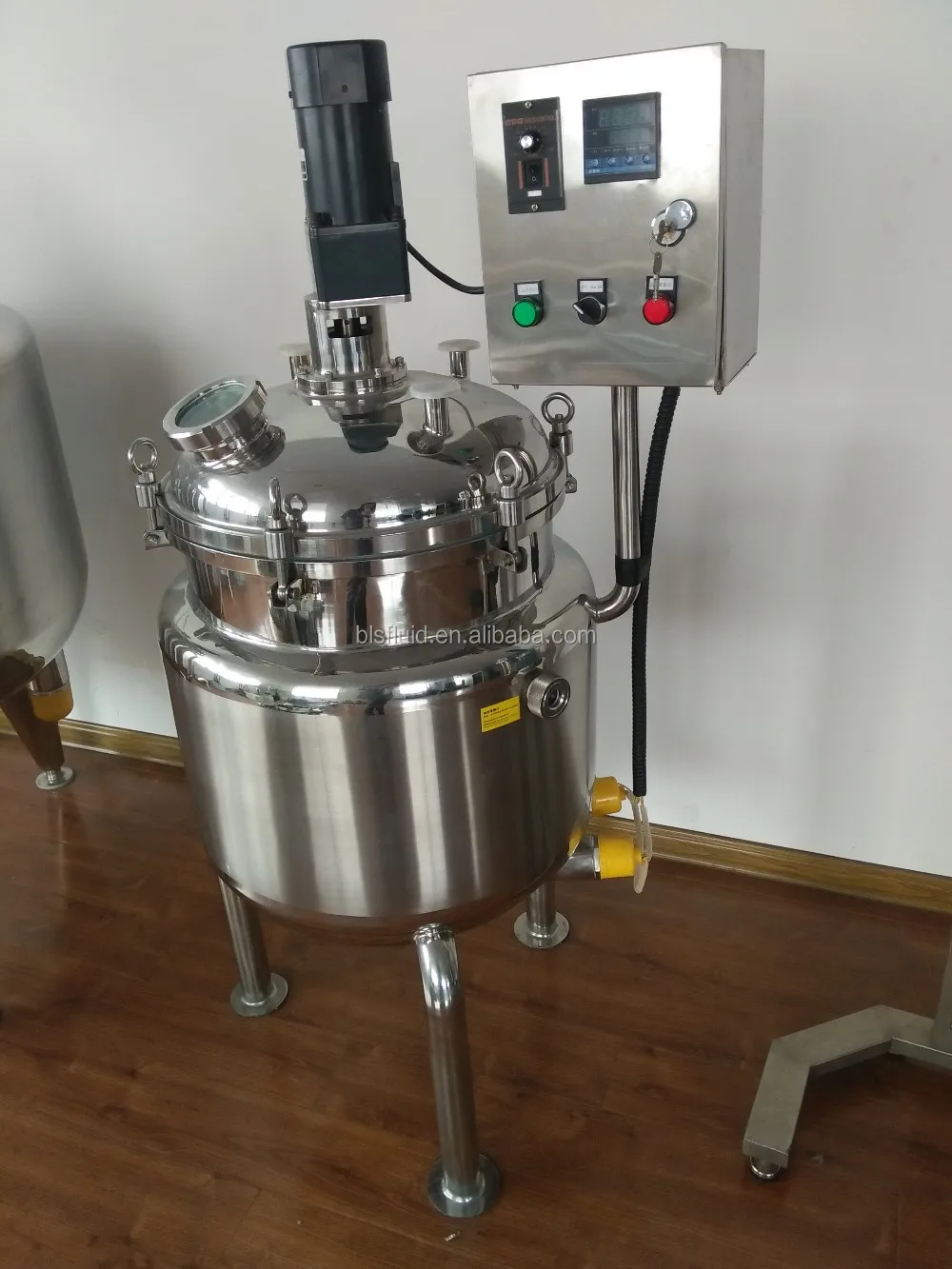

Structure characteristics of high pressure milk and ice cream homogenizing mixer machine:

Adopt structure of internal tank and external package, with heat preservation materials inside.

Materials are all sanitary stainless steel.

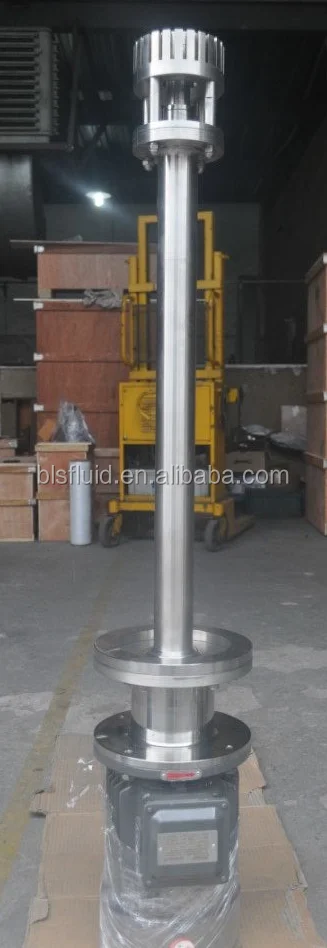

High shear shearing vacuum homogenizer(2800rpm).

Humanized structure design and easy to operate.

Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

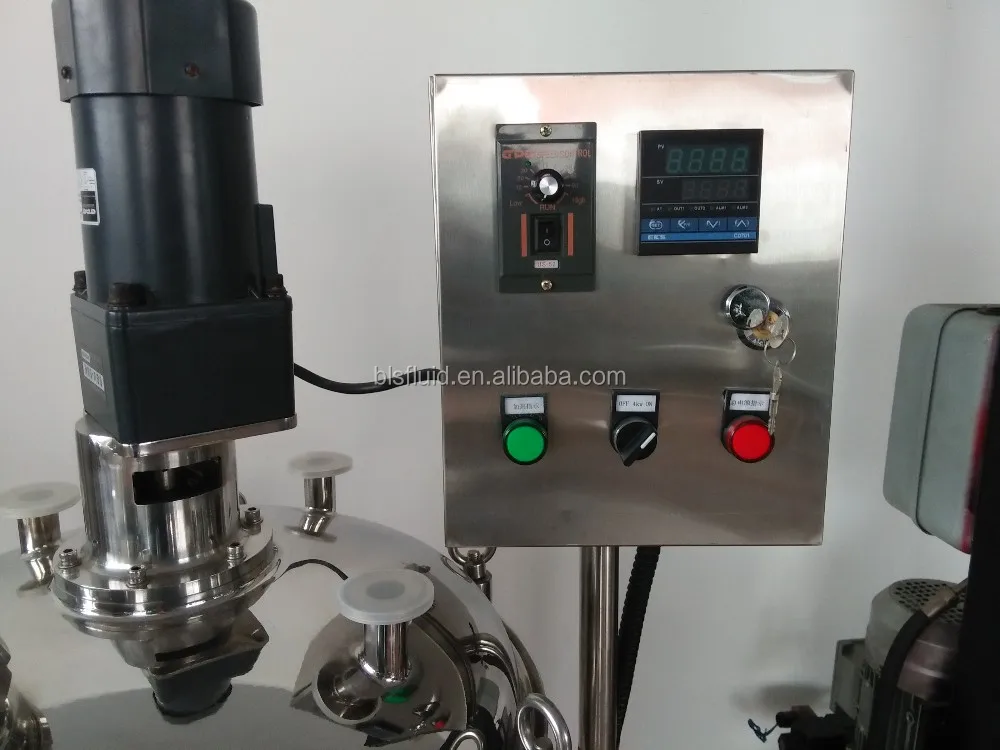

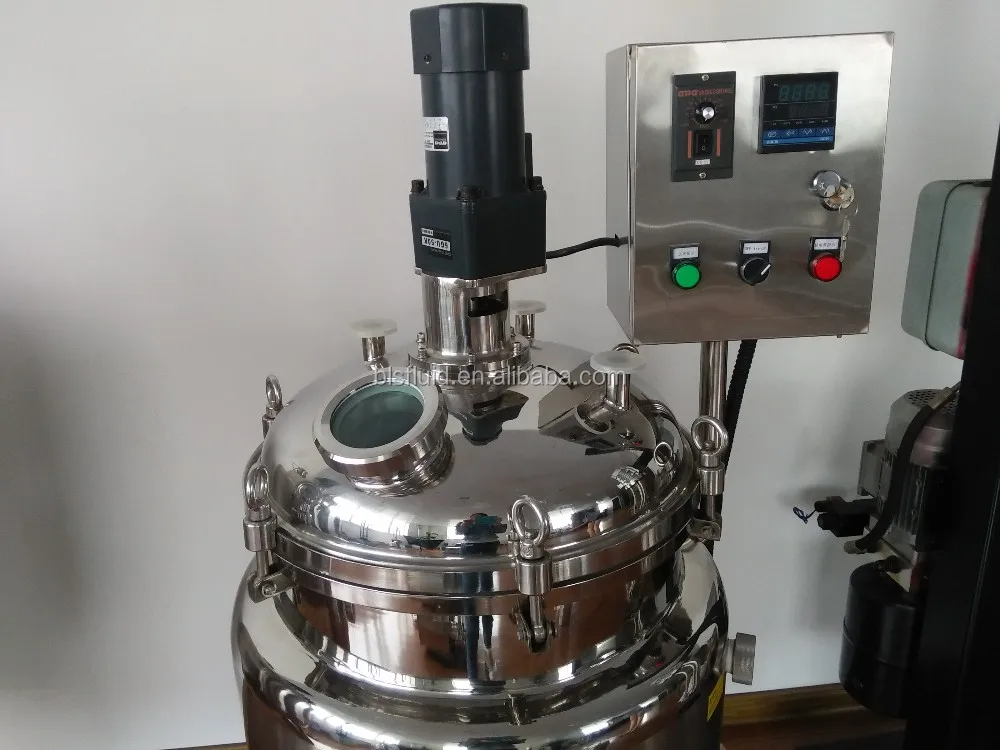

Configuration of pressure milk homogenizer tank:

Quick open manhole.

Various types of CIF cleaners.

Fly and insect resistant sanitary breathing cover. (according to customer requirements)

Adjustable triangular bracket. (according to customer requirements)

Dismountable materials input pipe assembly. (according to customer requirements)

Thermometer (according to customer requirements).

Ladder (according to customer requirements).

Vertical blender (paddle type or fame type are available if customer require).

Jacket (miller board, hollow jacket or coil pipe jacket are available according to customer requirements).

Liquid level meter and level controller (according to customer requirements).





Main technical parameters of milk homogenizing machine:

+

Effective volume (L)

Dimension of tank (mm*mm)

Total height (mm)

Heat preservation layer (mm)

Diameter of inlet&outlet (mm)

500

840*1000

2750

60

38

600

920*1000

2850

60

38

700

990*1000

2850

60

38

800

950*1220

3000

60

38

900

1010*1220

3000

60

38

1000

1060*1220

3150

60

51

1500

1160*1500

3350

60

51

2000

1340*1500

3410

60

51

3000

1410*2000

4000

60

51

4000

1620*2000

4250

60

51

5000

1810*2000

4300

60

51

6000

1980*2000

4550

60

51

7000

1930*2440

5000

60

51

8000

2060*2440

5000

60

51

9000

2180*2440

5050

60

51

10000

2300*2440

5050

60

51

12000

2270*3000

5600

60

51

15000

2530*3000

5700

60

51

20000

2640*3660

6400

60

51



It can be customized according to special requirements of our customers. Total height is computed according to the height (800mm) of the discharge outlet. If the height of discharge outlet is changed, total height shall be adjusted.
