small batch stainless steel fruit juice pasteurizer

Supplier: Zhejiang L&B Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Carlos Xiang
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Weight:	50-5000kgs;	Material:	stainless steel304,316;
Place of Origin:	Zhejiang China;	After-sales Service Provided:	Overseas service center available;
volume:	50-20000L;	Usage:	Juice;
Power(W):	0.75-75kw;	Condition:	New;
speed:	0-2800rpm;	Packaging Detail:	plywood case;
Port:	NINGBO or SHANGHAI;	Dimension(LWH):	as per need;
Certification:	ISO;	Warranty:	1 Year;
Brand Name:	BLS;	Name:	juice pasteurizer;
Supply Ability:	200 Piece/Pieces per Month juice pasteurizer;	Voltage:	110-600v;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	heating:	electric,hot water,steam;

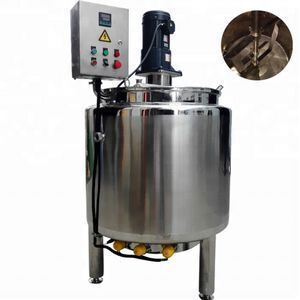

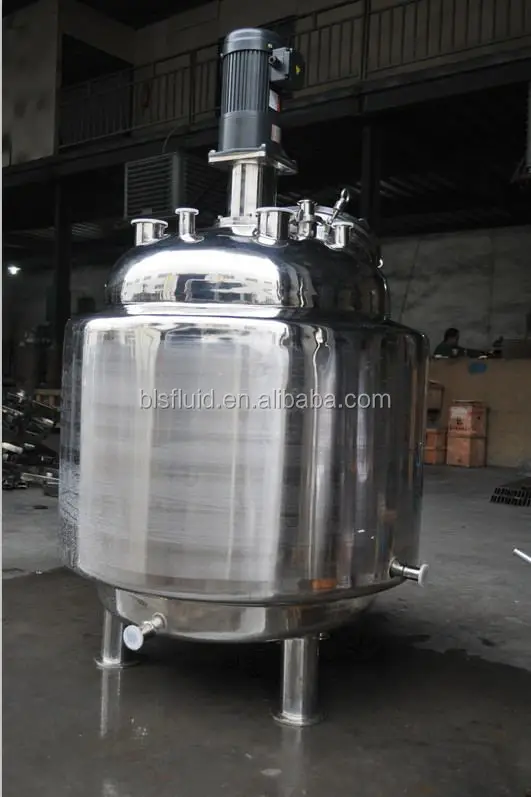

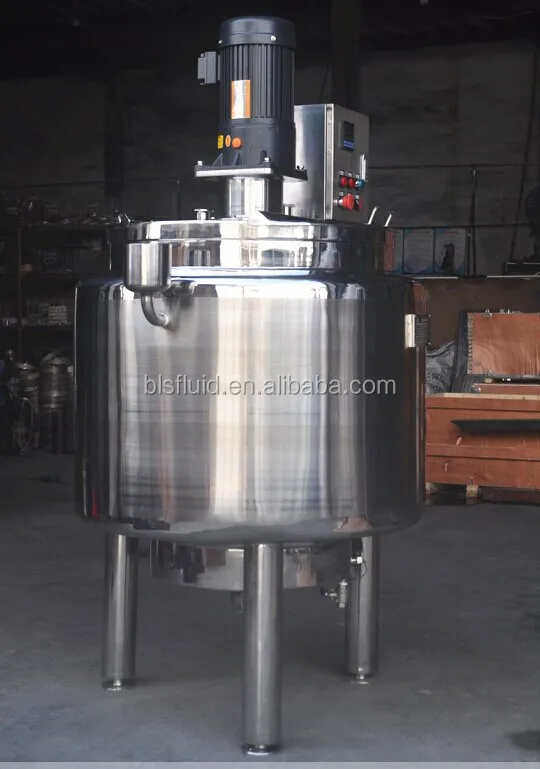

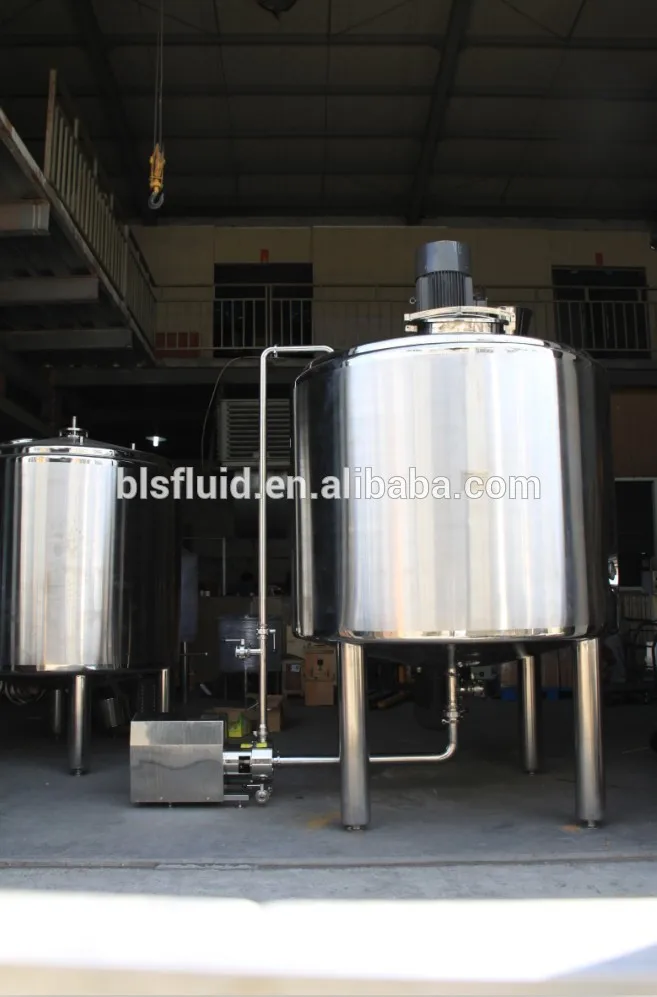

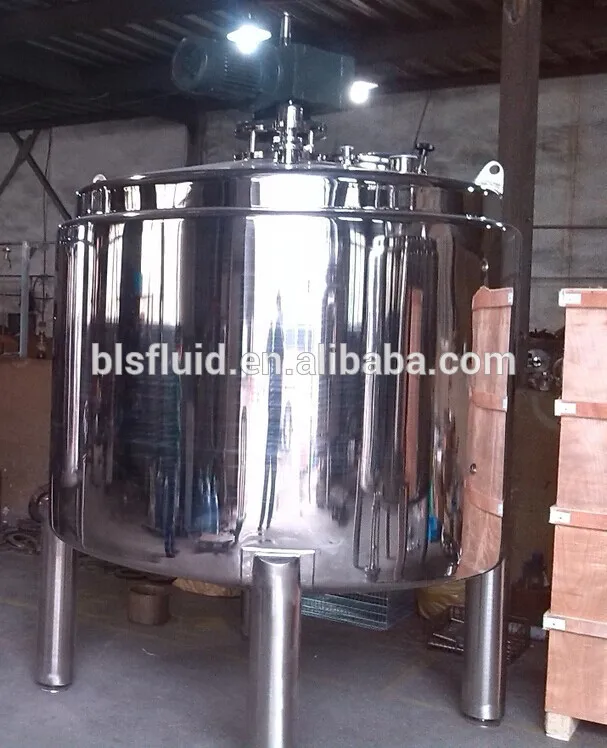

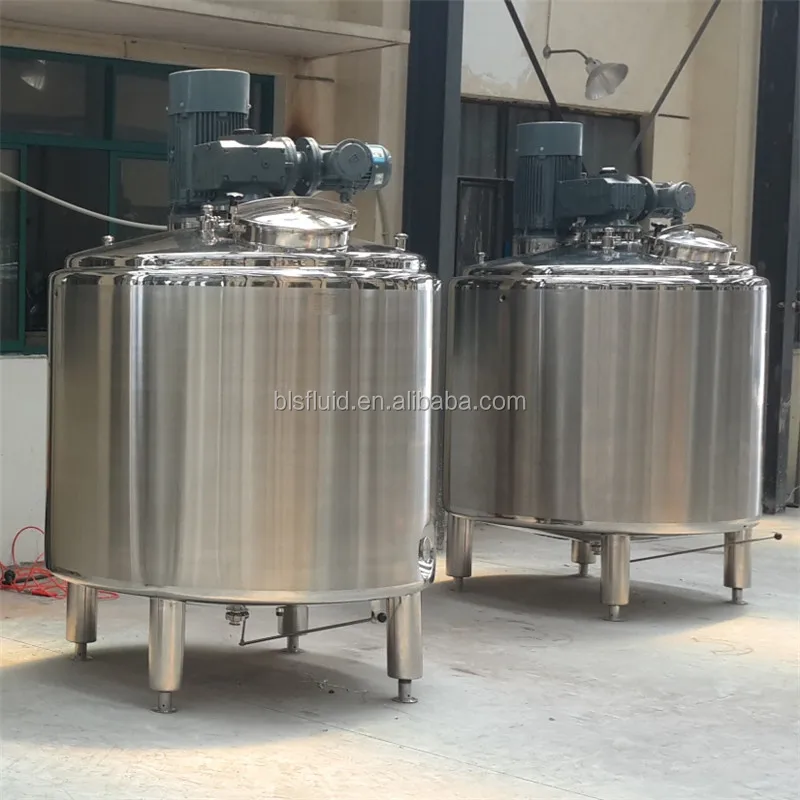

Juice Pasteurizer

Product Name: stainless steel juice pasteurizer
Brand: BLS
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.4um
Certification: CE ISO9001:2000

Used as mixing tank, blending tank etc.
Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics:
Made of single-layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of tank:
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly
Thermometer (According to customer requirements ).
Ladder (According to customer requirements).

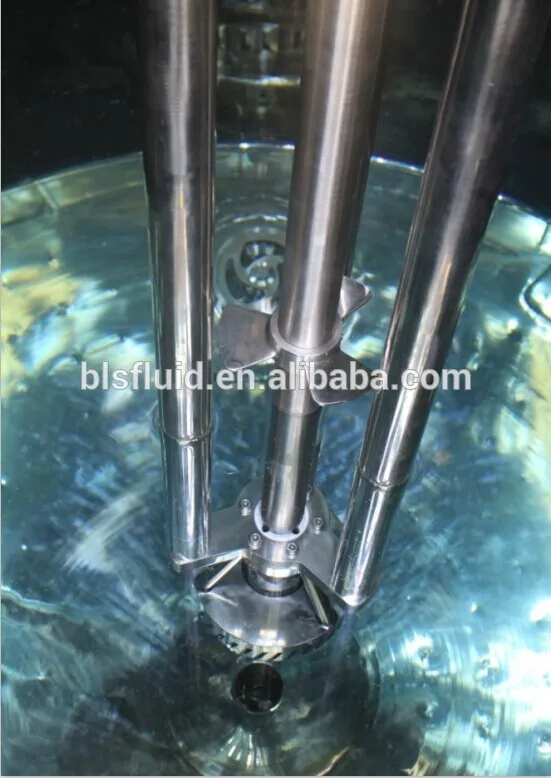

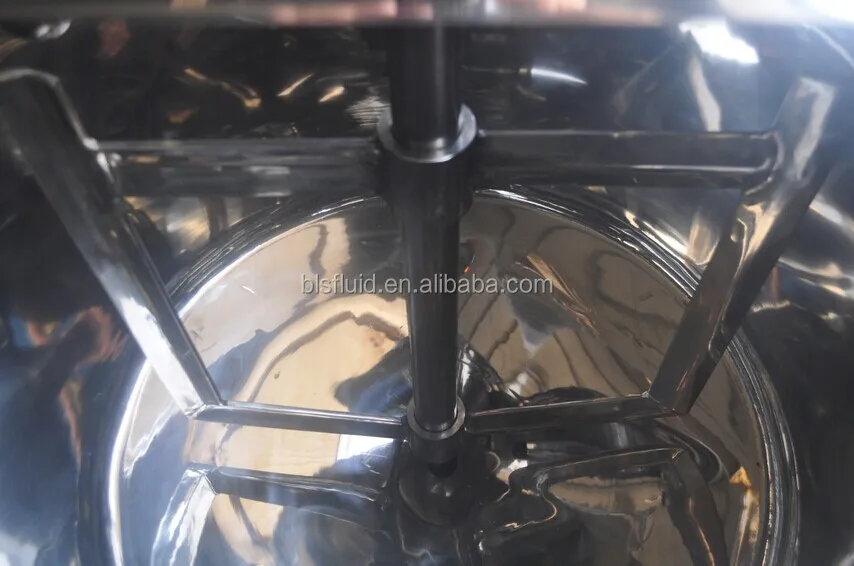

Paddle blender.
Liquid level meter and lever controller (According to customer requirements).
Eddy-proof board.
Customized and Non-standard products also welcomed.

Work Volume	Dimension of tank	Total height	Insulated layer	Diameter of inlet&outlet
(L)	(mmxmm)	(mm)	(mm)	(mm)
500	840*1000	2300	60	38
600	920*1000	2400	60	38
700	990*1000	2400	60	38
800	950*1220	2550	60	38
900	1010*1220	2700	60	38
1000	1060*1220	2700	60	51
2000	1340*1500	2750	60	51
3000	1410*2000	3500	60	51
5000	1910*2000	3850	60	51
10000	2300*2440	4500	60	51
15000	2530*3000	5200	60	51
20000	2640*3660	5800	60	51
