Mophorn Metal Lathe machine 8 x 16 Inch 750W Precision Mini Metal Lathe 2500 RPM Micro Metal Milling Bench Top Lathe Machine

Supplier: Shanghai Sishun Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Mr Sishun sishun
Price: $620.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Automatic Grade:	Automatic;	Year:	2018;
After-sales Service Provided:	Online support,Video technical support;	Warranty:	2 Years;
Weight (KG):	77;	Certification:	CE Certificate;
Port:	Shanghai;	Type:	Horizontal;
Condition:	New;	Packaging Detail:	Wooden package;
Brand Name:	VEVOR;	Distance Between Centers:	15-3/4" (400 mm);
Key Selling Points:	Eco-friendly;	Hole Thru Spindle:	0.83" (21 mm),taper MT#3/MT#5;
Inch Threads:	8-44 TPI;	Feed speeds:	(3) 0.0037"- 0.0071"/rev;
Place of Origin:	Shanghai China;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Advertising Company;
Swing Over Cross Slide:	4-5/8" (117 mm);	Metric Threads:	0.5-3.0 mm;
Range of Spindle Speed(r.p.m):	50-2500;	Voltage:	220V;
Dimension(LWH):	36* 19* 17" (91* 48* 44 cm);	Travel:	compound rest 2-1/8" (54 mm), cross slide 3" (76 mm);
Supply Ability:	2530 Piece/Pieces per Month;	CNC or Not:	Normal;
Model Number:	210ZXJCC000000001;	Weight:	58KG;
Spindle Speed Ranges:	Low 50-1250, high 100-2500 RPM;	Max. Swing Diameter:	210MM;
Swing Over Bed:	8-1/4" (210 mm);	Power(W):	750;
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;

Product Description

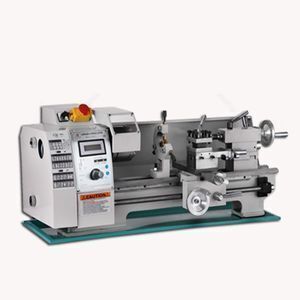

Mophorn Metal Lathe 8 x 16 Inch 750W Precision Mini Metal Lathe 2500 RPM Micro Metal Milling Bench Top Lathe Machine

This precision 8" x 16" Variable-Speed Lathe is designed to perform various types of metal, jade and wood turning. It is perfect for a sturdy workbench or as a stand-alone unit when mounted on a suitable stand. It can be used in areas such as mini precision parts processing, sample processing and modeling works. It is both perfect for hobbyists and modelers who is looking to add finite detail to their construction project. It features

variable-speed spindle with high and low speed ranges and convenient quick-lock tailstock.

Attention:

1.Read the manual carefully before open the package

2.Make sure the machine is leveled before Power on the machine.

3.Make sure that the gap between the middle plate or guide is moderate, not too small.Moving the plate by swiving the wheel to make sure the plate can move smoothly

4. .Before starting up, make sure that the voltage is within the working voltage range(230V +/- 10% or 120V+/- 10% base on the products you bought ).

5. The cutting amount should be controlled within 1.5 mm for steel or iron , 3 mm for Alumium or copper to prevent damage of the motor or the motor circuit board due to overload.

Application

Suitable for turnings of metal, wood, jade, etc.
Ideal for use in labs, workshops, engineering and education.
Can be turned within foreign aid, turning thread, turning taper and so on.

Product Advantages

Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized or adjusted by lateral movement.
Spindle speed can be adjusted from 50 to 2500 RPM (50-1250 low, 100-2500 high).
Equipped with all-metal gears, this machine is wear-resistant, durable, more accurate rotation and professional.
Multi-function automatic tool.
Accurate operation and professional performance.

Features:

Variable spindle speed of 50-2500 RPM
All metal gears, shell and hand wheel
High precision, able to turn out standard qualified works
750W strong power, 400mm (15-3/4") processing distance
Automatic tool, infinitely variable, professional tool post
Telescopic sets with scale
Wear-resistant, durable, accurate and professional

Technical

Swing Over Bed:	8-1/4" (210 mm)
Cross Slide	4-5/8" (117 mm)
Distance Between Centers:	15-3/4" (400 mm)
Motor Power:	750W
Spindle Speed Ranges:	Low 50-1250, high 100-2500 RPM
Travel:	compound rest 2-1/8" (54 mm), cross slide 3" (76 mm)
Tailstock:	Taper MT#2
ail Sleeve:	T φ1" (25 mm)
Hole Thru Spindle:	φ0.83" (21 mm),taper MT#3/MT#5
Feed speeds:	(3) 0.0037"–0.0071"/rev
Inch Threads:	8-44 TPI
Metric Threads:	0.5-3.0 mm
Footprint:	31-1/2" x 10-1/2"
Spindle Accuracy:	0.0004-0.0012" (0.01-0.03 mm)
Main Engine Gross Weight:	128 lbs (58 kg)
Main Engine Package Dimensions (L* W* H):	36* 19* 17" (91* 48* 44 cm)

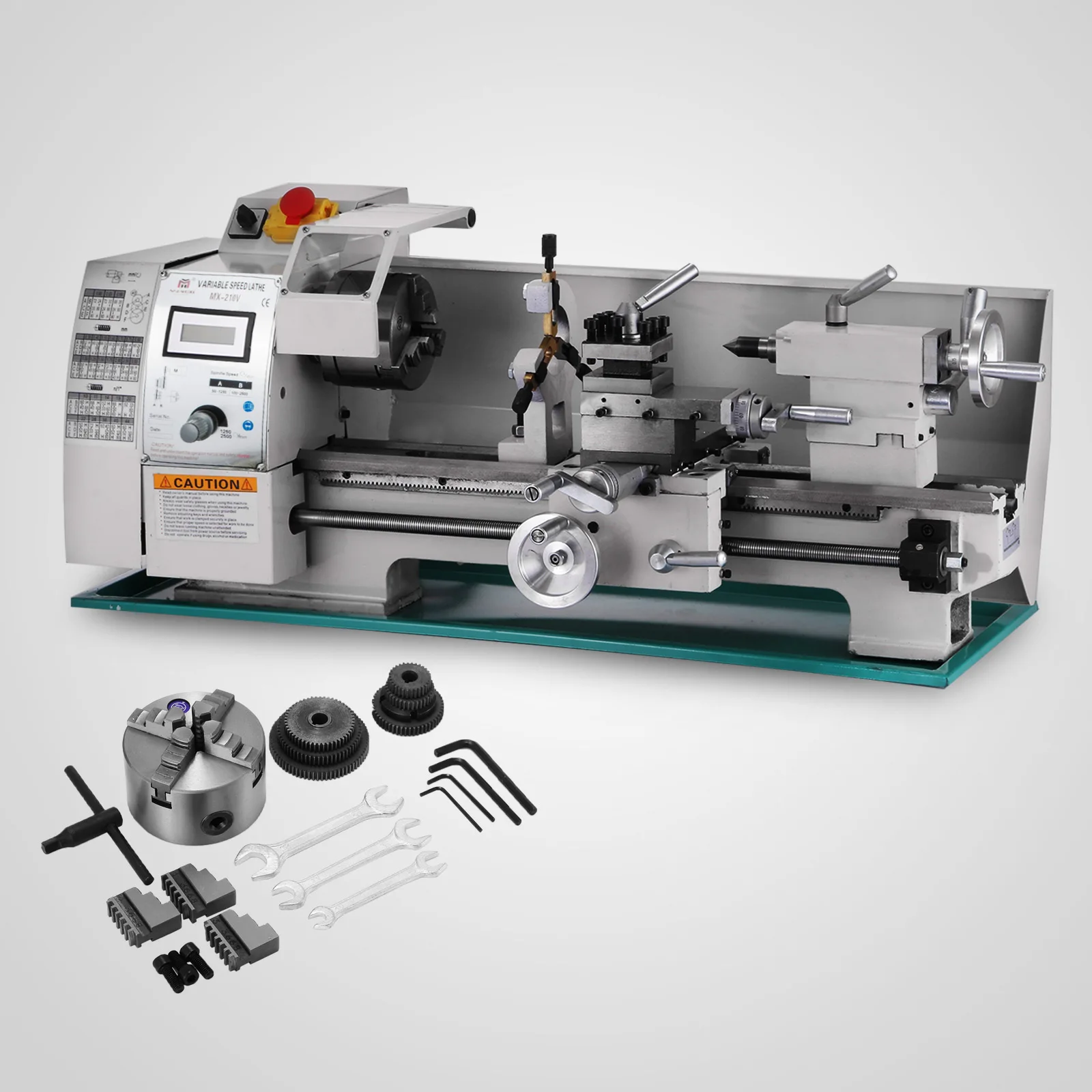

Standard Equipment:
4" 3-Jaw and 4-jaw chucks
Steady rest & follow rest
4-Way turret tool post (3/8" max tool size)
MT#2 & MT#3 dead centers
