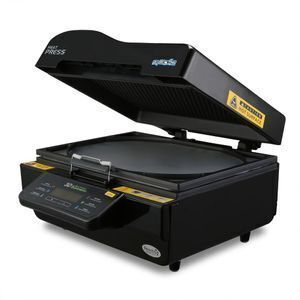

VEVOR Combo Vacuum Heat Press Printing Machine

Supplier: Shanghai Sishun Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Mr Sishun sishun
Price: $390.00 /set
Min. Order: 1 set

Click here to contact

Product details

Pressure:	-0.06~0.07Pa;	CBM:	0.18CBM;
Plate Type:	Flatbed Printer;	Inspiratory time:	18 s;
Usage:	Cloths Printer,Label Printer,Paper Printer,phone case heat press;	Type:	Heat Transfer;
Vacuum flow:	33L/min;	Selling Units:	Single item;
Max vacuum:	-640mmHg;	Brand Name:	VEVOR;
Place of Origin:	Shanghai China (Mainland);	Voltage:	110V or 220V;
Automatic Grade:	Semi-Automatic;	Vacuum pump:	150 W;
Warranty:	2 Years;	After-sales Service Provided:	Online support;
Machine color:	Black;	Single gross weight:	26 KG;
Up heating power:	1300 W;	Certification:	CE;
Applicable Industries:	Hotels,Garment Shops,Food & Beverage Factory,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Advertising Company;	Package Type:	Full-Wrapped Foam Package with Strong Carton Wooden Package also available;
Dimensions(LWH):	16" x 24" (40 X 60CM);	Color & Page:	Multicolor;
Single package size:	72X66X42 cm;	Condition:	New;
Weight:	52lbs;	Down heating power:	1300 W;
Printing Size:	300420110mm (11.8"16.5"4.3");

Introduction:
1. Multi-functional:
Can print on mug, glass, crystal, acrylic, plastic, wood, metal, stone, fabric, etc.
Can print on mugs of different shape and size with corresponding fixtures.
large print size; clear print effect; accurate color rendition; better performance than
traditional heat transfer printers.
2. Intelligent:
Well-designed user interface.
Easy operation. Only needs to set the temperature and time.
Needs no operations other than placing the workpieces in and taking them out.

3. Efficient:

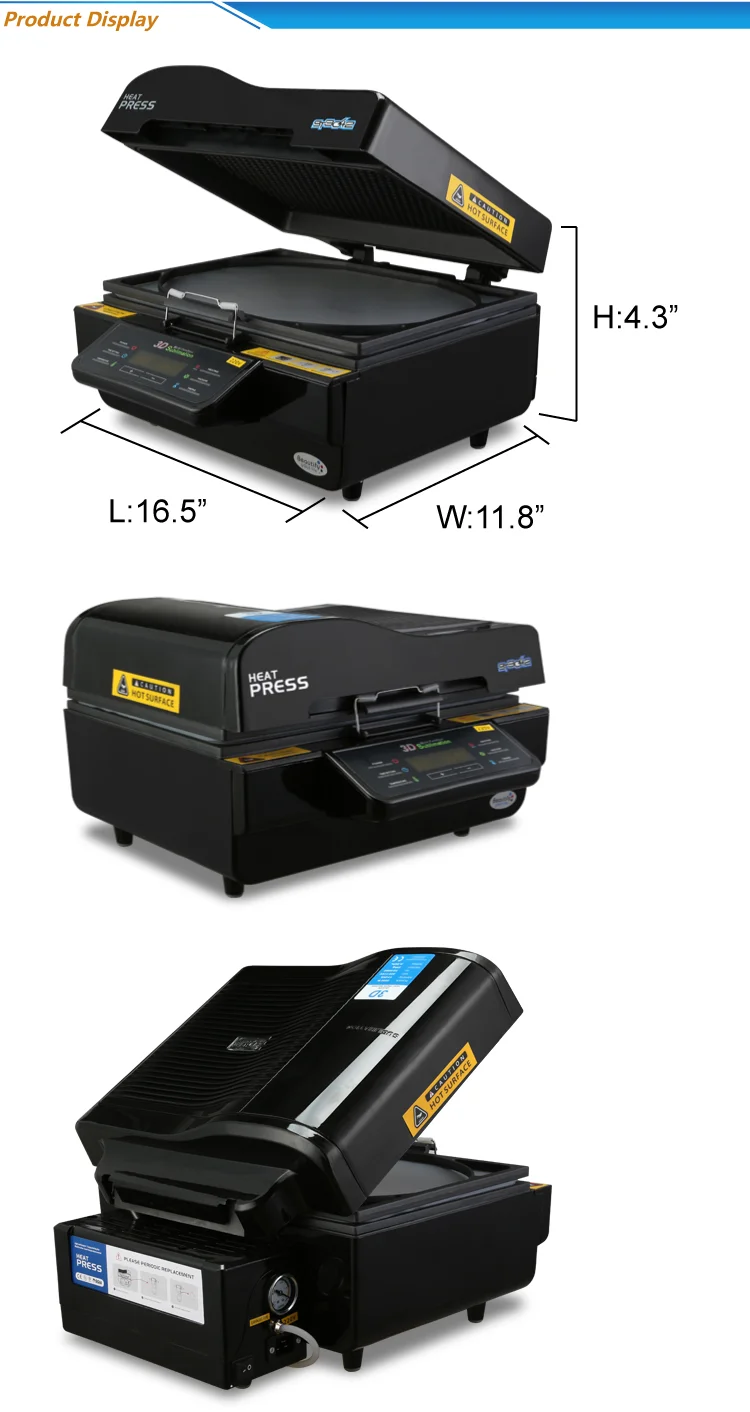

Large volume: 300 x 420 x 110 mm (11.8"X16.5"X4.3").
Can print 12 mugs at one time.

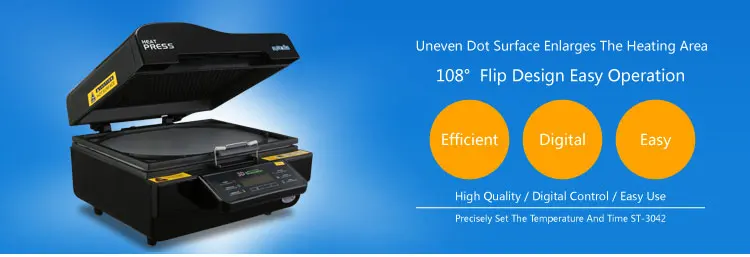

4. Delicate:
Uneven dot surface enlarges the heating area.
Die casting aluminium alloy and far-infrared coating.
Even heating.
Clear print effect; accurate color rendition.

5. Concise:
Made of flame-resistant heat insulating materials.
Safe, light, and streamline heat insulating strip.
Compact practical internal structure.
Modern exterior.
6. Compact:
108° flip design, easy operation, space saving.

7. Green Design:
Built-in high performance acticarbon air filter.
Effectively filter the exhaust gas.
Long exhaust pipe.
8. Safe:
Software & hardware dual control of temperature. Each one will start automatically once the
other one is failure.15 minutes no operation off.
9.Sublimation:
Sublimation is a chemical process whereby solids turn into gas without passing through the liquid stage.
Sublimation is the most advanced method of image transfer.

Parameter
Machine Color	Black
Printing Size	300420110mm(11.8"16.5"4.3")
Pressure	-0.06~0.07Pa
Power	2800W
Up heating power	1300W
Down heating power	1300W
Vacuum pump	150 W
Max vacuum	-640mmHg
Voltage	110V (50HZ-60HZ)
Vacuum flow	33L/min
Inspiratory time	18 s

Warehouses Distribution:

We have ten more overseas warehouses

Shanghai's warehouse covers Asian distribution

Los Angeles's warehouses cover American distribution

Bremen and Portsmouth's warehouses cover European distribution

Sydney's warehouses cover Oceanian distribution

Our Advantage:

Lead time:1 bussiness day with 1-2 sets

Distribution time:it's 3-5 bussiness days you can receive your package at the local

Shipping cost: We cut the shipping cost at large extent

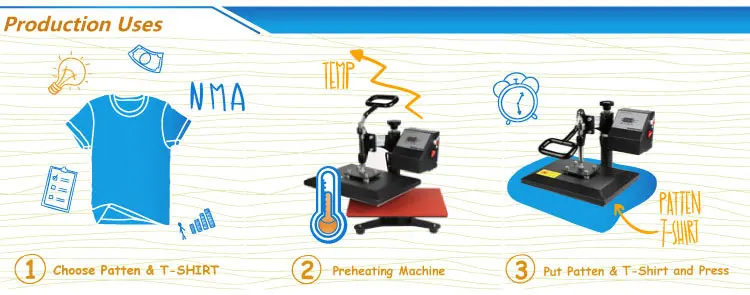

	Preheat temperature to 150-185℃(300℉ to 350℉) Put the t shirts on the machine When temperature to 160-185℃(330℉ to 350℉),Countdown 20 seconds Transfer paper
	Put the mug into machine Heat temperature to 165℃(220℉ to 325℉), Countdown 30 seconds Sublimation paper
	Put the cap into machine Heat temperature to 165℃(220℉ to 325℉), Countdown 30 seconds Sublimation paper
	Put the cushions on the machine Heat temperature to 180℃(220℉ to 380℉), Countdown 60 seconds Sublimation paper
	Preheat temperature to 150-185℃(300℉ to 350℉) Put the bag on the machine When temperature to 160-185℃(330℉ to 350℉),Countdown 20 seconds Transfer paper
	Put the mouse pad on the machine Heat temperature to 175℃(220℉ to 375℉), Countdown 60 seconds Sublimation paper

About us

Welcome !
Shanghai Weiwo Machinery Equipment Co., LTD. mainly engaged in cross-border business for 8 years. At present, the company operates more than 10000 kinds of products with more than 100 employees. We are dedicated to offering you an unrivalled choice of products with lowest price and best quality.

More important, we own ten more warehouses in the world, which located in 4 continents. We cut lead time, distribution time and shipping cost at largest extent.

Happy cooperation!
