360 Rotation 16m Aerial High Platform Operation Truck Hydraulic Platform Truck

Supplier: Chengli Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Ms. Caroline Gao
Price: $15600.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Transmission Type:	Manual;	Emission Standard:	Euro 3;
Engine:	JX493ZLQ4;	Description:	360 Rotation 16m Aerial High Platform Operation TrucK;
Brand:	JAC HOWO, FAW, DONGFENG,SHACMAN,;	Warranty for JAC High Truck:	12months for 3 key parts(engine, transmission, axle);
Packaging Detail:	RO-RO BULK CONTAINER NAKED for JMC High Truck;	wheels of JAC High Truck:	6wheels, 8wheels, 10wheels, 12wheels;
Fuel Type:	Diesel;	Condition:	New;
Brand Name:	jmc;	Color:	Customer's Requirement;
TIRE:	11.00R22.5 750-16-14 9.00R20;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Dimensions (L x W x H) (mm):	642219902995;	Port:	any port in China;
Place of Origin:	Hubei China;	Supply Ability:	200 Unit/Units per Month quantity production of JAC High Truck;
HP:	90HP 102HP 100HP for JAC High Truck;	OEM ODM:	AVAILABLE;

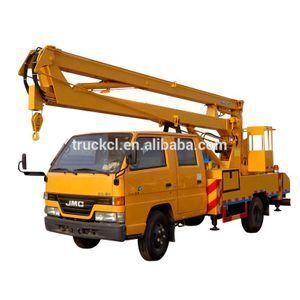

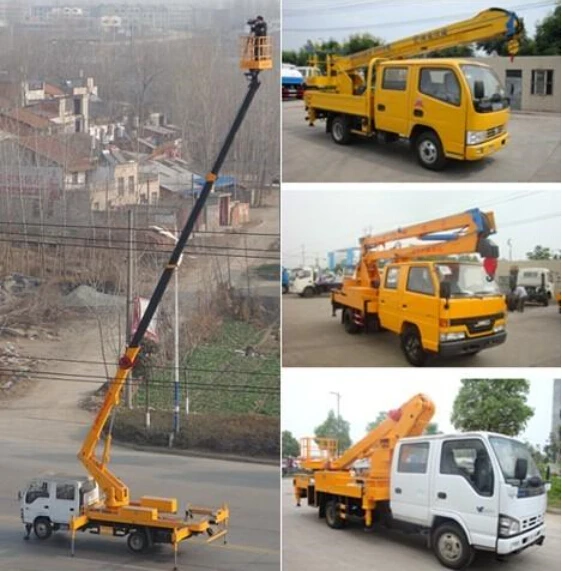

360 Rotation 16m Aerial High Platform Operation Truck Hydraulic Platform Truck

Technique Parameters

Product Name	JMC double row 14 meters high overhead working truck
Drive Model	4x2
Vehicle Main Dimensions	(L x W x H)mm	730020003100
	Wheel base (mm)	3360
	Wheel track (front/rear) (mm)	1960/1847
Weight in KGS	Curb Weight	5165
	G.V.W.	5490
Max. driving speed(km/h)		90
Cab capacity		2+3
Cab type		Double row
Working height(m)		14
Transmission type		manual
Engine	Model	JX493ZLQ4
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	80
	Displacement	2771ML
	Emission standard	Euro III
	Fuel type	Diesel
	Engine type	turbocharged intercooling, four stroke
Gearbox	5forwards& 1 reverse
Tire number	6 including 1 spare tire
Fuel tank (L)	120

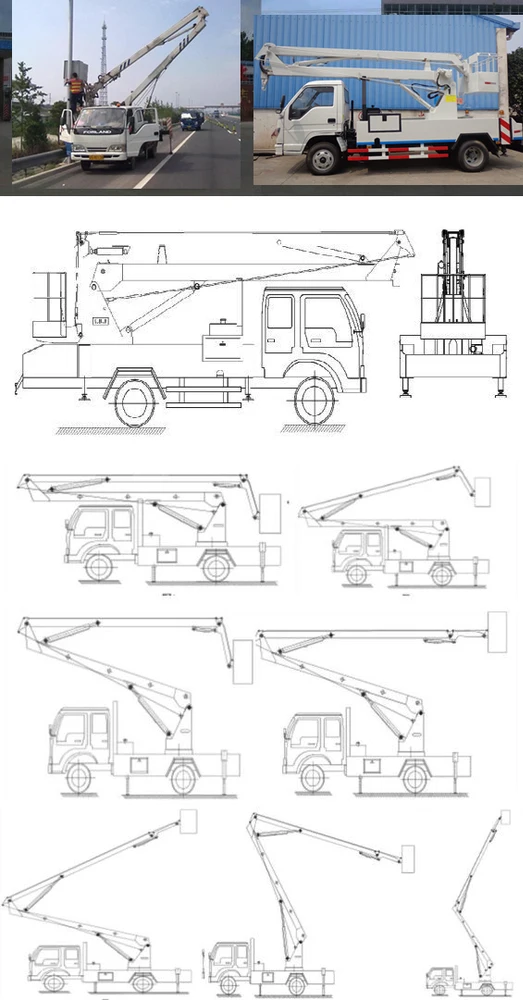

Superstructure parameter	1. Four rotational alert lamps on the platform deck.
	2. Four hydraulic outriggers which can be operated independently or simultaneously
	3. With an Insulated bucket for worker to operation and lifting hook
	4. Three section Folded Arms, 360° rotation
	5. Imported electro-hydraulic ratio control valve.
	6. Operation Control on operation bucket or platform deck
	7. Protective material:Q235A carbon steel
	8.Work platform is limited to two persons
	9.one ton of hook can be configured.
	10.Work platform load capacity:250kg

This parameteris just for your reference, we can produce different specification of High-platform operation truck aerial platform, lifting platform truck, truck mounted boom lifts, cherry picker, electric platform truck, high-altitude, hydraulic rising platform truck, hydraulic aerial cage, tail-lift truck, high altitude operation truck, high altitude working truck, over head working truck according to your demands.

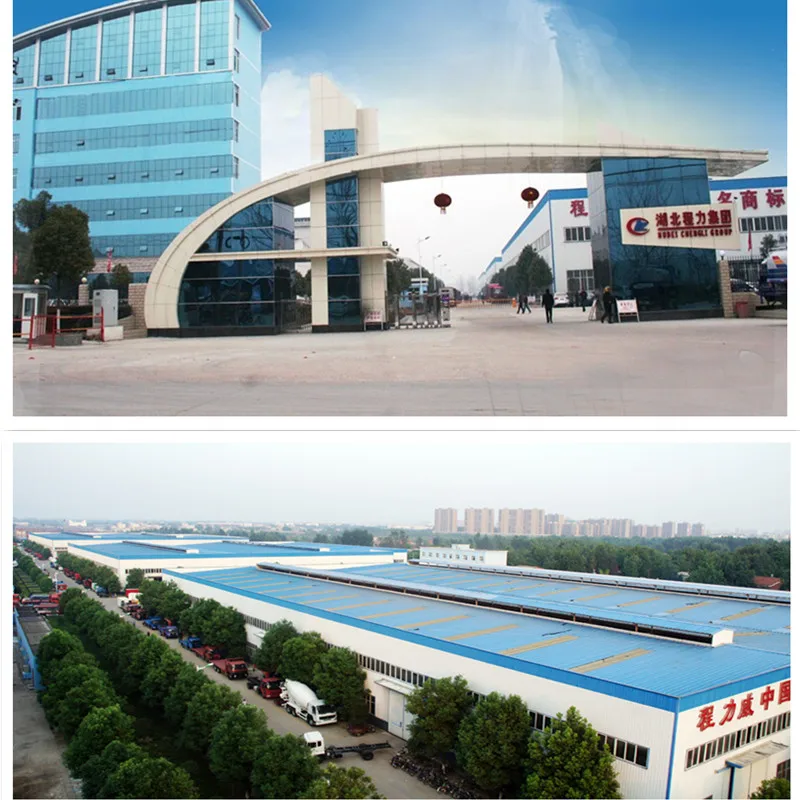

Factory and Workshop

Certification

Exhibitions

Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck

2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck mounted crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage suction truck,

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

Customers

We have customers from worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle-east,African, South-african, Australian and so forth. We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.

Chassis Suppliers

Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON,CMAC, IVECO,HOWO, and etc. We can produce more than 300 kinds of special trucks and semi-trailer.

Welcome to visit our factory and place your order !!!
