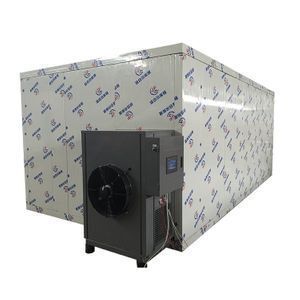

Industrial mango drying machine moringa leaf dryer small fruit drying machine

Supplier: Guangzhou Kaineng Electric Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Tyler Page
Price: $6000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Type:	Heat pump dryer;	Chamber:	30-50m3;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Condition:	New;
Delivery Detail:	7-15 days;	Voltage:	220/380V;
Dehydration capacity:	40L/H;	Dimension(LWH):	238013701690mm;
Power(W):	11.25KW;	Heating capacity:	35KW;
Weight:	480Kg;	Packaging Detail:	Plywood(Dryer machine+chamber+trolleys and trays);
Brand Name:	KINKAI;	Warranty:	2 years;
Refrigerant:	Mixture type;	Frequency:	50/60HZ;
Noise:	60dB(A);	After-sales Service Provided:	Engineers available to service machinery overseas;
Temperature:	8-75℃;	Place of Origin:	Guangdong China;
Compressor:	Copeland/Danfoss;	Model Number:	JK03/06/10RD;
Cooling capacity:	25KW;	Port:	Guangzhou/Shenzhen/HongKong;
Supply Ability:	15000 Unit/Units per Year;	Working ambient temp:	-10~45℃;
Certification:	CE,CCC,ISO,EMC;

Industrial mango drying machine/moringa leaf dryer/small fruit drying machine

Product Description

What Is KINKAI Heat Pump Tray Dryer Type Fruit Dehydrator?
KINKAI Heat pump tray dryer type fruit dehydrator takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried.
This kind of dryer is mainly composed of heat pump dryer and drying chamber.
This dryer will be controlled by touch screen controller, and the temperature can be adjusted.
It has low electric consumption.

How Does It Work?
1, Dryer evaporator of refrigerant absorb the air from outside
2, then compressor works that make the air temperature rise
3, heat exchanger change the hot air into drying chamber
4, final fruits will be dried by the hot air circulating in drying chamber

Model No.	Capacity	Chamber Size	Trolleys qty	remarks
Single JK03RD	300KG/Batch	316020702200mm	6 trolleys	Trolleys size: 8106701800mm Default design: Each trolley 16layers, each layer including 1pcs trays Total 16pcs trays for one trolley Tray dimension: 750*660mm
Double JK03RD	800KG/Batch	751020702200mm	16 trolleys
Single JK06RD	600KG/Batch	570021702200mm	12 trolleys
Double JK06RD	1500KG/Batch	1053021702200mm	24 trolleys
Single JK12RD	1200KG/Batch	581032302200m	20 trolleys
Double JK12RD	3000KG/Batch	1075032302200mm	40 trolleys

Feature

CE approved Monobloc/Split type cooling & heating drying & dehumidify

1. Energy saving&Environmental protection

2. Running Stable,operating easily

3. Second waste heat recovery technology(patent)

4. Exact control temperature and humidity

5. Recovery volatilized component

Components

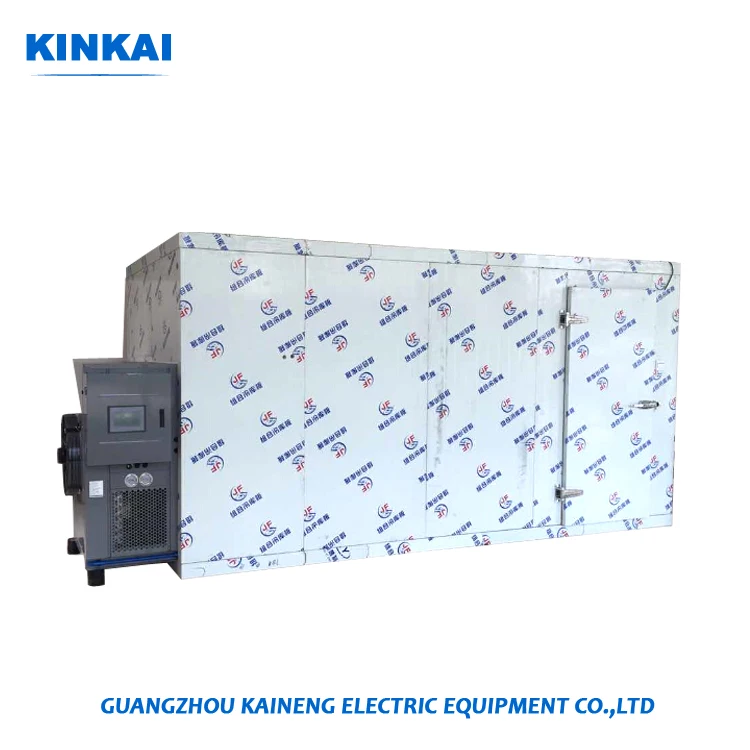

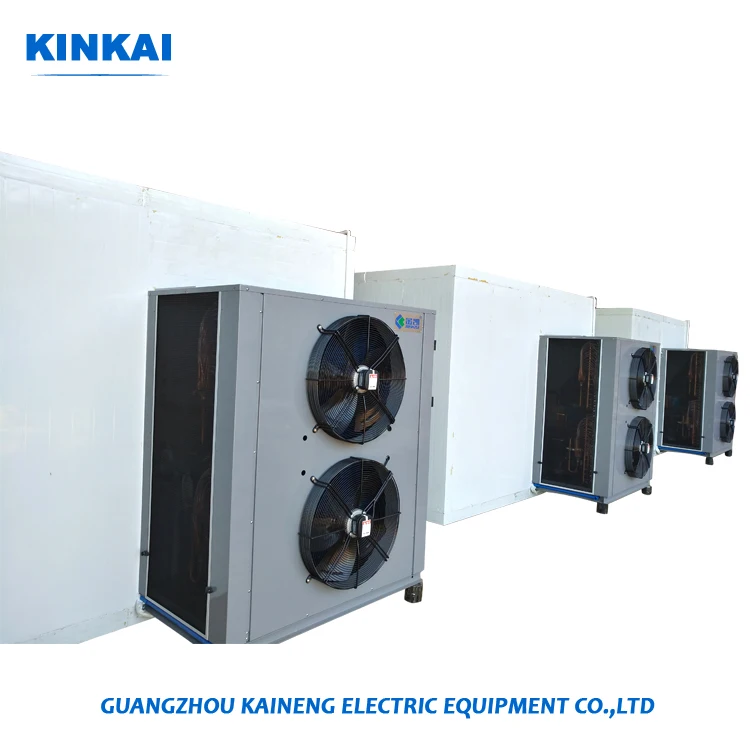

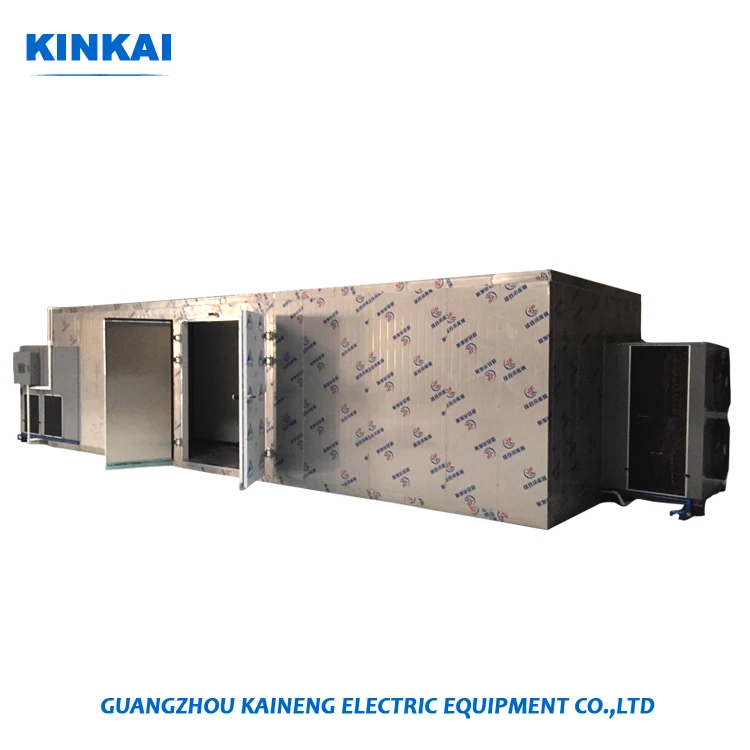

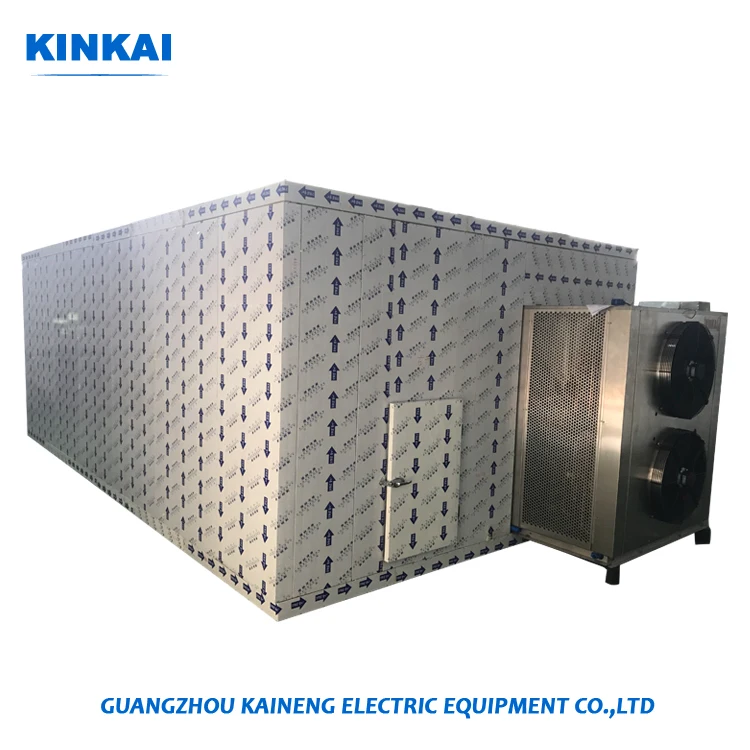

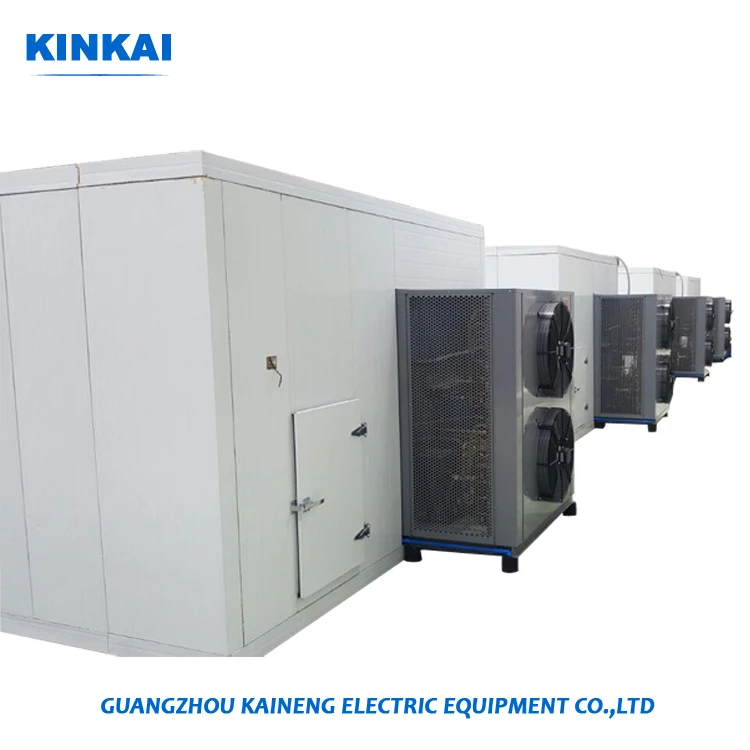

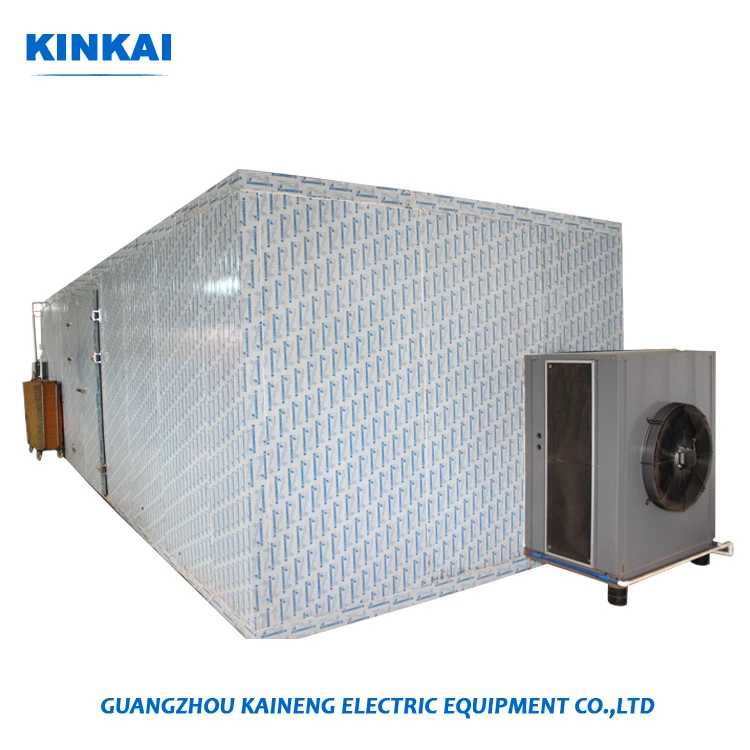

Detailed Images

Application

Purple Chinese yams

Purple Chinese yams, a latest species bred by Ziyu Huaishan Vegetables Scientific Institute, have the name for their purple red pulp. Compared with common white Chinese yams, the purple Chinese yams are rich in nutrients such as starch, sugar and zinc that they are good for eyes and can prevent heart attack and cancers. They tastes good and abound in more than 20 nutrients including starch, sugar, protein, saponin, amylase, choline, amino acid, vitamins, calcium, iron and zinc. They become the best among new-generation healthy foods.

How to dry purple Chinese yams with KINKAI dryer

F Temperature-raising phase: Tile sliced yams on drying racks and push into the drying cabinet. Start the dryer to send warm wind into the cabinet to raise the temperature to 50°C for 0.5– 1.5 hours. Start moisture removal function when humanity rises. KINKAI heat pump drying and dehumidifying machine can keep the constant temperature over the moisture removal.

F Drying and moisture-removing phase: There are two sub-phases, high humanity and low temperature, and medium humanity and medium temperature. In the first sub-phase, remove the moisture when the temperature ranges from 40°C to 50°C to avoid color of yams changing due to high temperature and high humanity. Watch water vapor on the surface of yams so as to remove it at any time. This phase shall last 3-3.5 hours. In the second sub-phase, the temperature ranges from 50°C to 60°C . If necessary, use fresh air to remove moisture based on density of moisture,

F Speed-reducing and shaping phase (also known as a low-humanity and high-temperature phase): the temperature ranges from 60°C to 70°C . In the first half phase, the temperature shall not be higher than 70°C . In the second half phase, the temperature shall be not lower than 75°C . The whole phase lasts 5-7 hours.

Our Services

A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)

B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.

C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year’s warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
