UV/VIS Spectrophotometer Wavelength Range 190-1100nm

Supplier: Shanghai Lianhua Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Jessica Wang
Price: $1018.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand Name:	lianhua;	Wavelength Range:	190-1100nm;
Port:	shanghai;	Wavelength Range:	190-1100nm;
Wavelength Setting:	Auto, Resolution 0.1nm;	Weight:	16kg;
Spectral Bandwidth:	2.0nm;	Payment Terms:	T/T;
Power Requirements:	AC 90-250V,50/60Hz;	Focal Length:	≤0.2%T(220/360nm);
Weight:	16kg;	Place of Origin:	china;
Dimension:	430320195mm;	Wavelength Repeatability:	≤0.3nm;
Model Number:	EU-2600;	Size:	490390280nm;
Wavelength Accuracy:	±0.8nm;	Supply Ability:	20 Unit/Units per Month;

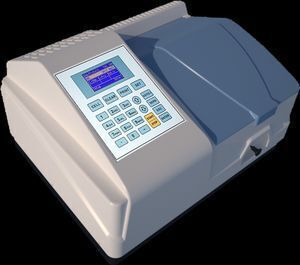

Product Description

EV-2600/EU-2600 spectrophotometer is the ideal instrument for education and QC laboratories. They are simple to fit a curve by using your standard with single or dual WL. They are widely used in colleges and QC labs.

Features

The excellent optical and electric system

Low noise and Low stray light

Large LCD display (128*64 Dots), can display curve

High quality grating, detector and lamps

Data and Curve can be stored in real-time

Auto setting WL, auto Blank

Lamps can be turned on/off individually

Easy to change Pri-aligned lamps

Reinforced baseboard and bracket assures durability

Specifications

Model	EV-2600	EU-2600
Wavelength Range	320-1100nm	190-1100nm
Spectral Bandwidth	2.0nm
Optical System	Single Beam, Blazed Holographic Grating (1200 lines/mm)
Wavelength Accuracy	±0.8nm
Wavelength Repeatability	≤0.3nm
Wavelength Setting	Auto, Resolution 0.1nm
Photometric Range	0~200%T, -0.3~3A, 0~9999C
Photometric Accuracy	±0.002A (0~0.5A), ±0.004A (0.5~1A), ±0.5%T (0~100%T)
Photometric Repeatability	≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)
Stray Light	≤0.1%T(220/360nm)
Scan Speed	High, Medium, Low. Max.2000nm/minute
Baseline Flatness	±0.003A
Stability	±0.002A/h (500nm,0A)
Noise	≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T)
Sample Compartment	Accommodate 5-100mm Pathlength Cuvette
Detector	Silicon Photodiode
Lamps	Tungsten Lamp & Deuterium Lamp (Pre-aligned)
Display	Graphic LCD (128x64 Dots)
Keypad	22-key Numeric Membrance Keypad
Output Port	USB Port & RS232 Port
Printer	Mini Serial Printer; PC Printer
PC Software	Optional PC Scanning Software
Power Requirements	AC 90-250V,50/60Hz
Dimension	490x390x280mm
Weight	15kg	16kg
