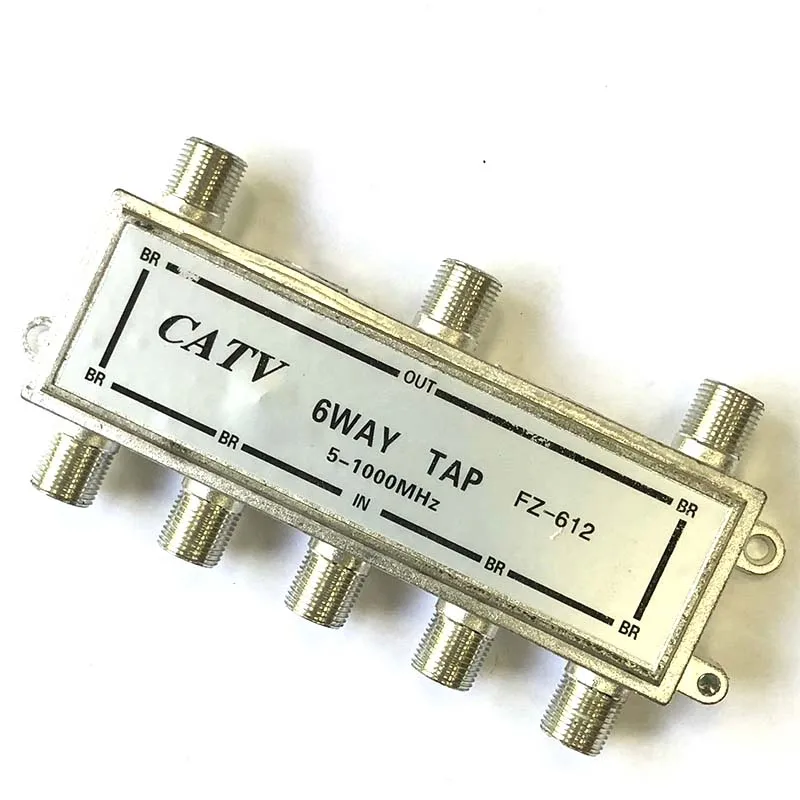

6 way indoor catv tap

Product details
Model Number:Tap-6;material:Zinc Alloy;
Packing:polybag;certification:CE and ROHS;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;Port:shanghai;
Supply Ability:20000 Piece/Pieces per Day;style:indoor catv tap;
Place of Origin:Jiangsu China;Packaging Detail:A:polybag B:blister;
Application:CATV;shielding index:4/6/8/12/16/20/24dB;
Brand Name:Jinda;

indoor catv tap

 Specifications

Item

Spec.

Frequency Range

5-1000 MHz

Tap Loss

(dB)

Nominal

14

17

20

23

26

29

32

Acry’

5-550MHz

±1.5

550-1GHz

±2.0

Insertion Loss

(dB)

5-65 MHz

4.2

2.4

1.3

1.4

1.2

1.0

1.0

65-750MHz

5.0

3.1

2.2

2.0

1.4

1.4

1.4

750-1000MHz

5.6

3.9

3.2

2.6

2.2

2.1

2.1

Reverse

Isolation

(dB)

5-65MHz

22

22

22

25

25

25

30

65-550MHz

25

25

25

28

30

30

30

550-750MHz

22

22

25

25

26

28

30

750-1000MHz

22

22

22

25

25

25

25

Inter

Isolation

(dB)

5-65MHz

≥22

65-550MHz

≥25

550-750MHz

≥25

750-1000MHz

≥22

Return Loss

(dB)

5-65MHz

≥14

65-550MHz

≥16

550-750MHz

≥16

750-1000MHz

≥14
