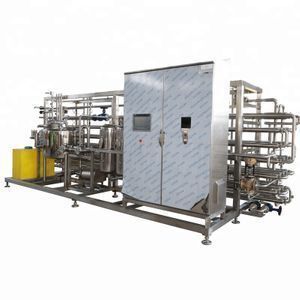

Automatic UHT milk sterilizer Machine

Product details
Processing Types:Milk;Model Number:CNB;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;Certification:CE;
Application:Beverage Production;Port:Shanghai port;
Keyword:Sterilizer;Packaging Detail:Wooden Case;
Dimension(L*W*H):Capacity;Place of Origin:Jiangsu China;
After-sales Service Provided:Engineers available to service machinery overseas;Processing:Sterilizer;
Condition:New;Material:SUS304/SUS316;
Weight:80-500KG;Name:UHT Sterilizer;
Product name:Automatical Machine Pasteurizer for Milk and Juice;Power(W):2.8KW-15KW;
Warranty:1 Year;Ussage:Seasoning;
Brand Name:Chun Nobel;Supply Ability:5 Set/Sets per Month;
Voltage:220V/380V;
Product Description

Automatic UHT milk sterilizer Machine

Sterilizing system, which are defined as follows:

Pasteurizing system,sterilizing temperature within 65-90°C

Ultra high temperature sterilizing system:sterilizing temperature within 115-138°C

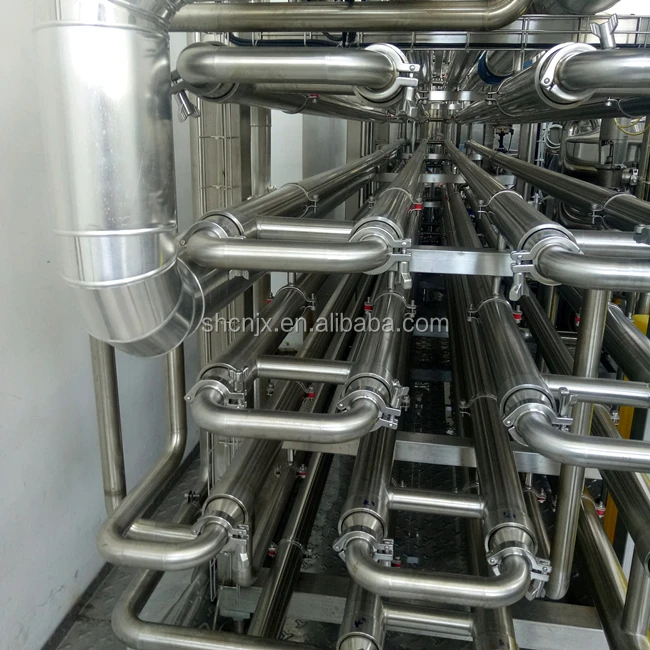

Capacity of the tubular sterilizing system:1-15tons/hour

Production capacity(L/H)

1000

2000

3000

Inlet temperature

5℃

5℃

5℃

Warm keeping time(s)

4s

4s

4s

Sterilization temperature

95-125(138℃)

95-125(138℃)

95-125(138℃)

Outlet temperature

5℃

5℃

5℃

Steam pressure

0.4(0.6MPa)

0.4(0.6MPa)

0.4(0.6MPa)

Steam consumption

≈130 kg/h

≈160 kg/h

≈240 kg/h

Compressed air pressure

0.6MPa

0.6MPa

0.6MPa

Compressed air consumption

50L/H

50L/H

50L/H

Size

3500*1600*1800

4500*2000*1900

4500*2500*2000

Electricity consumption(kw)

8.75

12

18
