household appliances IEC60947-4 3P dc contactor 1000amp

Supplier: Shanghai Tehow Electric Co., Ltd.
Region: Shanghai, China
Contact: Ms Kiwi Ding
Price: $2.50 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Frequency:	50/60Hz;	Payment Terms:	L/C,D/P,T/T,Western Union,Paypal;
Coil Voltage:	24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 415V;	Model Number:	EBS1C-K;
Port:	Shanghai or Ningbo;	Electricity Type:	AC;
Number of Pole:	3;	Current Range:	9A, 12A,18A, 25A, 32A, 40A, 50A, 65A,80A, 95A;
Brand Name:	EBASEE;	Main Circuit Rating Voltage:	380v;
Main Circuit Rating Current:	40A;	Supply Ability:	50000 Piece/Pieces per Month MC contactor depend on specification;
Packaging Detail:	1. Standard AC contactor inner Packing box. / 2. 20-50 pcs AC contactor for a standard export carton. / 3. AC contactor Packing can be design as client request.;	Place of Origin:	Shanghai China;
Product name:	AC Contactor;	Certificate:	ISO9001;
Phase:	3;

Related product

Product Description

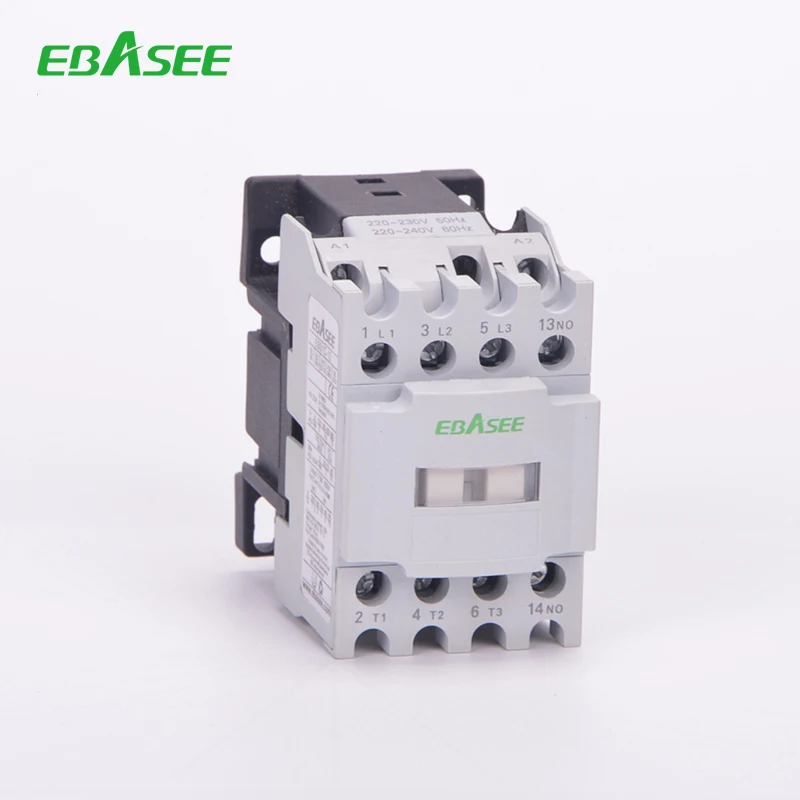

AC Contactor

Function

EBS1C-K/E AC control contactors is suitable for using in the circuits up to rated voltage 660V, AC 50Hz or 60 Hz,DC rated voltage 220V and rated current 12A in AC-3/380V load circuits,for remote control of circuit making and breaking.

Technical Parameter

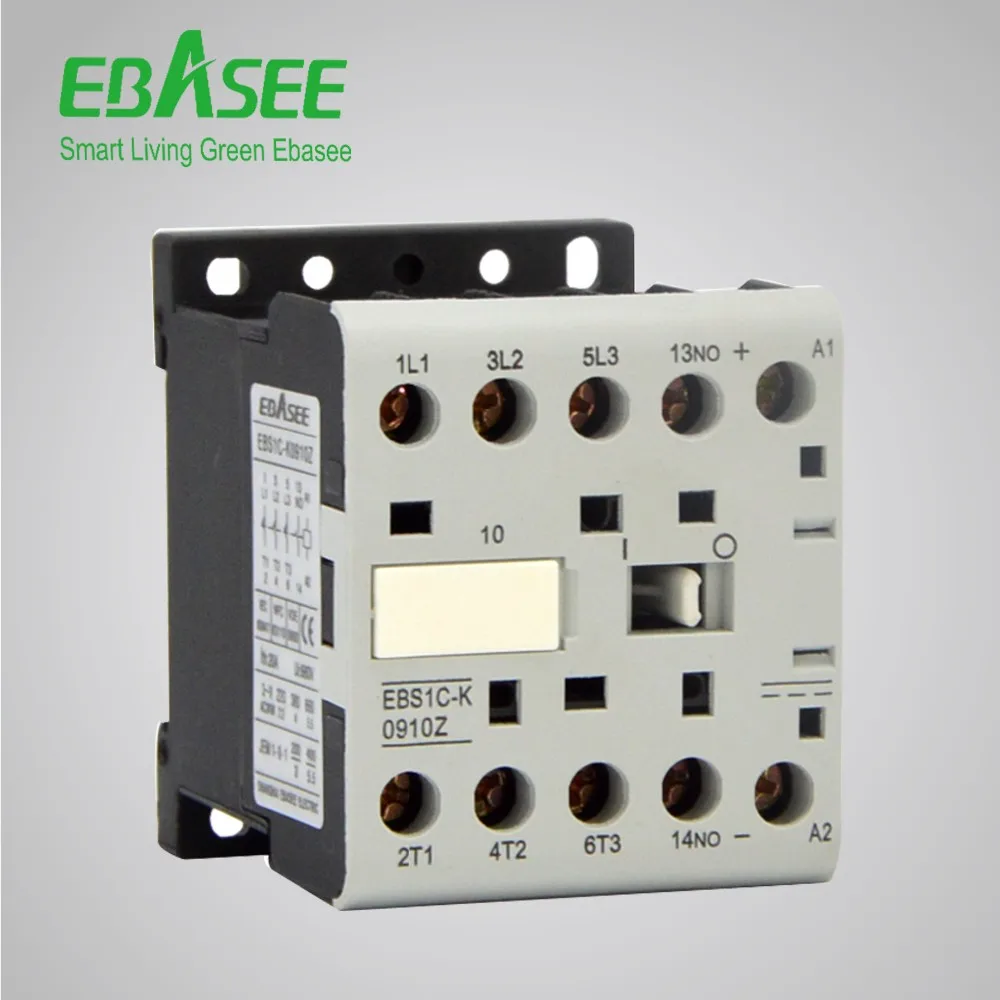

Model Name		EBS1C-K/E telemecanique contactors
Standard		IEC60947-4
Coil voltage		AC /DC
Rated current In(A)		6 9 12 Amp
Rated voltage Un(V)		380V 660V
Frequency of coil		50Hz, 60Hz, 50/60Hz

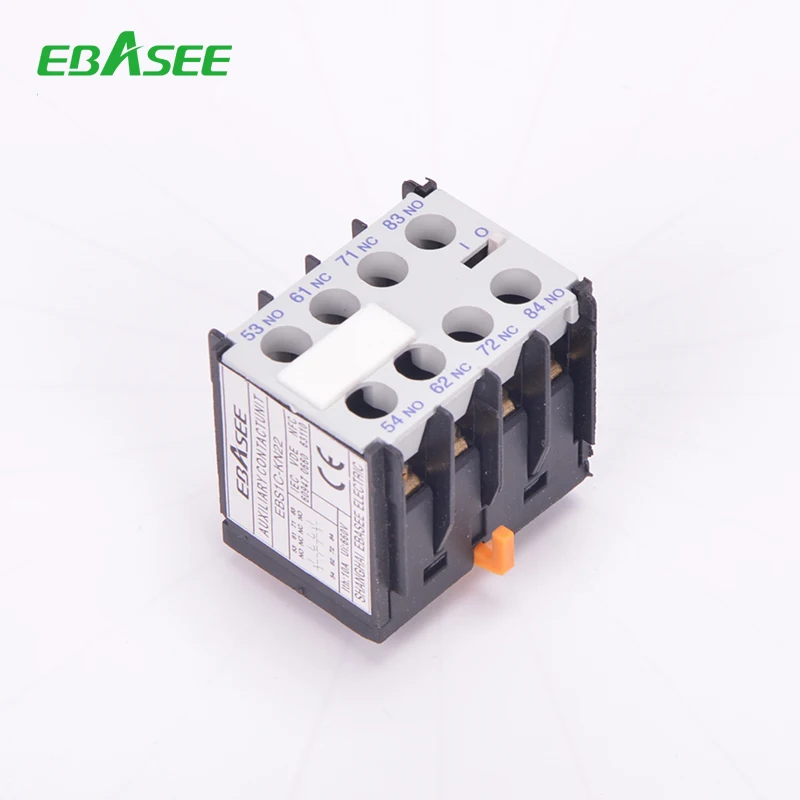

Number of auxiliary contact		10 /01 /11
Mechanical life (times)		1200
Protection grade		IP20

Features

n This EBS1C-K/E combined with related type of thermal relay or electronic protector, it becomes the electromagnetic starter or mechanical interlocking starter.

n With AC/ DC operation

n Single contactor or reversible interlock contactor

n Coil voltage: AC 24V 36V 48V 110V 220V 380V and DC 12V 24V 48V 110V 220V

Applicable Working

Ambient temperature		-5~+40℃, the average value cannot exceed to +35℃ within 24h
Altitude		≤2,000m
Relative humidity		≤95%
Pollution level		II.
Installation location		Mount on the place where has no obvious vibration or impact
