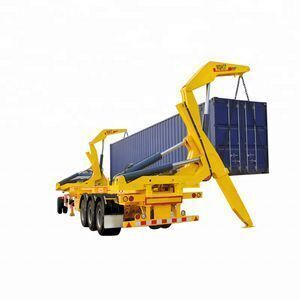

MQH37A 37 ton container side lifter side loader lift truck trailer for sale

Product details
Max. speed:90km/h;Place of Origin:Jiangsu China (Mainland);
Material:Steel;OEM No.:Optional;
Max. lifting capacity:37000kg;Packaging Detail:complant on export packing requirement(side loader trailer);
Max. working range:4000mm;Max Payload:37000KG;
Supply Ability:1000 Unit/Units per Month;Size:14100*2500*4000mm;
Product name:MQH37A 37 ton hot semi-trailer Side Loader container truck for sale;Max. stabilizer outreach:32000mm;
Track(front axle/rear axle):1820/1820/1820mm;Wheel base:8000+1350+1350mm;
Payment Terms:L/C,T/T;Type:Semi-Trailer;
Brand Name:CMSV;Use:Truck Trailer;
Port:shanghai port;Certification:CE;
Approach angle/Departure angle:-/13°;Keyword:side loader trailer;
Axle Number:Three;

  MQH37A 37 ton hot semi-trailer Side Loader container truck





Product Description

 MQH37A The product has a number of advanced core technology and a number of national patents, a machine to complete the container from the loading and unloading, car and car transfer and other operating functions, with lifting capacity, operating range, wide range of applications, Good and with the loading and unloading support and other characteristics, to meet the container in different locations of the hoisting needs, widely used in container logistics, port freight transfer stations, railway container handling stations, warehouses, military logistics, customs and other container distribution center, its "Fast, flexible, efficient and convenient" features are more and more recognition and recognition.



Corresponding to the industry competitor's product level, our company's product advantages:

Vehicle average trouble-free working time is long, stable and reliable performance, compact and reasonable layout, beautiful fashion, easy to use, easy to repair.



1. Slip-type container side of the self-loading and unloading truck patented technology

It can be used to load and unload 20ft or 40ft containers or containers through the slippage of the front and rear cranes. It is suitable for wide range of versatility and greatly expanded the use of equipment.



2. Dual pump double branch patented technology

The vehicle is powered by an independent engine with adjustable speed, the hydraulic pump of the double pump output

And then transported to the series of front and rear side of the multi-valve unit to drive the respective actuators, a greater range of linkage adaptability, greatly guarantee the stability of the lifting process and reliability.



3. Electro-hydraulic load adaptive patented technology

The use of high and low pressure double pump, and through the combination of flow after the flow of the two cranes before and after the oil, can achieve low pressure conditions in the dual pump at the same time the large flow of oil and high pressure conditions under the low pressure pump High pressure unloading of the small flow, to ensure the efficiency and quality of lifting operations. The technology can not only guarantee the stability of the crane in the high and low pressure conditions, but also make full use of the engine output power, the economy is better.



4. Patented technology for automatic loading and unloading of chain lifting equipment for container loading and unloading

Container loading and unloading with a chain of rotary lock mechanism, packing operation when the lock in the container corner pieces automatically rotate and lock, will not fall off to ensure the safety of the operation; transport, the lock through the limit device can still automatically lock , After the completion of the operation, by optimizing the movement of the hanging point and the location of the chain to achieve the recovery process in the boom hanging chain Of the automatic storage, greatly improving the operation of the comfort and vehicle safety.



5. Control system optimization technology

The vehicle is reasonably matched with a combination of remote wireless control remote control and advanced load-sensitive electro-hydraulic proportional valve with pre-valve pressure compensation. Remote control operation safe, comfortable and convenient, remote control panel and handle people-oriented, but also in line with the movement of the machine trend; proportional control, to achieve stepless speed regulation, to ensure smooth running machine, but also precise control of subtle movements.



6. Reasonable match of safety system

The whole side of the operation process, the side of the side of the intelligent anti-tipping protection system, real-time monitoring machine smooth, if the tilt danger, can automatically alarm and effectively locked; the other side of the baffle protection, The container enters the hazardous area. High-quality hydraulic seals, high-grade electrical protection, safe and reliable locking mechanism, practical safety emergency stop function, also increased the use of high-strength steel plate, through advanced software analysis and rigorous testing to ensure safe and reliable; Security.





Side loader MQH37A Parameters:

Technology

 2017  MQH37A 37 ton hot semi-trailer Side Loader container truck for sale

Detailed Images

2017  MQH37A 37 ton hot semi-trailer Side Loader container truck for sale

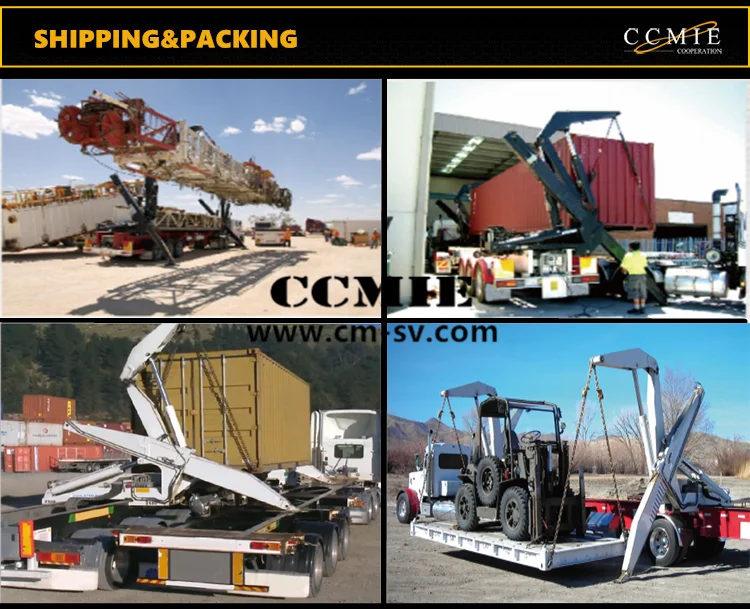

Packaging & Shipping
