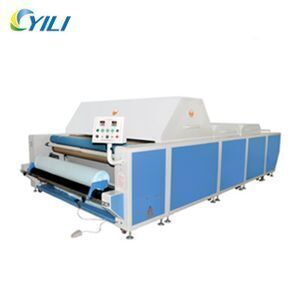

fabric finishing steam and drying shrinkage machine to fix fabric size before cutting and sewing

Product details
Supply Ability:50 Set/Sets per Month;Place of Origin:Guangdong China;
Mainly Advantage:Improve the fabric quality and dimensional stability;Function:shrinking,drying,cooling room;
Payment Terms:L/C,T/T;After-sales Service Provided:Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Automatic Grade:Automatic;Feature:Eliminate fabric tension;
Output&Input fabric type:folding & rolling fabric;Dimension(L*W*H):5000*2610*1600;
Packaging Detail:Inner package:stretch film Outside package:Standard export wooden pallets by FCL,wooden case by LCL;Working principle:WITH a certain temperature, humidity/steam and pressure;
Voltage:AC380V/50-60HZ;Port:Shenzhen/Guangzhou;
Brand Name:Jin Ding;Condition:New;
Speed,temperature:adjustable;Certification:ISO 9001:2015/CE;
Fabric Type:cotton,Knitting,woven,wool fabric and so on;Name:fabric finishing steam and drying shrinkage machine;
Other function:measure,folding fabric,auto adjustable belt;Power(W):19KW;
Energy saving:Save about 40% than the same type of new products;Warranty:1 Year;
Product Description

Shrinking machine


Shrink (Eliminate tension,fixed fabric size)

Pre-heating and Drying and Cooling

Save 40% energy

China national certificate

Improve the fabric quality


Please be patient to read the following description!!!

Introduction& Working principle:

(1)Fabric shrinking and forming machine is working in the conditions of a certain temperature, humidity/steam and pressure , use the fabric own nature, the elastic shrinkage deformation and fiber penetration and swelling principle to eliminate the potential shrinkage of clothing fabrics.

(2)Our machine have pre heating room,steam room,drying room and cooling room,after shrinkage can use in cutting machine directly.

(3)The fabric pre shrinking machine can be used for cotton, Knitting,woven,chemical fiber, blended fabrics, wool fabric.

Please be patient to read the following description!!!

Application /Advantages of shrinkage:

(1)Stabilize the fabric shrinkage,reduce Reduce shrinkage during the sewing and ironing process,
no longer with phenomenon of pinhole and shorten,also without deformation when sew the transverse cloth together with longitudinal cloth.

(2)Improve the fabric quality and dimensional stability.

(3) Improve the physical properties of fabrics or to protect the surface quality of fabrics.

(4) The fabric size is stable after Shrinkage , feel good, and once again ironing is not easy to shrink, this process let the fabric have best / better quality and added value is increased.

(5) Improve the sewing performance, upgrades fabric quality and improve the value of clothing products.

(6) The shrinking machine is a modern machine that uses with CAD and CAM automatic equipment.

Technical parameter of YJ-4800
Model
 YJ-4800
Table Dimension(L*W*H,mm)
5000*2610*1600
Voltage
AC380V50-60Hz
Power
19KW
Steam pressure
4-7kg/cm
Steam consumption
100kg/h
Speed
1-16m/min
Width of  fabric
2100 mm or customized
Main Function
preheating,shrinking,drying and cooling
Digital counter
With
Edge controller
Yes,Simple type
Fabric Max diameter
300 mm ,can customized made

Function chamber:



One steam shrinking chamber+two drying chamber+one cooling chamber

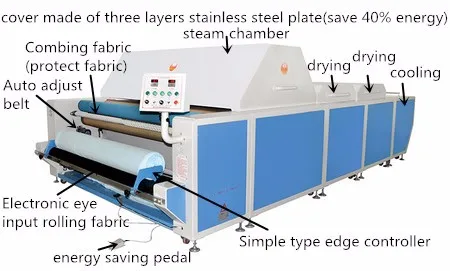

Main Feature
1.The steam room made of three layers of stainless steel plate has good heat preservation effect, which can ensure the using effect of steam .
2.Steam cycle design, it not only reduces the discharge of waste gas and water, but also reinforces the fabric preshrinking effect, thus reducing the consumption of steam and electricity energy. (Save about 40% than the same type of new products)
3.Steam chambers, preshrinking speed is faster and the effect is more stable
4.The fabric can be double shrinking by rollback freely.
5.Automatically combing fabric and protect cloth.makes high elastic cloth to avoid be elongated or transformed.
6.Use electronic eye automatic input rolling fabric,output folding fabric.
7.Automatic adjustable belt
8.Accurate measurement of length, equipped with intelligent meter counter
9.The steam flow and temperature and speed can be adjusted according to different fabrics.
10.Can choose equipped with the humidification device of atomized water for the pure cotton, woolen or with pulp materials, it makes a better fabric preshrinking effect and more comfortable hand feel.
Related Products

Big size fabric shrinking and forming machine YJ-8800

Small size fabric shrinking and forming machine YJ-1200

Fabric inspection and shrinking machine YFD-2100L

Why Choose Us

We are the manufacture of garment machinery since 1992,focus on providing energy saving & durable product .

Reduce your cost & Raise your income/profits. & Professional manufacturing experiences. & Ensure suitable machine to meet you demand.

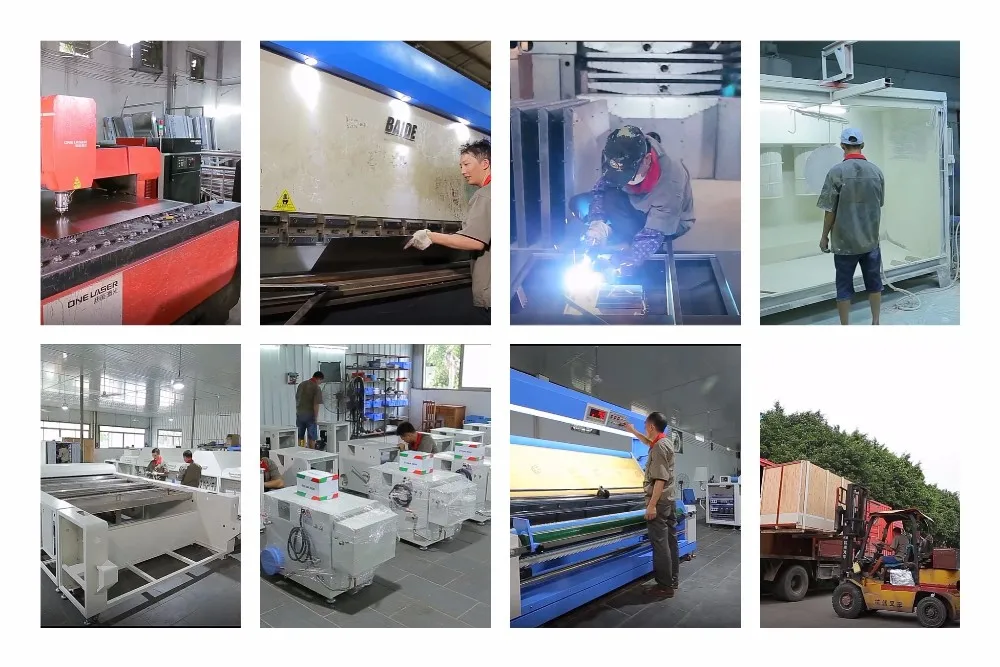

Production process
