New Arrival ultrasonic height and weight machine AR600E digital height gauge Ultrasonic Cable Height Meter

Product details
Resolution(range > 10m):10mm;Range ( 5.5mm cable min):: 3~12m;
Range ( 2.5mm cable min):3~10m;Operating temperature:-10~40C;
Payment Terms:T/T,Western Union;Supply Ability:10000 Pint/Pints per Quarter;
Range (25mm cable mini):3~23m;Horizontal measuring range:: 3~18m;
Model Number:AR600E;Brand Name:Smart Sensor / OEM;
Minimum gap between wires:150mm;Port:Shanghai /Shenzhen;
Range (12mm cable min):3~15m;Place of Origin:CHINA;
Packaging Detail:Power: 9V Battery Product Net Weight: 205g Product Size: 75*72*200mm Packing: Gift box Standard Quantity Per Carton: 12PCS Standard Carton Size: 52*33.5*47cm Standard Carton Gross Weight: 11.46kg;Resolution(range<10m):5mm;
Measuring accuracy:0.5%+-2d;

Product Description
Product Description

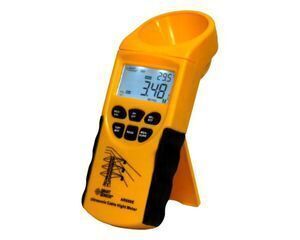

SMART SENSOR This Ultrasonic Cable Height Meter is a user friendly and easy-to-operate instrument. A circuit maintenance can make measurement of cable height. The AR600E with the Horizontal Adapter can be used for depth measurement, (examples: An elevator shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection. Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.



Features:

1. For measuring the height up to 6 cables together
2. Convenient to take measurement, easy to aim at the measuring position and to read measuring results.
3. For measuring the distance between wire and wire
4. Be applicable to different use of cables
5. Uses large measuring sensor, higher accuracy than existing cable height meter in market
6. Compact and easy to take along.
7. For measuring dimension of house and distance between objects
8. The temperature compensation function enables the unit compensates error automaticlly under the temperature of -10C+40c, and ensures the measuring accuracy on different temperature conditions



Brand
SMART SENSOR / OEM
Technical parameter
Techical Specifications
Range (25mm cable mini)
3~23m
Range (12mm cable min)
3~15m
Range ( 5.5mm cable min)
3~12m
Range ( 2.5mm cable min)
3~10m
Horizontal measuring range
3~18m
Operating temperature range
-10~40C
Resolution(range<10m)
5mm
Resolution(range > 10m)
10mm
Measuring accuracy
0.5%+-2d
Minimum gap between wires
150mm
BOT mode: measuring the height of the most lower 6 cables
V
Top mode: measuring the height of the most higher 6 cables
V
Auto power off delay
120s
Low battery alarm
7.2v+-0.2V
Imperial & metric unit transition
V
Displays real time temperature
V
Operating voltage

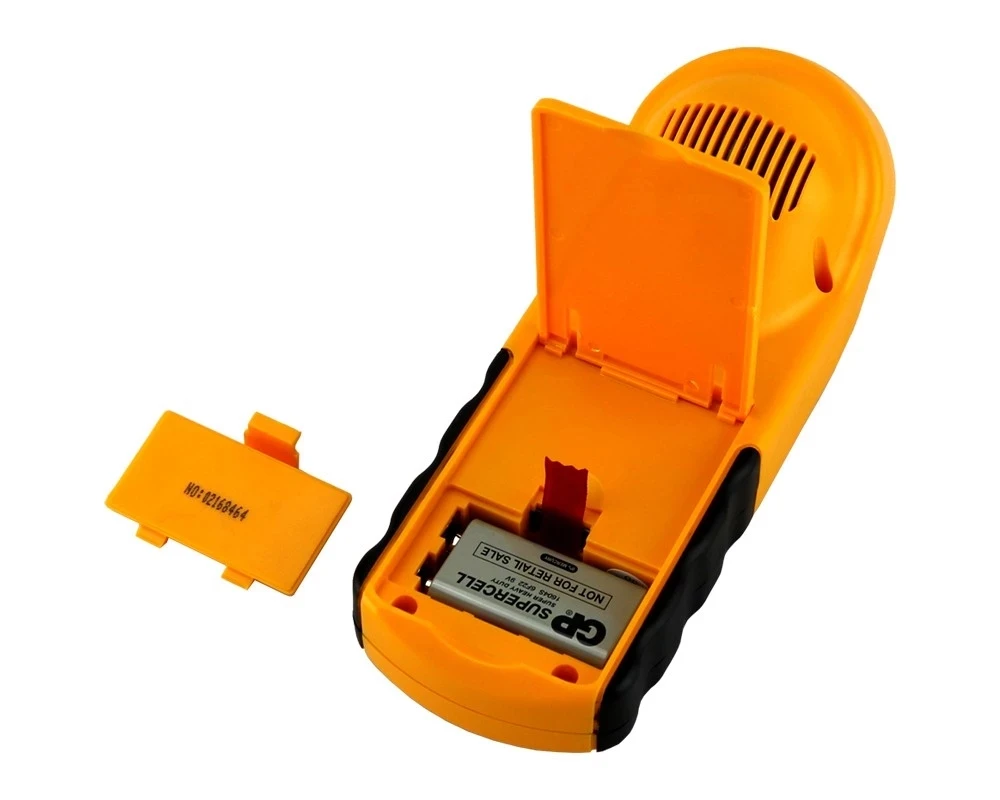

9V 6F22
Product Dimision
75 x72 x 200mm
Product Net Weight
205g
Packing
Gift box
Packing Contents:
1 x English Manual

1 x Accessory Bracket (Horizontal Distance Measurement Only)

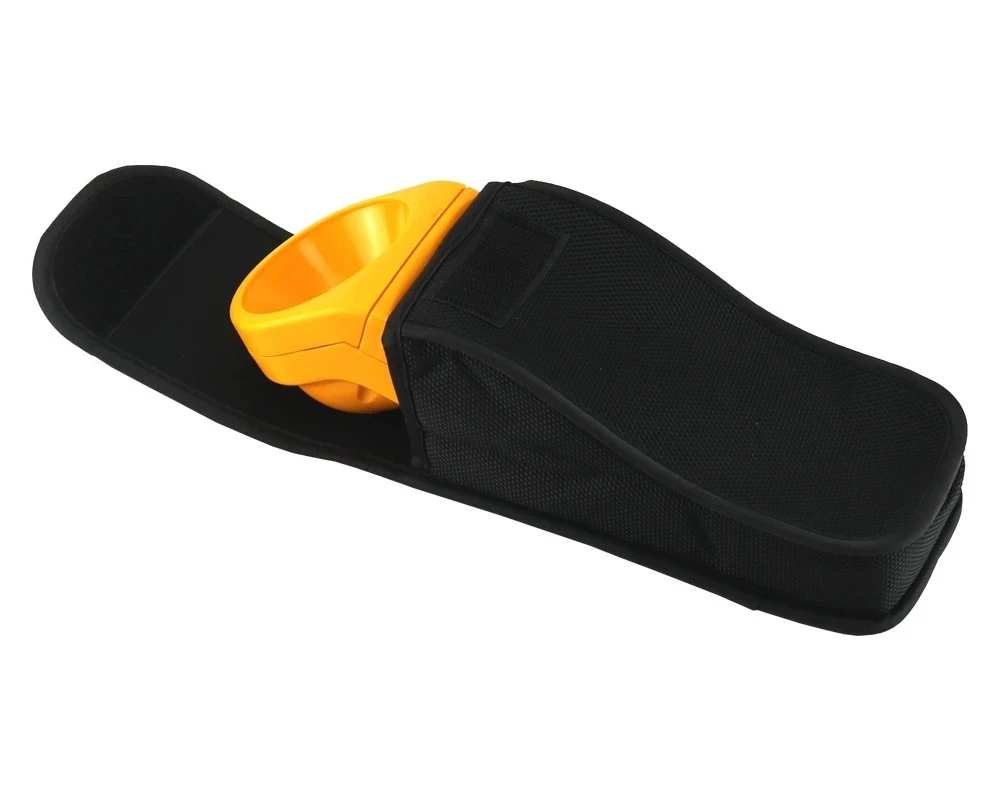

1 x Black Pouch

1 x Carry Case

1 x Ultrasonic Cable Height Meter



Company Information



FAQ



1. Q: Is your company accept customization?

       A: We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.

2. Q: What’s the delivery time after an order placed?

     A: It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.

3. Q: How long have your company run on Laser Range Finders?

      A: We have been manufacturing and developing laser range finders since 2010.

4. Q: What’s the MOQ?

      A: Regular products only 1 standard carton. but no limit for sample order!

5. Q: What’s the warranty of the product?

   A: We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.



6. Q: What Shipping way Customer can choose?

     A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order q'ty!

7. Q: How to place an order?

a: send us an inquiry.
b: confirm your wanted products
c: confirm the price, freight and other details
d: complete the payment
e: we start production and arrange the shipment
f: you got your products
