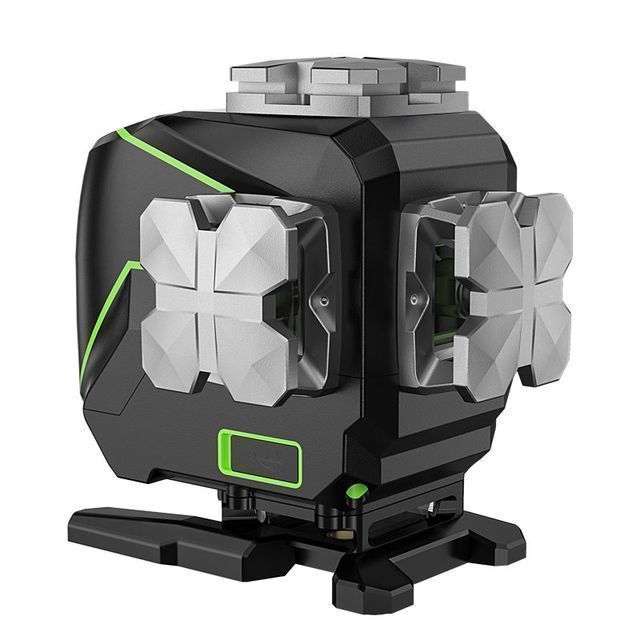

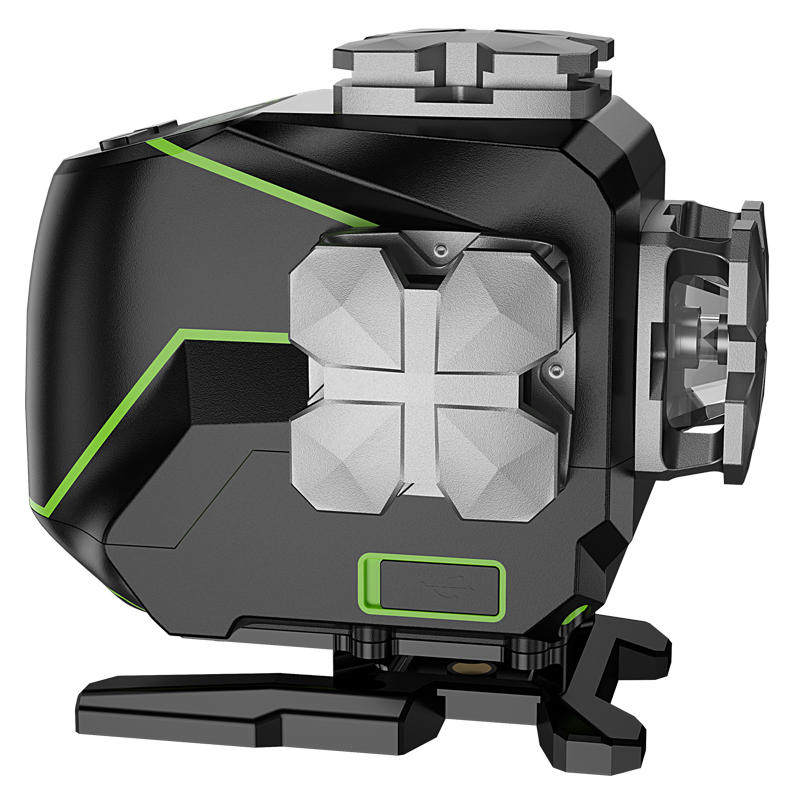

Huepar Osram S03DG with Hard Carrying Case, Bluetooth Capability and Outdoor Pulse Mode 3D Green Beamline Laser Level, 12 Lines Laser Level

Supplier: Huipu Opto-Electronic Instrument (Zhenjiang) Co., Ltd.
Region: Jiangsu, China
Contact: Ms LiLy xu
Price: $121.00 / 1 - 59 pieces
$97.00 / 60 - 299 pieces
$90.83 / >=300 pieces
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Supply capacity:	10000 pieces per month
wavelength:	Osram 520nm	Installation size:	1/4''; 5/8'
type:	3 x 360° green light	brand:	Vepar
Warranty:	2 years	model:	HP-S03DG
Protection class:	IP54	Self-leveling range:	: 4°±1°
Working distance (point/line):	40m, ≥50m with detector 132 Ft, ≥165 Ft with detector	port:	any port in China
Points:	0	laser:	Osram Germany
operating hours:	6 hours continuous use with all laser beams on	Custom Support:	OEM, ODM, OBM
place of origin; place of origin:	Jiangsu, China	Energy source:	Li-ion battery, AA battery, USB charging
Packaging Details:	* 1 xS03DG Green Beam Self-Leveling Crosshair Laser Level* 1 x Rechargeable Lithium Battery* 1 x Lithium Battery Charger* 1 x Power Adapter* 4 x AA (LR6) Batteries and 1 x AA Battery Holder* 1 x Magnetic Swivel Base* 1 x Lifting Base* 1 x Lase Level User Manual* 1 x User Manual* 1 x Bluetooth Remote Control* 1 x Hard Carrying Case	grade:	DIY, Industrial
Laser Color:	green light	accurate:	±3mm/10m ±1/9 inch at 33 feet.
Packaging Preview:		size:	36.51429.3cm
H/V Accuracy:	±2mm/10m ±1/13 inch at 33 feet.

Product Description

S03DG 3 x 360 Green Laser Level Specifications:
* Laser class: Class 2 (IEC/EN60825-1/2014), <1mW power output
* Laser wavelength: 520nm* Screen type: LCD screen with backlight
* Horizontal/Vertical Accuracy: +/- 1/9 inch at 33 feet

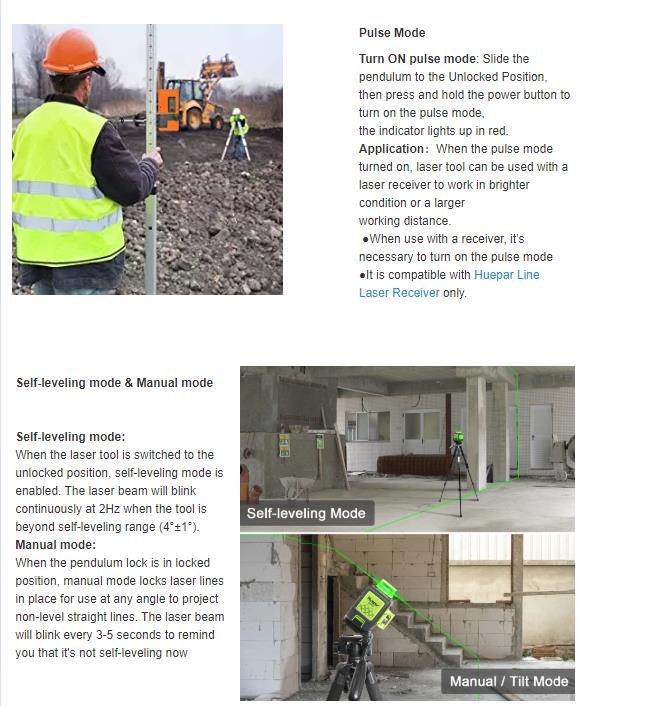

* Leveling/Compensation Range: +/-4°
* Working distance (line): 20M (60-100 LUX), 40M with Huepar receiver LR-5RG/LR-6RG
* Working time: 6 hours continuous use with all laser beams on
* Power supply: 2600mAh Li-ion battery & dry battery
* IP rating: IP54 dustproof, waterproof and shockproof, reliable and tough
* Operating temperature range: 14°F~122°F (-10°C~50°C)
* Storage temperature range: -4℉~158℉(-20℃~70℃)
* Installation size: 1/4"-20

S03DG Laser Level Features:

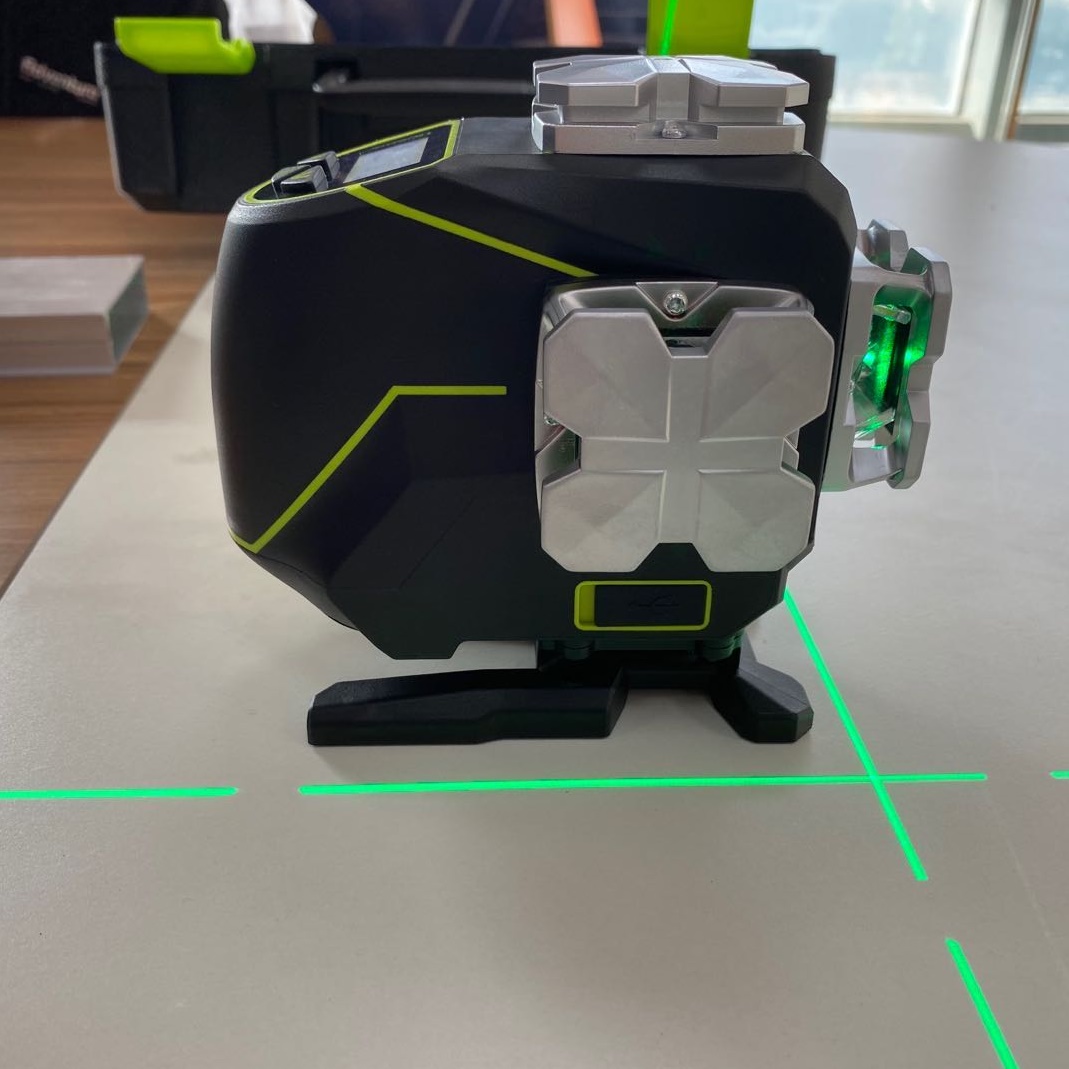

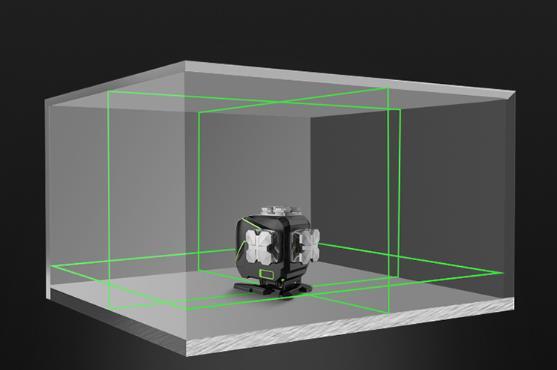

⭐ Complete layout with 3 X 360 line lasers: one 360 degree horizontal plane and two 360 degree vertical planes for horizontal, aligned and vertical applications.

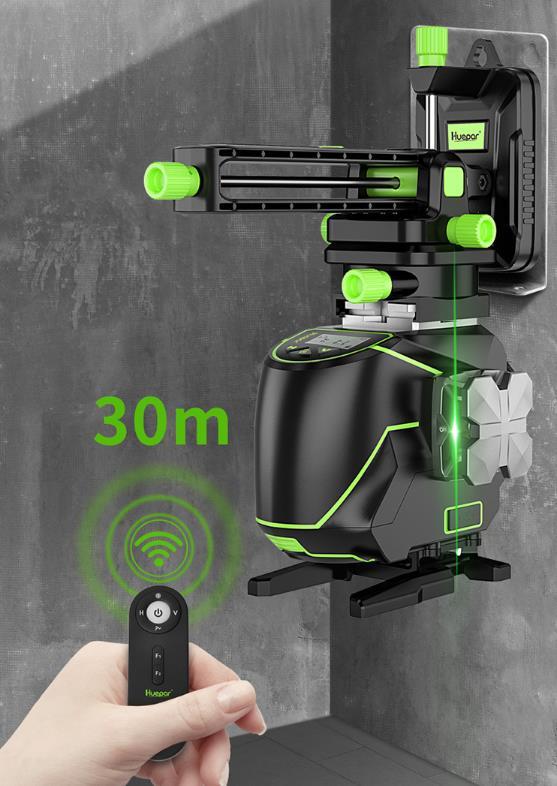

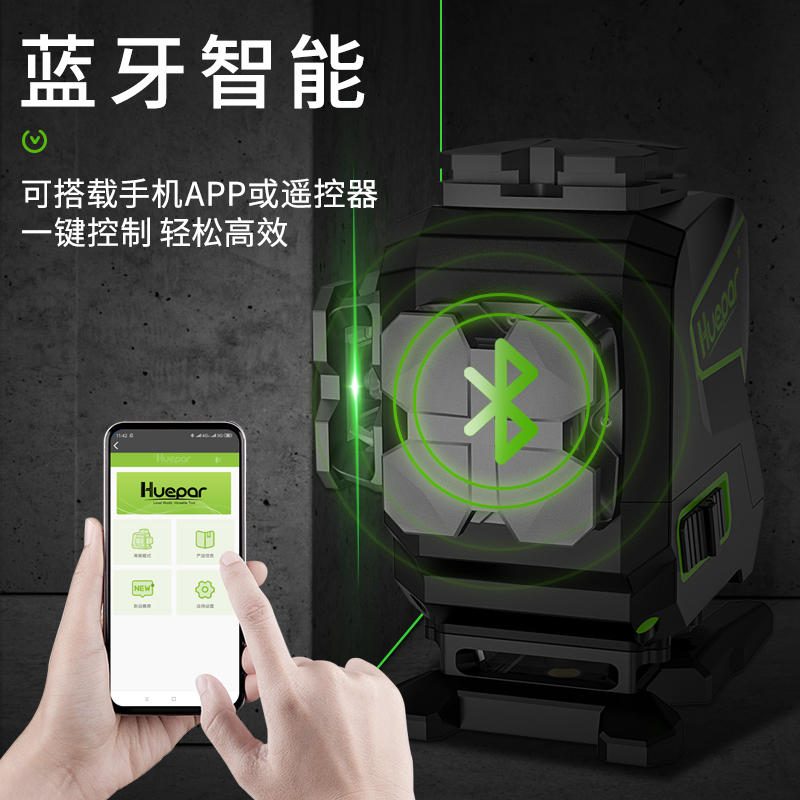

*Bluetooth Technology and Bluetooth Remote - With a Bluetooth connection, users can control the laser's settings from across the room using a smartphone and the free Huepar app. Free to download and use, the Huepar App turns the laser line and pulse modes on/off, selects the laser plane, adjusts line visibility and provides out-of-level alerts.

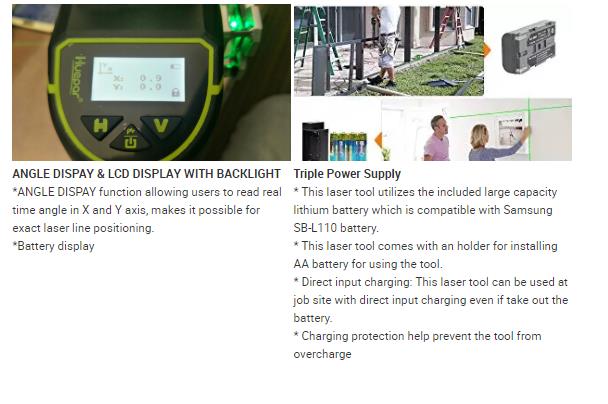

⭐TRIPLE POWER TECHNOLOGY - This laser tool uses the included high-capacity lithium battery (available at
local market) for extended runtime, or use 4 AA alkaline batteries. In addition, the laser tool can be used on the job site
Direct input charging is possible even when the battery is removed. Charge protection helps prevent overcharging of the tool. 4 batteries
Indicator lights on the keyboard allow users to know the current battery level at any time.

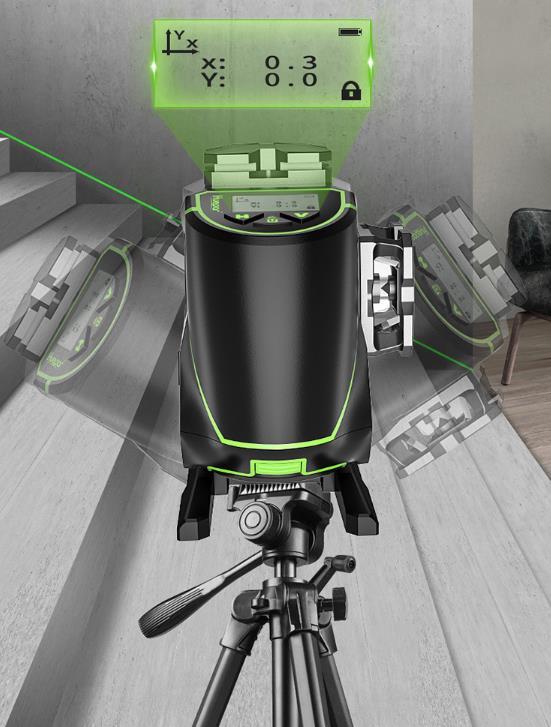

⭐Angle display and LCD display with backlight
⭐Osram Laser Metal Protective Cover

⭐KIT CONTENTS: The kit comes with a hard carrying case for more convenience in carrying and storing the laser level. At the same time, the package also includes rechargeable lithium battery, TYPE-C power cord, power adapter, 360° magnetic rotating base, Bluetooth remote control, lifting base, laser target board, and user manual.

warn:
● Do not point the laser beam directly at the eyes.

Specification

model.	S03DG
Expansion angle	2H360°/2V360°
Laser class	level 2
beam source	green light
Laser wavelength	520nm
Horizontal/Vertical Accuracy	±3mm/10m; ±1/9 inch at 33 feet.
Self-leveling range	4°±1°
self-leveling time	≤3s
Working distance (line)	40m, ≥50m with detector 132 feet, ≥165 feet with detector
energy source	lithium battery
Protection class	IP54
Operating temperature	-10°C to 50°C
Storage temperature	-20°C to 70°C
Installation size	1/4''-20
