Huepar LR-8RG double-sided backlit LCD display detector, suitable for pulsed line laser, red and green laser level recording

Supplier: Huipu Opto-Electronic Instrument (Zhenjiang) Co., Ltd.
Region: Jiangsu, China
Contact: Ms LiLy xu
Price: $25.00 / 1 - 19 pieces
$23.90 / 20 - 49 pieces
$23.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T	Place of origin:	Guangdong, China
Supply capacity:	1000 pieces per month	Customization support:	OEM, ODM, OBM
Automatic power off (no signal):	8 minutes	Packaging details:	1Huepar LR-8RG laser detector 1Heavy duty clamp 1*9V dry battery
Laser receiving window width:	20 mm (4/5 in)	Warranty:	2 years, 1 year
Leveling accuracy:	±1.5 mm (±1/17 inch)	Instrument type:	laser rangefinder
port:	Shanghai, Guangdong, Port of Oghe	brand:	Vepal
Working distance:	60m (200 inches)	type:	Indicator lights on three sides
model:	LR-8RG	Pulse width modulation:	5:5
Energy source:	1*9V dry battery	Business hours:	70 hours

Product Description

Please note that this product is only compatible with pulse induction laser levels.

This laser receiver cannot be used with Huepar 9011G/9211G/FL360R/FL360G/8300G.
If you are not sure if it is suitable for your laser tool, please confirm with us before placing an order.
Laser Class: Class 2 (IEC/EN60825-1/2014) <1mW power output.

LR-8RG laser detector specifications:

Pulse duration: 50 μs; PWM: 5:5

PRF pulse repetition frequency: 10KHz (matching PWM and frequency, line laser can be used with LR-8RG)
laser receiver)
Display: Double-sided LED indicator display
Accuracy: high accuracy ±1.5mm, low accuracy ±2mm
Working distance: 60m (200ft)
Working hours: 20 hours
Automatic shutdown: 10 minutes
Power supply: 2 AA batteries
Dimensions (LxWxH): 140.5mm x 60mm x 35mm (5.5 x 2.5 x 1.5 inches)
Mounting thread: ¼”
Protection level: IP54
Detection beam color: green & red
Up/Down/Level Indicators: Yes
Sound: 90dB

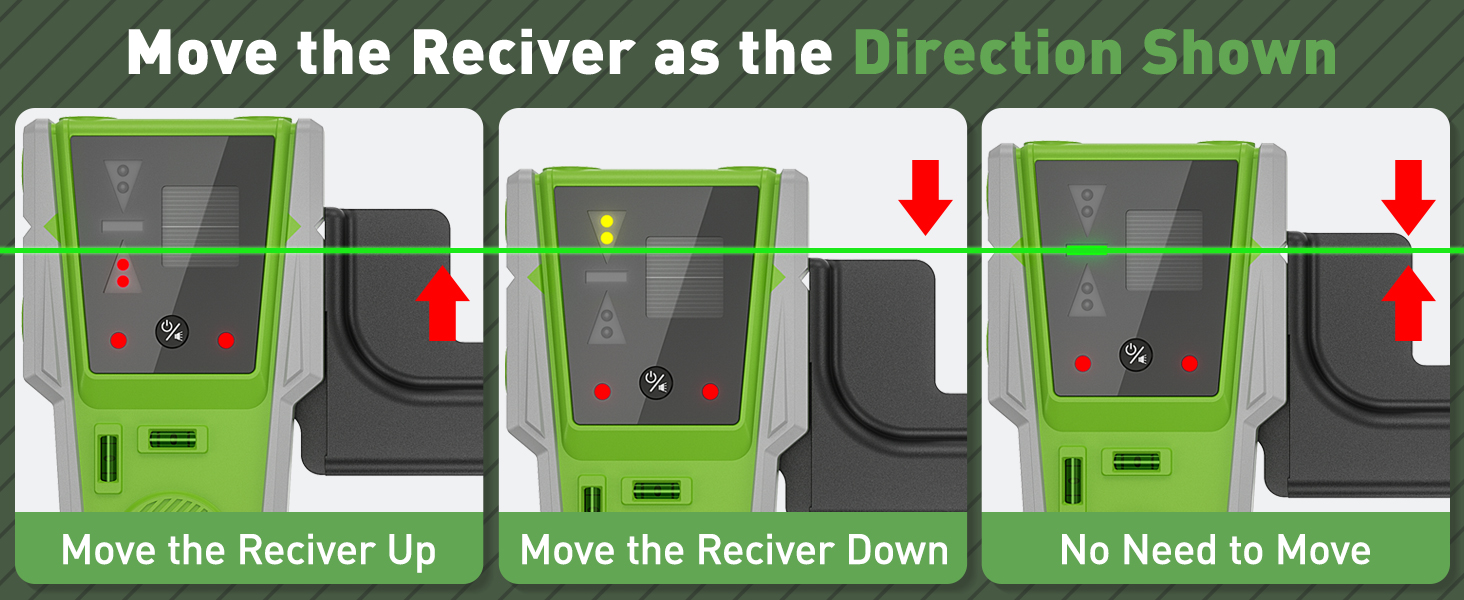

Baseline below laser beam – move up
Base above laser beam – move down
When the reference is aligned with the laser beam – the LED indicator lights green

When using it indoors, you can lower the sound level as it may be too loud and irritate those around you. As for open space,
The device needs to be loud enough so that people can hear it from a distance.
Slower beep signal – moving up
Fast beep signal – move down

Built-in air bubble and stand

The LR-8RG laser detector comes with a compatible pole mounting bracket. Built-in bubble level provides additional level accuracy measurement.

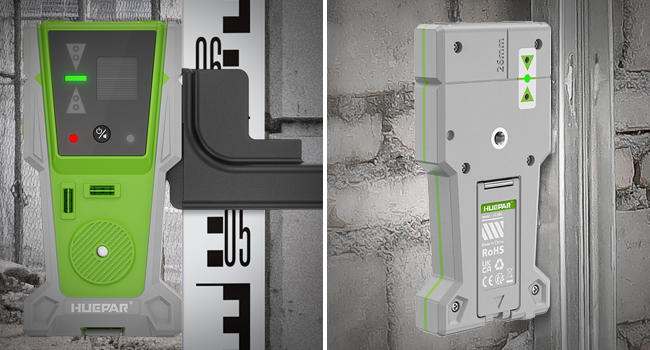

Clear multilateral readings

The receiver features dual-sided displays on the front and back for easier visual readings.
It can be used in sunlight. Sunlight often makes laser beams difficult to see. A laser detector can help you find laser lines.
