YK60 mini lab granulator

Supplier: Yangzhou Nuoxin Packaging Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Cindy Tang
Price: $980.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Jiangsu China;	Machine Type:	Granulator;
Dimension(LWH):	530400530mm;	After-sales Service Provided:	Online support;
Condition:	New;	Type:	Granulate Making Equipments;
Warranty:	1 Year;	Certification:	CE ISO;
Product Type:	granules;	Warranty:	12 Months;
Payment Terms:	L/C,T/T,MoneyGram;	Capacity:	20-25kg/h;
Port:	Shanghai, Ningbo, Shenzhen;	Brand Name:	NOAH;
Application:	Pharmaceutical food;	Material:	Stainless Steel;
Voltage:	220V/110V;	Usage:	Making Granules;
Weight:	70KG;	Packaging Detail:	Plywood Case;
Supply Ability:	50 Piece/Pieces per Month;	Product Name:	YK60 mini lab granulator;
After-sales Service Provided:	Engineers available to service machinery overseas;	Power(W):	0.37Kw;

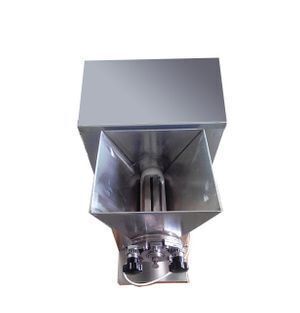

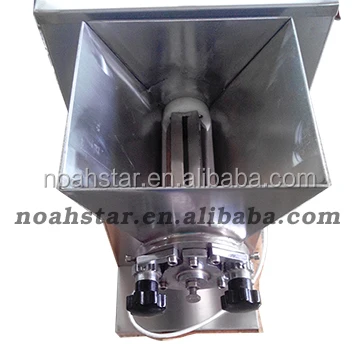

YK60 mini lab granulator

Product Description

YK60 mini lab granulator is used for forming the required granules from moist power material, or for crushing dried block stock into granutes in required size.It main features are: the rotaing speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension also adjustable. The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.

The speed of its rotor can be adjusted during operation,its surface is painted for universal usage.All the type ,a new type is designed in accordance with GMP standard,its surface is made of highquality stainless steel and looks nice.Especially. the metal and stainless steel screen mesh improves the pellets quality.

Main Technical Specifications

ITEM	TYPE
ITEM	YK60	YK90	YK160
Dia.Of Rotor mm	60	90	160
Effective Length Of Rotor mm	184	290	360
Rotor Speed r/min	46	46	6-100
Production Capacity kg/h	20-25	40-50	Dry 700 Wet 300
Rated Motor kw	0.37	0.37	2.2
Overall Size mm	530400530	700400780	9107001200
Net Weight kg	70	100	280

Packaging & Shipping

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.

Our Services

Documents:
Operational manual with English will be given at the time of dispatch of machine.

Guarantee:
All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.

Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
