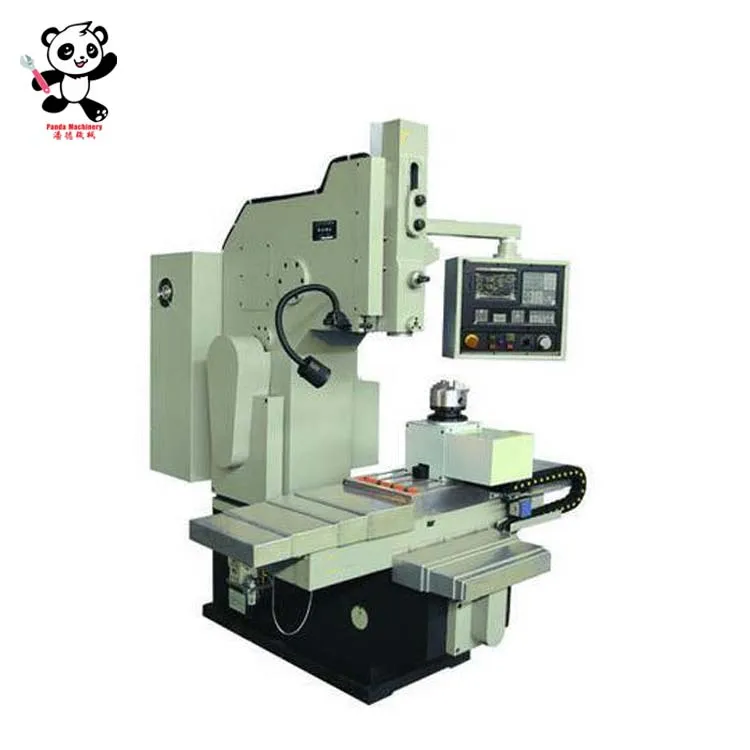

Slotting machine BK5018 CNC slotting machine

Supplier: Zaozhuang Panda Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms. Amy Zhou
Price: $5900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Ram per minute motion data:	46/60/90;	Condition:	New;
The main motor power:	1.5/2/2.2;	Warranty:	1 Year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Slotting machine BK5018 CNC slotting machine;	Supply Ability:	200 Set/Sets per Year Slotting machine BK5018 CNC slotting machine;
Ram maximum slotting length:	180;	Certification:	CE ISO;
Packaging Detail:	Slotting machine BK5018 CNC slotting machine Plywood package;	Ram stroke adjustment:	80;
Weight:	1500;	Y to the motor torque:	6;
Table travel (X,Y):	460X320;	Work table size:	600X320;
Product Name:	Slotting machine BK5018 CNC slotting machine;	Place of Origin:	Shandong China (Mainland);
Model:	BK5018;	Port:	Any Port of China Slotting machine BK5018 CNC slotting machine;
Brand Name:	PDMA;	After-sales Service Provided:	Online support,Video technical support;
X to the motor torque:	6;	Voltage:	380v;

Slotting machine BK5018 CNC slotting machine

Product Description

The main performance characteristics:

1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,

2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Application:

This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10&deg Mold and other within the scope of etc. work matter,,

Enterprise suitable for single or small batch production.

Product main technical parameters:

Specification	Unit	BK5108
Ram maximum slotting length	mm	180
Ram stroke adjustment	mm	80
Ram per minute motion data	N/min	46/60/90
Work table size	mm	600X320
Table travel (X,Y)	mm	460X320
The knife head supporting hole axis to distance of upright column for arm	mm	400
The knife head supporting hole end to table working distance	mm	480
X to the motor torque	N.M	6
Y to the motor torque	N.M	6
Fast moving	X(m/min) Y(m/min)	5 5
Ball screw X		FFZD3205-3/P4
Ball screw Y		FFZD3205-3/P4
The main motor power	K w	1.5/2/2.2
Machine weight	kg	1500
Ram maximum slotting length	mm	180
