frozen french fries production line french fries machine automatic potato chips making machine

Supplier: Zhengzhou Taizy Trading Co., Ltd.
Region: Henan, China
Contact: Ms joanna zhang
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Taizy;	Output product name:	potato chips;
Weight:	different weight;	Voltage:	380v;
Raw material:	Fruit,Vegetables;	Function:	food machine;
Dimension(LWH):	different size;	Usage:	Sancks;
After-sales Service Provided:	Video technical support;	After-sales Service Provided:	Engineers available to service machinery overseas;
Color:	Silver;	Place of Origin:	Henan China;
Condition:	New;	Capacity:	100-1000kg/h;
Port:	qingdao or ningbo;	Name:	Potato Chips Making Machine;
Application fields:	Vegetable processing plant,Seasoning plant,Fruit processing plant,Snack food factory,Frozen food Factory;	Supply Ability:	350 Set/Sets per Month;
Application:	Chips;	Certification:	ISO;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Power(W):	different;
Material:	stainless steel;	Warranty:	1 year;
Packaging Detail:	standard wooden packing;

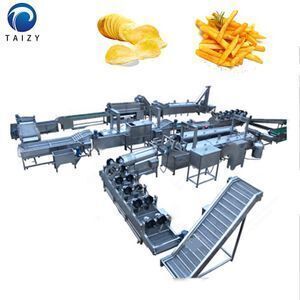

frozen french fries production line automatic potato chips making machine

Product Description

1.Description of the potato chips making machine:

We can provide semi-automatic and fully automatic potato chip production line according to customer's requirements. The conventional output is 100kg/h, 200kg/h, 300kg/h, 500kg/h, 1000kg/h ,1500kg/h and so on.

1.washing and peeling machine

2.cutting machine

3.blanching machine

4.dewatering machine

5.frying machine

6.deoiling machine

7.freezing/

7.flavoring machine

8.packing machine

2.Parameter of the 100kg/h potato chips making machine:

Name	Power(kw)	Voltage(v)	Weight(kg)	Size(mm)	Capacity(kg/h)
washing and peeling machine	1.1	220/380	210	1400850800	200
cutting machine	1.1	220/380	110	9509001000	600-700
blanching machine	24	220/380	120	1200700950	100
dewatering machine	1.1	220/380	390	1000800850	200
frying machine	24	220/380	120	1200700950	100
deoiling machine	1.1	220/380	390	1000800850	200
flavoring machine	1.1	220/380	190	11008001300	300
packing machine	1.5	220/380	260	1200600850	300

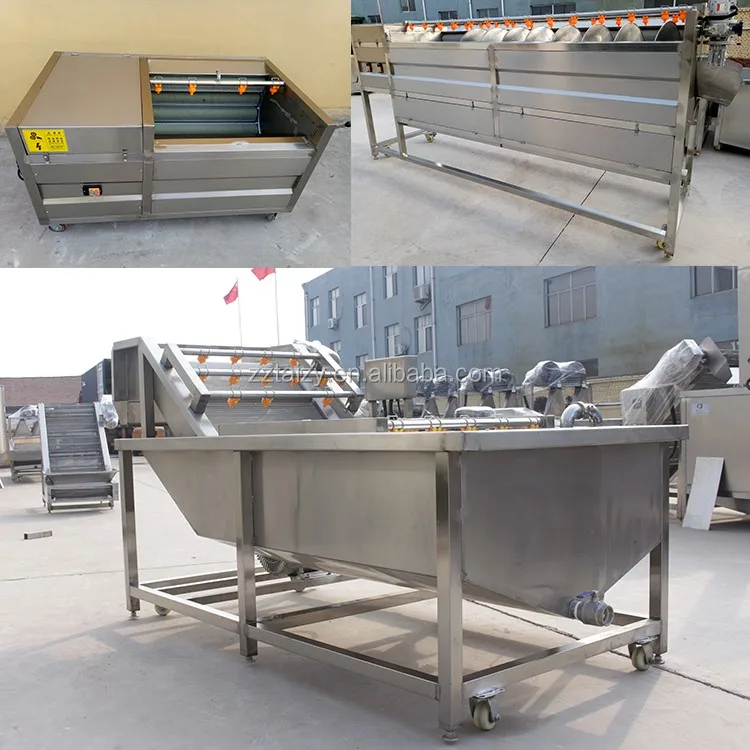

1.washing and peeling(different type):

Brush cleaning and peeling machine is suitable for carrot, ginger cleaning and peeling and electric potato cleaning and peeling machine related to hard vegetables.

It uses the rotation of the hair roller to remove the dirt attached to the carrots and other vegetables. The large brush potato peeling machine is provided with a spray water pipe on the upper part of the peeling machine, and the brush cleaning and peeling machine can spray and rinse the materials. At regular intervals, turn on the electric potato cleaning and peeling machine end discharge port, and remove the material.

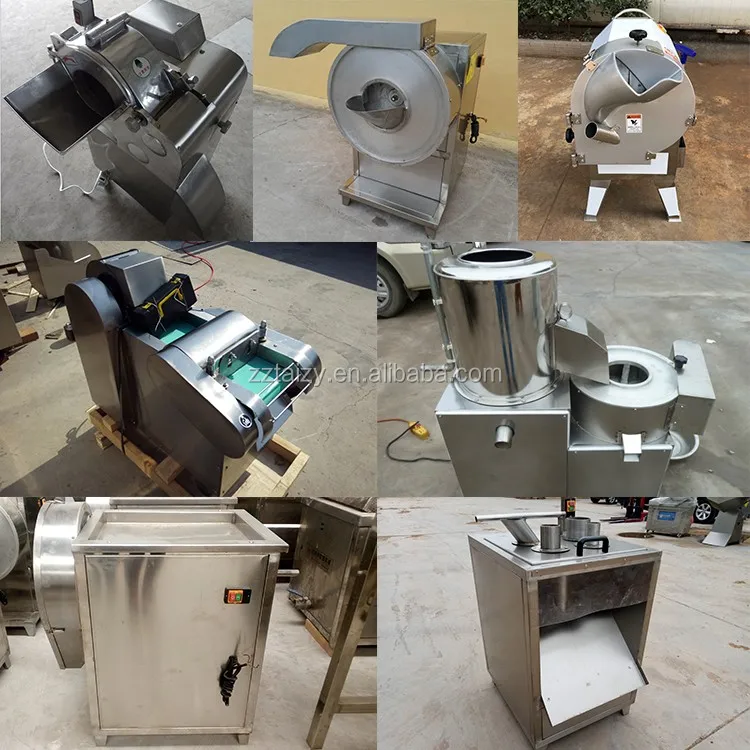

2.cutting:

The potato cutting machine mainly comprises a frame, a casing, a feeding tray, a cutter, a transmission part and a discharge cover.
When it is working, the potato material is put into the hopper, and the material is rotated along the wall of the casing by the pouring trough on the rotating dial. The cutter mounted on the wall of the casing cuts the vegetables into strips and cuts the potatoes. The potato chips come out of the discharge cover.

3.blanching:

Potato blanching machine is mainly used for fruit, root vegetables and carrots, asparagus, mushrooms, fruit slices and other products. It is an indispensable equipment for pre-treatment such as quick-freezing, dehydration and freeze-drying.

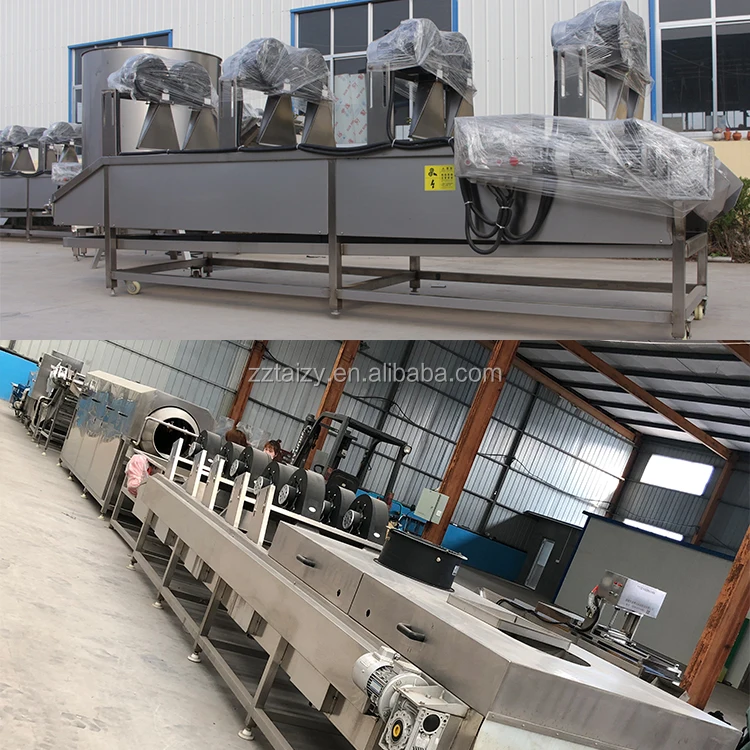

4.dewatering:

It mainly use for drying the cleaned material with multiple small fans.

Dehydrator: Dehydration by centrifugal force. Dehydration before frying can greatly shorten the frying time and improve the taste of the potato chips. Improve production efficiency and reduce production costs.

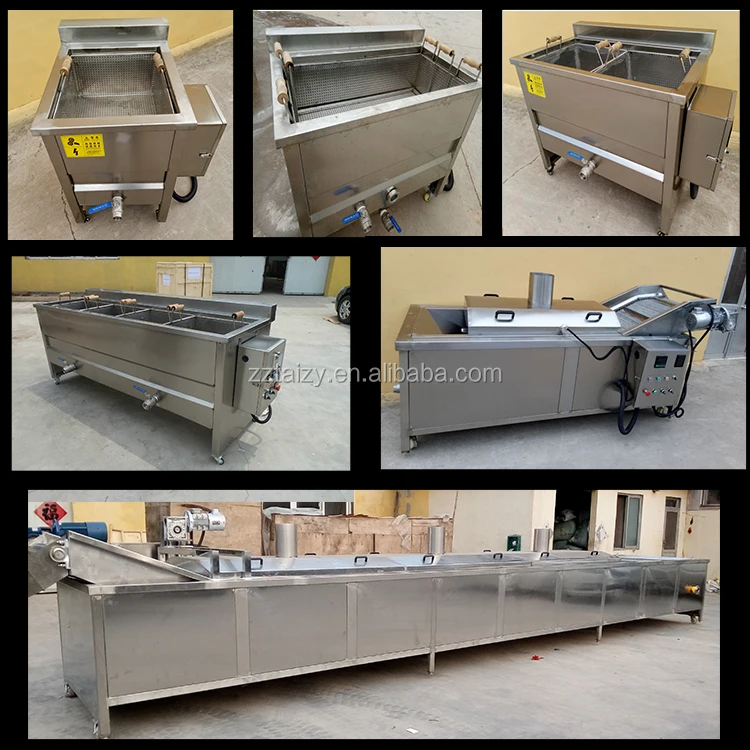

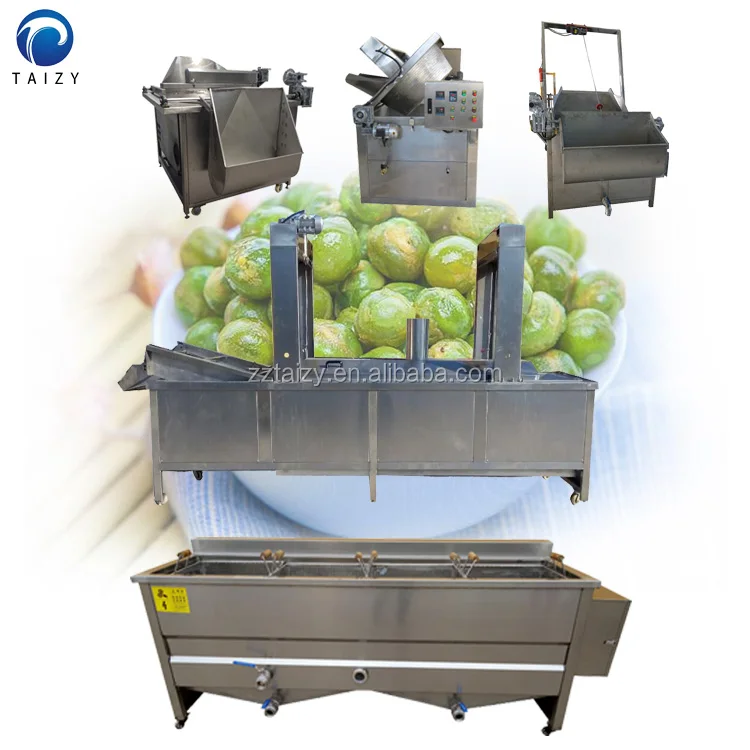

5.frying:

It is mainly used for slightly fried potato chips.

Oil-water mixing fryer: This equipment is an advanced frying equipment. Because the specific gravity of water and oil is different, the water is below, the oil is fried in the upper layer, and the residue is directly deposited in the water. The oil does not emit black smoke, which greatly prolongs the life cycle of the oil and greatly reduces the cost. The oil temperature control ensures the quality and taste of the potato chips. After the work is finished, the water is released and the residue will flow out along with the water.

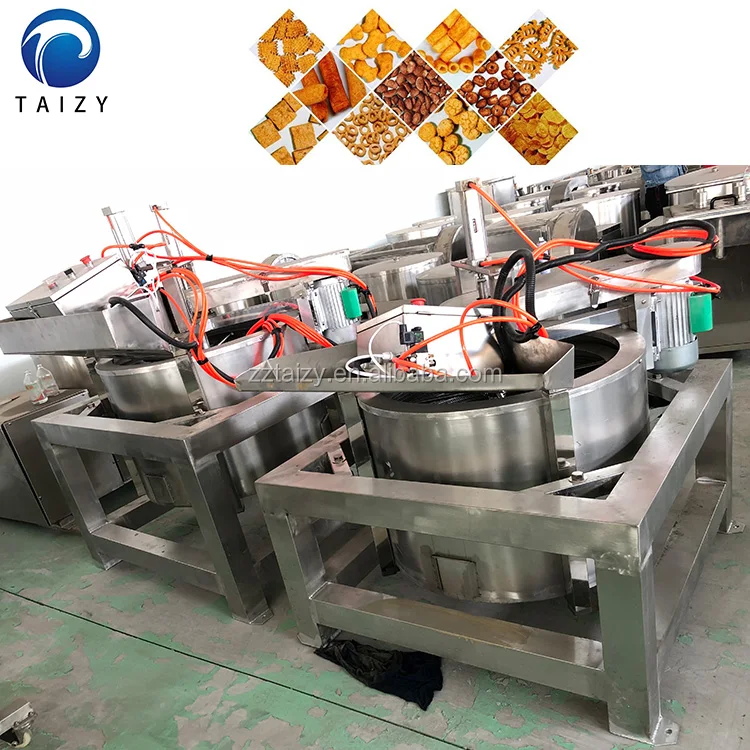

6.deoiling machine:

Deoiler:centrifugal deoiler, deoiling freshly fried potato chips (strips), overcoming the defects of high oil content and greasy mouth of potato chips. Improve the taste of potato chips (bars).

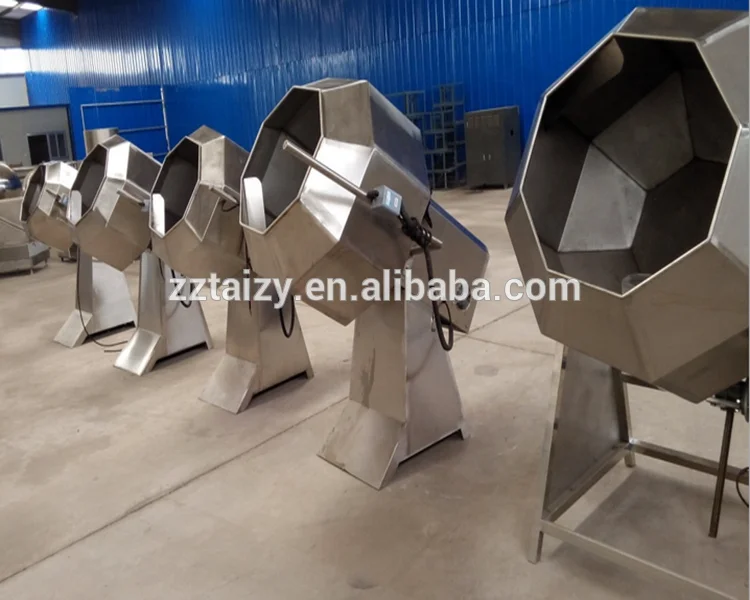

7.flavoring:

automatic seasoning machine: drum type seasoning machine is made of stainless steel. The potato chips (strips) are evenly turned during the rotation of the drum, and the seasonings are added by sprinkling or spraying. Seasoning is not easy to break.

8.packing:

Nitrogen-packing machine: When packing, the bag is filled with nitrogen gas, which can effectively prevent the potato chips (strips) from being broken and prolong the shelf life. Inflation, packaging, and coding are completed at one time.

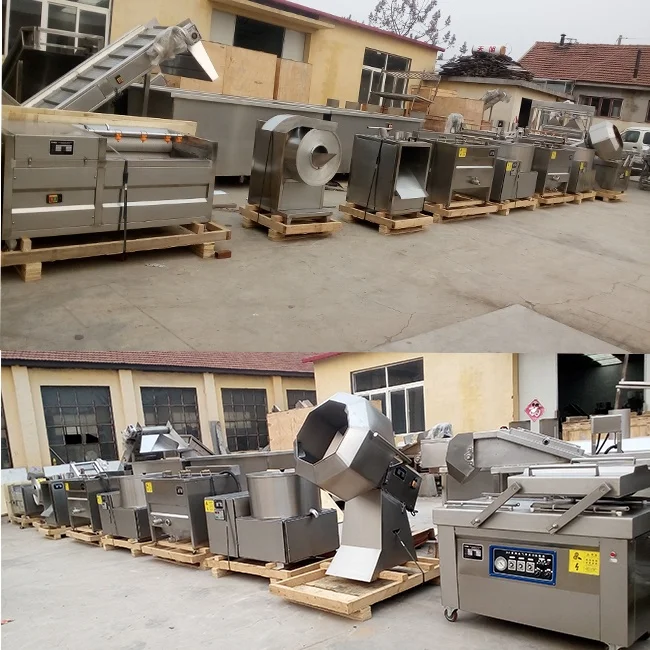

Our factory:

Our other food machine:

https://zztaizy.en.alibaba.com/

FAQ

1. Are you manufacturer?

    Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
    Yes, we can.
3. How about your after-sales service?
   Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
    1 year except for consumable spare parts.
5. How about delivery time of your machine?
  Generally it needs 5-15 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
