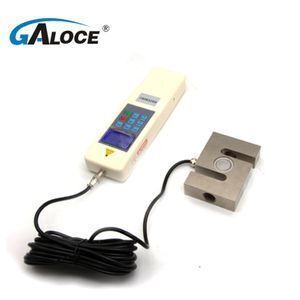

GSI315W 20T 30T Portable Dynamometer Digital Push Pull Force Gauge With RS232 Force

Product details
Sensor structure:External sensor, such as S beam/ Spoke type;Model Number:GSI315W;
Brand Name:GALOCE;Packaging Detail:Standard export packaging;
Power:±0.5%/±1%;Place of Origin:Shaanxi China;
Name:20T 30T Portable Dynamometer Digital Push Pull Force Gauge With RS232;Charger:Input: AC220V 50HZ; Output:DC 10V 300mA;
Supply Ability:10000 Set/Sets per Month GSI315W 20T 30T Portable Dynamometer Digital Push Pull Force Gau;Accuracy:±0.5%/±1%;
Port:Xi'an or any other main port in China;Payment Terms:L/C,T/T,Western Union,trade assurance, secure payment, paypal;
Transport temperature:-10℃~60℃;Measurement unit:N (Newton), kg (Kilogram) and lb (Pound);
Peak load value:1-1000KN;Load division value:0.001N/0.01N/0.1N/1N;

GSI315W 20T 30T Portable Dynamometer Digital Push Pull Force Gauge With RS232 Force





Related recommend



Product Description



What is the GSI315W Digital Force Gauge?


GALOCE GSI315W Digital Force Gauge has advantages of high precision, easy operation and carry. What's more, it has kinds of testing modes, convenience for conner and it can store and input data to computer for statistical analysis as well as constitutes testers with different functions, combination with test-beds and clamp. Users can input local acceleration of gravity value to make test more precise.

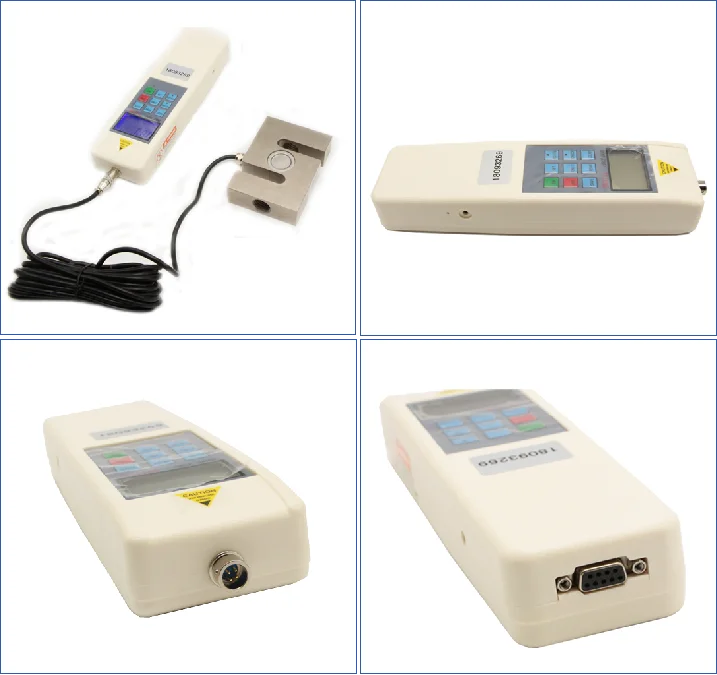

The Details of GSI315W Digital Force Gauge?

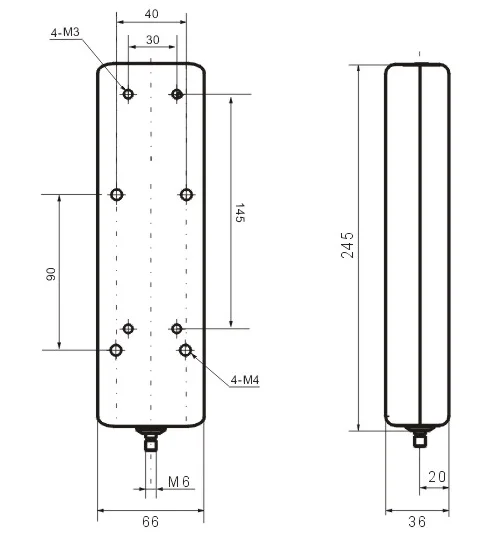

About Dimension

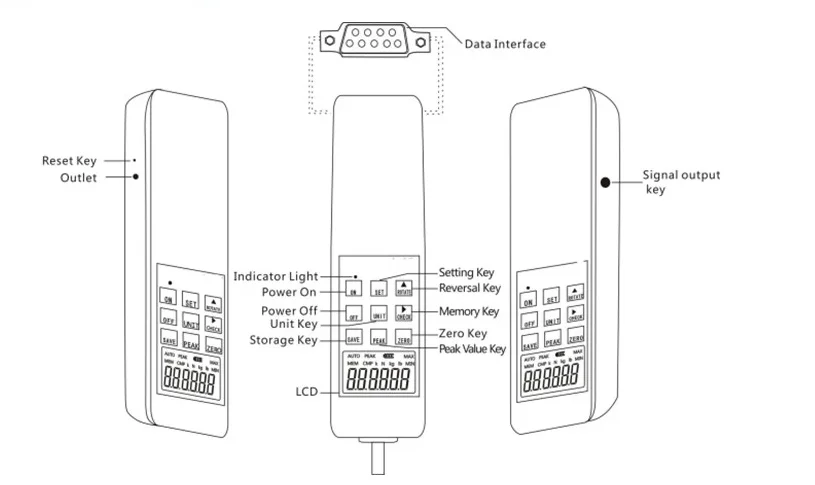

About Standard Functions


1. High precision and high resolution;
2. Five testing modes and three display methods for selection enhance testing efficiency to the maximum extent;
3. N (Newton), kg (Kilogram) and lb (Pound) three measuring units for selection and conversion;
4. Setting function of gravity acceleration---User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate;
5. Function of peak value maintaining. Maintain the display of peak value until manual zero clearing;
6.Automatic peak function. Maintain the display of peak value for 2 seconds and then release automatically;
7.Max and min and comparison value can be set for statistic analysis. The buzzer will alarm if exceeding comparison value;
8. Data storage function. 896 testing values can be stored;
9.Data output function. The data can be input into computer through data line for various analyses;
10. Environmental protection. The device will automatically stop if no operation within 10 minutes;
11. High quality chargeable power supply. The charging voltage is available from 100V to 240V, which can accommodate most areas in domestic and at abroad;
12. 2 sets mounting dimensions, it is applied for most testing platforms domestically and easy for users to install it to platform;
13. Special testing function of make-break ability of switch contact to make the makebreak testing be more accurate;

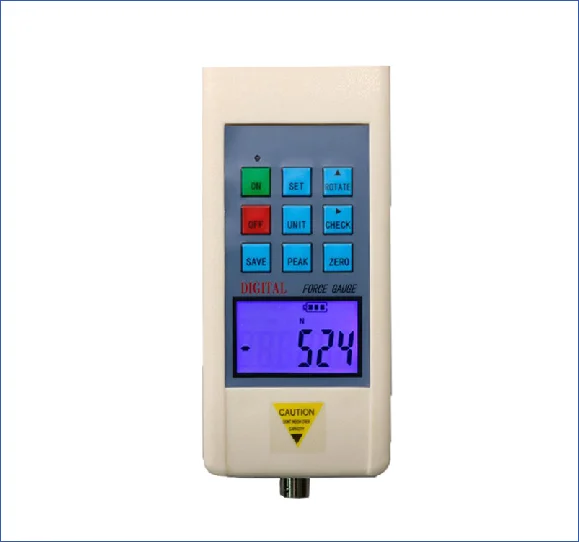

14. 6 digits large screen display;
15.Synchronous measuring software can connect computer measuring, the computer display measuring graph and the detailed testing records,and can preserve, print ,make analysis,input speed, area, displacement, pressure;
16. Contact control signal output setting comparative value,when the Measuring value is over comparative value, output signal control circuit Breaker's make-and break, thus realize the function of stop electromotor, And control automatically; it is also can be used for realize other control Functions.



About Technical Parameters



GSI315W-

1000

2000

3000

5000

10K

20K

30K

50K

100K

200K

300K

500K

1000K

Peak load value

1KN

2KN

3KN

5KN

10KN

20KN

30KN

50KN

100KN

200KN

300KN

500KN

1000KN

100kg

200 kg

300 kg

500 kg

1t

2t

3t

5t

10t

20t

30t

50t

100t

220Lb

450Lb

650Lb

1100Lb

2.2KLb

4.5KLb

6.5KLb

11KLb

22KLb

45KLb

65KLb

110KLb

220KLb

Load division value

1N

0.01KN

0.1KN

1KN

0.1kg

0.001Kkg

0.01Kkg

0.1Kkg

0.1Lb

0.001KLb

0.01KLb

0.1KLb

Sensor structure

External sensor(S beam GSL301)

External sensor(Spoke type GSS406)

Accuracy

±0.5%

±1%

Power

7.2V  1.2V×6 NiMH batteries

Charger

Input: AC220V 50HZ    Output:DC 10V 300mA

Working temperature

5℃~35℃

Transport temperature

-10℃~60℃

Relative humidity

15%~80%RH





What are the options of GSI315W Digital Force Gauge?



Best option 1:

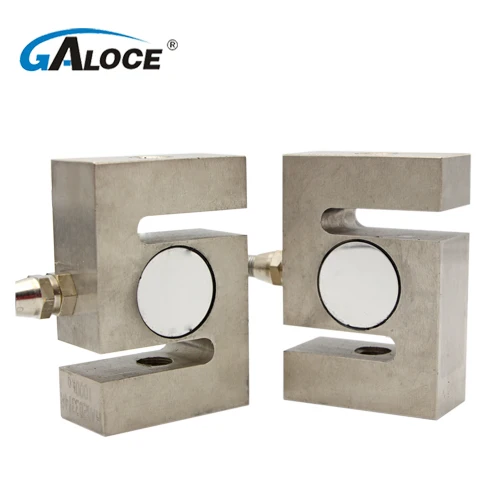

GSL301 S Type Load Cell

1. Range (KG): 10, 50, 100, 150, 200, 250, 300, 500, 1000, 2000, 5000

2. Comprehensive error: 0.03%F.S

3. Precision: C2

4. Rated output: 2±0.003mv/v



Best option 2:

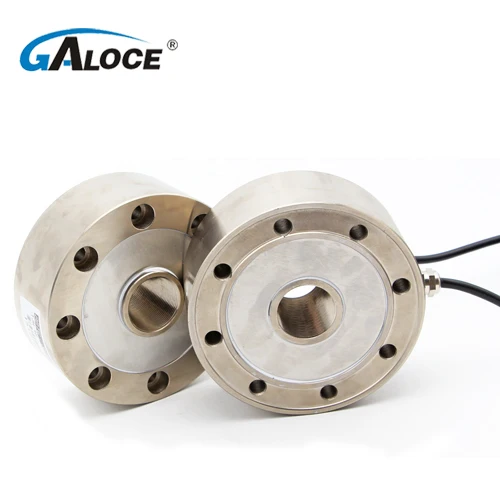

GSS406 Spoke Type Load Cell

1. Range (ton): 0.5-100

2. Comprehensive error: 0.05%F.S

3. Precision: C1

4. Rated output: 2.0mv/v



Both of them could connect to GSI315 Digital Force Gauge for your testing.

If your request is about less than 1000N, we recommend you to choose our GSI315N Digital Force Gauge With Internal Load Cell, this model is more suitable for you.



Company Information















Packaging & Shipping



FAQ





1. What essential information is needed for product selection?

         Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.



2. How will you ensure quality of your products?

         A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.



         B. One year warranty and life time free consult to any needs related with our product.



3. What terms of payment is acceptable?

         T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.



4. When production could be arranged?

         As soon as the payment was received.
