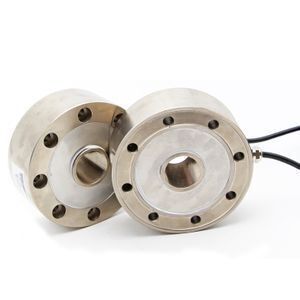

GSS406 Industrial weighing donut compression load cell 1 ton 100 ton

Supplier: Xi'an Gavin Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Carol Li
Price: $60.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Range:	0.5-100T;	Output:	Analog Sensor;
Model Number:	GSS406;	Usage:	Pressure Sensor;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Trade assurance, Paypal;	Excitation Voltage:	10V(DC/AC);
Place of Origin:	Shaanxi China;	Supply Ability:	10000 Set/Sets per Month GSS406 Industrial weighing donut compression load cell 1 ton 100;
Temp. Effect on Zero:	±0.05%FS/10℃;	Insulation Resistance:	5000MΩ;
Zero Balance:	±1.0%FS;	Brand Name:	GALOCE;
Creep:	±0.05%FS (30min);	Rated output:	2.0mV/V;
Packaging Detail:	Standard export packaging;	Theory:	Resistance Sensor;
Temp. Effect on Output:	±0.05%FS/10℃;	Port:	Any port of China;
Operation temp. range (℃):	-20~+65;	Item:	GSS406 Industrial weighing donut compression load cell 1 ton 100 ton;

GSS406 Industrial weighing donut compression load cell 1 ton 100 ton

Related recommend

Product Description

What is strength of GSS406 Load cell?

1. Made of alloy steel or stainless steel

2. Suitable for belt weigher, hopper scale and other weighing devices

3. Good steel performance and high accuracy

What is specifications of GSS406 Load cell?

Specification:
Range (T): 0.5-100
Comprehensive error (%F.S): ±0.05	Insulation resistance (MΩ): ≥5000
Rated output (mV/ V): 2.0	Temp. effect on span (%F.S/10℃): ±0.05
Creep (%F.S/30min): ±0.05	Temp. effect on zero (%F.S/10℃): ±0.05
Zero balance (%F.S): ±1.0	Operation temp. range (℃): -20~+65
Input resistance (Ω): 380±10 or 750±15	Excitation voltage (V): 10 (DC)
Output resistance (Ω): 350±3 or 700±5	Safe overload (%F.S): 150
Wiring information:	Red: Input (+) White: Output (-) Black: Input (-) Green: Output (+)

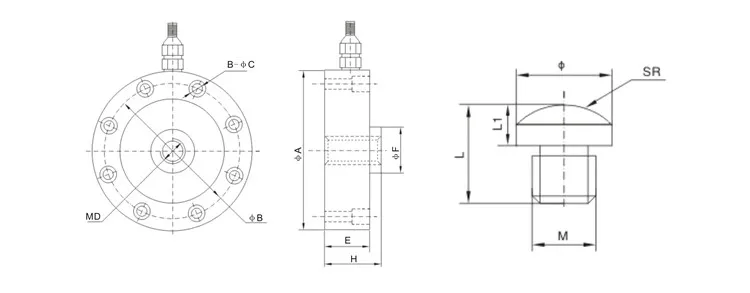

What is Dimension of GSS406 Load cell?

Range	Size (mm)
T	φA	φB	φC	φF	MD	H	E
0.5-7	105	88.9	6.5	32	M16x1.5	37	34
10-25	125	101.6	8.5	39	M32x1.5	52	48
30-50	145	116.8	10.5	50	M40x1.5	58	54
60-100	205	162	12.5	80	M60x2	85	78

Range (T)	Size(mm)
Range (T)	φ	L1	L	M	SR
0.5-7	31	13	28	M16*1.5	80
10-25	38	24	51	M32*1.5	120
30-50	50	32	62	M40*1.5	200
60-100	80	42	80	M60*2	280

What is Product Details of GSS406 Load cell?

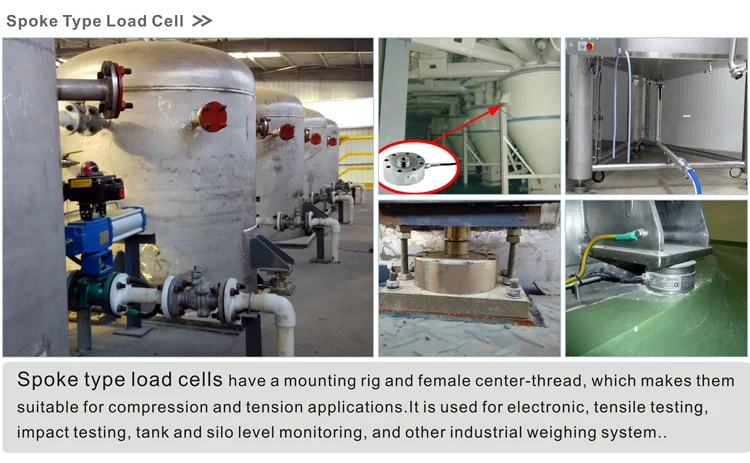

What is application of GSS406 Load cell?

What is Fashion Sets of GSS406 Load cell?

FAQ

Q:What are the applications of spoke type load cell?

A: Belt scale, batching scale, cement mixing plant, reaction kettle weighing system, tank weighing system, silo scale, etc.

Q:What is the raw material?

A: Alloy steel

Q: What is the load range?

A: 1-470T

Q: What is the accuracy/precision?

A: C2 0.03% and C3 0.02%

Q: How to install?

A: Install them under the tank, then connect all the load cells with junction box and connect junction box with controller indicator or display indicator
