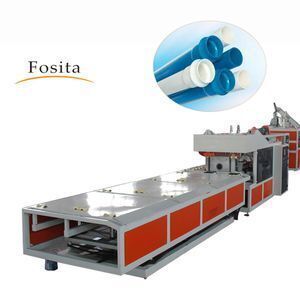

Hot selling universal type automatic plastic pvc pipe belling machine

Supplier: Suzhou Fosita Science And Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr YONGBING QIU
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Jiangsu, China (Mainland);	Place of Origin:	Jiangsu China (Mainland);
Power(W):	10.5-22.5KW;	Processing Type:	Pipe Belling Machine;
Warranty:	1 Year;	pipe length:	200-1000mm;
Voltage:	380V;	Power(W):	10.5-22.5KW;
material:	PVC pipe fittings;	pipe range:	50-110mm;
Payment Terms:	L/C,T/T;	Condition:	New;
Product Type:	Plastic Pipe;	Port:	Shanghai;
Supply Ability:	5 Set/Sets per Month;	color:	as per required;
Certification:	CE;	Dimension(LWH):	Accroding;
Weight:	1.5-15t;	Model Number:	SGK250 automatic plastic pipe belling machine;
After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Certification:	CE;
Brand Name:	FST;	Voltage:	380V;
factory location:	2 hours from shanghai;	Packaging Detail:	Standard packing for hot selling universal type automatic plastic pipe belling machine.;

Product Description

Product Application

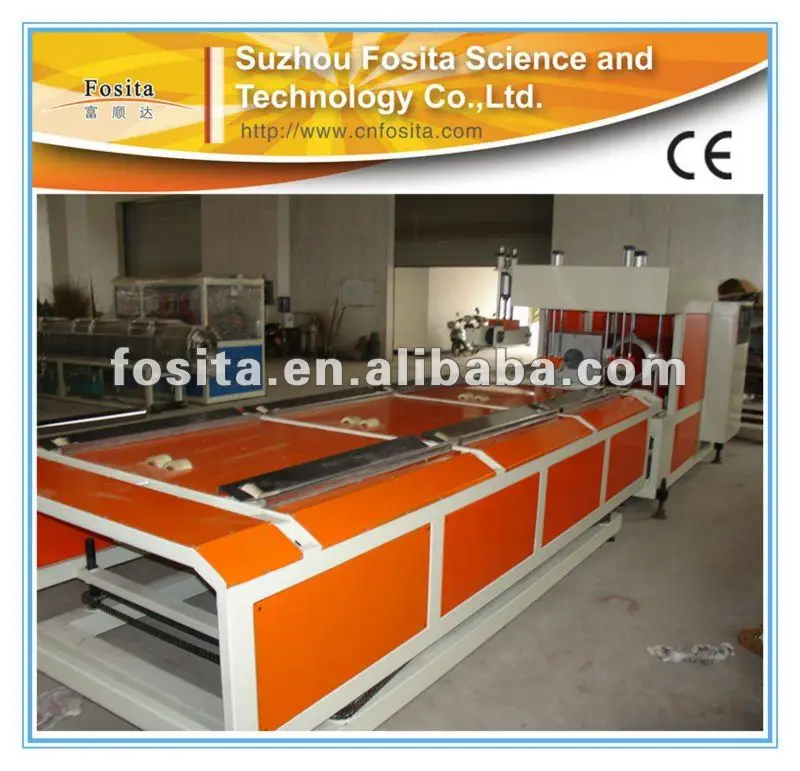

Equipment is made by pneumatic head frame structure and the tail rack, and all the mechanical

parts adopt new quality steel manufacturing. Famous brand name is used in bearing. The head

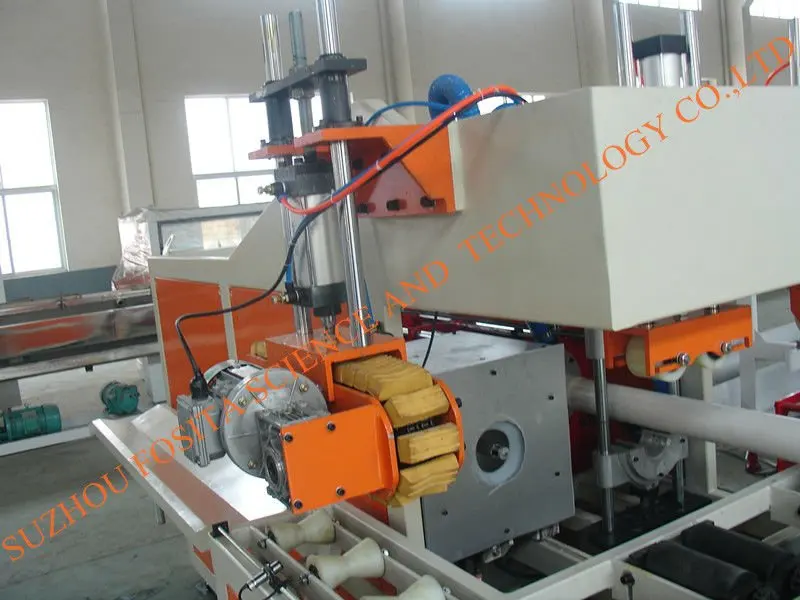

rack is made up with a feed device, heating furnace and expanding work spaces ,the furnace is

formed from stainless steel for heating, furnace equipped with its own unique temperature control

system and use special eddy structure, so that the tube can be heated about rotation, thus the

surface of the tubes expanding can achieve heating equality. The tail rack is made from landing

next to the electric bodies. Furnace control system consists of intelligent temperature control table

control, pneumatic and hydraulic components used both domestic brand name products.

Equipment operators and the expanding circle of all movements by PLC controller to achieve

automatic control.

SPECIFICATIONS FOR AUTO BELLING MACHINES
Specification Model	SGK160	SGK250	SGK315	SGK500	SGK630
Pipe diameter(mm)	50-160	63-250	160-315	250-500	400-630
Pipe wall thickness(mm)	2.9-15	2.9-15	2.9-15	2.9-22	2.9-22
Pipe length(m)	4-6	4-6	4-6	4-6	4-6
Belling type	R,U and Square type	R,U and Square type	R,U and Square type	R,U and Square type	R,U and Square type
Total power(kw)	6.77	8.87	12.55	15.15	16.35
Working pressure(Mpa)	4-6.3	4-6.3	4-6.3	4-6.3	4-6.3
Water Consumption(m³/h)	0.4	0.4	0.4	0.4	0.4
Output(piece/h)	2-40	2-40	2-35	2-30	2-30
Dimension(LxWxH)	6600x1800x1800MM	6800x1800x1850MM	7500x2350x2100MM	7800x4000x2000MM	8000x4200x2100MM
