Air float glass tilting cutting table
- 4200.00 set
| Glass Sheet Size : | 3600*2200mm; | Packaging Detail: | suitable for seaworthy package; |
| Place of origin: | Shandong; | Supply Ability: | 5 Set/Sets per Month Glass cutting tilting table; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Certification: | CE; |
| Power: | 220V,60 HZ,3 Phase; | Model Number: | 2236; |
| Voltage: | 380V; | Production Capacity: | 100%; |
| Brand Name: | Eworld; | Name: | Air float glass tilting cutting table; |
| Tabletop Size : | 2000*3000mm; | Place of Origin: | Shandong China; |
| Machine Type: | Glass Cutting Machine; | Condition: | New; |
| Warranty: | one year; | Dimension(L*W*H): | 3650*2250*1150mm; |
| Power(W): | 3kw; | Catercorner: | from-0.20 to +0.20; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | The Mini Cutting Size: | 20*20mm; |
| Cutting accuracy:Parallelism: | from -0.15 to _0.15; | Delivery Detail: | 20-25 days after deposit; |
| Weight: | 1150kg; | Port: | Qingdao; |

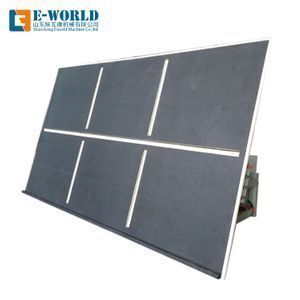

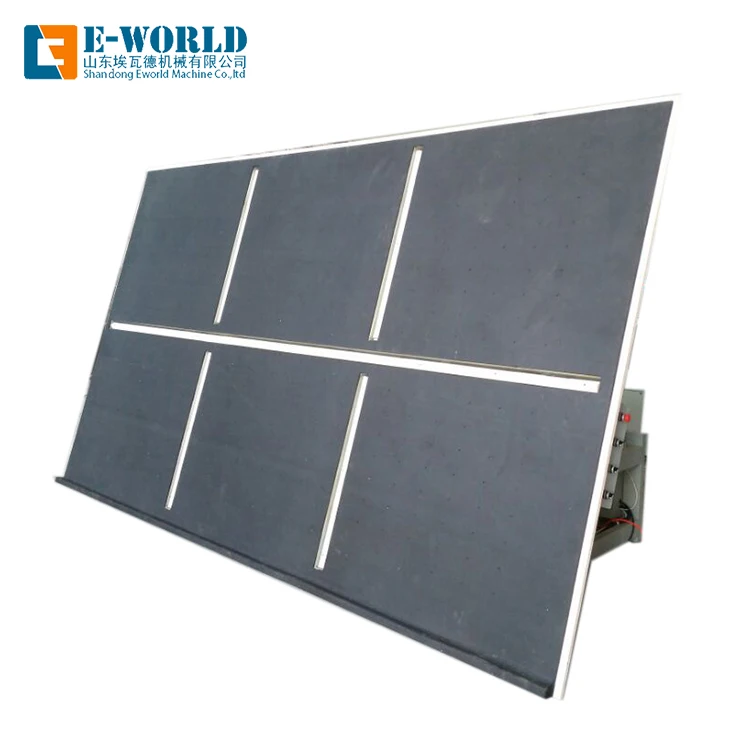

Air float glass tilting cutting table
WD2236 Glass cutting tilting table
Price : USD 3900-4900
Packing terms: suitable for shipment by sea
Terms of payment: 30% T/T deposit,the balance should be made before shipment
Delivery time: within 20-25 days after receipt of the buyer’s 30% deposit.
Guarantee: one whole year after installation

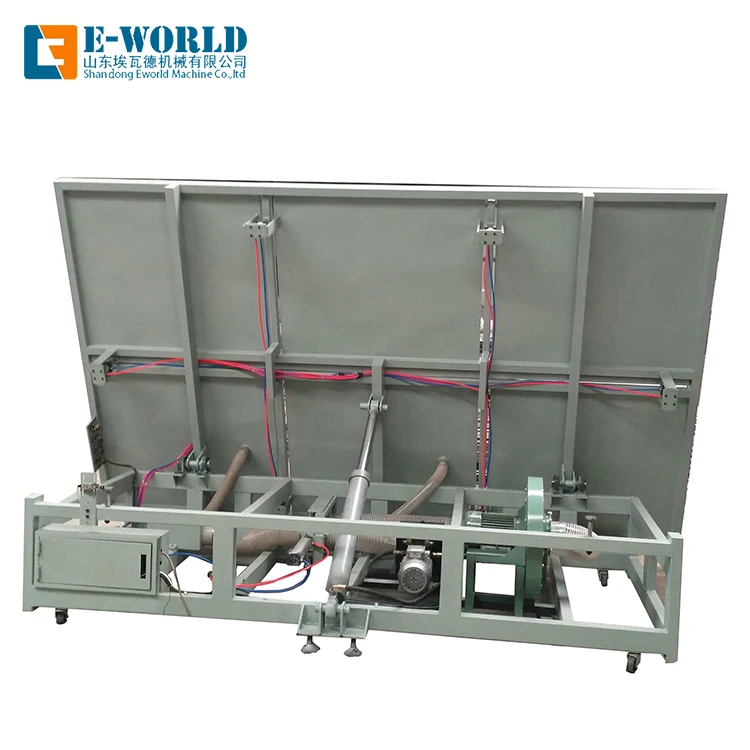

This machine working surface is equiped with air floating blower system for easy handing and shifting movement of the glass.

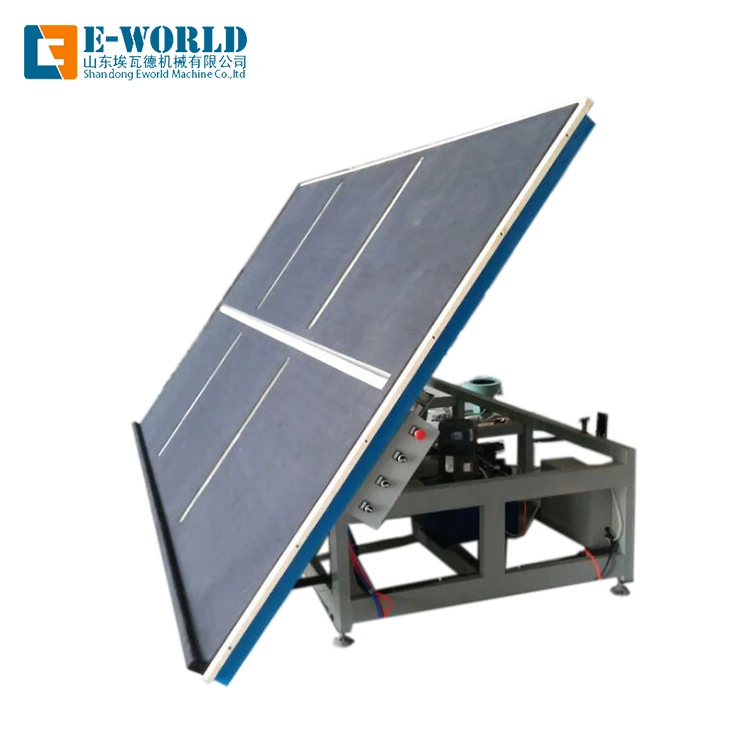

With hydraulically operated tilting table for stable and smooth ascending and descending motion.
Have a automatic loading bar for catching the glass to ensure safety during loading of glass.It is automatically lifting and falling which is controlled by the control switch with the tilting
The pneumatically controlled X and Y glass breaking bars can be activated by individual foot pedal swith to control each work position and section for large size cutting.
Table components: Strong metal Frame, strong metal table ,air float system, air supply system ,breaking system, tilt system
Technical parameter:
1.input power: 380V,50HZ/ 220V,60HZ
2.3 PCS breaking bars
3.Blower protection system
4.Power: 3 KW
5.Table size: 2200*3600mm
6.Weight: 1150 KGS
Hi dear, we sincerely invite you to visit our factory to see the whole production line, and please kindly send me email now so that we can send you the quotation list, have a good day!
