Glass Air Table Products from Jinan Hengdi Machinery Co., Ltd.

Product Details

Model:	4228 glass air flotation table	Main selling points:	easy to operate
port:	Qingdao, Shanghai, Ningbo	brand:	Heng Di
input power:	1.5 kW	weight:	1500 kg
Origin:	Shandong China	biggest size:	3210x2140mm
Applicable industries:	Clothing stores, building materials stores, manufacturing plants	Mechanical test report:	if
Showroom location:	not any	glass thickness:	3-20mm
Core component warranty:	1 year	power supply:	380V,50Hz, three phase
Type of machine:	glass cutting machine	Supply capacity:	30 sets of glass air floatation tables per month
strength:	1.5 kW	Warranty:	1 year
Packaging Details:	Glass air flotation table standard export wooden box	Core components:	Pressure vessels, motors, others, bearings, gears
Production capacity:	500	Package preview:
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Health status:	new
air pressure:	0.4-0.6Mpa	Voltage:	380V,50Hz, three phase
Marketing Type:	New Products 2022	Video shipment inspection:	if

Product Description

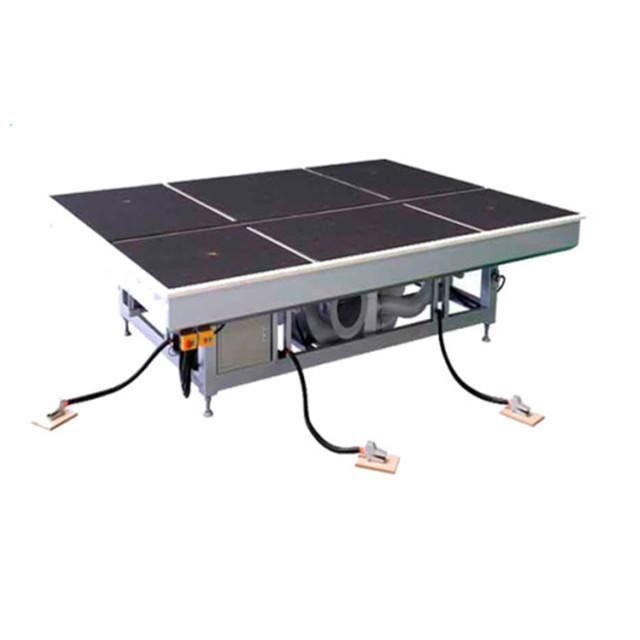

Glass Air Table

Power supply: 380V, 50Hz, three-phase
Input power 1.5Kw
Air pressure 0.4-0.6Mpa
Maximum size: 3000*2000mm
Total weight 400Kg

main information

Manual air flotation glass cutting table

 Air cushion workbench is adopted.
 Pneumatic tipping function for unloading glass.
 The air cushion can easily move the glass on the desktop.

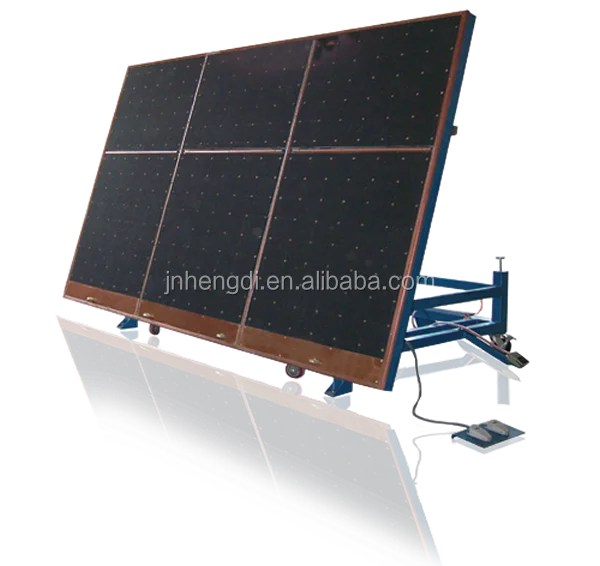

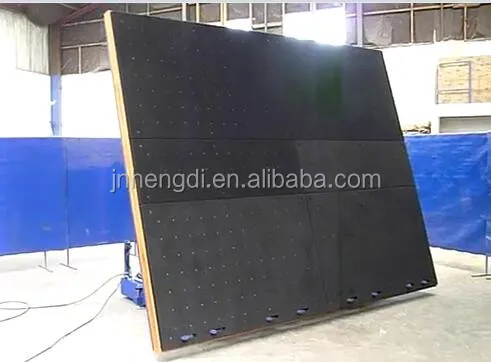

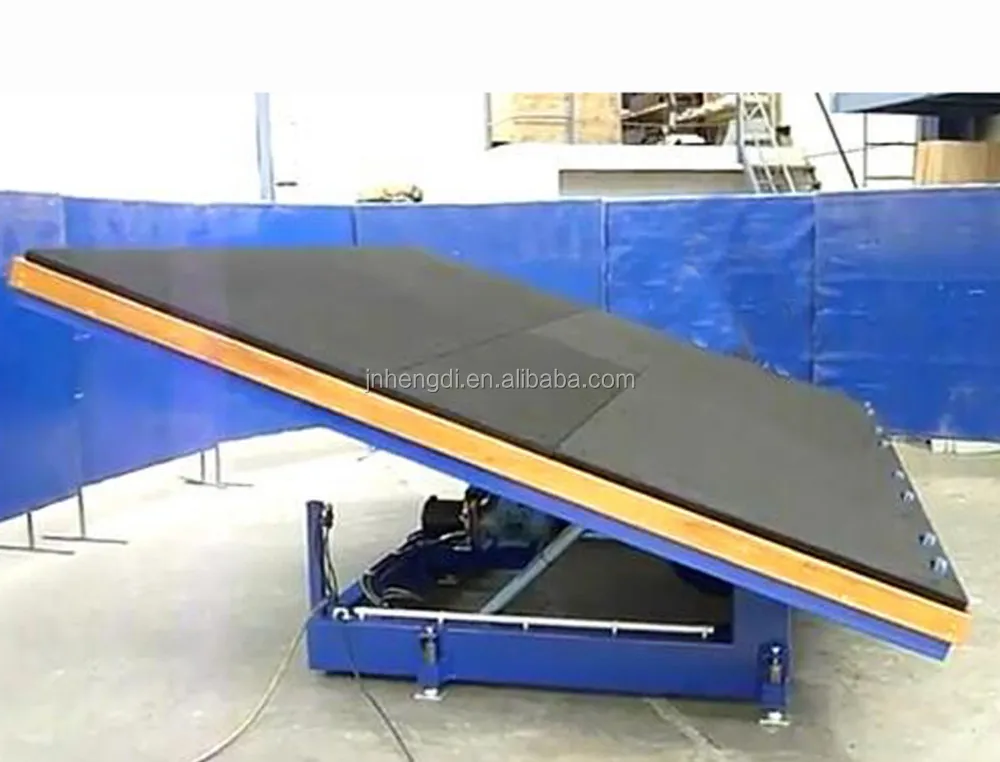

 The workbench has a flip function, which can tilt the entire tilting device from vertical to horizontal. It can be controlled by a foot switch, and the operation is very simple and convenient.
 There are bars to ensure that the glass does not fall and break.
 The table top is carpeted so that the glass surface will not be scratched.
 Dimensions can be changed according to customer requirements.

detailed image

payment terms

the first method

50% T/T advance payment, 50% T/T balance before delivery

The second method

Trade Assurance Granted by Alibaba
(It means that if we can't meet the delivery and quality terms agreed in the contract, you will get a 100% refund up to the trade assurance amount)

our service

points 1

The whole machine is guaranteed for 1 year.

points 2

We have excellent engineers who can speak English, and they can go to your country to solve the machine problems that you can't solve.

Points 3

24-hour Internet service, send emails and videos, communicate online or call. On-site technical group service. English software, user manual and detailed video CD.
