high quality api alloy steel 5 1/2" Torque anchor for sale
- 600.00 unit
| Payment Terms: | T/T,Western Union,MoneyGram; | Type: | 2 3/8"; |
| product name: | high quality api alloy steel 5 1/2" Torque anchor for sale; | Supply Ability: | 1000000 Unit/Units per Year; |
| Port: | qingdao/tianjin; | Delivery Detail: | Shipped in 7 days after payment; |
| Model Number: | xc; | Packaging Detail: | ship express; |

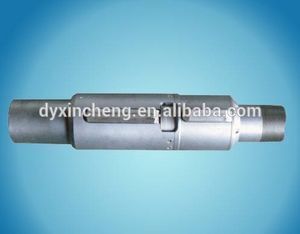

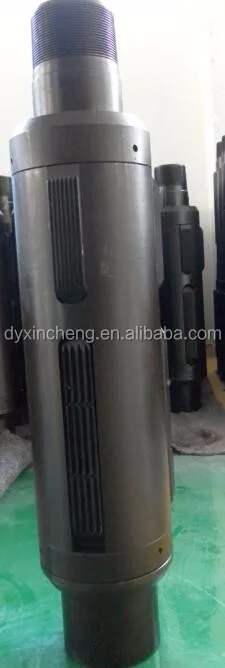

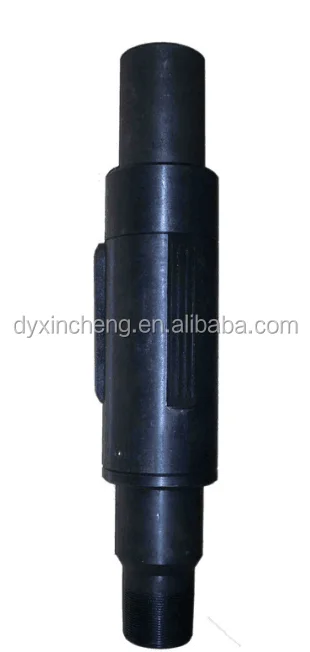

Torque Anchor help reduce premature anchor block wear caused by the harmonics created by PC Pumps.
The Extra Bypass is a standard feature of the Torque Anchor that offers a larger area around the torque anchor for gas bypass and to discourage sand bridging.
By adding a set of drag blocks, the damaging harmonics are absorbed before reaching the anchor blocks that are engaged onto the casing.
The Torque Anchor is available for all casing sizes with a variety of connection sizes and types.
Casing size(inch) | Anchor body OD(mm) | Actual anchor OD(mm) | Torque anchor ID(mm) | Connections(inch) |
4-1/2” | 92.2 | 92.2 | 50.8 | 2-3/8”EU |
5-1/2” | 112.8 | 108.0 | 62.0 | 2-7/8”EU |
6-5/8” | 138.4 | 133.4 | 62.0 | 2-7/8”EU |
7” | 148 | 143.0 | 76.0 | 3-1/2”EU |
9-5/8” | 190 | 209.6 | 100.5 | 4-1/2”EU |
If any request, please contact with me
Skype: live:906952589
Tel:86-18325467091
Best price and high quality goods is waiting for u
