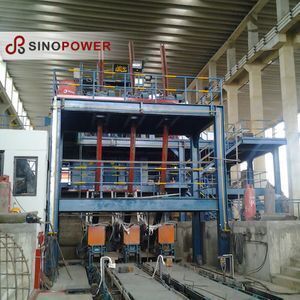

Customized Continuous Casting Machine for Ferrous Metals(Small and Big)

Click here to contact

Product details

After-sales Service Provided:	Field installation, commissioning and training;	Pulling speed:	0.3-4.0m/min;
Supply Ability:	100 Set/Sets per Year Customized Continuous Casting Machine for Ferrous Metals(Small a;	Voltage:	220V/380V;
Tundish support:	Short-long leg tundish car;	Billet length:	4.0m;
Dimension(LWH):	Customized;	Brand Name:	Sino Power;
Warranty:	1 Year;	Withdrawal straightening machine:	Five-roller type;
Casting radius:	R3.0m;	Pushed by:	Hydraulic pusher;
Voltage:	220V;	Applicable Industries:	Continuous Casting Machine;
Payment Terms:	T/T;	Packaging Detail:	40 feet container or nude packed for Customized Continuous Casting Machine;
Strand number:	One strand;	Port:	Shanghai harbour;
Dummy bar:	Flexible dummy bar;	Place of Origin:	Shanghai China;
Condition:	New;	Billet size:	60mm60mm, 70mm70mm;
Power(W):	Customized;

TOP

Product Description

Customized Continuous Casting Machine for Ferrous Metals

(small and big)

No.	Item	Parameter
1	Casting radius	R3.0m
2	Strand number	One strand
3	Ladle support	Fixed support
4	Tundish support	Short-long leg tundish car
5	Oscillation device	Integral oscillation structure, most advanced structure
6	Oscillation frequency	20—280times/min, PLC control
7	Dummy bar	Flexible dummy bar
8	Withdrawal straightening machine	Five-roller type
9	Cutting by	Hydraulic shear
10	Billet size	60mm60mm, 70mm70mm
11	Billet length	4.0m
12	Pulling speed	0.3—4.0m/min
13	Pushed by	Hydraulic pusher
14	Controlled by	1. Withdrawal & oscillation: automatic frequency converting control, SIEMENS converters and PLC 2. Hydraulic shear: PLC control Secondary cooling water: PLC control
	Water consumption
15	Mould water	Q≥80t/h P≥1.0MPa(softening water)
16	Secondary cooling water	Q≥15.0t/h P≥0.6MPa
17	Mechanism cooling water	Q≥30.0t/h P≥0.3MPa
	Electricity consumption
18	For Online equipment	380V 50Hz 50KW
19	For utilities, water and so on	380V 50Hz 100.0KW
