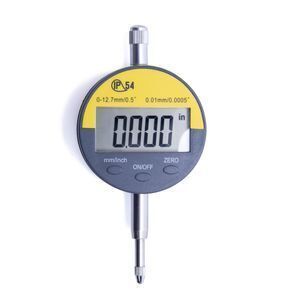

Digital Dial Indicator 0.01/0.0005'' 0-0.5" Range 0-12.7mm with Large LCD Display

  • 14.00 >=30 pieces
Min. Order: 30 pieces FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details

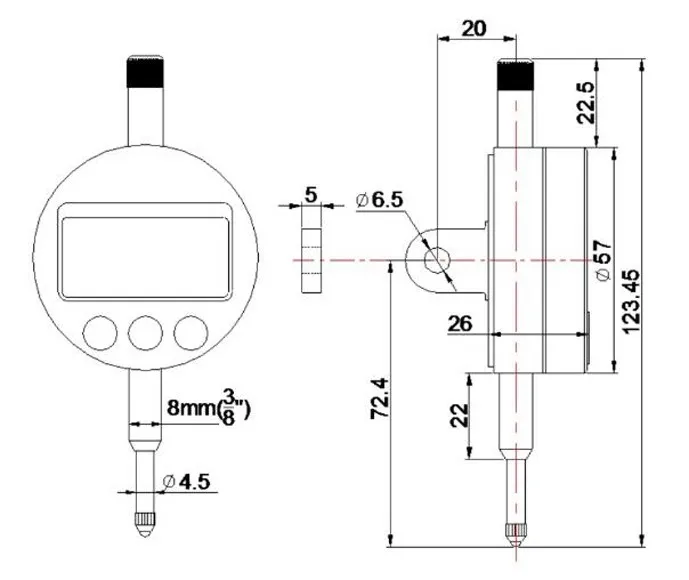

Long:123.5mm;Spindle:#4-48μ NF;
Payment Terms:L/C,T/T,Western Union;Brand Name:Ahead;
Range:0-12.7mm/.5";Accuracy:0.02mm/.001";
Model Number:01-123C;Supply Ability:3000 Piece/Pieces per Month;
Resolution:0.01mm/.0005";Stem diameter:3/8";

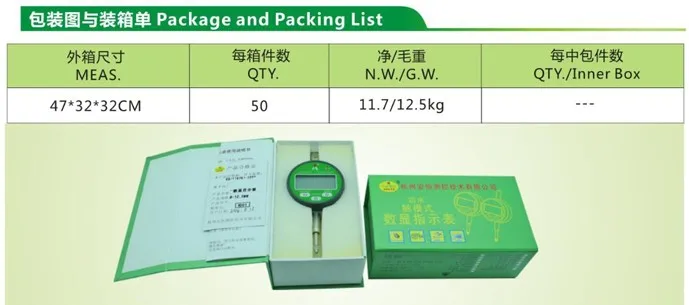

Type:electronic digital indicator;Packaging Detail:MEAS : 47*32*32cm QTY: 50 N,W./G.W. : 11.7/12.5kg;
Port:Shanghai;Place of Origin:Guangxi China;

Digital Dial Indicator 0.01/0.0005'' 0-0.5” Digital Electronic Indicator Dial Test Gauge Range 0-12.7mm with Large LCD Display

Features:

1.Large LCD display for easy-reading . Display window:40X18mm, Digit height: 14mm

2.Ingress protection grade: IP54, waterproof and dustproof

3.Specially made sensors for electronic indicators, speedy measurement, no system crashing, no digits bouncing.

4.Stable and reliable performance.

5.The outer shell is made of space aluminum whose surface is treated with the technology of ceramic oxidation, which is strong and anti scratch.

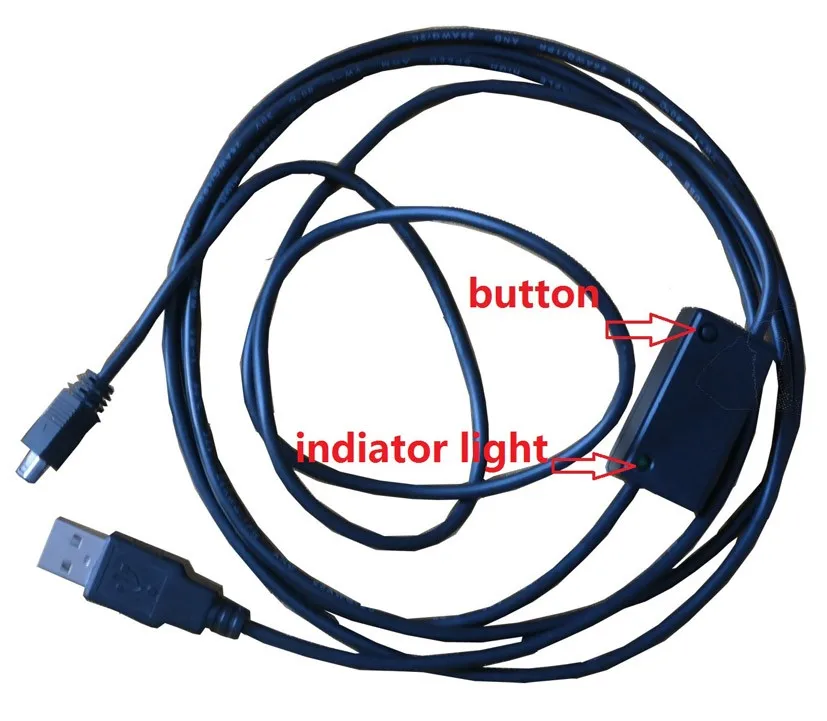

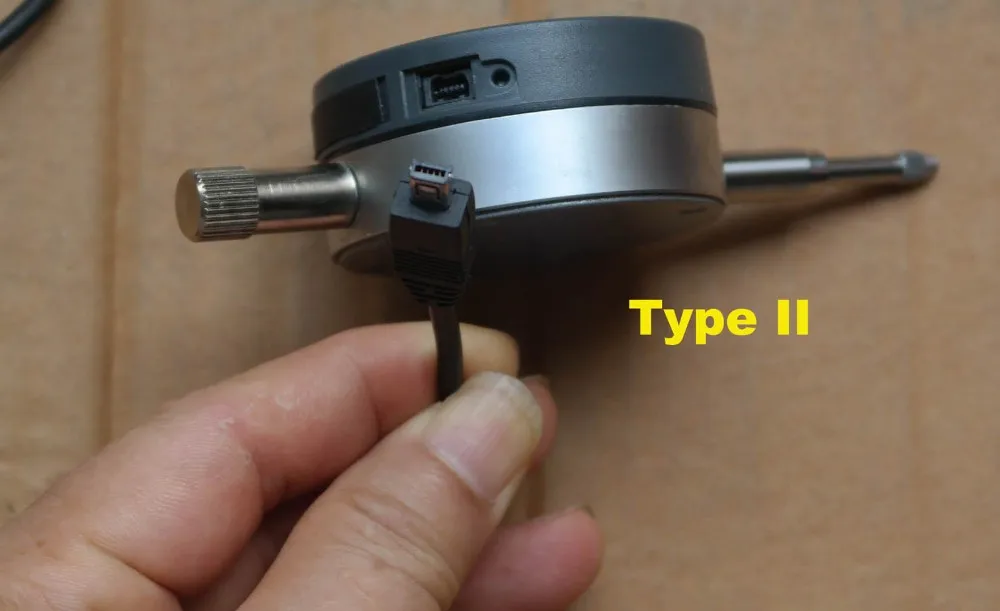

6.With serial data output, conventional or mini USB socket is optional .

7.Metric / Inch system conversion at any position.

8.Manual power on/off, automatic display off.

9.Zero setting at any position.

10.Low battery voltage warning by flashing digits.

11.CR2032 3.0V, Environmental protection battery

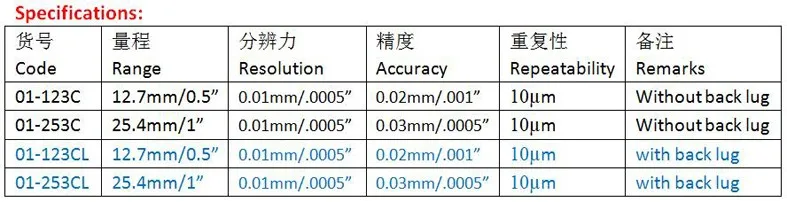

Specifications:
