Chrome Plated Manual Dial ID Gauge 2"-6"/0.001" Extended Dial ID Gauge Set Self-Centering ID Gauge Set with Carbide Anvil

Supplier: Jiangxi Provincial Ruifeng Machinery & Tools Co., Ltd.
Region: Jiangxi, China
Contact: Ms kelly Huang
Price: $17.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

application:	Laboratory, Industrial Measurement	Free samples:	acceptable
Warranty:	1 year	model:	219-09
Origin:	Jiangxi, China	scope:	6-10mm, 10-18mm, 18-35mm, 35-50mm, 50-100mm, 50-160mm.
type:	Measuring tools, inner diameter dials, dial indicators	port:	China Shanghai
Supply capacity:	100000 pieces per month	accuracy:	0.01mm
brand:	radio frequency	MOQ:	100
product name:	Dial aperture 2"-6"/0.001	Packaging Details:	Dial inner diameter meter packaging: 1. Plastic box 2. Inner box bubble 3. Customer requirements
pack:	Plastic box, wooden box, or according to customer requirements	delivery time:	depends on quantity
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal	Customization support:	OEM production
Shipping:	By sea, air or express

Dial Aperture Information

Dial inner hole gauge specification

Item No.	scope	read	depth
219-10-0004	1.4-2"	0.001"	6"
219-10-0005	2-4"	0.001"	6"
219-10-0006	2-6"	0.001"	6"
219-10-0007	6-10"	0.001"	16"
219-10-0008	10-16"	0.001"	16"
219-10-0009	4-10"	0.001"	12"

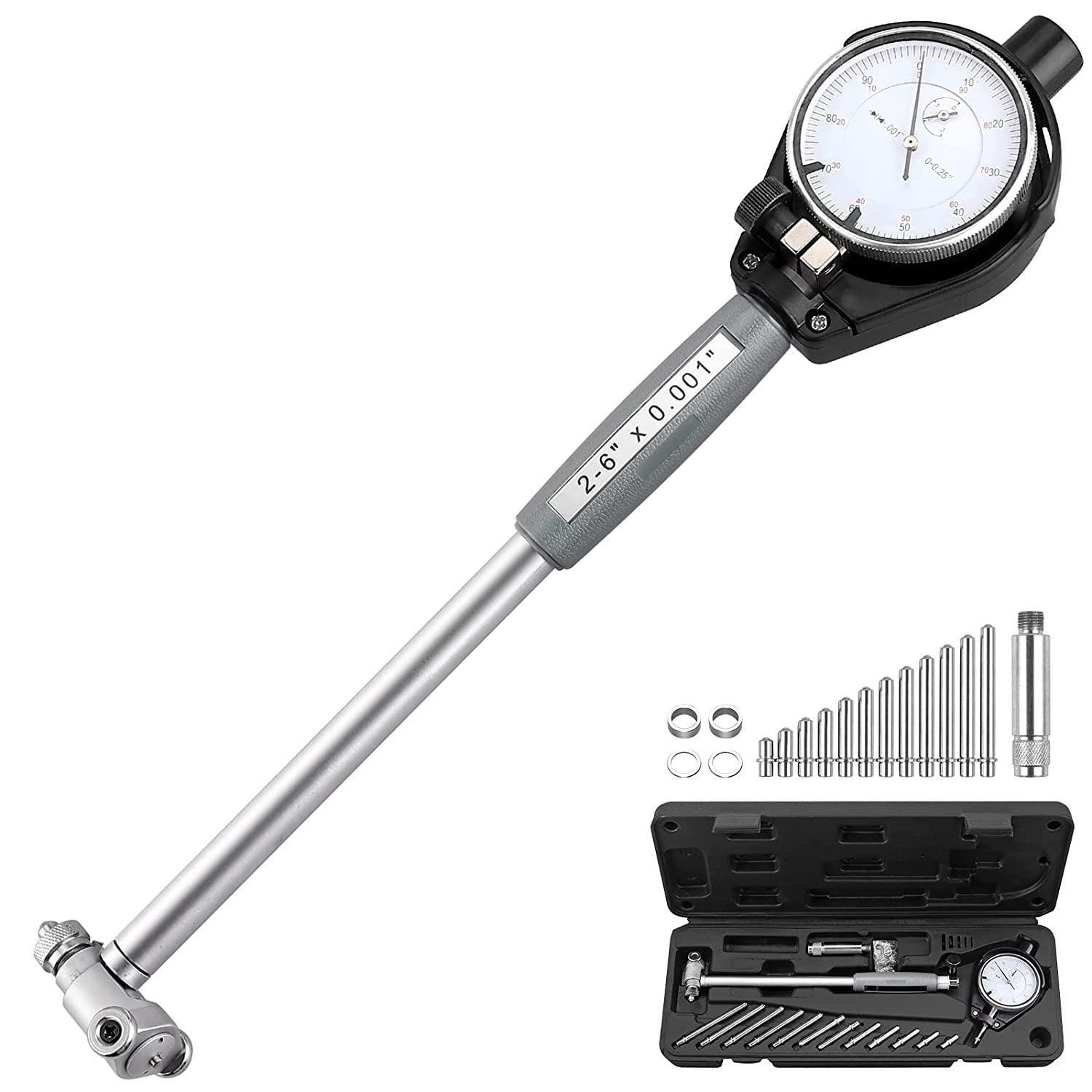

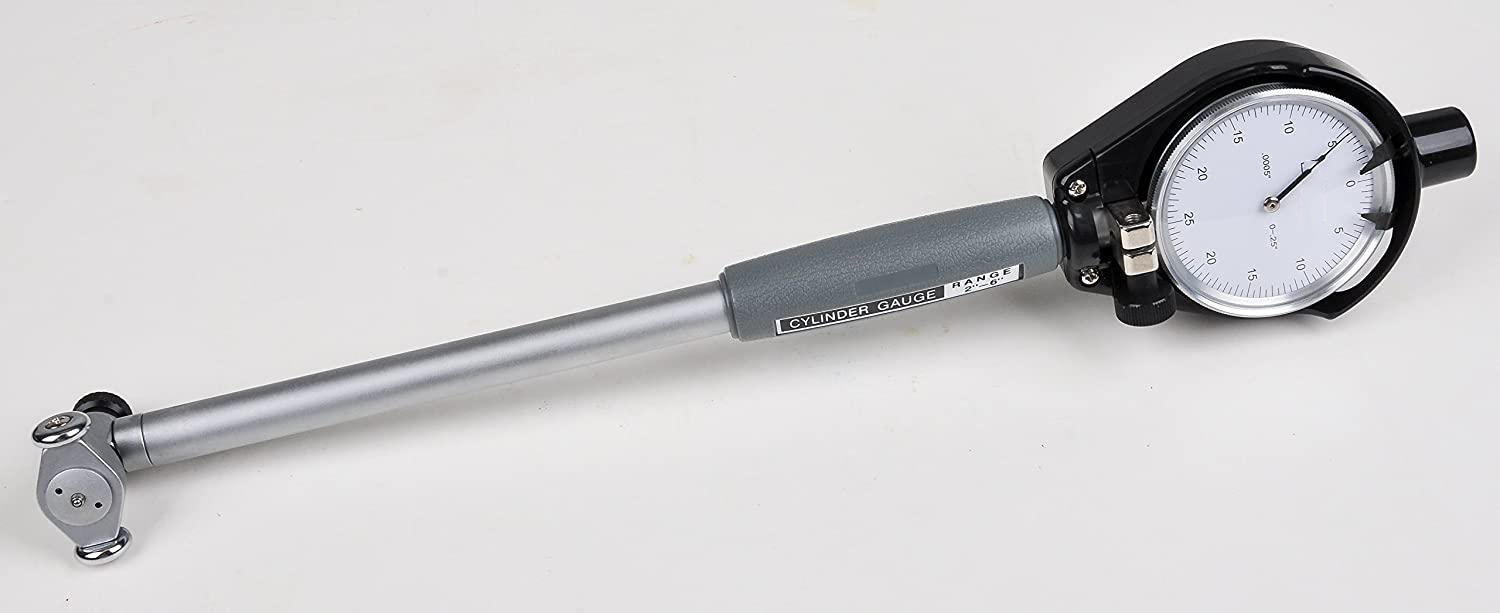

Picture of dial aperture gauge

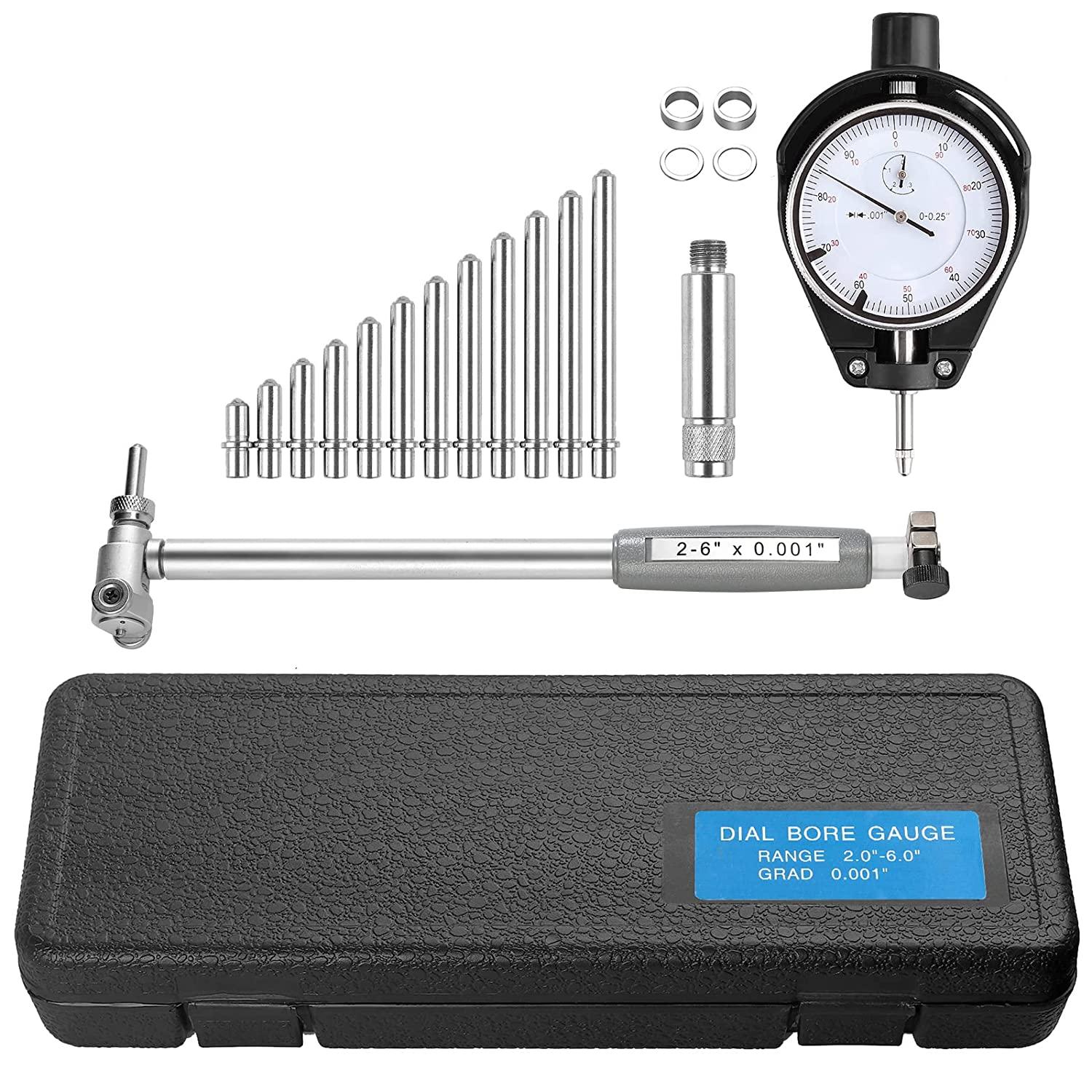

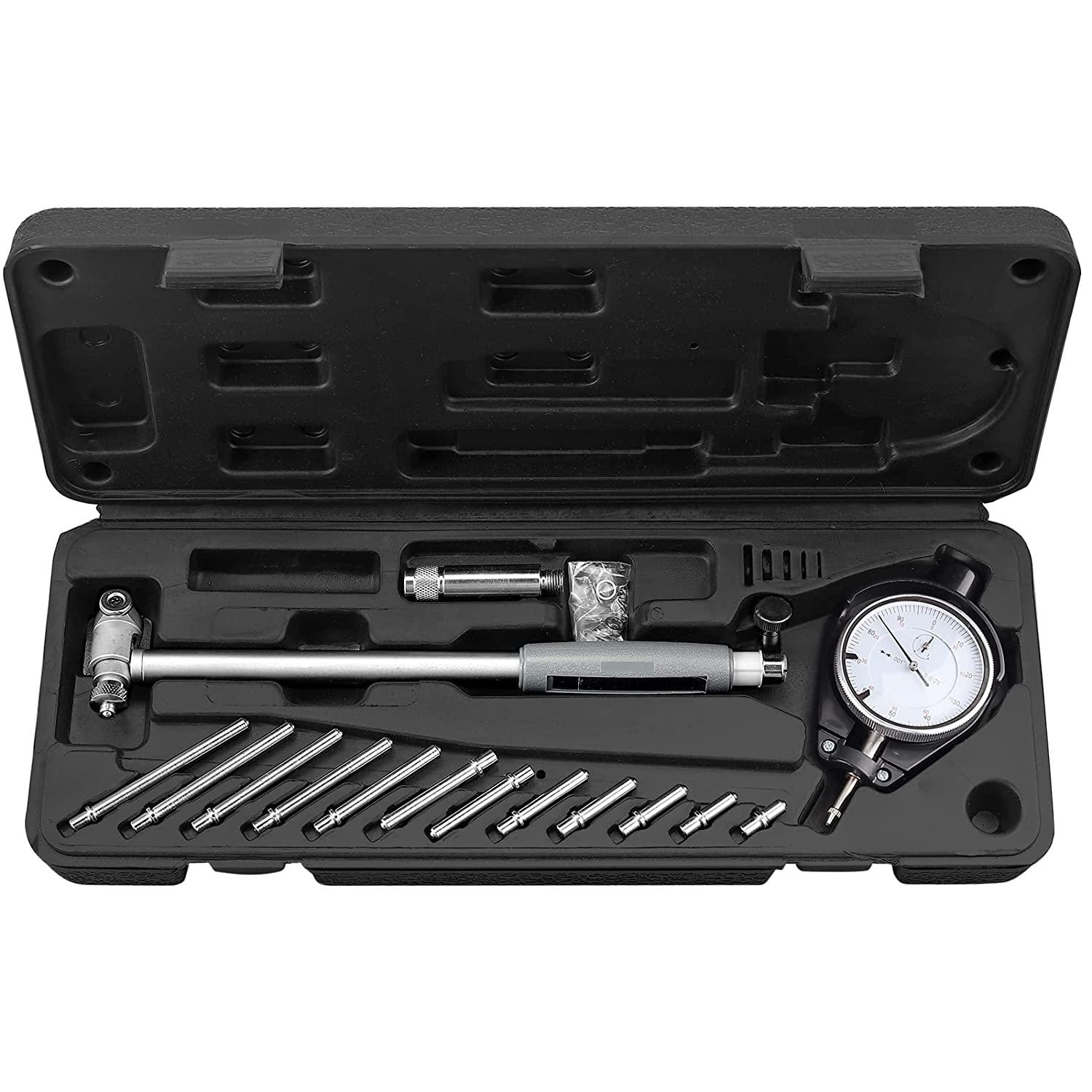

* [Multifunctional Dial Indicator Inner Diameter Set]Neoteck Hole Gauge Kit includes 1*0.5 inch digital indicator; 1*Measuring accessories set; 30mm, 25mm, 20mm, 10mm from the bottom to the limit metal ring, 1*storage box, if it is an ideal choice for Deep Engine cylinder measurement

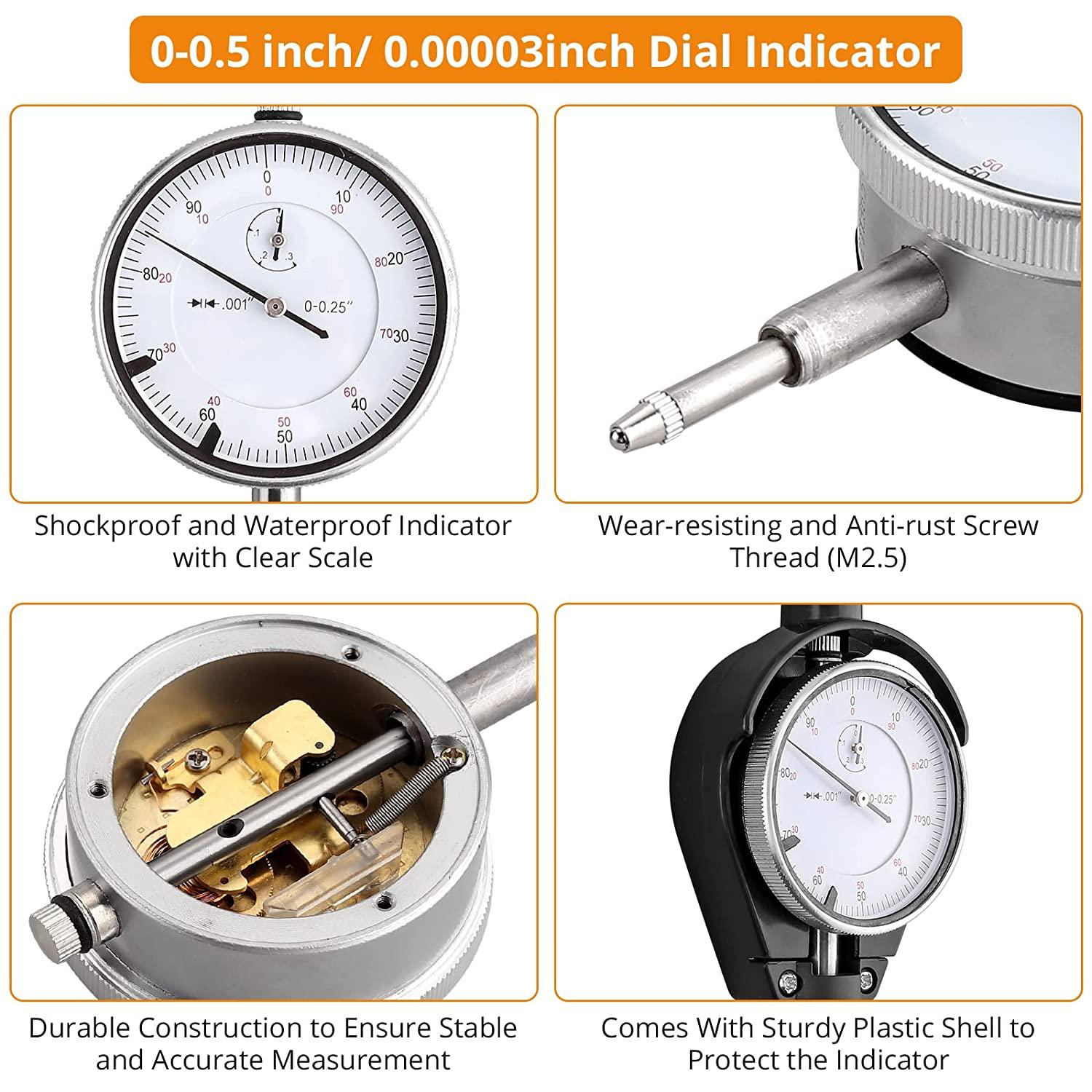

* 【Precise dial indicator】This hole gauge kit has a dial indicator with a diameter range of: 0 ~ 12.7 MM (0 ~ 0.5 inches);
Resolution: 0.01 mm (0.0005 in). Use after zeroing - before measuring, be sure to adjust the pointer of the dial indicator to the "0" position, and select a measuring head of appropriate size for measurement
* [Precise Inner Diameter Dial]Inner diameter gauge measuring diameter range: 50mm-160mm (2-6 inches), measuring depth: 150mm (5.9 inches),
Accuracy: 0.01MM (0.0003 inches). Ultra-precision depth measuring inner diameter measuring instrument - two-point contact type, used to detect geometric diameter measurement problems such as ellipticity and taper.

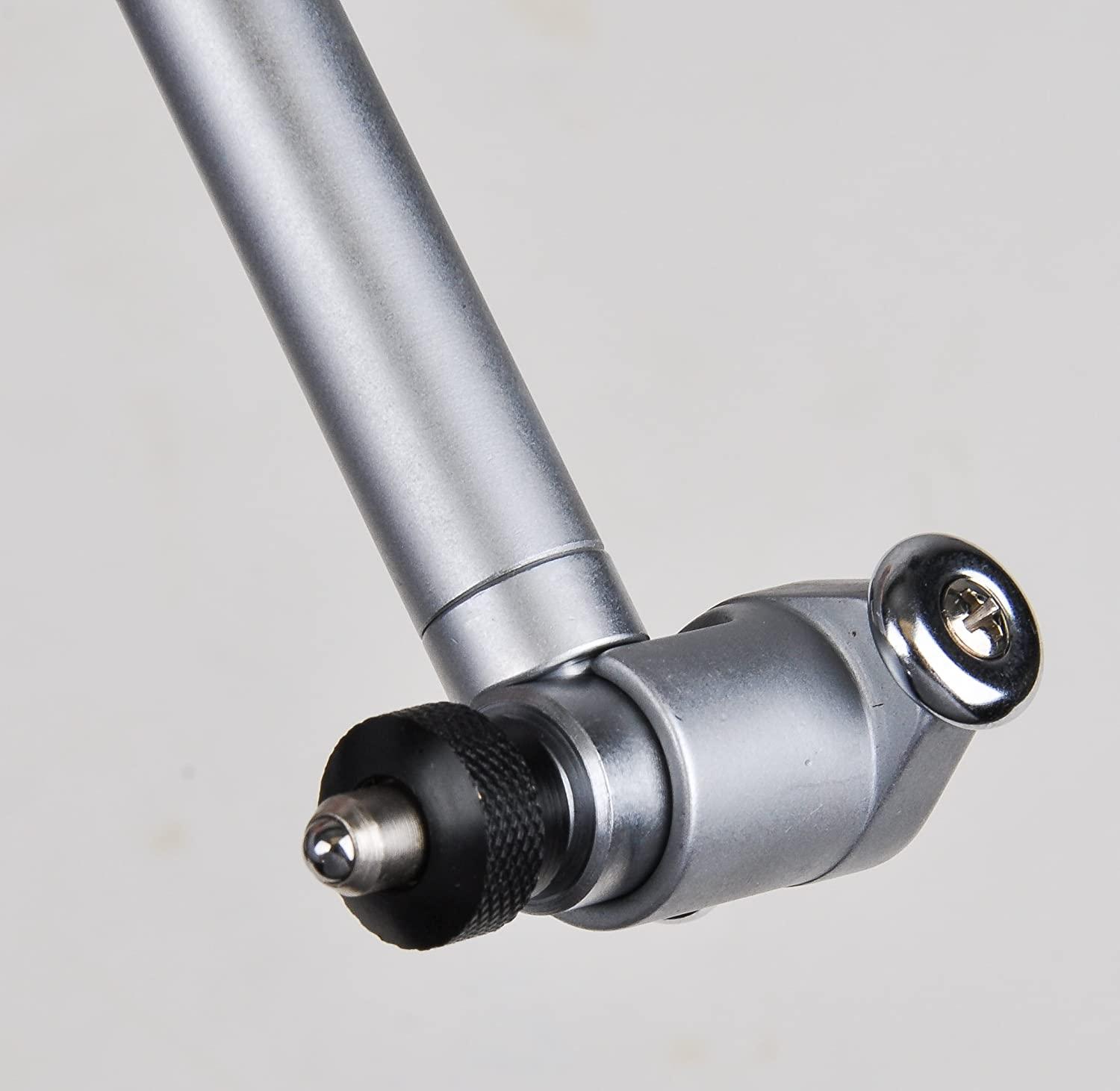

* 【Egocentric and User Friendly】The inside diameter gauge is self-centering for quick and accurate measurements, and the insulated handle makes measuring easier and is easy to adjust. It is widely used to measure the inner hole size of various processing techniques.
* 【DURABLE AND PROFESSIONAL】The all-metal clamping device fastens the meter head, which is stable, accurate and durable. Insulated handle, comfortable to hold, effective heat insulation, safe and reliable. Sealed measuring head, aluminum shell, glass mirror cover, dustproof, clear scale, intuitive data, strong and wear-resistant.
