6-51mm hydraulic steel wire hose crimper tool, 2 inch crimping machine for sale
- 1200.00 >=10 pieces
| Condition: | New; | Brand Name: | XUNPO; |
| Brand name: | XUNPO; | Color: | Bule; |
| Supply Ability: | 10000 Piece/Pieces per Week steel wire hose crimping machine; | Port: | Huangpu; |
| Power(W): | 3KW/4KW; | Payment Terms: | L/C,T/T,Western Union; |
| Power: | 3KW/4KW; | Weight: | 200KG; |
| Warranty: | 1 Year; | Size: | 550*700*600mm; |
| Application: | Hydraulic hose; | Warranty: | 1 Years; |
| After-sales Service Provided: | No after-sales service; | Place of origin: | China; |
| Deliery: | 1-3 Days; | Certificate: | ISO 9001; |
| Dimension(L*W*H): | 550*700*600mm; | Certification: | ISO9001; |
| Place of Origin: | Guangdong China (Mainland); | Displacement: | Standard; |
| Packaging Detail: | Carton; | Voltage: | 220V/380V; |
6-51mm hydraulic steel wire hose crimper tool, 2 inch crimping machine for sale
SPECIFICATIONS:
Big force,low noise and easy to operate
Nice look,performance,price
ISO certificate

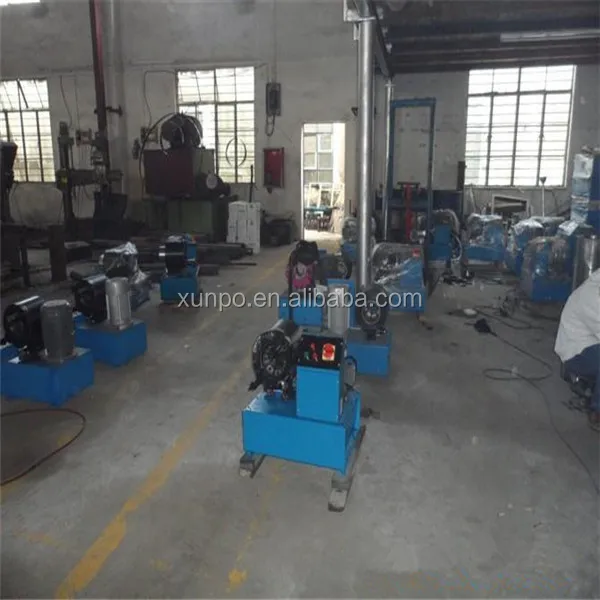

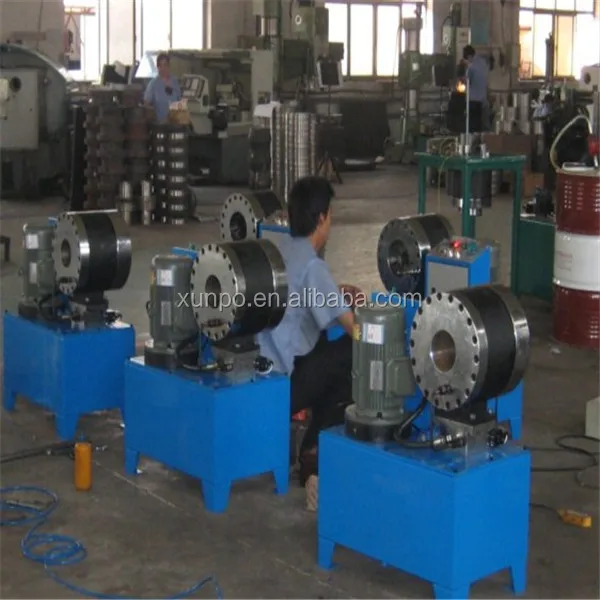

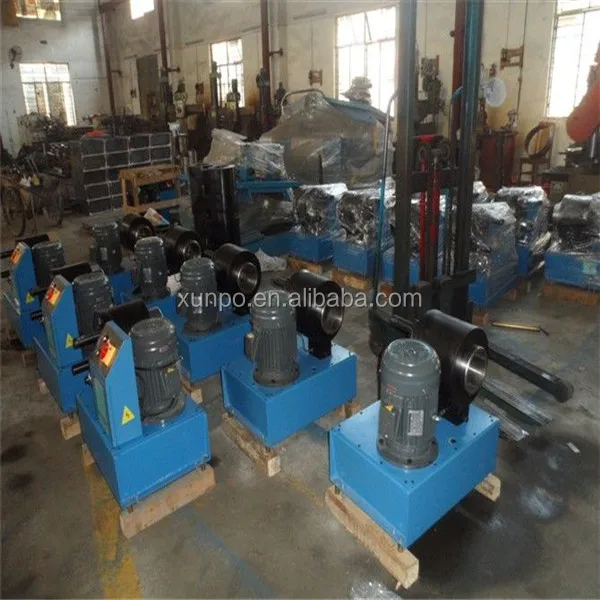

FACTORIES AND WAREHOUSES
SPECIFICATION:
Max hose ID:2" -spiral Hose
Theoretical Crimping Force(Ton): 407
Max. Pressure(Mpa): 31.5MPA
Die Opening & Closing(mm): +/-40
Max Opening(mm): 136
Motor Size(Kw): 3
Operating Voltage(V):380v-3Ph-50Hz---220v-1ph-50Hz
Full Crimping Circle (Seconds):10
Accuracy(mm):0.02 Max.
Standard dies: 15,19,23,27,31,36,41,47
Optional dies: 53,58,67
Un-even(mm): 0.1 Max.
Weight(Kg): 200
Dimensions(Length×Width×Height): 550x700x600(mm)

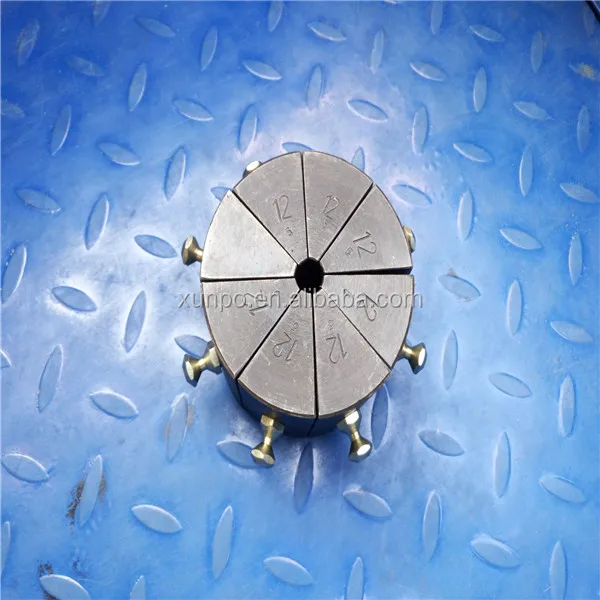

DIE-SETS CHART:
The Die Number with "*" tag means it is an Optional Die-set.
Die-sets with specs other than the Chart can be made to order.
Die No. | Range(mm) | Length(mm) | Die No. | Range(mm) | Length(mm) |
15 | 15-19 | 75 | 41 | 41-47 | 75 |
19 | 19-23 | 75 | 47 | 47-53 | 75 |
23 | 23-27 | 75 | 53* | 53-58 | 75 |
27 | 27-31 | 75 | 58* | 58-64 | 75 |
31 | 31-36 | 75 | 67* | 67-73 | 75 |
36 | 36-41 | 75 | *Optional Die-sets | ||
DELIVERY TIME:
Within 3days upon receipt of deposit
PAYMENT TERM:
We can accept TT OR LC Whether which term is better for you.
Any suggestion,please let me know.
CERTIFICATE:
ISO certificate

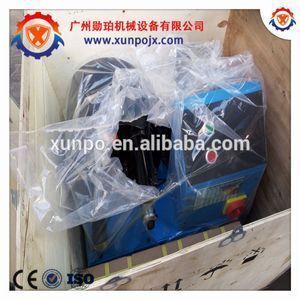

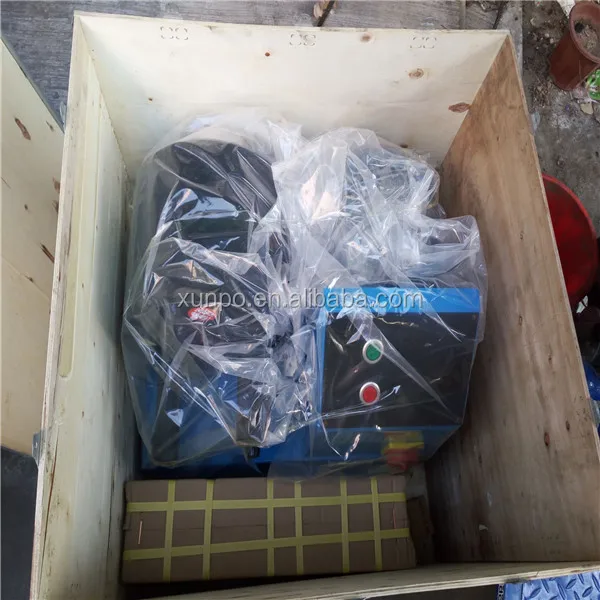

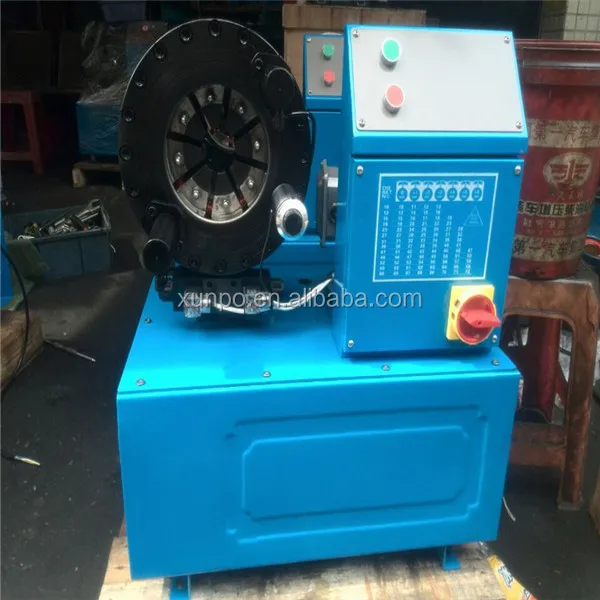

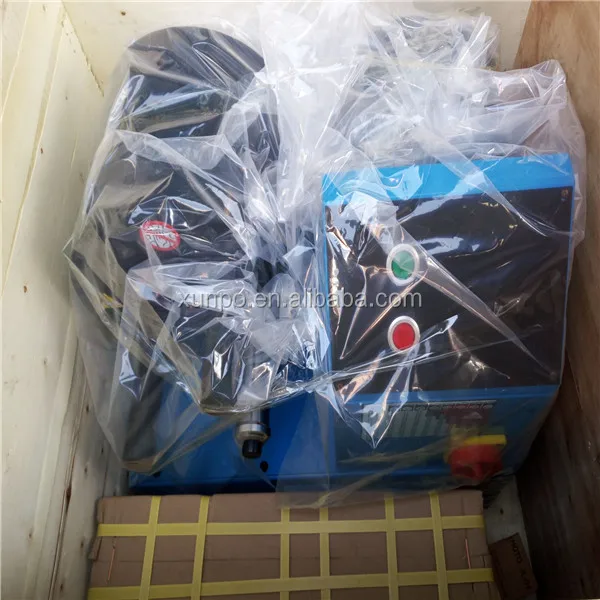

PRODUCT PICTURES
