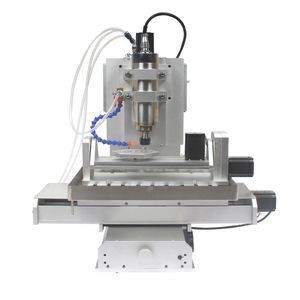

5 Axis 3040 Mini CNC Milling Machine for Sale

Supplier: Shenzhen Scotle Technology Ltd.
Region: Guangdong, China
Contact: Mr Sharp Pong
Price: $2399.00 /set
Min. Order: 1 set

Click here to contact

Product details

Repeat positioning accuracy:	0.01mm;	material:	Stainless steel tailgate;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal, ecredit line, escroe;	After-sales Service Provided:	Engineers available to service machinery overseas;
Power(W):	2200w;	Warranty:	1 year;
Weight:	110kg;	Type:	Universal;
Brand Name:	chinacnczone;	Packaging Detail:	Standard wooden box with 7 layer corrugated paper;
CNC or Not:	CNC;	Port:	Shenzhen;
Certification:	ce;	Dimension(LWH):	550680450;
water-cooled frequency spindle:	1500w/2200w;	Supply Ability:	200 Set/Sets per Month;
Drive motor:	57x78 steper motors, two-phase 4 wire stepper motor;	Voltage:	220v/110v;
Condition:	New;	Effective Stroke:	300x400x(150)mm;
Output Current:	Drive 4.5A (peak 5A);	Processing speed:	0-4000mm/minute;
Driven approach:	Bipolar constant current PWMdrive output;	Input Poewr:	220AC power supply;
Place of Origin:	China;	table maximum load:	15kg;

5 Axis 3040 Mini CNC Benchtop Milling Machine for Sale

Product Description

Highlight for this 5 Axis 3040 Mini CNC Benchtop Milling Machine for Sale

It can work with 3 axis / 4 axis / 5 axis, just as you like !

Cross slippery platform and havier base made it a higher precision.

1500W water-cooling spindle

Vedio supported.

CE approval.

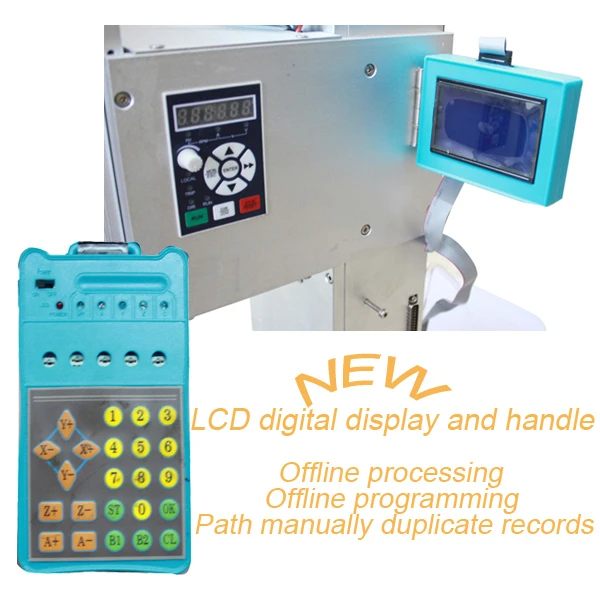

1 Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control

2 The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.

3 Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.

4 Manual data input processing path and enter the path to run automatically

5 You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control.

6 Max 5A stepper motor drive current, eight-speed adjustable.

7 Up to 16 segments, higher accuracy, run more smoothly.

8 Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals.

9 Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

10 Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.

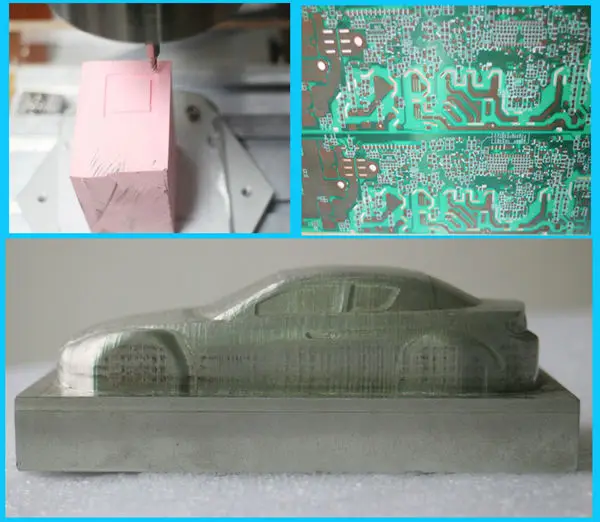

This 5 Axis 3040 Mini CNC Benchtop Milling Machine for Sale Can be widely used as below:

Technical detailes for this 5 Axis 3040 Mini CNC Benchtop Milling Machine for Sale

Model	5 Axis CNC Machine
Product demention	520(H)X660(L)X580(W) mm

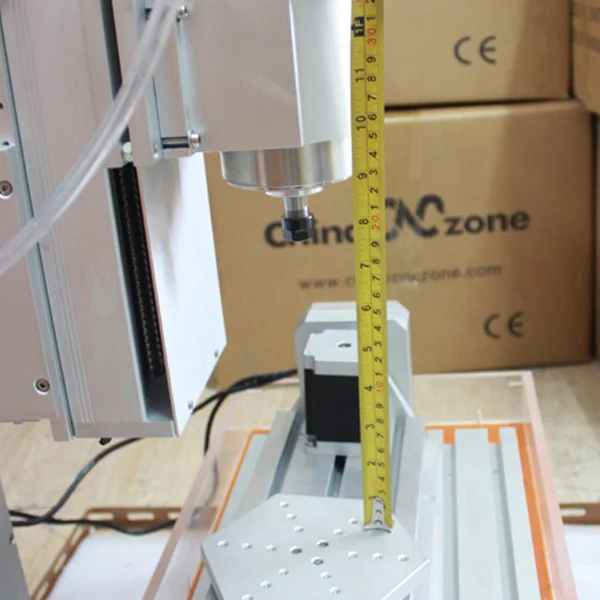

Effective work area	300x400x(150)mm
Precision ballscrew	1605
XYZ rail material	Hard chrome shaft
XY rail diameter	20mm
Z rail diameter	16mm
XYZ axis torque	57*78 250 OZ/IN (2.2N/CM)
4th and 5th	57*56
4th and 5th transmission ratio	1:6
Repeat positioning accuracy	0.01mm
Working precision	0.02mm
Processing speed	0-4000 mm/Min
A-axis B-axis rotation speed	0-180 rpm/min
XY table maximum load	50kg
XY+A+B axis table maximum load	15kg
Tailgate material	Stainless steel
Switching Power Supply	Integrated 24V 350W
Spindle power	800 W water-cooled frequency spindle
Spindle converter	1500w/2200w
Input Power	220V / 110V power supply
Output Current	Drive 4.5A (peak 5A)
Drive motor	57*78 stepper motors (two-phase 4 wire)
Net Weight	50kg
Gross Weight	90kg
Outside packing	786682 (cm)
