CK-W200 200L HEMP CBD Explosion-proof Forced(self) Circulation Ethanol Extraction Evaporator Solvent Recovery

HEMP CBD Production Ethanol Extraction

Explosion-proof Forced(self) Circulation Evaporator

Solvent Recovery Machine

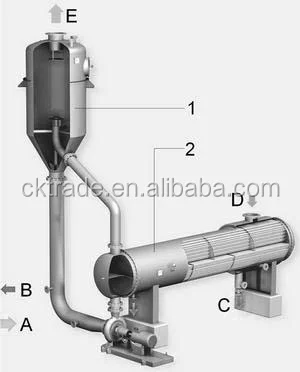

A = Product B = Concentrate C = Condensate D = Heating steam

E = Vapour 1 = Flash vessel/separator 2 = Heat exchanger

——Design
Horizontal or vertical shell-and-tube heat exchanger or plate heat exchanger, with flash vessel/separator and circulation pump.

——Operation
The liquid is circulated through the heat exchanger by means of a circulation pump, where it is superheated at an elevated pressure, higher than its normal boiling pressure. When entering the separator, the pressure in the liquid is rapidly reduced resulting in some of the liquid being flashed, or rapidly boiled off.
Since liquid circulation is maintained, the flow velocity in the tubes and the liquid temperature can be controlled to suit the product requirements of the pre-selected temperature difference.

——Particular features
Less foul – boiling/evaporation will not take place on the heating surfaces, but in the separator. Fouling due to incrustation and precipitation in the calandria is therefore minimised.
Optimised heat exchange surface – flow velocity in the tubes determined by the circulation pump.

——Fields of application
Liquids with a high tendency for fouling, highly viscous liquids, as the high concentration step in multiple-effect evaporation plants.

Forced circulation evaporators are suited as crystallising evaporators for saline solutions.

CK-W-20
Equipment Name: Self circulation evaporators for ethanol
Material:S304
Evaporation chamber:
Material:Stainless steel 304
Volume: 20l
Reference evaporation: Theoretical calculation 20L/hour( ethanol)

CK-W-50
Equipment Name:Self circulation evaporators for ethanol
Material:S304
Evaporation chamber:
Material:Stainless steel 304
Volume: 50l
Reference evaporation: Theoretical calculation 40L/hour( ethanol)

CK-W-100
Equipment Name:Self circulation evaporators for ethanol Explosion-proof
Material:S304/Q235B
Evaporation chamber:
Material:Stainless steel 304/Q235B
Volume :100l
Reference evaporation: Theoretical calculation 80L/hour( ethanol)

CK-W-200
Equipment Name: Self circulation evaporators for ethanol Explosion-proof
Material: S304
Evaporation chamber:
Material:Stainless steel 304
Volume: 200l
Reference evaporation:160L/hour( ethanol)

CK-W-400
Equipment Name:Self circulation evaporators for ethanol Explosion-proof
Material:S304
Evaporation chamber:
Material:Stainless steel 304
Volume 400l
Reference evaporation: 300L/hour( ethanol)

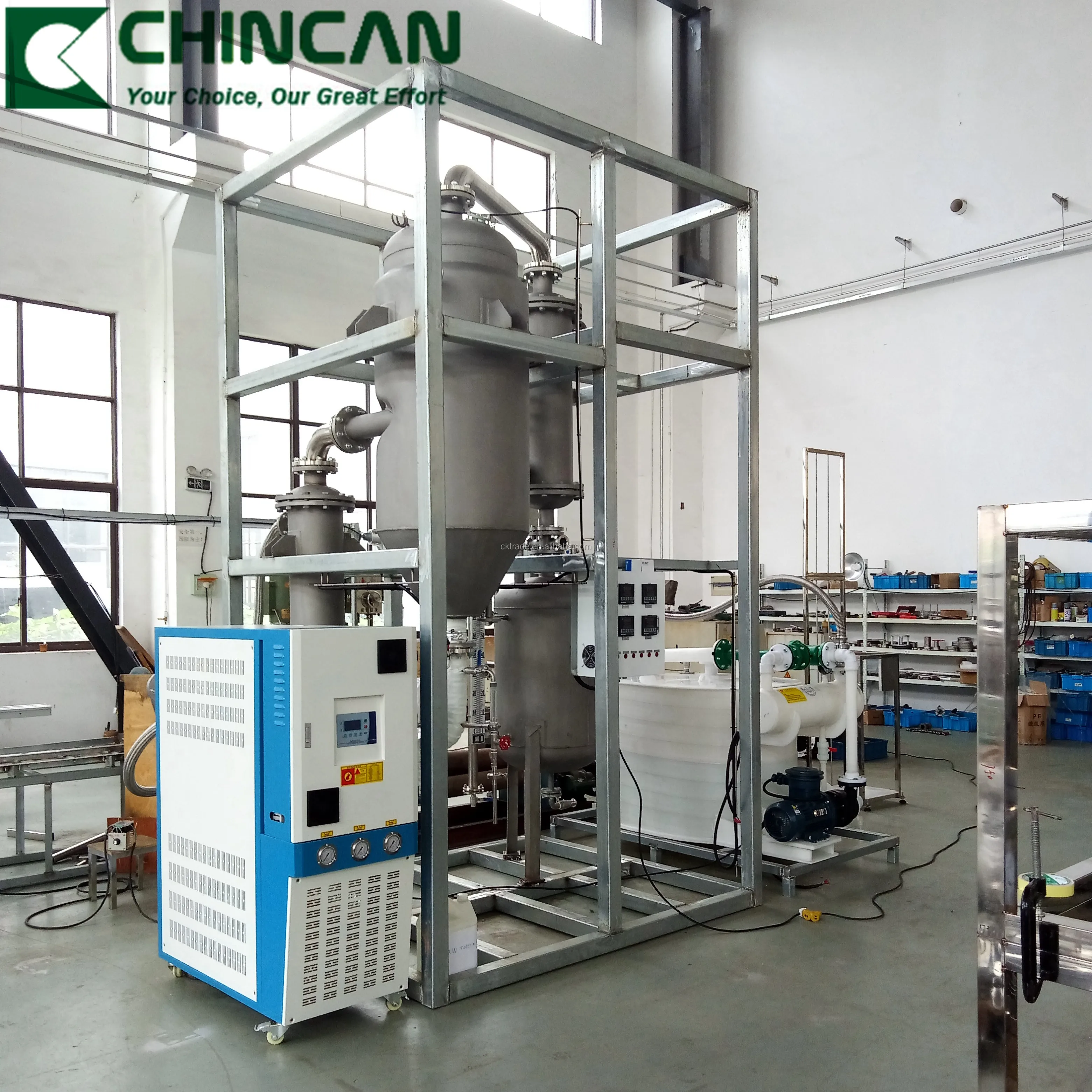

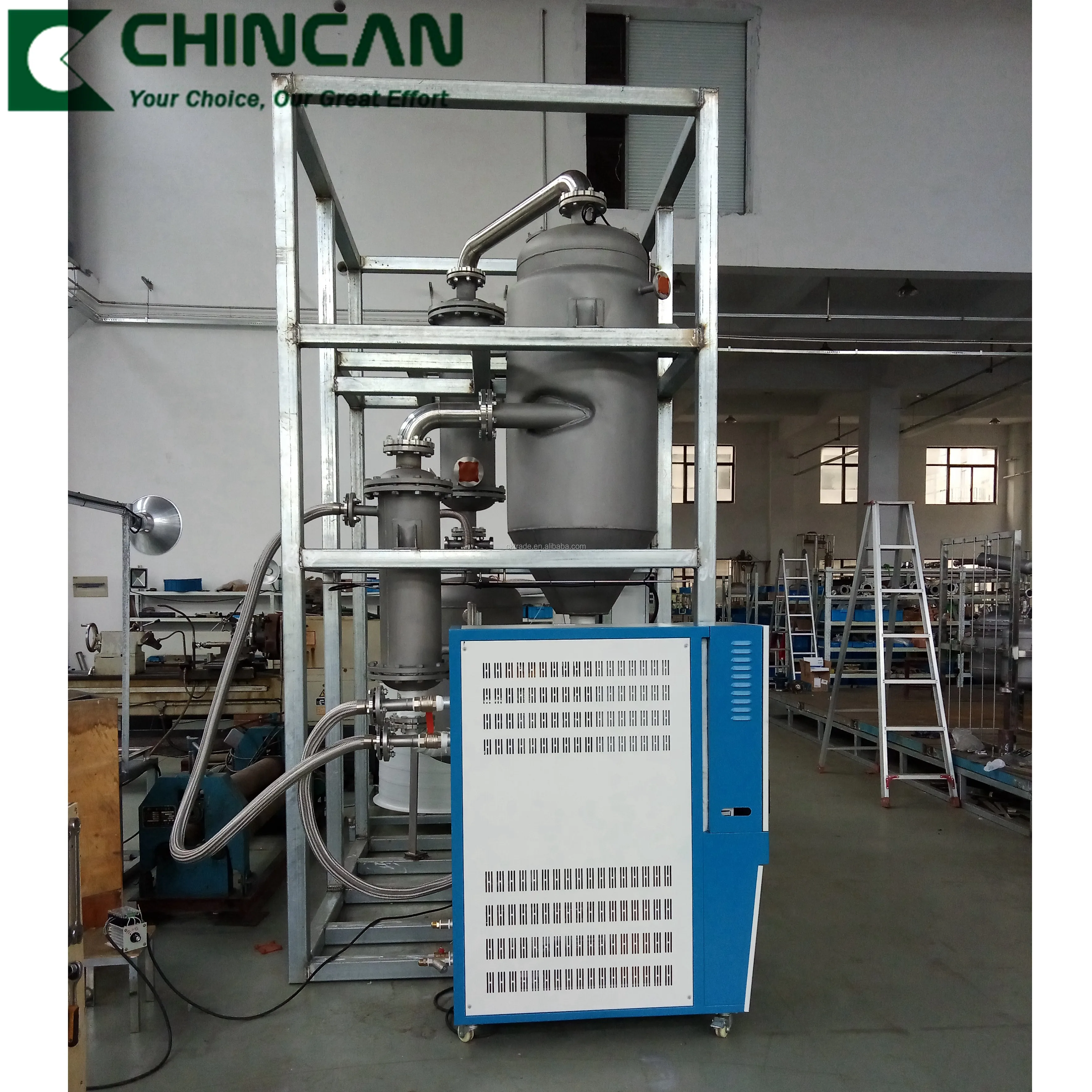

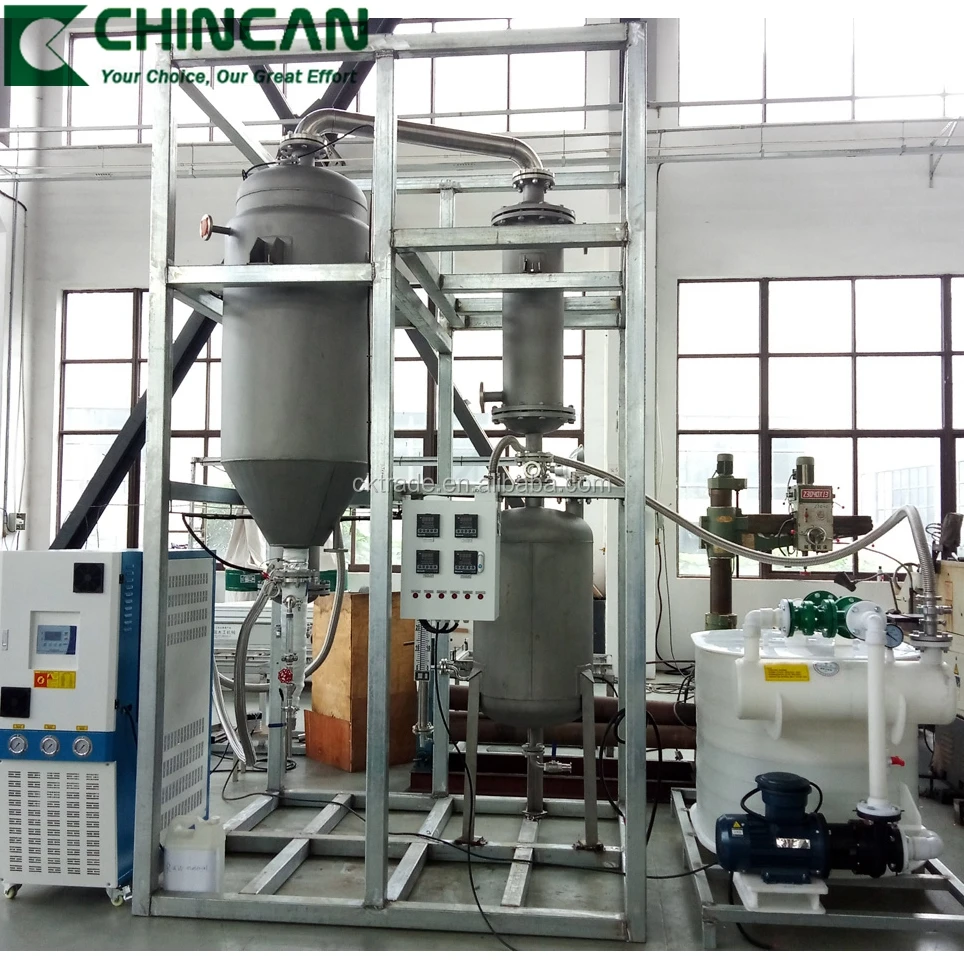

Real Pictures for your reference:

Related Products:

1. CB-680 HEMP Electric Leaf & Seed Crush & Blender:

    Hourly output: 700-1200kg; Volume: 75*110*139cm

2. EX Series Explosion-proof Plant Extractor:

    EX-50DU: The system can fill 50L extraction solvent with 2 Extraction devices (A&B) alternately.
    EX-100DU: The system can fill 100L extraction solvent with 2 Extraction devices (A&B) alternately.

3. BMM Thin Film Evaporation (Solvent Recovery Machine):

    BMM-20: Feed amount (unit: l/h): 24L/h
    BMM-50: Feed amount (unit: l/h): 60L/h

4. BML Wiped film Evaporator (Degass machine):

    BML-5: Evaporator heat transfer area: 0.058m2; Feed amount(unit: ml/h): 4000
    BML-10: Evaporator heat transfer area: 0.12m2; Feed amount(unit: ml/h): 8000
    BML-20: Evaporator heat transfer area: 0.2m2; Feed amount(unit: l/h): 16L/h

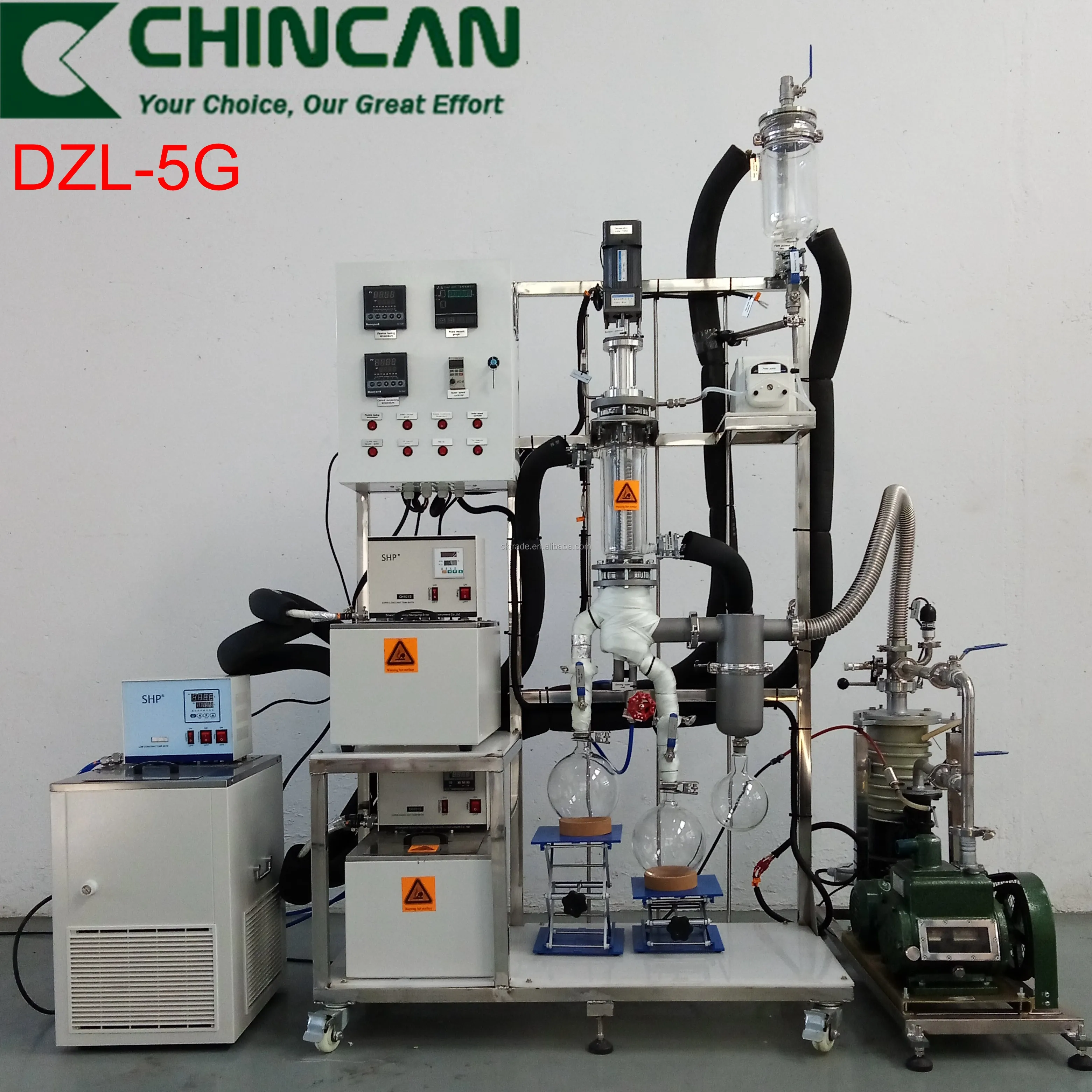

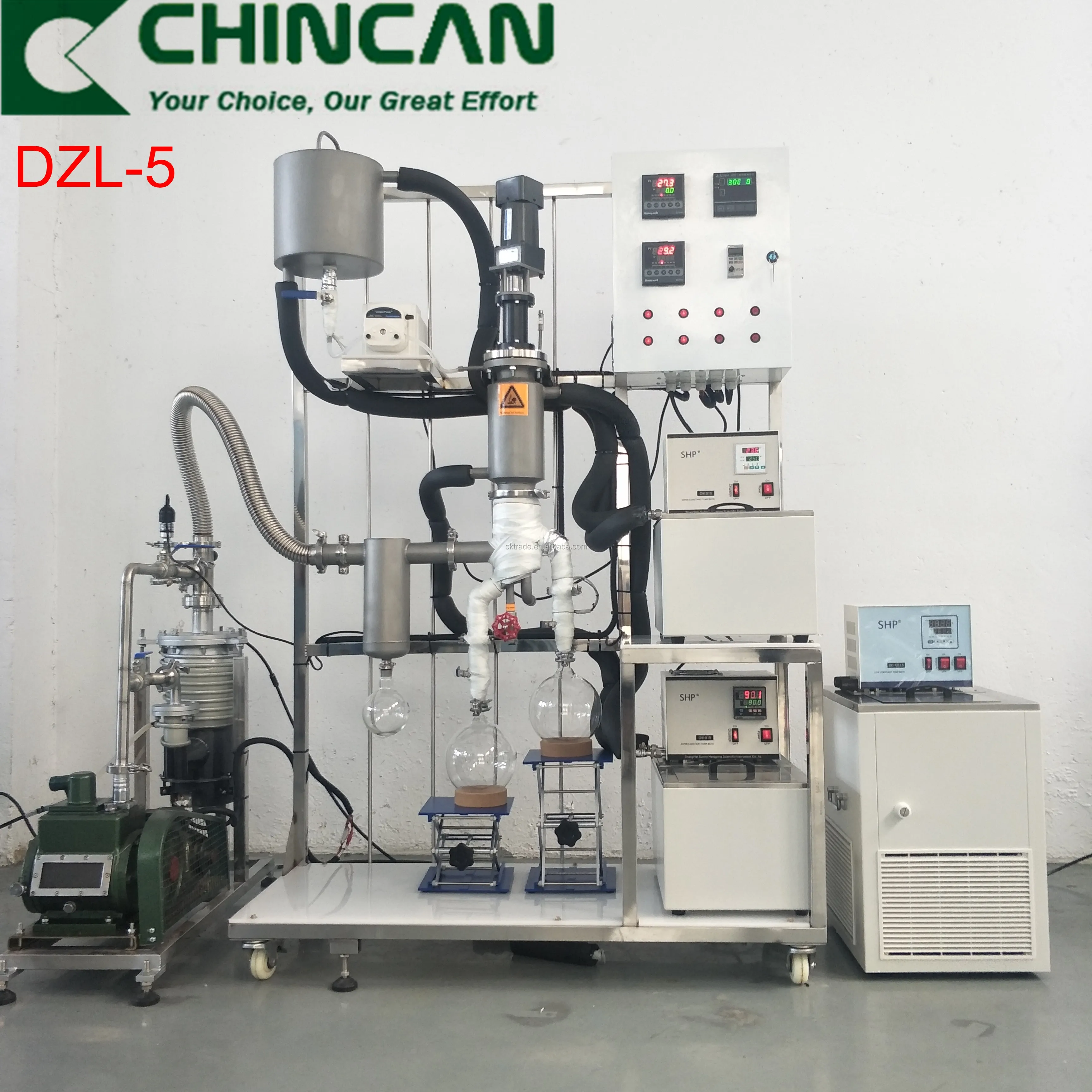

5. DZL Molecular Distillation/Short Path Distillation:
