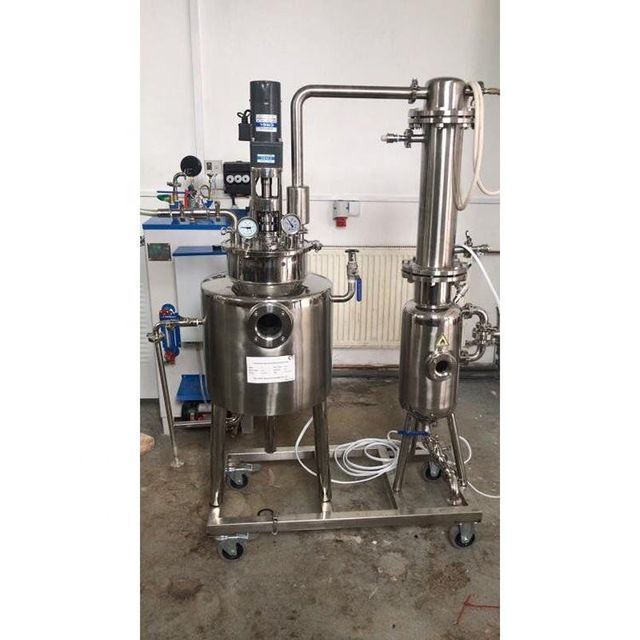

Simple and innovative product fresh herbal terpenoid extraction small supercritical carbon dioxide extractor

Supplier: Shanghai North Brooks Co.,ltd.
Region: Shanghai, China
Contact: Ms Daisy Zhu
Price: $230.00 / 1 - 4 sets
$215.00 / 5 - 9 sets
$210.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Applicable industries:	Food and Beverage Factory, Food and Beverage Store, Pharmaceutical
Mechanical test report:	if	usage:	automatic running
process:	supercritical extraction	Supply capacity:	30 small CO2 extraction machines per month
Core components:	Bearings, Gears, Pumps	Core Components Warranty:	3 years
payment terms:	letter of credit, wire transfer	Material:	304 stainless steel
Marketing Type:	New Products 2020	Key words:	extraction
After-sales service provided:	Online support	Packaging Details:	Carton/Plywood Box
Dimensions (LWH):	custom made	application:	powder
product name:	Extractor	type:	CO2 Extractor
Weight (kg):	500kg	Health status:	new
After Warranty Service:	Online support	port:	Shanghai
Main selling point:	Sustainable	Showroom location:	U.S.
place of origin; place of origin:	China Shanghai	Video external inspection:	if
brand:	north brooks	Power (kW):	2
type:	customizable	Extraction type:	From solid to liquid
Function:	Extract the essence of various substances

Specification

Model	capacity	pressure	Main Specifications
NB120-50-0.5	0.5L	50Mpa	1 extraction 2 separation
NB121-50-0.5	0.5L	50Mpa	1 extraction 2 separation 1 tank
NB120-50-01	1L	50Mpa	1 extraction 2 separation
NB121-50-01	1L	50Mpa	1 extraction 2 separation 1 tank
NB120-50-02	2L	50Mpa	1 extraction 2 separation
NB121-50-02	2L	50Mpa	1 extraction 2 separation 1 tank
NB120-50-05	5L	50Mpa	2 extraction 2 separation
NB121-50-05	5L	50Mpa	2 extraction 2 separation 1 tank
NB220-50-06	(5+1)L	50Mpa	2 extraction 2 separation
NB221-50-06	(5+1)L	50Mpa	2 extraction 2 separation 1 tank
NB220-40-11	(10+1)L	40Mpa	2 extraction 2 separation
NB221-40-11	(10+1)L	40Mpa	2 extraction 2 separation 1 tank
NB220-40-20	(10+10)L	40Mpa	2 extraction 2 separation
NB221-40-20	(10+10)L	40Mpa	2 extraction 2 separation 1 tank
NB120-40-24	24L	40Mpa	1 extraction 2 separation
NB121-40-24	24L	40Mpa	1 extraction 2 separation 1 tank
NB220-40-48	24L*2	40Mpa	2 extraction 2 separation
NB221-40-48	24L*2	40Mpa	2 extraction 2 separation 1 tank
NB320-40-72	24L*3	40Mpa	3 extraction 2 separation
NB321-40-72	24L*3	40Mpa	3 extraction 2 separation 1 tank
NB420-40-96	24L*4	40Mpa	2 extraction 2 separation
NB421-40-96	24L*4	40Mpa	2 extraction 2 separation 1 tank
NB220-40-100	50L*2	40Mpa	2 extraction 2 separation
NB221-40-100	50L*2	40Mpa	2 extraction 2 separation 1 tank
NB320-40-150	50L*3	40Mpa	3 extraction 2 separation
NB420-40-200	50L*4	40Mpa	4 extraction 2 separation
NB220-40-200	100L*2	40Mpa	2 extraction 2 separation
NB630-40-300	50L*6	40Mpa	6 Extraction 3 Separation
NB320-35-300	100L*3	35Mpa	3 extraction 2 separation
NB320-35-600	200L*3	35Mpa	3 extraction 2 separation
NB220-35-600	300L*2	35Mpa	2 extraction 2 separation
NB220-35-1000	500L*2	35Mpa	2 extraction 2 separation
NB220-35-2000	1000L*2	35Mpa	2 extraction 2 separation

Product Description:
The device is used to extract materials (solid or liquid) under high pressure and suitable temperature
extraction. Change the conditions in the separation kettle to dissolve the dissolved substances to achieve the purpose of extraction
Supercritical CO2 extraction equipment includes several parts: extraction kettle, separation kettle, mixer, CO2
High pressure pump, azeotrope pump, refrigeration system, heat exchange system, CO2 storage tank, CO2 level gauge, purification
systems, flow meters, temperature control systems, safety protection systems, etc.
It is suitable for extracting fat-soluble and heat-sensitive substances with high boiling point. Prepared with CO2 as solvent
Extraction and purification of biological products, food, medicine and other products.

Application field
