25 ton Truck Crane Zoomlion Mobile Hydraulic Mini Truck Crane QY25D531R

Supplier: Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Shelly Hu
Price: $116000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Max. lifting height of main boom:	40.5m;	After-sales Service Provided:	Engineers available to service machinery overseas;
Rated Loading Capacity:	25000kg;	Max. Lifting Height:	48.5m;
Max. gradeability:	37%;	Tail slewing radius:	3385 mm;
Max. load moment of basic boom:	1029 KN.m;	jib length:	8.0m;
Single package size:	1330X255X350 cm;	Rated Lifting Moment:	1029KN.M;
UNIQUE SELLING POINT:	High operating efficiency;	Hydraulic Pump Brand:	Imported;
Warranty:	1 Year;	Condition:	New;
Application:	Construction;	Package Type:	Nude Package;
Hydraulic Cylinder Brand:	Imported;	Brand Name:	ZOOMLION;
Package Preview:	https://sc01.alicdn.com/kf/H1485615970b941cdb69866b1084ae210c.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H1971c28750864308be3cf1fa99ffa73eB.jpg_640x640.jpg;	Certification:	ISO9001;
Selling Units:	Single item;	Single gross weight:	32,400 KG;
Place of Origin:	Jiangsu China;	Boom angle:	-2 - 80°;
Span:	5.36m;	Max. rated lifting capacity:	25 tons;
Feature:	Truck Crane;	Hydraulic Valve Brand:	Imported;
Engine Brand:	Weichai;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Deadweight in driving condition:	32400 kg;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;

Product Description

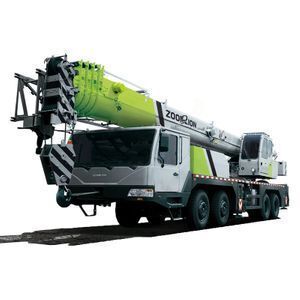

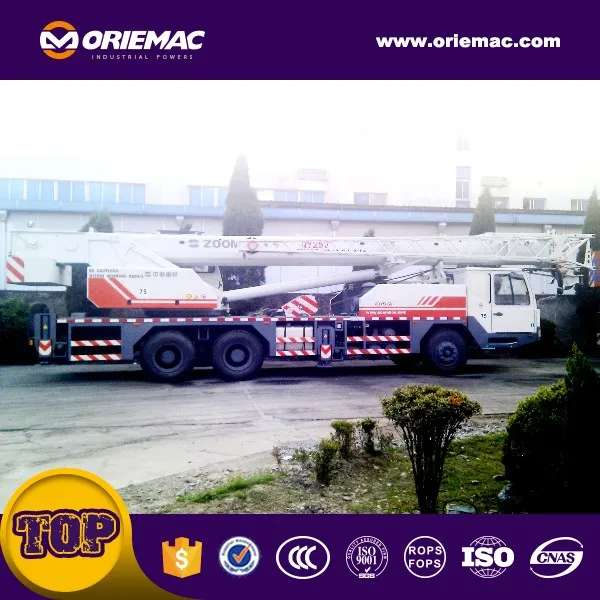

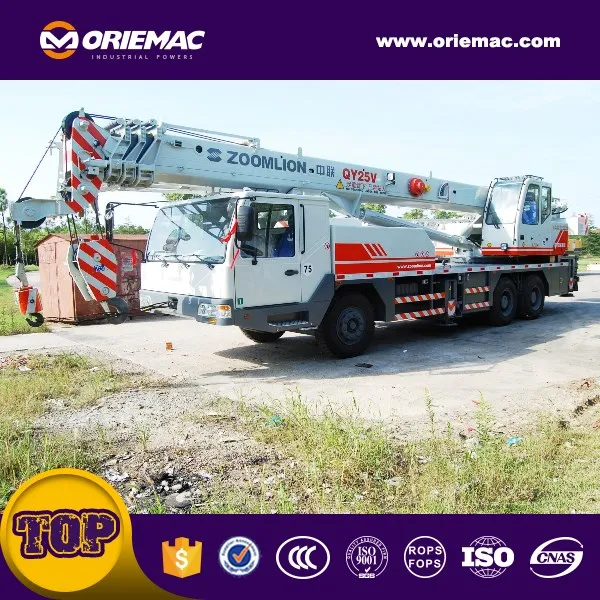

zoomlion 25 ton truck crane QY25D531R

Features

• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
• Jib length 8.0m,Main boom length(10.6 – 40.0m).
• Optimized central slewing position increases the lifting capacity of the crane over rear.
• Large outrigger span improves the working stability of the crane greatly,
• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
• Leading boom manufacturing process in trade.

Parameters

Item	Unit	Value	Remarks
Working performance	Max. rated lifting capacity	kg	25000
	Max. load moment of basic boom	kN.m	1029
	Max. load moment of main boom(fully extended)	kN.m	564
	Max. load moment of basic boom	m	11.1
	Max. lifting height of main boom	m	40.5	These parameters do not include deflection of main boom and jib
	Max. lifting height of jib	m	48.5
Working speeds	Max. hoist rope speed(Main winch)	m/min	120	At the 4th layer
	Max. hoist rope speed(Auxiliary winch)	m/min	100	At the 2nd layer
	Boom demrricking up time	s	40
	Boom demrricking up time	s	80
	Slewing speed	r/min	0 -2.2
Driving parameters	Max. driving speed	km/h	78
	Max. gradeability	%	37
	Turning diameter	m	≤22
	Min. ground clearance	mm	235
	Oil consumption per hundred kilometers	L	35
Mass	Deadweight in driving condition	kg	32400
	Complete vehicle kerb mass	kg	32270
	Front axle load	kg	6500
	Rear axle load	kg	25900
Dimensions	Overall dimensions(L×W×H)	mm	13000×2550×3500
	Outrigger spread(L)	m	5.36
	Outrigger spread(W)	m	Fully extended:6.1, Intermediately extended:4.2
	Tail slewing radius	mm	3385
	Main boom length	m	10.6 - 40.0
	Boom angle	°	-2 - 80
	jib length	m	8.0
	Offset	°	5,17,30
