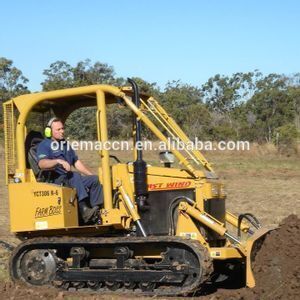

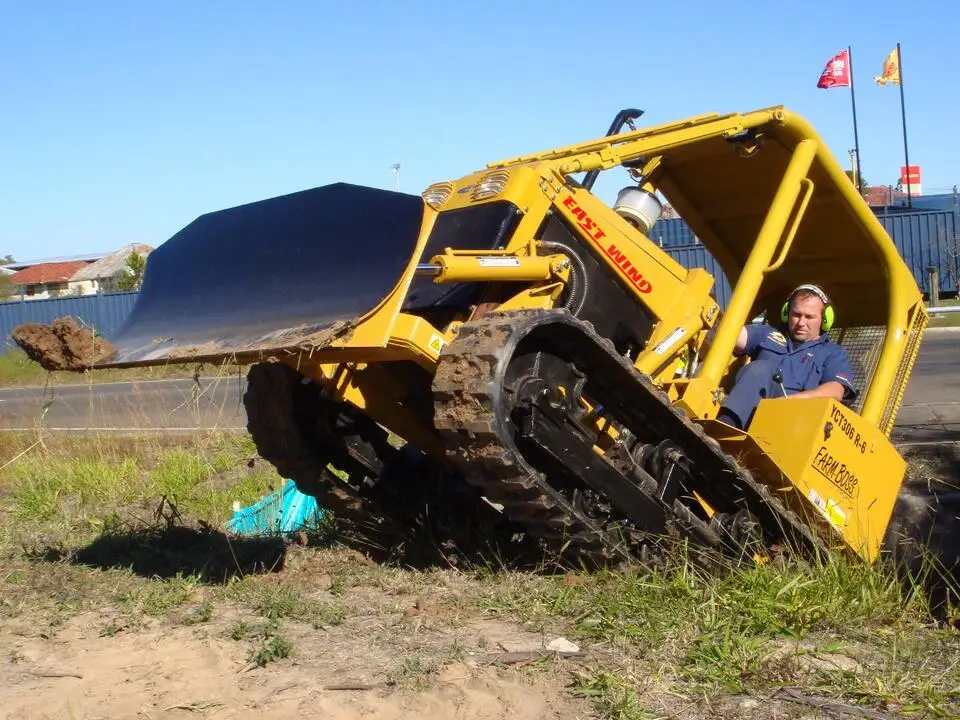

Good price mini small cheap new in construction crawler bulldozer
- 3500.00 unit
| Port: | Shanghai; | Condition: | New; |
| Machine Weight: | /; | Dimension(Long * Breadth * High): | 3300x2200x1550mm; |
| Shoe width: | 290mm; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Brand Name: | Oriemac; | Supply Ability: | 100 Unit/Units per Month; |
| Ground clearance: | 240mm; | Packaging Detail: | Nude Package; |
| Height of blade: | 675mm; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Place of Origin: | China; | Model Number: | YTC306S-6; |
| Operating weight: | 3300kg; | Moving Type: | Crawler Bulldozer; |
Wechat/Mobile/Whatsapp/Skype
0086-18297403378
Performance
Model Specifications | F30B | F30L | ||
Service weight (kg) | 2790 | 3300 | ||
Max. drawbar pull (kgf) | 2350 | 2790 | ||
Engine | Type | In-line,water-cooling,swirl chamber | ||
No.of Cylinder | 3 | |||
Cylinder Bore | 95mm | |||
Piston Stroke | 105mm | |||
Displacement | 2.23L | |||
Aspiration | Natural | |||
Max. power | 22kw@2000rpm | |||
Max. torque | 121Nm@1400rpm | |||
Fuel | Diesel | |||
Fuel consumption | ≤243g/kWh | |||
Lubrication means | Full pressure by rotary pump | |||
transmission | Clutch | Single dry disk diaphragm-spring clutch 10”, pedal control | ||
Gearbox | 2-shaft, sliding gear shift, 8fwd+2rev | |||
Main drive | Spiral bevel gear | |||
Final drive | Externally meshed spur gear | |||
Brake and steering (interconnected) | steering clutch | Dry ceramic-metallic multi disk clutch | ||
brakes | Brand brakes controlled by pedals | |||
Undercarriage system | Undercarriage frame | Semi-rigid | ||
Track rollers(each side) | 5+1 | 5+2 | ||
Tension device | Helical spring, adjusted by screw | |||
Number of shoes | 40 (pitch=109mm) | 43 (pitch=109mm) | ||
