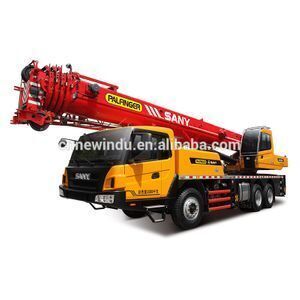

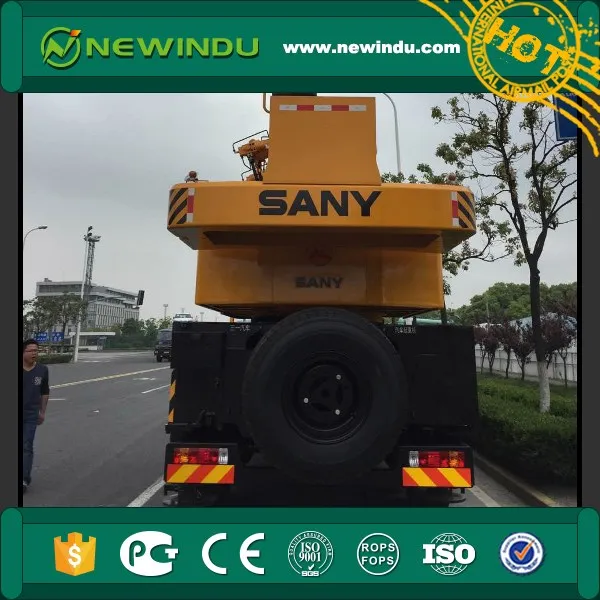

STC250H 25 Ton Knuckle Boom Hydraulic Truck Mounted Crane

Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Ken Ye
Price: $136500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Certification:	ISO;	Rated Lifting Moment:	1050N.m;
Port:	SHANGHAI;	After-sales Service Provided:	Engineers available to service machinery overseas;
Feature:	Truck Crane;	Warranty:	12 Months;
Condition:	New;	Max. Lifting Height:	41.5m;
Application:	Construction;	Max. Traveling Speed:	80 km/h;
Span:	5.3*6.2m;	Brand Name:	SANY;
Model Number:	STC250H;	Rated Loading Capacity:	25 ton;
Engine Modle:	Yuchai;	Min. Ground Clearance:	220 mm;
Place of Origin:	Hunan China;	Supply Ability:	80 Unit/Units per Month;
Packaging Detail:	NUDE;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Delivery Detail:	15days;	Boom Shape:	U-shaped;
Rated Power:	213 kw/2100 rpm;	Max. Lifting Load:	25Ton;

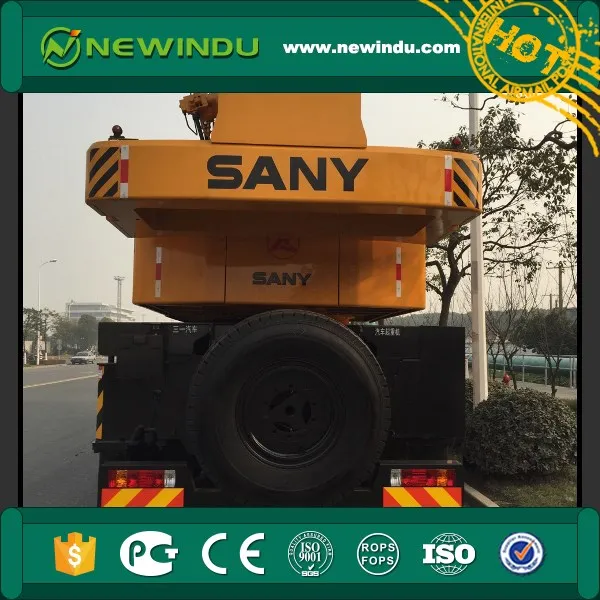

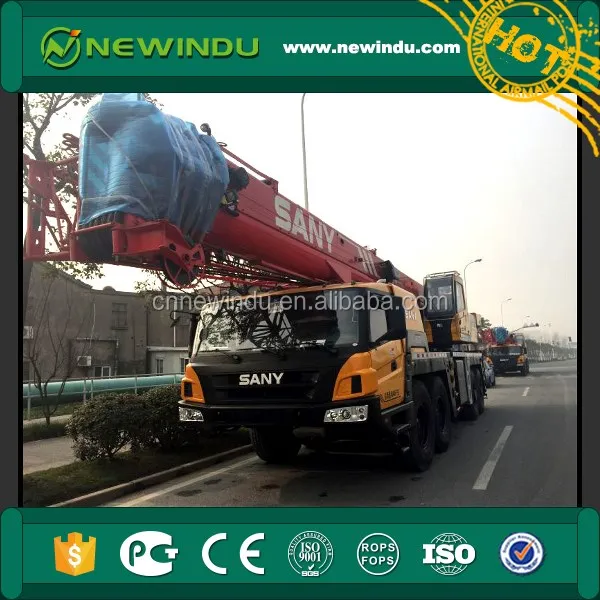

STC250H 25 Ton Knuckle Boom Hydraulic Truck Mounted Crane

Please Contact

Aring Zhou

Email: aring at newindu.com

Whatsapp/Wechat/Mobile: +86 15855426352

QQ: 1520724641

Skype: zyy1520724641 at outlook.com

Product Description

Powerful load capacity

With box-type heavy frame design, its anti-bending and torsional modulus is greatly improved, and the rigidity is improved above 30%.

Strong travelling capacity

High power 162kW engine + Fast 8-gear gearbox, it is more powerful and more mobility.

Innovative layout

Power system and transmission system are of optimized layout; the bedplate is more flat with super-large storage space.

Diversified matching options

Functional matching: Auxiliary winch is optional, and the customers could choose independently to satisfy diversity of working conditions; superstructure air conditioner is optional;

Regional matching: Engine emissions complies with Euro Ⅲ, Euro IV, Euro V standards;

Tire: radial tire, bias tire.

Main Parameters

Type	Item		Parameter
Capacity	Max. Lifting Capacity		25t
Dimension	Overall Length		12700 mm
	Overall Width		2500 mm
	Overall Height		3550 mm
	Axle		-
	Axle Distance	Axle-1,2	4325m
		Axle-2,3	1350mm
Weight	Overall Weight		33000 kg
	Axle Load	Axle Load-1,2	7000 kg
		Axle Load-3,4	126000 kg
Engine	Model		-
	Rated Power		213kw/2100rpm
	Rated Torque		1050N.m/1200-1400 rpm
Traveling	Max.traveling speed		80km/h
	Turning Radius	Min. Turning Radiums	11m
		Min. Turning Radiums of Boom Head	12.6m
	Wheel Formula		6×4
	Min. Ground Clearance		220mm
	Approach Angle		17°
	Departure Angle		12°
	Max. Gradeability		38%
	Fuel Consumption per 100km		≤40L

Main Performance	Temperature Range		-30℃~+60℃
	Min.Rated Range		3m
	Tail Slewing Radius of Swingtable		3.37m
	Boom Section		5
	Boom Shape		u-shaped
	Max. Lifting Moment	Base Boom	980 kN.m
		Full-extend boom	470 kN.m
		Full-extend boom+jib	378kN.m
	Boom Length	Base Boom	10.5
		Full-extend boom	39.5m
		Full-extend boom+jib	47.5m
	Outrigger Span(Longitudinal×Transversal)		5.3*6.2m
	Jib Offset		0°,15°,30°
Working Speed	Max.single rope lifting speed of main winch (no load)		120 m/min
	Max.single rope lifting speed of auxiliary winch(no load)		120 m/min
	Full extension/retraction time of boom		105/120s
	Full lifting/descending time of boom		45/70s
	Slewing speed		2.0 r/min
Aircondition	Aircondition in up cab		Cooling/Heating
	Aircondition in low cab		Cooling/Heating
