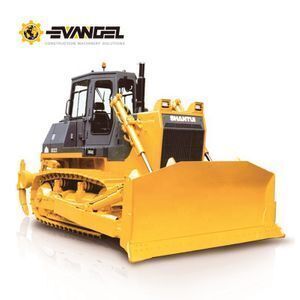

Shantui Bulldozer SD13 SD16 SD22 SD32 Shantui Cralwer Bulldozer Price Bulldozer Spare parts

Supplier: Evangel Industrial (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Teresa Xuan
Price: $110000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Engine Brand:	other;	Engine power:	235KW (320HP);
Applicable Industries:	Construction works ;	After-sales Service Provided:	Free spare parts;
Model:	NAT855-C360;	Supply Ability:	100 Set/Sets per Month;
Brand Name:	shantui;	Dimension(Long * Breadth * High):	698040303640mm;
Hydraulic Cylinder Brand:	other;	UNIQUE SELLING POINT:	High operating efficiency;
Packaging Detail:	normal package;	Hydraulic Valve Brand:	other;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Machine Weight:	37.2 t;
Port:	shanghai;	color:	golden yellow;
Warranty:	1 Year;	After-sales Service Provided:	Overseas service center available;
Moving Type:	Crawler Bulldozer;	Condition:	New;
Hydraulic Pump Brand:	other;	Place of Origin:	Jiangsu China;

Shantui Bulldozer SD13 SD16 SD22 SD32 Shantui Cralwer Bulldozer Price Bulldozer Spare parts

Product Description

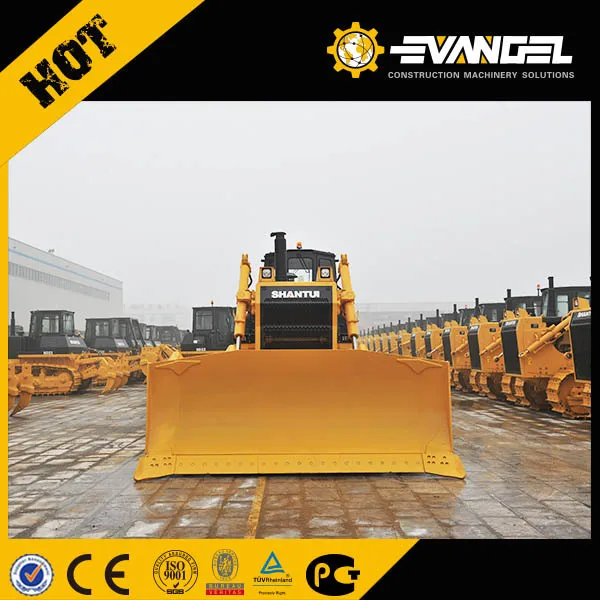

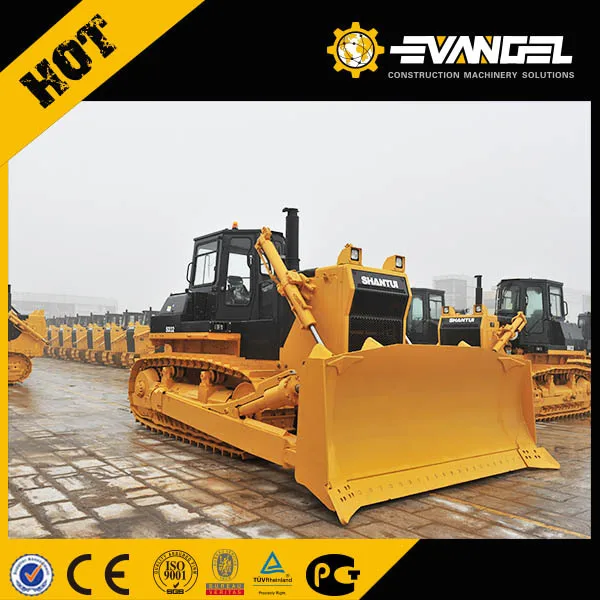

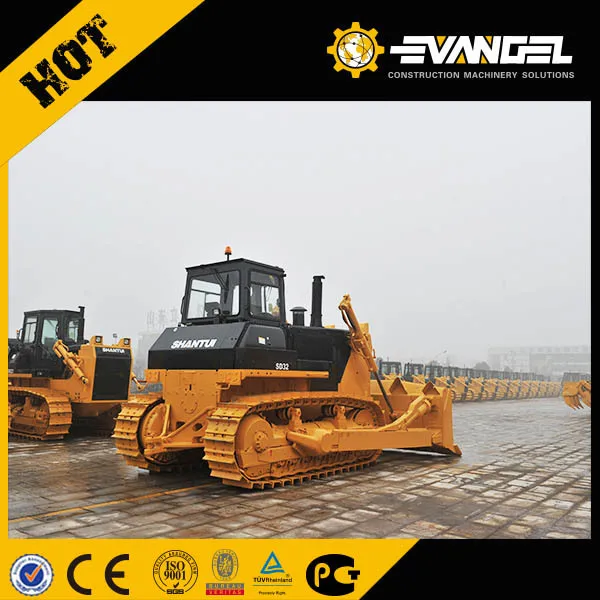

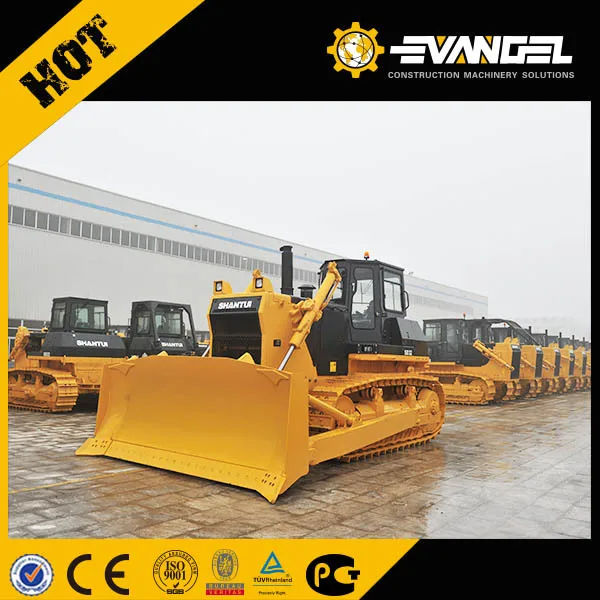

The following details are for SD32:

Final drive

final drive--2-stage spur gear,speed reduction,splash lubrication

undercarriage system

suspension--swing type of sprayed beam, suspended structure of equalizer bar

NO. Of carrier rollers--2(each side)

NO.of track rollers--7(each side)

NO. Of idler--1(each side)

Track shoe

assembled type--single tooth

pitch--228.6mm

width--560mm

tooth height--80mm

NO. Of track shoes--41(each side)

track gauge--2140mm

ground pressure--0.105Mpa

weight

operating weight--37200kg

with multi-ripper--40975kg

hydraulic control system

Max. Pressure--14Mpa(140kg/m²)

type--gear pump

displacement--335.5L/min

control valve type--guiding valve,raise,hold,lower,float

hydraulic tank--control valve and oil filter inner-installed type

steering system

steering clutch--wet type,multi-disc,spring loaded,hydraulially separated,hand and hydraulic control operated

steering brake--wet type,band brake,foot operated(with hydraulic booster, interconnected with clutch)

coolant and lubricant capacity

working device and attachment

straight-tilt dozer--hydraulically actuated with servo valve

blade supporting method--brace type tilt cylinder on right side

width--4130mm

height--1590mm

Max. Lift above ground--1560mm

Max.drop below ground--560mm

Max.Tilt adjustment--1000mm

3-shank ripper

Max. Digging depth--542mm

Max.lift above ground--883mm

Standard digging angle--45°

variable within range between35°-63°

Max.digging depth of single ripper--1250mm

Max. Lift above ground--965mm

overall dimensions

LXWXH--6880X4130X3725

engine
model	NAT855-C360
type	turbo charged,inter cooled,in-line,4-cycle
NO. Of cylinders-bore X stroke	6-139.7x152.4mm
piston displacement	14010ml
flywheel horsepower	235kw(320hp)
rated revolutions	2000r/min
Max. Torque	1440N.M/1440r/min
fuel consumption	245g/kw.h(180g/hp.h)
start motor	24v,11kw
alternator	28v,35A
battery	24v(12vX2)-195AH
fuel system	PT pump head valve direct injection
governor	centrifugal, all speed governor
cooling system	forced circulation by centrifugal pump,busher type fan
air cleaner	dry,horizontal type with air cleaner
transmission
torque converter	3-element,1-stage,1-phase
cooling method	water-cooled
power-shift planetary gear transmission	planetary gear, multiple-disc clutch,hydrauliclly connected forced lubrication by gear pump
main-drive shaft	spiral bevel gear,splash lubrication
