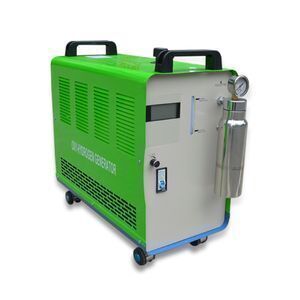

Mini Water Welder Water Welding Machine jewelry welding machine

Supplier: Okay Energy Equipment Co., Ltd.
Region: Hunan, China
Contact: Ms sherry He
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Flame temperature:	2800;	Pulse Frequency:	50/60 HZ;
Type:	MIG Welders;	Is Manufacturer:	Yes;
Minimum order quantity:	1 Unit;	Port:	Port of China;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	After-sales Service Provided:	Online support,Video technical support;
Voltage:	220V;	Support OEM:	Yes;
Dimensions:	780280520mm;	Motor Type:	AC Motor;
Brand Name:	Okay Energy;	Patent Product:	Yes;
Warranty:	1 Year;	Power(W):	1200W;
Pilot Arc Current:	10A;	Usage:	Welding;
Safety processing system:	anti-backfire automatic;	Certification:	CE ISO;
Supply Ability:	500 Unit/Units per Month;	Technical level:	Internation;
Arc Current:	10A;	Certification:	CE Certification;
After-sales Service Provided:	Engineers available to service machinery overseas;	Rated Duty Cycle:	100%;
Place of Origin:	Hunan China;	Packaging Detail:	Multilayer honeycomb carton;
Core material:	Technical grade stainless steel;	Condition:	New;

Mini Water Welder Water Welding Machine jewelry welding machine

What is oxy hydrogen Jewelry solder?

Oxy hydrogen Jewelry solder OH100 is able to separate clean soft water (H2O) into hydrogen and oxygen gases. These gases are then mixed and using for welding work, replaced currently LPG or other gas for fuel.

No green house gases or pollutants,and burns at virtually 100% efficiency.

Why I used oxy hydrogen Jewelry solder?

1. Maximum Safety

2. Environmentally Friendly
3. High Mobility

4. High Temperature & Calorific value

5. Low Cost & Maximum Economy
6. Low Heat Dispersal

Which other fields oxy hydrogen Jewelry solder also can apply for?

1. Jewelry Industry:

a. For welding kinds of chain and string made of platinum, gold, silver, copper, stainless steel, etc.

b. For mending tiny sand holes on jewelry casting

c. For jewelry repairing (reforming, casting, welding)

2. Electronic Industry:

For welding enameled wire, welding LED wafer, flame-treating circuit board

3. Medical Industry:

a. For welding metal fittings and mending sand holes in dentistry

b. No-carbon flame disinfection or glass seal

4. Laboratory:

Providing convenient, safe and clean oxy-hydrogen flame

5. Organic Glass Industry:

Quick and fine polishing for acryl (organic glass), solving problems that grinding wheel cannot achieve.

6. Others:

For welding or heat treating small metal parts, Iron Cutting, Catalytic combustion of other fuels

Technical Parameters:

Model Number	OH100	OH200	OH300	OH400	OH600
AC Voltage Requirement (V)	220/110	220/110	220/110	220/110	220/110
Phase	single	single	single	single	single
DC Voltage &Current (A)	5V 60A	5V 60A	5V 60A	5V 60A	5V 60A
Max Gas Output	100L/h	200L/h	300L/h	400L/h	650L/h
Max. Working Pressure (kg/cm²)	1.3	1.3	1.3	1.3	1.3
Max. Water Consumption (L/h)	0.06	0.11	0.17	0.23	0.33
Water Feed	manual	manual	manual	manual	manual
Max. Flame Modifier Consumption (L/h)	0.05	0.1	0.15	0.17	0.23
Flame Modifier Feed	manual	manual	manual	manual	manual
Dimensions - LWH (mm)	480280360	620280360	780280520	950380520	570440640
Gross Weight (kg)	15	20	25	32	40
Ventilation Space Requirement (mm)	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction
