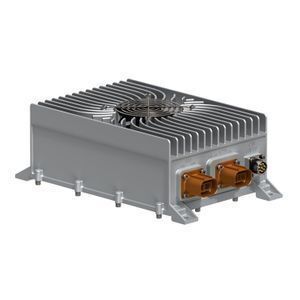

3.3kw EV vehicle-mounted on board battery charger

Supplier: Shijiazhuang Dilong Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Walker Xing
Price: $140.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Constant Power Output:	3.3KW;	Product Name:	ev charger ac dc auto battery charger electric car battery charger;
Input voltage range:	85~264Vac;	Brand Name:	DILONG;
Constant voltage output range:	250~420Vdc;	Input Current:	≤16@220Vac;
Place of Origin:	Hebei China;	Cooling Type:	Air-cooled;
Supply Ability:	5000 Set/Sets per Month vehicle mounted battery charger;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	International standard packing 3.3kw ev ac dc auto electric vehicle mounted fast car onboard battery charger;	Input frequency range:	47~63Hz;
Port:	Tianjin;	IP Grade:	IP67;
Model Number:	DA3K3M17-360C;	CAN Communicarion:	yes;
Dimensions:	316194108mm;

3.3kw EV vehicle-mounted on board battery charger

more products

^{Place of Origin:Hebei, China (Mainland)}

^{Brand name:Dilong electrical converter}

^{Model Number:DA3K3M17-362C104}

Specification

Mains Input	Rated Voltage	Vac	220
	Voltage Range	Vac	85~264 (The output from 85-176 is automatically reduced to 1.2 KW)
	FREQ RANGE	HZ	47~63
	Efficiency(max)	%	≥95
	Power Factor		≥0.99@220Vac,rated power
	Current(MAX)	A	≤16@220Vac
Mains output	Rated Output Voltage	Vdc	360
	Constant voltage output range	Vdc	210~420 (According to the customer battery final decision)
	Max Current	A	12
	Constant power output	W	3300
	Output voltage accuracy	V	≤±1%Vo input 176Vac-264Vac,output 10%-100% load
	Line regulation	%	≤±0.2%Vo input 176Vac-264Vac,output 100% load
	Load regulation	%	≤±0.5%Vo input 220Vac,output 10%-100% load
	Ripple and noise	mV	≤±3%Vo 20M oscilloscope,Twisted-pair cable test.
Auxiliary supply	Rated output voltage	Vdc	12
Auxiliary supply	Rated output power	W	50 (Activate BMS)
Property	Input over-voltage protection	Vac	≥270 CAN directive warning protection
	Input under-voltage protection	Vac	≤80 CAN directive warning protection
	Output Over-current protection	A	Io≥120% CAN directive warning protection
	Output under-voltage protection	Vdc	≤200 CAN directive warning protection
	Output over-voltage protection	Vdc	≥421 CAN directive warning protection
	Over-temperature protection	℃	85±5 CAN directive warning protection
	Output short circuit protection		yes (CPU intelligent control)
	Reverse polarity protection		yes (CPU intelligent detection)
	Dynamic response	us	≤200
	CAN communication		Communication interrupt, timeout of 20 seconds intelligent shutdown, communication normal recovery.
Work environment	Operating temperature		-40℃~+85℃(Intelligent derating shell temperature above 70 ℃)
	Storage temperature		-45℃~+105℃
	Operating humidity	%RH	20-90(No condensation)
	Storage humidity	%RH	10-95(No condensation)
	Vibration		QC/T413-2002(Other parts required)
	Cooling mode		Air cooling
Safeguard	Isolation Voltage		shell←input→output:2.8KVdc; Output→shell:2KVdc; Auxiliary Output→shell:700Vdc
	Insulation resistance	MΩ	input—output—shell>10 (25℃,70%RH)
	IP Grade		IP67
Structure	mode of connection		Waterproof aviation connector
	weight	Kg	5
	Size	mm	316194.5108.5
