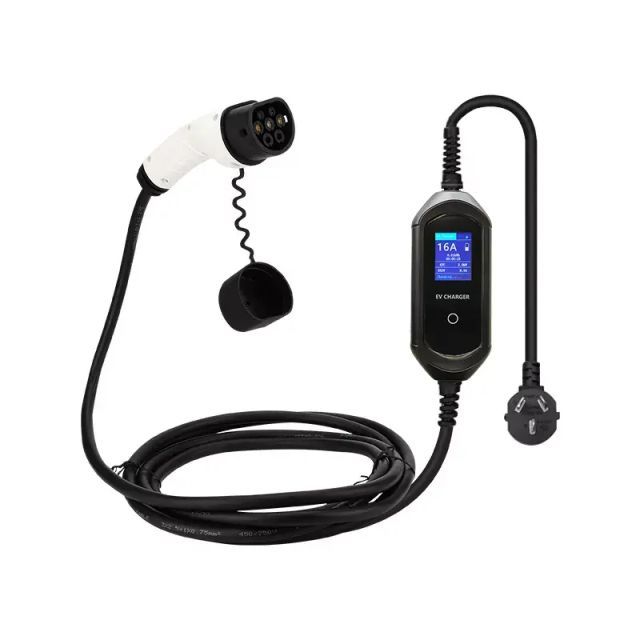

High Quality Electric Vehicle Charging Station Mode 2 EVSE IEC 62196 Fast AC Adjustable 16A Portable EV Charger Type 2
- 98.90 2 - 99 pieces
- 89.80 100 - 499 pieces
- 79.80 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Operating Voltage: | AC 110V-250V | Pressure resistance: | 2000V |
| Supply capacity: | 10000 pieces per month | Rated current: | 8A/10A/13A/16A (optional) |
| rated power: | Maximum 3.6KW | brand: | thousands of miles |
| Origin: | Guangdong, China | Package preview: | |
| standard: | IEC 62196-2 | port: | Shenzhen |
| Mechanical life: | >10000 times | Certification: | TUV.CE certification |
| Operating temperature: | -25°C ~ +55°C | model: | Electric Vehicle-EVSE-PE16S |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Protection class: | IP65 |
| Packaging Details: | Carton | product name: | Type2 Mode 2 Portable Electric Vehicle Charger |
Product Description
Specification
Specification | product name | Mode 2 Portable EV Charger |
electric car plug | IEC 62196 Type 2 | |
wall socket plug | UK plug, Schuko plug, Australian plug, etc. | |
Electrical parameters | Rated voltage | AC 110V-250V |
rated current | 8A/10A/13A/16A (optional), 1 phase | |
rated power | Maximum 3.6KW | |
frequency | 50/60 Hz | |
Insulation resistance | >1000MΩ | |
Terminal temperature rise | ＜50,000 | |
withstand voltage | 2000V | |
Contact resistance | 0.5 milliohm | |
Mechanical behavior | Mechanical life | >10000 no-load plugging and unplugging. |
coupling insertion force | 45N～100N | |
withstand shock | Falling from a height of 1m and being run over by a 2T vehicle. | |
Material | shell | Thermoplastic, flammability rating UL94 V-0 |
Cable material | Thermoplastic Elastomer / Thermoplastic Polyurethane | |
Terminal/Pin | copper alloy, silver plated | |
ASD | ingress protection | IP65 |
certified | EU CE/TUV Rheinland | |
Certification standards | IEC 62196-2 | |
charging protection | Overcurrent, residual current, short circuit, surge, over/under Voltage, over/under frequency, over/under temperature protection; | |
environment | Operating temperature | -25°C ~ +55°C |
Working humidity | 5%~95% | |
working altitude | <2000 meters |

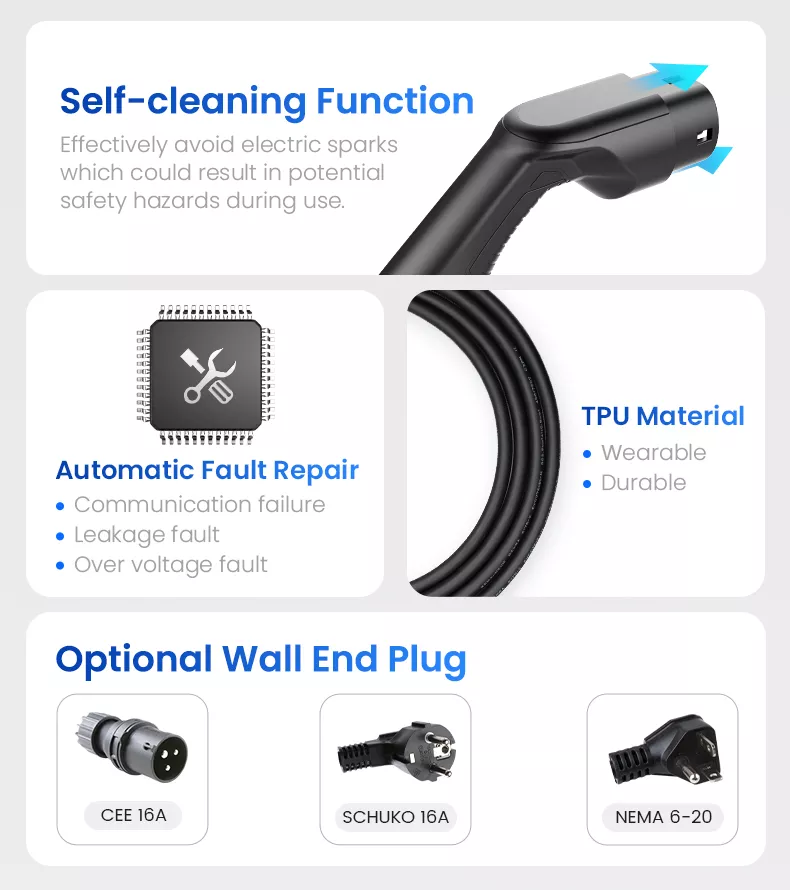

product display
