Professional Electrical Cable Wire and Power Cable Supplier

Product details
Cable type:Power Cable;Model Number:Electric Cable;
Aromour:Steel Wire, Steel Tape, Alumnium wire;Place of Origin:Henan China;
Jacket:PVC;Standard:BS IEC ASTM DIN;
Certificate:ISO9001/ISO14001 /OHSAS18001/CCC;Application:Customized Electrical Wire Power Cable;
Conductor Material:Copper or Aluminum;Type:Low Voltage;
Product name:Electrical Cable Wire and Power Cable;Nominal Cross-section:10mm2-600mm2;
Brand Name:Hongda;Port:Qingdao/Shanghai Port;
Factory:Factory Customized copper wire cable;Insulation Material:XLPE;
Packaging Detail:Rolls Packing/Box Packing/ Wooden Drum/ Steel Drum;Rated Temperature:70,90;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay;Supply Ability:1870000 Meter/Meters per Year;
Core No:1 or 3;Rated voltage:Under 0.6/1KV;

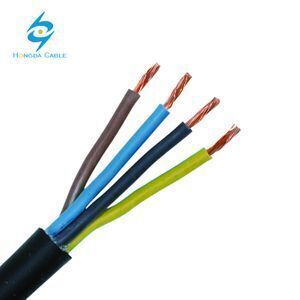

Professional Electrical Cable Wire and Power Cable Supplier

Wire

1.Application

   Wiring for electrical appliances, smaller size electric tools, instruments of various meters, and motorized lighting system.

 2.Standard

   IEC 60227,IEC 60228,IEC 60332,GB/T 5023,BS 6500,BS 6004,VDE 0281,0282 ,UL 83, AS/NZS 5000.2  etc.

*KAIQI POWER can also design and produce for special application requirement.

3.Products Type

Item

Electric wire Type

Description

1

60227 IEC 01(BV)

Single core rigid conductor unsheathed cable

for general purposes(H07V-U or H07V-R)

2

60227 IEC 02(RV)

Single core flexible conductor unsheathed cable

 for general purposes(H07V-K)

3

60227 IEC 05(BV)

Single core 70℃ solid conductor unsheathed cable

 for internal wiring(H05V-U or H05V-R)

4

60227 IEC 06(RV)

60227 IEC 06(RV)

5

60227 IEC 07(BV-90)

Single core 90℃ solid conductor unsheathed cable

for internal wiring(H07V-U or H07V-R)

6

60227 IEC 08(RV-90)

Single core 90℃ flexible conductor unsheathed cable

 for internal wiring(H07V-K)

7

60227 IEC 10(BVV)

Light PVC sheathed cable(NYY or NYM)

8

60227 IEC 42(RVB)

Flat unsheathed flexible wire

9

60227 IEC 52(RVV)

Light PVC sheathed flexible wire

(H03VV-F,H03VV2-F)

10

60227 IEC 53(RVV)

Common PVC sheathed flexible wire

(H05VV-F,H05VV2-F)

11

BV

Copper conductor PVC insulated wire(H07V-U or H07V-R)

12

BLV

Aluminum conductor PVC insulated wire

13

BVR

Copper conductor PVC insulated flexible cable(H07V-R)

14

BVV

 Copper conductor PVC insulated sheathed

 circular cable(NYY or NYM)

15

BLVV

 Aluminum conductor PVC insulated and sheathed round cable

16

BVVB

 Copper conductor PVC insulated and sheathed flat cable

17

BLVVB

 Aluminum conductor PVC insulated sheathed flat cable

18

NMD Copper conductor PVC/Nylon Insulated PVC Jacked flat cabl

19

RVS Twisted copper conductor PVC insulated flexible cable for conection
20AVP Copper conductor PVC insulated wire with shied for installation
21 RVP Copper conductor PVC insulated flexible wire with shield

22

 RVVP Copper conductor PVC insulated, shielded,

PVC sheathed flexible cable

LV Cable

1.Main Application
   PVC insulated cables are used for power distribution and transmission, building, appliance, flexible cord and

machine tool. Insulation and jackets made from PVC which has a number of desirable properties inculding flexibility,

resistance to temperature, resistance to adverse environmental situations and low cost.
2.Standards
   GB/12706-2008, IEC60502, IEC 60228,IEC60332,BS 6004, AS/NZS 5000.1 ect.
   *KAIQI POWER can also design and produce for special application requirement.
3.Products Type

Chinese Type

Designation

Application

Cu

Al

VV

VLV

Cu conductor(Al conductor)PVC insulated PVC sheathed power cable

Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces.

VY

VLY

Cu conductor(Al conductor)PVC insulated PE sheathed power cable

VV22

VLV22

Cu conductor(Al conductor)PVC insulated double of steel-tape armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.

VV23

VLV23

Cu conductor(Al conductor)PVC insulated double of steel-tape armored PE sheathed power cable

VV32

VLV32

Cu conductor(Al conductor)PVC insulated steel-wire armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.

VV33

VLV33

Cu conductor(Al conductor)PVC insulated steel-wire armored PE sheathed power cable

 4.Production Range

   Rated Voltage U0/U(Um) (kV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2 Nominal cross-section

(mm2): 1.5~630
5.Construction
   Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
   Conductor: Plain circular ,compacted or shaped stranded copper or aluminium conductor ,conform to IEC60228

CLass 1 or 2
    Insulation: PVC Compound Insulation
   Colour identification :
   1 Core: Red or Black
   2 Cores: Red, Black
   3 Cores: Red, Yellow, Blue
   4 Cores: Red, Yellow, Blue, Black
   5 Cores: Red, Yellow, Blue, Black, Green
   Above 5 Cores: Black Cores with White numbers
   The above identifying can be changed as order
   Bedding /Inner Sheath :PVC Compound
   Armour: Aluminium wire, Galvanized steel wire or Steel tape

   Outer Sheath:PVC or PE Compound

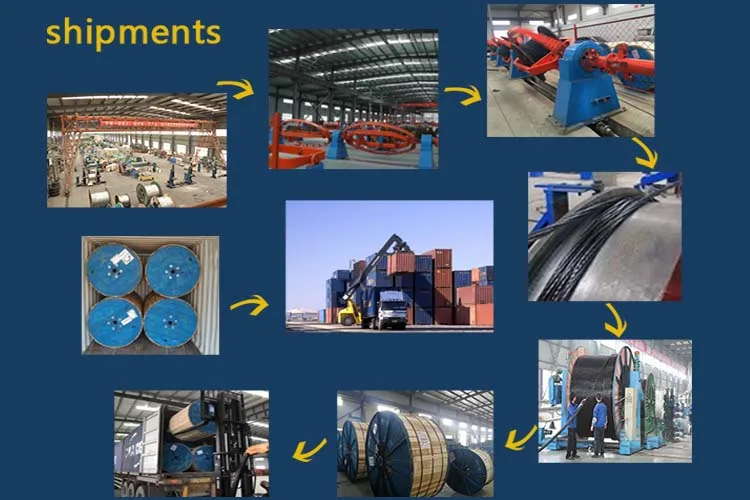

Packaging & Shipping

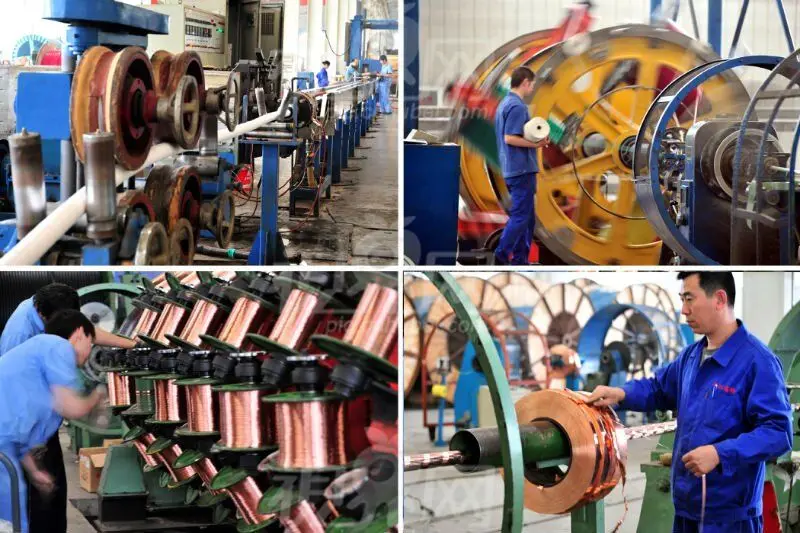

Company Information

Henan Hongda Cable Co., Ltd.established in 2004, with two factories in Henan Province, China, is dedicated into manufacturing a wide range of electric wire and cable with rated voltage from 300 voltage to 36kv. The electric wire and cable are applied to industrial, commercial, and residential use. Including PVC insulated cable, XLPE insulated cable, Aerial Bundle Cable, Control Cable, Bare Overhead Conductor (AAC, AAAC, ACSR, ACAR), PVC or XLPE insulated with sheath or unsheathed electric wires, which are used for power generation, power transmission, power distribution, house wiring, electrical equipment, oil & Gas, marine & shipboard, telecommunication, control & instrumentation, and so on.



Our Services

 If you come to visit the factory, you can take the train or plane to zhengzhou, we can go to zhengzhou airport or railway station to pick you up, hongda company will give you the most satisfactory service.



Inquiry Link



Recommendation



    Electric Wire                        Muti-core Low voltage Power Cable      600/1000V Low voltage Cable

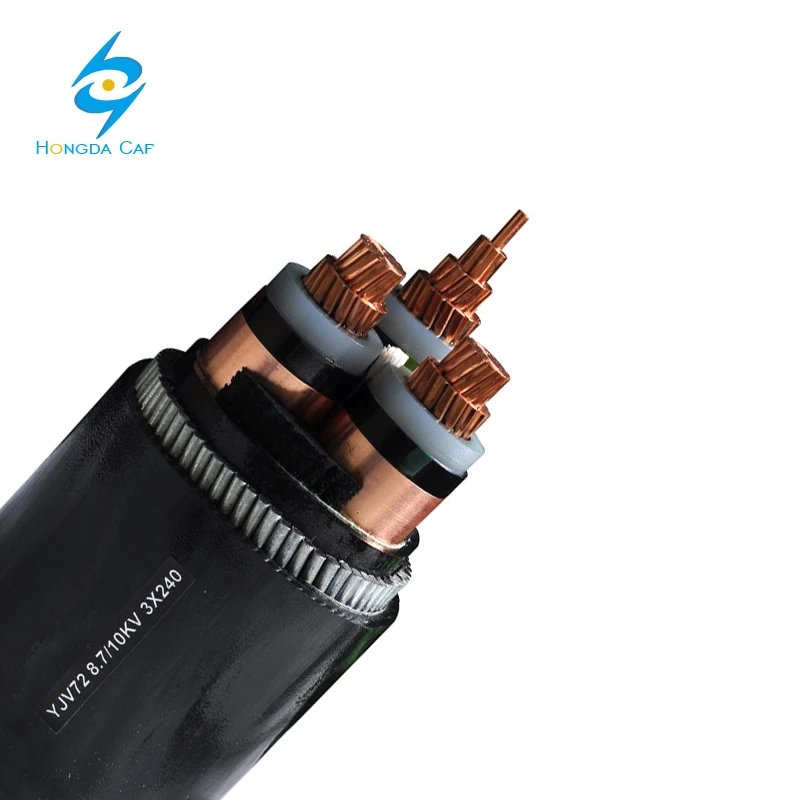

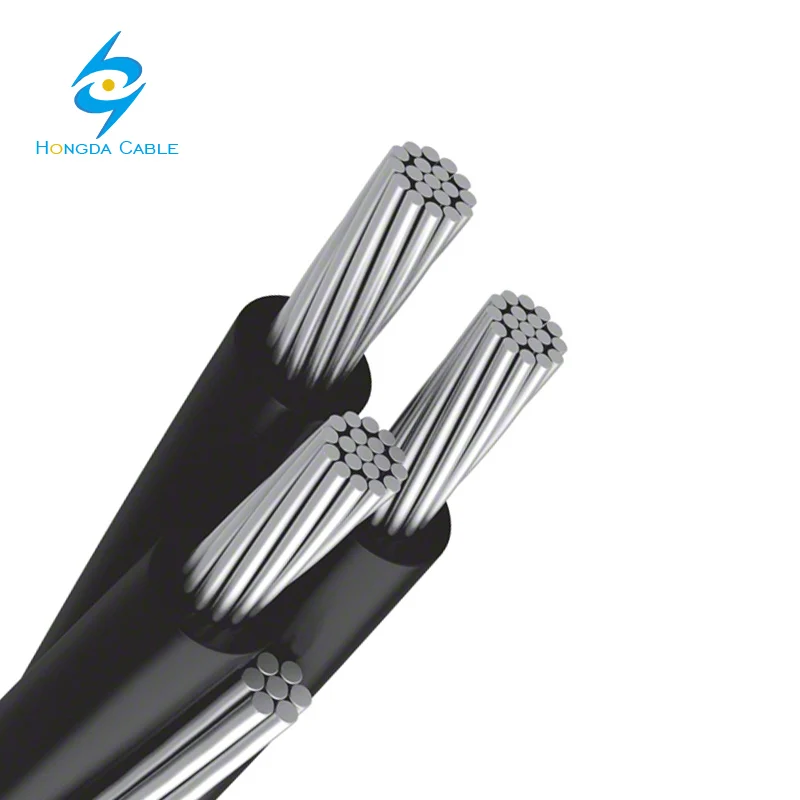

Overhead ABC Cable                                      Control Cable                      1KV~35KV Medium Voltage Cable

FAQ

1. Q: Are you the factory or the trading company?

    A: We are the factory.

2. Q: How long is your guarantee Period?

    A: We uaually offer 1 year guarantee for our general products.

3. Q: How can I get the samples?

    A: We can make the sample order. And usually we will charge for it.

         But the samples fee will be return to you when you make the bulk order.

4. Q: Where is your factory? How can we visit your factory?

    A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.

        We can pick you up in the airport and the railway station.

5. Q; What is your MOQ?

    A: It`s base on the cable type or wire type. Please contact Calder. He will let you know.
