Type MC_Copper Conductor

14 AWG to 1000kcmil Copper THHN/THWN-2 Insulated Single Piece. UL Listed. 600 volts. Rated VW-1. Lightweight aluminum interlocking armor.

scope

This specification covers lightweight aluminum interlocking armored MC cables with soft annealed copper solid or stranded conductors, THHN/THWN insulated single core, in accordance with Underwriters Laboratories, Inc. UL File No. E313205 Standard 1569.

application

Type MC cables are suitable for use in branch, feeder, and service distribution in commercial, industrial, institutional, and multi-residential buildings. Power, lighting, control and signal circuits. THHN/THWN type conductors are rated for 90°C dry/75°C wet. They are permitted for 600V applications.

conductor: smalloften Annealed Copper .

size:14AWG-1000kcmil. .

insulation: Flame retardant PVC. Thickness: Complies with UL83.

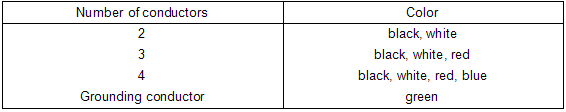

Color coding:

Conductor jacket: nylon.thickness: According to UL83.

wiring:Three or more conductors are assembled without filler and wrapped with polyester tape. Insert the marker tape under the binder band.

armor: Aluminum interlocking armor is applied to the components.

jacket: Flame retardant PVC jacket is optional.

Informationmarker tape or jacket:  Arbitrary Waveform Generatoror kcmilsize,conductorType letter, rated voltage, manufacturer's name, UL file number, characteristics,Production Date,foot.

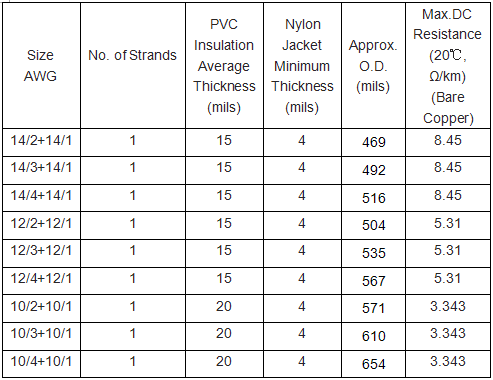

MC type cabledata 1

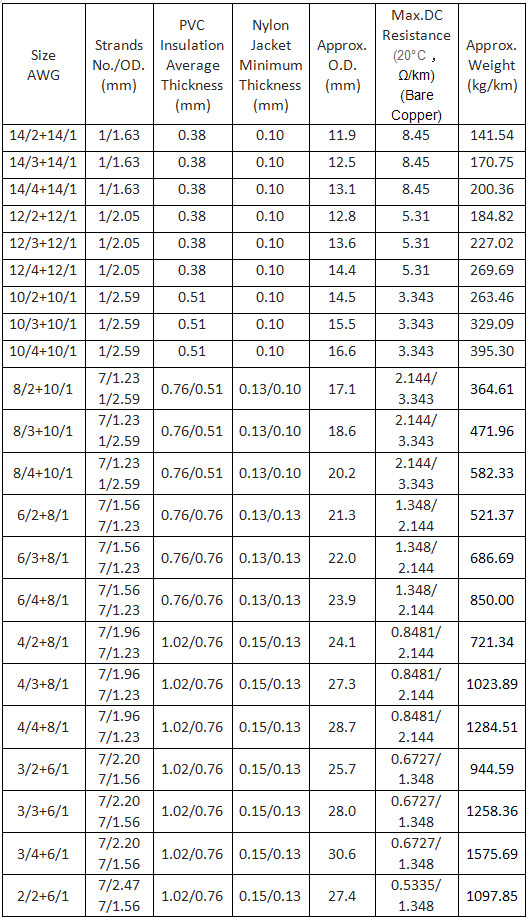

MC type cabledata 2

 Packaging Information: coil or reel

—— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— ——

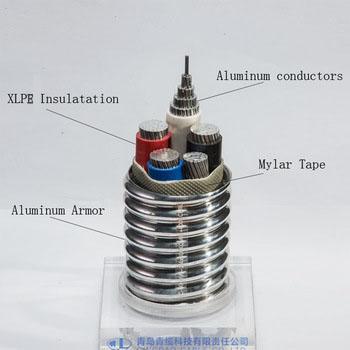

Type MC_Aluminum Conductor

6AWG Insulated XHHW-2 Singles Through 1000kcmil Aluminum Cross-Linked Polyethylene XLPE Insulation. UL Listed. 600 volts. Rated VW-1. Lightweight aluminum interlocking armor. PVC jacket

scope

This specification covers lightweight aluminum interlocking armored MC cables using compact 8000 series aluminum alloy conductors, cross-linked polyethylene XLPE insulation, XHHW-2 single-strand, compliant with Underwriters Laboratories Standard 1569, UL File No. E313205.

application

Type MC cables are suitable for branch, feeder and service distribution at high ambient temperatures in commercial, industrial, institutional, casino and multi-residential buildings; for power, lighting, control and signal circuits; in concealed or exposed installations; per NEC 300.22 In ambient air handling spaces; in NEC 518.4 compliant meeting places and NEC 520.5 compliant theaters; in aerial applications connected to couriers; for installation in cable trays and approved raceways; per NEC 645.5(D) and 645.5(D)(2), Under raised floors of IT equipment; Class I Div 2, Class II Div 2, Class III Div 1 Hazardous Locations.

conductor: Compact 8000 Series Aluminum Alloy Wire

Size: 6AWG-1000kcmil.

insulation: Color-coded XLPE Xpolyvinyl alcoholinsulation. Cable ground is bare or has green insulation.thickness: According to UL44.

Color coding:

wiring:Three or more conductors are assembled without filler and wrapped with polyester tape. Insert the marker tape under the binder band.

armor:Aluminum interlocking armor is applied to the components.

jacket: Integral black polyvinyl chloride PVC jacket for heat, moisture and sun protection.

Informationmarker tape or jacket: Arbitrary Waveform Generatoror kcmilsize,conductortype letters, rated voltage, manufacturer's name, UL file number, feature,Production Date,foot.

—— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— ——

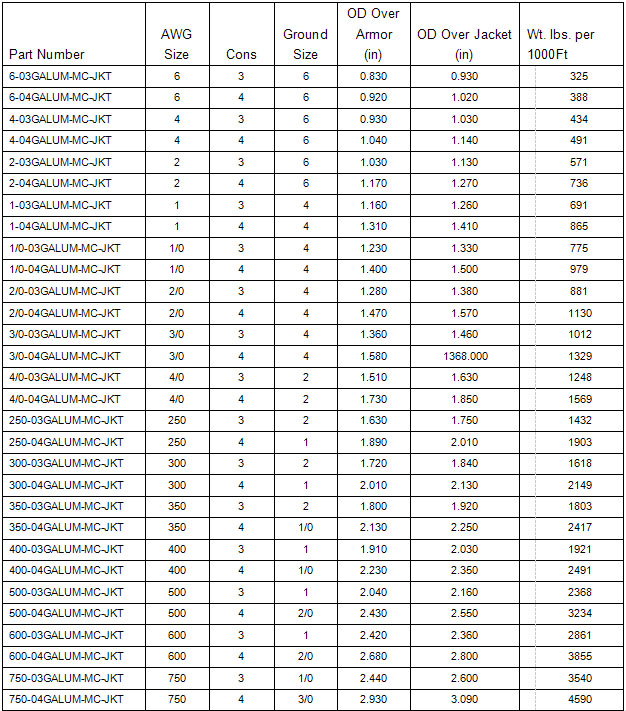

type Aluminum conductor–set MCcabledata

Packaging Information: coil or reel
