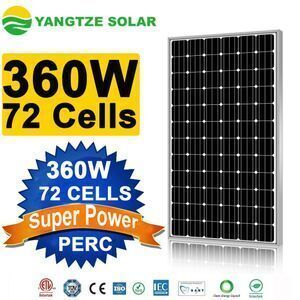

25 years warranty 360 watt solar panel

Click here to contact

Product details

Size:	1956x990x40mm;	Solar cell:	Mono 156mm*156mm;
Packaging Detail:	carton box and wooden pallet , 1pc /2pcs per carton , 25pcs/26pcs per pallet;	Model Number:	YS360M-72;
OEM Order:	Acceptable;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Frame:	Anodized Aluminium Alloy;	Connector:	MC4 Compatible Connector;
Application:	Solar System;	Port:	Shanghai or Ningbo;
Backing Color:	White or Black or Transparent;	Brand Name:	Yangtze Solar;
Frame color:	Silvery or Black;	Front cover:	3.2mm High Transmission Low Iron Tempered Glass;
Place of Origin:	Jiangsu China;	Certificate:	TUV/IEC61215/IEC61730/UL/CE/PID/ISO;
Type:	Standard Solar Panel;	Supply Ability:	20000 Unit/Units per Week;
Junction Box:	IP67 Waterproof;

Product Description

Model	YS300M-72	YS305M-72	YS310M-72	YS320M-72	YS330M-72	YS350M-72	YS360M-72
Rated Maximum Power at STC	300W	305W	310W	320W	330W	350W	360W
Maximum Power Voltage (Vmp)	36.2V	36.4V	36.8V	37.4V	37.8V	38.3V	38.8V
Maximum Power Current (Imp)	8.29A	8.38A	8.42A	8.56A	8.73A	8.87A	9.09A
Open Circuit Voltage ( Voc)	45.2V	45.5V	45.9V	46.4V	46.9V	47.5V	47.9V
Short Circuit Current (Isc)	8.77A	8.81A	8.85A	9.05A	9.22A	9.35A	9.49A
Module Efficiency	15.54%	15.79%	16.05%	16.57%	17.01%	18.07%	18.6%
Power Tolerance	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5
Mechanical Parameters
Cell Type		Mono-crystalline 156x156mm (6inch)
No. of Cells		72 (6x12)
Dimension		1956x990x40/45/50mm
Glass		3.2mm, High Transmission, Low Iron, Tempered Glass
Junction Box		IP65&IP67 Rated
Output Cable		Section Size: 4mm² , Length: 900mm
Frame		Anodized Aluminum Alloy
No. of Bypass Diodes		3&6
Connector		MC4 Compatible
Working Conditions
Maximum System Voltage		DC 1000V(IEC) / 1500V(IEC) / 600V(UL)
Operating Temperature		-40°c~+85°c
Maximum Series Fuse		15A
NOCT		45±2°c
Application Class		Class A
Temperature Coefficient
Temperature Coefficient of Pmax		-0.40%/°c
Temperature Coefficient of Voc		-0.30%/°c
Temperature Coefficient of Isc		+0.05%/°c
