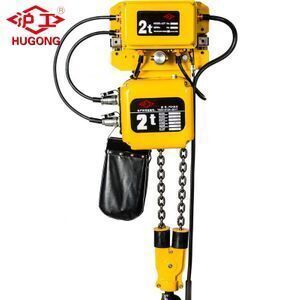

5 ton 2 phase Electric Chain Hoist with Trolley

Product details
After-sales Service Provided:Video technical support;Electric Chain Hoist Over Load Limit:Available;
Applicable Industries:Building Material Shops,Manufacturing Plant;Rated Loading Capacity:5TON;
Electric Chain Hoist Double Speed:Available;Application:Construction;
Span:0-80m;Packaging Detail:Low Headroom Electric Chain Hoist with Trolley for 3 ton packaging: carton, plywood, pallet;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Place of Origin:Shanghai China;
After-sales Service Provided:Engineers available to service machinery overseas;Condition:New;
Electric Chain Hoist Hook:Heat treated;Supply Ability:5000 Set/Sets per Month;
Warranty:1 Year;Hoist Type:Electric Chain Hoist;
Electric Chain Hoist Brake System:electromagnetic brake;Electric Chain Hoist Single Speed:Yes;
Rated Lifting Moment:630KN.m;Feature:Tower Crane;
Port:Shanghai;Certification:CE ISO;
Electric Chain Hoist Chain:FEC or Made in China;Brand Name:HUGO;
Electric Chain Hoist Chain Bag:Yes;Electric Chain Hoist Low Headroom:Available;
Max. Lifting Height:12M;

5 ton 2 phase Electric Chain Hoist with Trolley

Product Description

PDH Model Construction Used Electric Chain Hoist

Using the most advanced square air connector

More beautiful
More waterproof and refractory
Can be suit for the terrible environment and condition.

Using aluminum body
All aluminum made the hoist more light, appearance is more beautiful.
Improve the anti-corrosion property and heat dispersion.
Super rigid made it dust proof, waterproof, can be suit for the using environment and condition.

High safely and reliability

The machine set limited protection device, to avoid overloading caused harmful consequences;Motor thermal protection device, it can protect the motor;The upper and lower limit device, when the hook up or down to extremely limit, the opportunity to automatically cut off power supply, hook immediately stop action

Strong import load chain

Used in Japanese FEC chain and made it strong of the antifatigue and antifraying

It have the emergence stop button of lose voltage protection.

Press the emergency stop button, it can immediately cut off the motor circuits
Button controller adopts ergonomic design, easy to operate and comfortable
Operating voltage is 24 v, more safty.



 Parameters of PDH Electric Chain Block
ModelPDH-A-0.5PDH-A-1PDH-A-2PDH-A-2.5PDH-A-3PDH-A-5
Capacity (t)0.5122.535
Standard lifting height (m)3
Lifting Speed  (m/min)7.25.83.05.05.02.6
Lifting  Motor Power (kw)88147105
Volt (V)
Frequency (Hz)50
Chain Turns 112112
Chain specification (mm)Ø 6.3×19Ø8×24Ø8×24Ø11.2×34Ø11.2×34Ø11.2×34
Test load (t)0.6251.252.53.1253.756.25
Net Weight (kw)414553108110130
Weight added with 1m higher  (kg)1.11.42.82.82.85.6

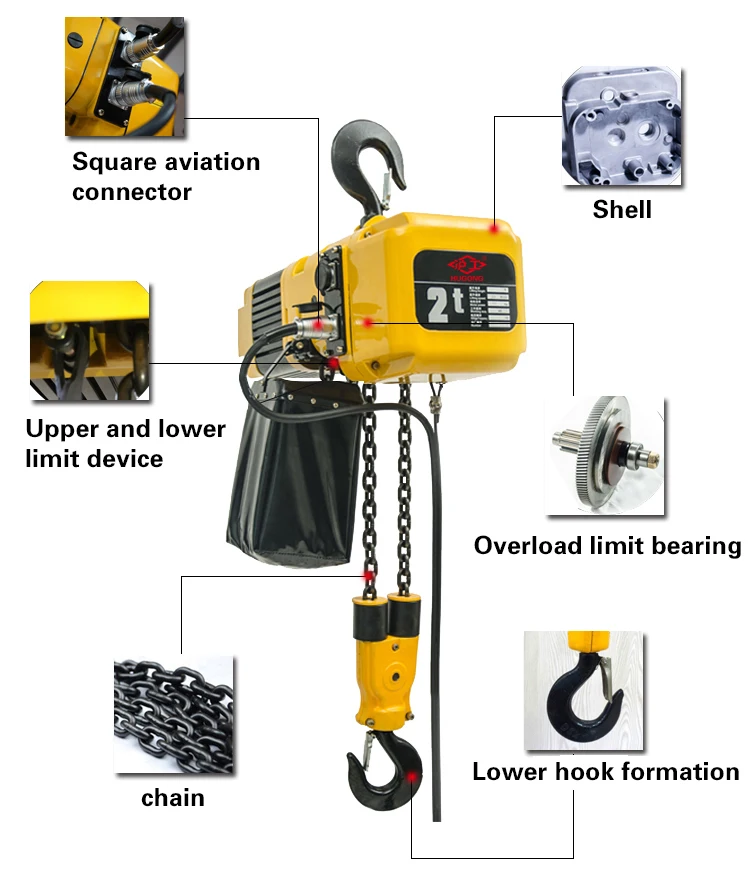

  PDH Model Construction Used Electric Chain Hoist

1. Electric motor partial outer cover:They are made of high strength aluminum system through compression casting formation.

Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.

2. Side kind braking:This masterly structure ensure the hoist absolutly safty when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear:The gear made of alloy steel and through the heat treatment
4. Antiphase protector:When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks:They are made by hot forging and heat treatment.
6. Chain:It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M5 /FEM: 2AM   Insulation grade: F
8. Protection class (hosit and push button): IP55
9. Powder supply: 3 phase, 200-600v, 50HZ

 Detailed Pictures of PDH Electric Chain Hoist



Packaging & Shipping




Why choose us

BRAND ADVANTAGE

1. 50 years brand history; (Trademark registration number; 1975110)

2. TOP5 lifting equipment supplier in China;

3. One of the first batch of enterprises certified by Alibaba;

4. Brand customers: CNPC, China Railway Group and so on



TECHNOLOGY ADVANTAGES

1. Focuse on the production and R&D of lifting equipment for about 30 years;

2. Professional independent research and development team, recognized by domestic and foreign customers.

3. Company was honored by the givernment as a High-Tech enterprise in 2010



Service Advantage

1. 7D*24H after-sales service,

2. More than 100 professional service staff.



The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc.



Company Information

Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products.

1. Annual production in 5 million units production area 3600 square meters;

2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.

3. 120 production lines;

4. More than 500 employees;

5. Annual export value over 50 million RMB.





Certifications

RIGOROUS QUALITY CONTROL

1. Certificate:CE,SGS,ISO:9001,BV

2. The third-party inspection for quality testing is accepted

3. Product qualification rate more than 98%

4. In accordance with the requirements of Environmental Protection Administration,

    the quality and delivery can be guaranteed



Our Services

1. Perfect maintenance service and maintenance consultation system to provide high quality experience for customers at home and abroad; whole year warranty.

2. Small order can be accepted, MOQ 1PCS.

3. Quality assurance agreement provided.

4. 7D*24H after-sales service.

5. More than 100 professional service staff.

6. Video tutorials, maintenance, technical consultants, installation guidance are offered.



FAQ

1.Is your product customized?

Thanks for your question. Yes, because the working condition are different, all our products are customized dependingon detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!



2. What’s the information should I provide when inquiry?

Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.



3. How many operating methods for my selection?

Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!



4.The space of my workshop is limited, can the crane ok for mine?

Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.



5. What’s the information should I provide when inquiry?

     a. What's the lifting material?

     b. How much is the maximum lifting weight of the hoist?
     c. Have you installed the rails? Do you need us supply the rails? How long is it?
     d. Where are the working environment?
