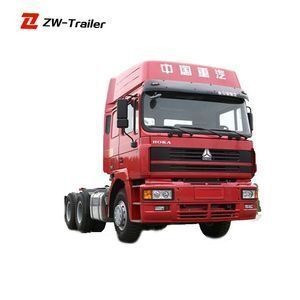

6*4 Truck Head High Quality Sinotruk Howo Tractor Truck Low Price Sale

Supplier: Shandong Zf Truck Trailer Manufacture Co., Ltd.
Region: Shandong, China
Contact: Mr ivan sun
Price: $32000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Emission Standard:	Euro 2;	Emission:	Euro 2;
Brand Name:	Sinotruck;	Brand:	SIONTRUK;
Cabin:	HW76 Comfortable Cabin;	Condition:	New;
Drive Wheel:	6x4;	Gross Vehicle Weight:	8800 kg;
Certifications:	ISO CCC GCC CE;	Port:	Any Port In China;
Tire:	12.00R20;	Payment Terms:	L/C,T/T;
Engine Capacity:	4 - 6L;	Horsepower:	351 - 450hp;
Packaging Detail:	Nude;	Color:	Customer's Requirement;
Engine:	D12.42;	Product name:	Sinotruk Howo Tractor Truck Low Price Sale;
Transmission:	HW19710;	Transmission Type:	Manual;
Driving type:	6*4 Left Hand Driving;	Supply Ability:	200 Set/Sets per Month Sinotruk Howo Tractor Truck Low Price Sale;
Fuel Type:	Diesel;	Size:	6800x2496x3800;

6*4 Truck Head High Quality Sinotruk Howo Tractor Truck Low Price Sale

Product Description

Tractor description:1.double reed buffer traction mechanism, the vehicle starts or brakes have a buffer to avoid cargo damage. 2.the steering mechanism for the Shanghai machine rotary assembly (excavator hook arm swing assembly) do not have to worry about ten years of damage. 3.Cage up and down adjustable fixed, different tonnage of the traction head or forklift towing can be simply adjusted to. 4.floating frame, with the traditional hard-welding (welding) compared to reduce long-term stress damage body, longer life .

Trailer Parameters

VEHICLE SPECIFICATION		DESCRIPTION
Truck Model		ZZ4257S3247
Type of Vehicle		TRACTOR TRUCK
Truck Brand		SINOTRUK—HOWO
Driving Position		Left hand Driving
Fuel tanker capacity(L)		400
The Total Mass		50,000kg
Dead Weight		8800
Max speed(km/h)(km/h)		102
Color		Optional
Chassis & Add Components
Frame Details		High-Strength U-profile ladder frame with section of 300908mm and reinforced sudfram, all cold riveted cross members.
Dimension(Lx W xH)(unloaded)(mm)		6800x2496x3800
Approaching angle/Departure angle(°)		16/70
Overhang(front/rear) (mm)		1500/725
Wheel base (mm)	3225+1350
Engine
Model	WD615.69,WD615.49
Power	371hp/309kw.2000r/min 0r336hp
Emission	EURO II
Cylinder bore*stroke(mm)	126*155
Displacement(L)	11.596
Type	water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Kind of Fuel	Diesel
Fuel Consumption(L/100km)	30L/100km
Clutch & Gear Box System
Clutch	SINOTRUKΦ430mm diaphragm spring clutch
Gear Box	FULLER 12 speeds
Axles
Front Axle Model	HF7 axle. Capacity: 7000kg
Rear Axle	ST16 axle. Capacity:2X 16000kg
Ratio of rear axle	4.42
Electrical System
Battery	2X12V/165Ah
Alternator	28V-1500kw
Starter	7.5Kw/24V
Brake System
Service brake	Dual circuit compressed air brake
Parking brake	spring energy, compressed air operating on rear wheels
Auxiliary brake	Engine exhaust brake
Steering system
Model	8098
Type	hydraulic steering with power assistance
Wheels & Tyres
Type	12R22.5 Tubeless tires
Quantity	10+1 spare
Kin pin	50mm or 90mm
Cabin Type	HW76 Cabin,one sleeper with air conditioner

Our Services

1: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.

2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.

3: We are serious about after-sales service.
